Trying to configure PAgP with IPv6 but there is no needed command.

[gastrit]

I need configure PAgP and IPv6 on L3 switches, but I Can`t do this.

[luis_cordova]

Hi @gastrit

On L3 switches you must first encapsulate the interface and then leave it in trunk mode:

SW2(config-if)#switchport trunk encapsulation dot1q

SW2(config-if)#switchport mode trunk

If you have other questions, just post them to try to help you

Regards

[gastrit]

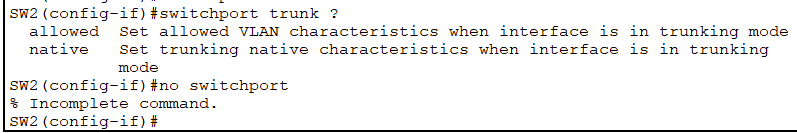

There is no such command as switchport trunk encapsulation dot1q

[luis_cordova]

HI @gastrit

Compress (winzip) and attach your exercise to check the settings you have entered.

Regards

[gastrit]

here you go. I really need to solve this problem. heeelp

[luis_cordova · Accepted solution]

Hi @gastrit

I've made these changes:
1-In SW2 change the interface that connects to your LAN, in this way, both switches have interface g1/0/1 towards their LAN.
2-Only g1/0/1 interfaces maintain IPv6 addressing.
3-You should remember that all interfaces that are members of a PortChannel must have the same configuration.
4-You should remember that when you enter the no switchport command, you disable the layer2 functions of that interface, including trunk mode.
An interface cannot be a routed port (no switchport) and at the same time be in trunk mode.
5-Once the PortChannel is created, the changes must be made on the PortChannel interface.

I attach the file with these fixes and with the PortChannel1 UP

Regards

[Jaderson Pessoa]

firstly configure trunk dot1q under interface. "switchport trunk encapsulation dot1q"

[gastrit]

There is no such command as switchport trunk encapsulation dot1q

[Jaderson Pessoa]

Change switch model on PACKET tracert or you can use other tools like: GNS3, EVE-NG, VIRL and so on :)
