Profile 55 dual monitor w/ c60 codec poor presentation resolution

[Golly12345]

    Hello Forum....

We have a client who has a dual screen profile 55 with c60 codec, the presentation source seems to be the only issue, need your assistance with the following:

Questions:

1- What vga baluns best work with cisco c60 codec's

2-What setting are best suited for resolution output from the laptop and codec settings

3-Does the Profile 55 dual monitor c60 codec have scaling built into the codec? and if so what setting im missing

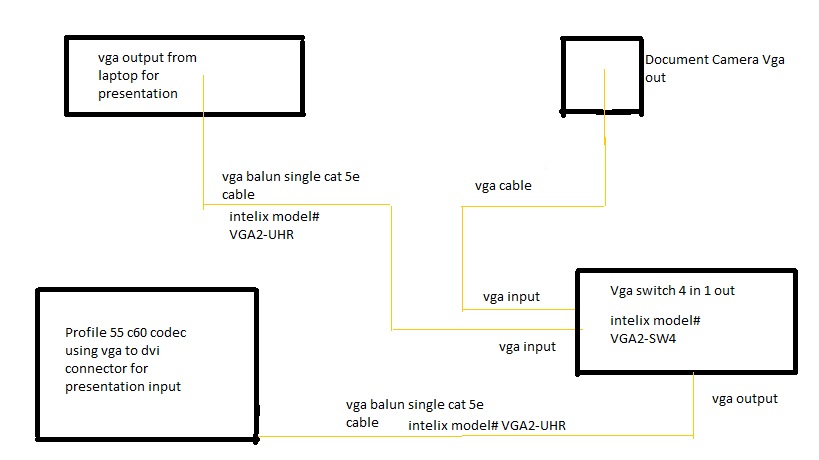

I have made a very quick connection diagram:

Thanks in advance

[Valentin Ichim]

You could check sharpness is set on pc input and not motion.
Also, you have a video ( main ) and PC ( dual ) percentage ratio ( default is 50% - 50% ).

Sent from Cisco Technical Support iPad App
