本ドキュメントは、Identity Services Engine(ISE)とActive Directory(AD)サーバーを用いて、ASAにおけるVPN認証(Cisco Secure Client)の設定例と動作確認方法について説明します。本ドキュメントは、Identity Services Engine Virtual 3.3 Patch 1、Adaptive Security Virtual Appliance 9.20(2)21、Adaptive Security Device Manager 7.20(2)、Cisco Secure Client 5.1.3.62にて確認、作成をしております。
以下はASAでの最小限の設定です。
webvpn
enable outside
anyconnect image disk0:/cisco-secure-client-win-5.1.3.62-webdeploy-k9.pkg 1
anyconnect enable
tunnel-group-list enable
aaa-server radius-grp protocol radius
aaa-server radius-grp (inside) host 1.x.x.191
timeout 5
key cisco123
ip local pool vpn-ssl-pool 172.16.1.50-172.16.1.60 mask 255.255.255.0
group-policy VPN-Grp-Policy internal
group-policy VPN-Grp-Policy attributes
dns-server value 1.x.x.57
vpn-tunnel-protocol ssl-client
webvpn
tunnel-group VPN-Tunnel-Group type remote-access
tunnel-group VPN-Tunnel-Group general-attributes
address-pool vpn-ssl-pool
authentication-server-group radius-grp
default-group-policy VPN-Grp-Policy
tunnel-group VPN-Tunnel-Group webvpn-attributes
group-alias VPN-Tunnel-Group enable
VPN コネクション用のプロファイルを追加します。「Configuration > Remote Access VPN >Network (Client) Access > Secure Client Profile」に移動し、「Add」ボタンをクリックしてVPN プロファイルを追加します。
追加したVPN プロファイルを編集し、「Server List」に移動し、「Add」ボタンをクリックしてServer Listを追加します。

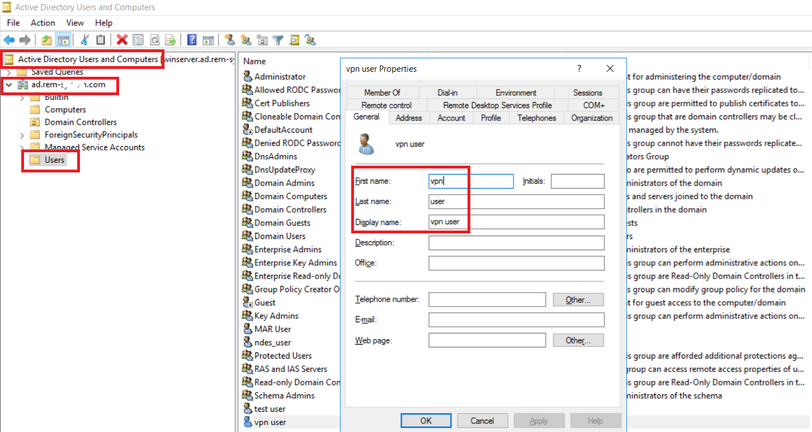

VPN認証用のユーザーを追加します。「Active Directory Users and Computers > Users」に移動し、vpnuser をドメインユーザーとして追加します。
追加したドメインユーザー(vpnuser)を「Domain Admins」と「Domain Users」のメンバーに追加します。
「Administration > Network Devices」に移動し、「Add」ボタンをクリックしてASAvデバイスを追加します。
「Administration > External Identity Sources > Active Directory」に移動し、「Connection」タブでActive Directoryを追加します。
「Groups」タブでドロップダウンリストから「Select Groups From Directory」を選択します。
「Retrieve Groups」をクリックしてから、ad.rem-xxx.com/Users/Domain Computers と ad.rem-xxx.com/Users/Domain Users をチェックして、「OK」をクリックします。
「Administration > Identity Source Sequences」に移動し、Identity Source Sequenceを追加します。
「Policy > Policy Sets」に移動し、「+」をクリックし、policy setを追加します。
「Policy > Policy Sets」に移動し、「VPN_Test」をクリックし、policy setに新しいauthentication policyを追加します。
「Policy > Policy Sets」に移動し、「VPN_Test」をクリックし、policy setに新しいauthorization policyを追加します。
エンドポイントでAnyconnect接続を実行し、ユーザー名とパスワードを入力します。VPN接続が成功したことを確認します。
「show vpn-sessiondb detail anyconnect」コマンドを実行して、VPN セッションを確認します。
ciscoasa# show vpn-sessiondb detail anyconnect
Session Type: AnyConnect Detailed
Username : vpnuser Index : 34
Assigned IP : 172.16.1.50 Public IP : 192.168.1.11
Protocol : AnyConnect-Parent SSL-Tunnel DTLS-Tunnel
License : AnyConnect Premium
Encryption : AnyConnect-Parent: (1)none SSL-Tunnel: (1)AES-GCM-256 DTLS-Tunnel: (1)AES-GCM-256
Hashing : AnyConnect-Parent: (1)none SSL-Tunnel: (1)SHA384 DTLS-Tunnel: (1)SHA384
Bytes Tx : 15178 Bytes Rx : 22281
Pkts Tx : 5 Pkts Rx : 86
Pkts Tx Drop : 0 Pkts Rx Drop : 0
Group Policy : VPN-Grp-Policy Tunnel Group : VPN-Tunnel-Group
Login Time : 06:43:08 UTC Thu May 30 2024
Duration : 0h:00m:18s
Inactivity : 0h:00m:00s
VLAN Mapping : N/A VLAN : none
Audt Sess ID : 01aa003d0002200066581ffc
Security Grp : none
AnyConnect-Parent Tunnels: 1
SSL-Tunnel Tunnels: 1
DTLS-Tunnel Tunnels: 1
AnyConnect-Parent:
Tunnel ID : 34.1
Public IP : 192.168.1.11
Encryption : none Hashing : none
TCP Src Port : 60955 TCP Dst Port : 443
Auth Mode : userPassword
Idle Time Out: 30 Minutes Idle TO Left : 29 Minutes
Client OS : win
Client OS Ver: 10.0.15063
Client Type : AnyConnect
Client Ver : Cisco AnyConnect VPN Agent for Windows 5.1.3.62
Bytes Tx : 7529 Bytes Rx : 0
Pkts Tx : 1 Pkts Rx : 0
Pkts Tx Drop : 0 Pkts Rx Drop : 0
SSL-Tunnel:
Tunnel ID : 34.2
Assigned IP : 172.16.1.50 Public IP : 192.168.1.11
Encryption : AES-GCM-256 Hashing : SHA384
Ciphersuite : TLS_AES_256_GCM_SHA384
Encapsulation: TLSv1.3 TCP Src Port : 60962
TCP Dst Port : 443 Auth Mode : userPassword
Idle Time Out: 30 Minutes Idle TO Left : 29 Minutes
Client OS : Windows
Client Type : SSL VPN Client
Client Ver : Cisco AnyConnect VPN Agent for Windows 5.1.3.62
Bytes Tx : 7529 Bytes Rx : 112
Pkts Tx : 1 Pkts Rx : 2
Pkts Tx Drop : 0 Pkts Rx Drop : 0
DTLS-Tunnel:
Tunnel ID : 34.3
Assigned IP : 172.16.1.50 Public IP : 192.168.1.11
Encryption : AES-GCM-256 Hashing : SHA384
Ciphersuite : ECDHE-ECDSA-AES256-GCM-SHA384
Encapsulation: DTLSv1.2 UDP Src Port : 62867
UDP Dst Port : 443 Auth Mode : userPassword
Idle Time Out: 30 Minutes Idle TO Left : 30 Minutes
Client OS : Windows
Client Type : DTLS VPN Client
Client Ver : Cisco AnyConnect VPN Agent for Windows 5.1.3.62
Bytes Tx : 120 Bytes Rx : 22384
Pkts Tx : 3 Pkts Rx : 85
Pkts Tx Drop : 0 Pkts Rx Drop : 0
ASAのシステムログで、AAAユーザー認証が成功したことを確認します。
May 30 2024 06:43:09: %ASA-6-113004: AAA user authentication Successful : server = 1.x.x.191 : user = vpnuser
May 30 2024 06:43:09: %ASA-6-113009: AAA retrieved default group policy (VPN-Grp-Policy) for user = vpnuser
ISE GUIの「Operations > RADIUS > Live Logs」に移動し、VPN認証のlive logを確認します。
VPN認証の詳細なログを確認します。
