B200 M4 can not boot from SAN

SIMMN
Spotlight

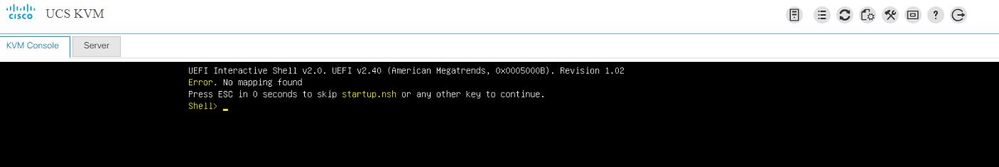

I have two new M4 (spare actually) installed in a chassis. The firmware has been auto updated to match the Chassis and FI (version 3.2(3g)). The SAN admin helped me create boot luns for the two blades and I finished installation of ESXi 6.0. However the issue is the blades can not boot up after the ESXi installation. KVM shows screenshots below.



The boot policy I have is legacy mode, not Uefi. The service profiles was generated from existing template and which is pretty much the same as another 8 blades in the other chassis managed by the same FI pair, Those blades are fine booting from SAN with ESXi 6.0.



1.JPG2.JPG3.JPG I tried to disable UEFI from boot options and then reboot, that did not change anything...





Please advise.



Please advise...

1 Accepted Solution

Accepted Solutions

SIMMN
Spotlight

Actually it is working now...SAN admin found a typo in the controller path when he created the boot lun...

View solution in original post

3 Replies 3

Niko Nikas
Cisco Employee
Cisco Employee

Hello,



Would it be possible to provide a screenshot of the boot policy for the servers?



Also if this generates any output, provide it as well.

connect adapter [chassis #]/[blade #]/1
connect
attach-fls
lunlist

--

Niko

SIMMN
Spotlight

Actually it is working now...SAN admin found a typo in the controller path when he created the boot lun...

Hello,



Glad to hear you got it working.

Thanks for reaching out!



--

Niko
