Hello Team,

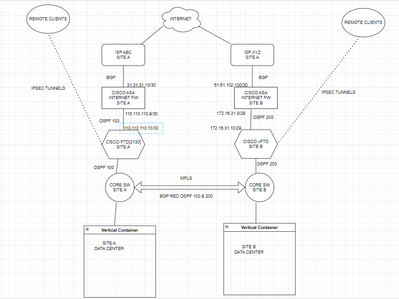

I have a topology as below;
Site A is the primary site, site B is the secondary site.
I have an afrinic IP of 110.110.110.0/24.
I use 110.110.110.10 as my local peer to ipsec vpn clients.
On ftds,on both sites i use the same afrinic IP; 110.110.110.0/24 to nat to some internal endpoints that remote clients consume,
eg. 110.110.110.100 natting to 192.168.40.150/32 ...
On site b cisco asa internet firewall i have natted my local vpn peer 110.110.110.10 > 172.16.31.10, such that the tunnels on site b use this IP as their outside interface, but clients know the natted public ip 110.110.110.10.
site A is straightforward as the IP on the ftd for the vpns is as is 110.110.110.10.
The objective is to failover traffic to site b and vice-versa incase of disaster and as well as part of BCP.
Configurations in place to do this is using bgp; on site b i have as-prepended my own AS number to make it less preferrable making it secondary to site A.
So during a DR drill test, i realized, when i make site A less preferrable by prending my own AS number, and removing the AS prepend on site B, yes SOME vpns come up on site B some still remain on site A.
What do you guys think am doing wrong, what would i be missing? What do i need to correct?
Your insights are much appreciated.
Thank you in advance.
