Vendor Class Identifier DHCP Option 43, Option 60 and option 241

[siskum]

Implementing DHCP Option 43 and Option 60 in external MS-DHCP Server using Vendor Class Identifier.

Challenge - How to find Cisco device Vendor Class Identifier

Procedure

Step 1

Implement DHCP Server in Windows Server (Ver. any)

Step 2

Install Wireshark Network Protocol Analyzer (Packet tracer) in the Windows Server machine where the DHCP server is running.

After installation select “Ethernet” connection and start packet capturing.

Step 3

Connect Cisco device (AP/ LWAP/ Switch/ Router). Configure to devices ethernet interfaces “ip address” should be obtained from DHCP server therefore ethernet interface should be configured as “ip address dhcp”

The connected device starts sending broad casting message packets with its MAC address to lease IP address from DHCP server.

Wireshark packet tracer already started and capture ethernet packets, it will show the connected MAC address send broadcast message to DHCP server. DHCP server captured the broadcast message and replied to the device.

If you select the first line of broadcast message of the device in Wireshark packet analyzer, you can easily identify Vendor Class Identifier in left side bottom part of the window.

 Wiershark AP3702 packet capturing

Implementing DHCP option 43 and 60

The generic vendor class identification option is 43. Each vendor has been given a unique vendor identification number in decimal. “241” is used for Cisco Management controller.  When it converts to hexadecimal “F1 or f1”.

Conversion decimal to hexadecimal:

241 ÷ 16 = 15 R 1 —> (0.0625 x 16) = 1 = 1

15 ÷ 16 = 0 R 15 —> (0.9375 x 16) = 15 = f

When it writes to hexadecimal writes to bottom to top as a “f 1”

Internal DHCP pool configuration

Internal DHCP pool in Cisco router or switch can use as follows:

ip dhcp pool VLAN20
  network 172.168.10.0 255.255.255.0
  default-router 172.168.10.1
  dns-server 83.68.72.2
  option 43 hex f104aca80a02 <=  04-indicates one controller/aca80a02-“controller ip:172.168.10.2 in hexadecimal”
  option 60 ascii “Cisco AP c3700”

External MS_Windows Server DHCP configuration.

Windows Server DHCP

Step 1

Open DHCP Server in Windows Server (Ver. any)

Expand the DHCP network scope under IPv4

Select on IPv4 and right click the mouse and chose “Define Vendor Classes”.

Define Vendor Class

Press “Add” button in DHCP Vendor Classes dialog box.

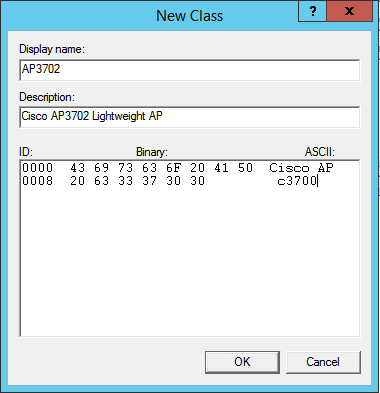

Type Device Display name and Description in "New Class" dialog box and Vendor Class Identifier under ASCII column as “Cisco AP c3700” (alternative method for DHCP option 60 in internal ip DHCP pool). Press "OK" button.

Select again IPv4 and right click the mouse and chose “Set Predefined Options”.

Select Option class  in "Predefined Options and Values" dialog box and choose already created device vendor class.

Click “Add” button in Predefined Options and Values dialog box.

Type Name as “WLC-4402” Wireless controller device, select Data type as “IP Address” and mark Array check box, Type Code as 241 (Management Controller) and Type the Description as Management Controller IP address allocation. Press “OK” button. This is an alternative method for DHCP option 43 in DHCP server and in internal DHCP pool in Cisco router or switch.

Then you will be back to the “Predefined Options and Values” dialog box. Press “Edit Array” button. “IP Address Array Editor” dialog box appears and can type number of controllers IP address if more than one WLC controller exist on your network in IP address space. Press “OK” button.



Step 3

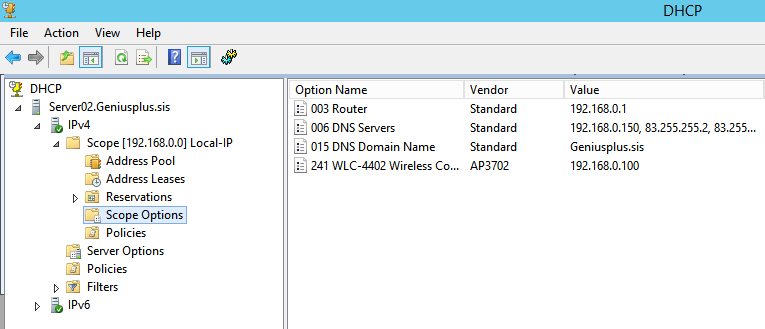

Select “Scope Options” under created network scope and right click on it, then click “Configure Options”.

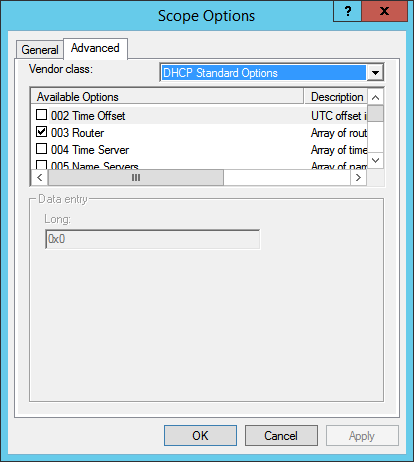

Choose “Advanced” tab in “Scope Options” and click “Vendor class” drop down box arrow. Chose created vendor class device ex. “AP 3702”. Then it will appear created DHCP option as 241 and mark it. Given Management Controller list of IPs addresses appears, you can add or remove or edit in here and press “OK” button.

It will be added to the network DHCP pool in server, and it will lease the IP to AP with Management Controller IP address.

AIR-CAP3702 console port connected to PC/Laptop USB port and using Cisco CLI analyzer or Putty can read IP status of both devices. (IPs in examples are not real. Above example IP address and below message IP addresses are two different VLANs IP addresses. Don't try to match IP's equality.)
