VG450 Mounting Bracket

[getdan]

Does anybody know the part number for the mounting brackets for a VG450, Cisco doesn't know and i can't find them anywhere online. Any help would be appreciated.

[Sadav Ansari]

Kindly check below link I hope it will provide all information.

https://content.cisco.com/chapter.sjs?uri=/searchable/chapter/content/en/us/td/docs/routers/access/vg450/hardware/installation/guide/b_Vg450_hig/b_Vg450_hig_chapter_010.html.xml

Pls rate if its “Helpful”. If this answered your question please click “Accept as Solution”.

[Nithin Eluvathingal]

Those comes with the box.

For 19 " use below.

ACS-4450-RM-19=

For 23" use below.

ACS-4460-RM-23=

[getdan]

Yeah they got misplaced, unfortunately these are not the correct one. I called Cisco and they couldn't even help me.

[Nithin Eluvathingal]

Asper the description On CCW. those are for 4k series rack mount. AFAIK VG450 is ISR 4k series.

[Henry Pinera]

Unfortunately, Cisco does not sell those parts standalone.  The parts that were designated as ACS-4450-RM-19= won't work as those correspond to the 4451 which is a 2U router.  The VG450 is based on the 4461 which is a 3U router.  I have searched vigorously and have not been able to find alternative rack mount ears. Please let me know if you have found an alternative.

[Andy Phillips]

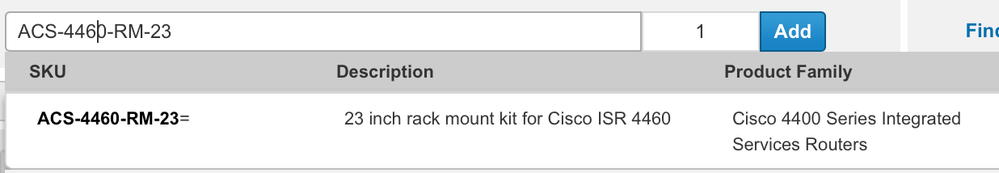

Just looking at this thread I was able to find the following and add them to a config in CCW:

• 19" - ACS-4460-RM-19=
• 23" - ACS-4460-RM-23=

I think that Nithan had just mistyped the 4450 rather than the 4460 which the VG450 is based upon.
