wccp in MLS cisco 7604

[Dr.X]

hi ,

i want to ask in wccp ,

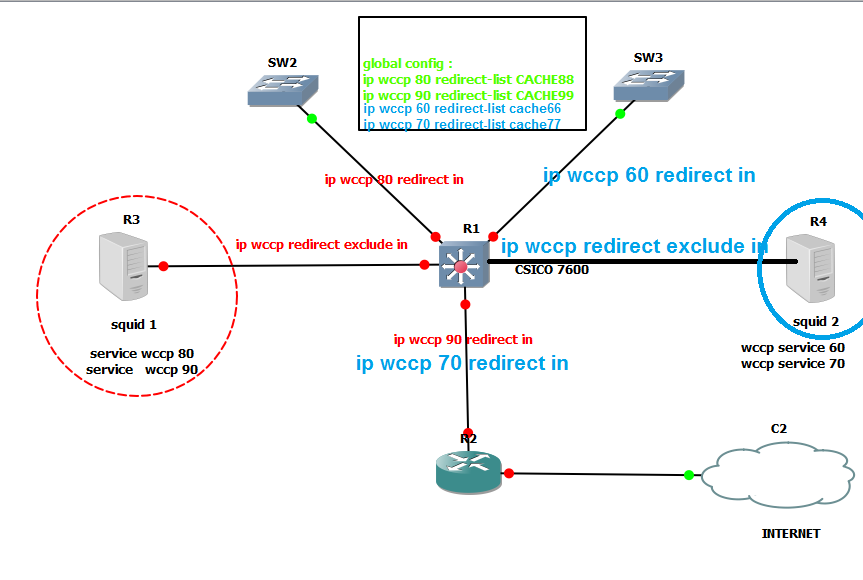

i have the topology below with config .

i have two squid servers on the same MLS cisco 7604 .

i want expert to have a look on the wccp config on the image below ,

is it correct or no ?

[Dr.X]

i want to say something ,

about the topoloplogy above ,

it works ,

but i note some degredation in one of the squid servers ,

dont know if i need to put another wccp config ,

wish to help

regards

[Dr.X]

here is wccp config from squid cache machines :

squid1

########### WCCP2 Config#############

wccp2_router x.x.x.x

wccp_version 2

wccp2_forwarding_method 2

wccp2_return_method 2

wccp2_assignment_method 2

wccp2_service dynamic 60

wccp2_service_info 60 protocol=tcp flags=src_ip_hash priority=240 ports=80

wccp2_service dynamic 70

wccp2_service_info 70 protocol=tcp flags=dst_ip_hash,ports_source priority=240 ports=80

=============================================================================

squid 2

########### WCCP2 Config#############

wccp2_router x.x.x.x

wccp_version 2

wccp2_forwarding_method 2

wccp2_return_method 2

wccp2_assignment_method 2

wccp2_service dynamic 80

wccp2_service_info 80 protocol=tcp flags=src_ip_hash priority=240 ports=80

wccp2_service dynamic 90

wccp2_service_info 90 protocol=tcp flags=dst_ip_hash,ports_source priority=240 ports=80

[gaursin2]

Hi

Configuration looks good, but can you please explaing what kind of degradation you are facing in your Squid.

[Dr.X]

hi  ,

ive solved the problem

the solution was in changing the assignment method  ,

the result was instead of using cpu of 100 %

=========>

the cpu utilization changed to 4 %

which mean the full operation worked in CEF not in software

i red alot of documents in MLS so that i solved it ,

also , another issue ,

its not recommended to use PBR  on the same interface of redirect .

im happy for that

thanks alot for ur interest .

with my best regards
