CUCM DB Replication Troubleshoot – Things to Verify

CUCM uses Informix as its database and its copy is spread across the nodes in a full mesh topology. Understanding the concepts and diagnosing the issue is a bit of a challenge. This document is an attempt to bring all the diagnostic commands, verification, and troubleshooting steps related to DB in one place.

Verifying DB replication from Admin CLI

Utils dbreplication runtimestate

Ping:

RTT between the servers. This value has be to within 80ms for the network to be in compliance as per SRND.

DB/RPC/DBMon

DB = A Cisco DB

RPC = A Cisco DB Replicator – Remote Procedure call for database service

DbMon = Cisco Database Layer Monitor

Make sure entries for the above parameters are in the “Y” state for all the nodes.

Replication Queue

The value represents the amount of data that is in the queue for a particular node, verify if any of the nodes is having an abnormal value compared to other nodes

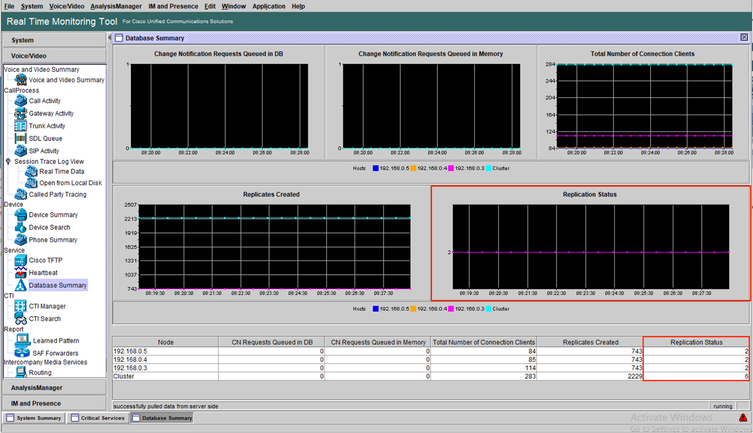

Verifying the replication status of the node using Perf Query Command

show perf query class "Number of Replicates Created and State of Replication"

The above command must be issued to all the subject nodes as it displays the result of one node at a time.

Verifying the process node entries are populated correctly

run sql select * from processnode

Running Diagnose test on the system

Utils diagnose test

Verifying the network configuration of the system

Show network eth0 all

Verify the DNS resolution for the subject hosts are working

Utils network host <FQDN/hostname>

Verify the cluster communication is in good shape

Show network cluster

Make sure the DB replication port is open and in listen state

Show open ports regexp 1515

Make sure the critical services are up and running

Utils service list

Database Replication Setup States

0	Initialization State	This state indicates that replication is in the process of trying to set up. Being in this state for a period longer than an hour could indicate a failure in setup.
1	Number of Replicates is not correct	This state is rarely seen in 6.x and 7.x but in 5. x can indicate it's still in the setup process. Being in this state for a period longer than an hour could indicate a failure in setup.
2	Replication is good	Logical connections have been established and tables match the other servers on the cluster.
3	Tables are suspect	Logical connections have been established but we are unsure if the tables match. In 6.x and 7.x all servers could show state 3 if one server is down in the cluster. This can happen because the other servers are unsure if there is an update to a user-facing feature that has not been passed from that sub to the other device in the cluster.
4	Setup Failed / Dropped	The server no longer has an active logical connection to receive database table across. No replication is occurring in this state.

Database Replication Stages

If you initiate the database replication rebuild command or if the system triggered an automatic reset, it will go through the below-mentioned stages to settle at setup completed.

1> Not Requested

2> waiting

3> Defining

4> Defined

5> Realizing

6> Syncing

7> Setup Completed
