MultiSite with Remote Leaf

ImranSyed14455
Beginner
Beginner

When having Multiple Remote leaf locations ? Does remote leaf at location 1 exchange COOP with Remote leaf 2 directly or is it still via Spine at main data center since its running MP-BGP VPNv4 RR.

1 REPLY 1

Sergiu.Daniluk
VIP Advisor VIP Advisor
VIP Advisor

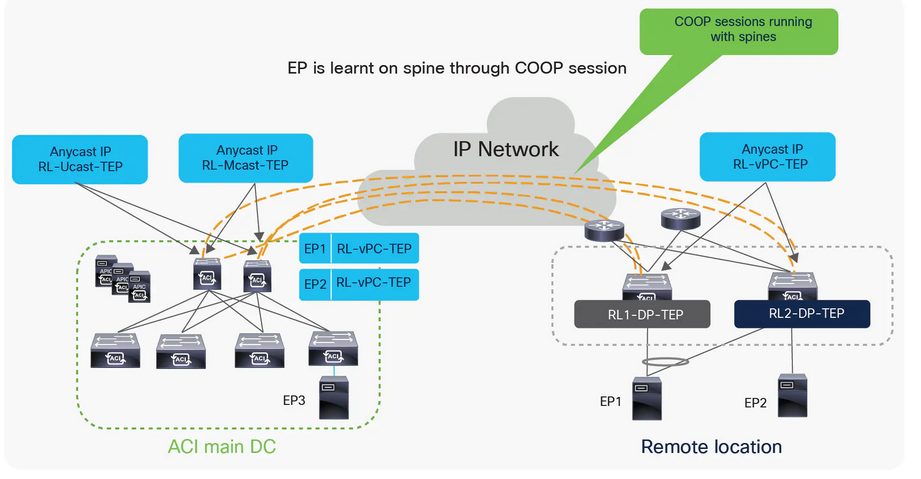

COOP sessions are only between RL and Spines, never directly between RLs, since the spines are the ones which maintain the COOP database. The following diagram (present in RL whitepaper) will be more descriptive:

Screenshot 2021-10-08 083052.png

However, if the RLs from the same location are configured in vPC, the switches will sync up the EP information using vPC control plane.



Stay safe,

Sergiu
