N5K Link not connected
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
10-27-2018 01:45 PM - edited 10-27-2018 03:07 PM
I have 3 spf-ge-t 1000base-t modules that don’t want to connect. I have one in eth1/1 and 1/13. Neither want to connect to a dl360 or another Cisco switch I have. I followed the guidance after looking up and set the speed to 1000. They are both still showing link not connected. The fiber connected instantly and I have no issues. I’ve tried shutting down and no shutting the ports with no luck. The distant ends (switch and server) both lights flap between green and no green. What can I be missing?
5020 version info
kickstart: version 5.2(1)N1(9a)
system: version 5.2(1)N1(9a)
Eth1/1 1 eth access down Link not connected 1000(D) --
Eth1/2 1 eth access down SFP not inserted 10G(D) --
Eth1/3 1 eth access down SFP not inserted 10G(D) --
Eth1/4 1 eth access down SFP not inserted 10G(D) --
Eth1/5 1 eth access down SFP not inserted 10G(D) --
Eth1/6 1 eth access down SFP not inserted 10G(D) --
Eth1/7 1 eth access down SFP not inserted 10G(D) --
Eth1/8 1 eth access down SFP not inserted 10G(D) --
Eth1/9 1 eth access down SFP not inserted 1000(D) --
Eth1/10 1 eth access down SFP not inserted 10G(D) --
Eth1/11 1 eth access down SFP not inserted 10G(D) --
Eth1/12 1 eth access down SFP not inserted 10G(D) --
Eth1/13 1 eth access down Link not connected 1000(D) --
cisco# sh int eth1/1 status
--------------------------------------------------------------------------------
Port Name Status Vlan Duplex Speed Type
--------------------------------------------------------------------------------
Eth1/1 -- notconnec 1 full 1000 SFP-1000BAS
- Labels:
-
Data Center Networking
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
10-27-2018 06:12 PM
This sfp should work on your box since version 4.0.1a
Can you run show interface transceiver to see if it's recognized?
Thanks
Francesco
PS: Please don't forget to rate and select as validated answer if this answered your question
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
10-27-2018 08:16 PM
I am on mobile atm, I’ve attached a screenshot of the results for you. It does see the interface
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
10-28-2018 06:45 PM
Thanks
Francesco
PS: Please don't forget to rate and select as validated answer if this answered your question
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
10-28-2018 07:14 PM
sh run
show run int eth1/1 as well did sh int eth1/1
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
10-28-2018 07:55 PM
- shutdown this interface
- do a default int e1/1
And configure it again like this:
Int e1/1
switchport
Swit mode acess
Switc access vlan 1
no shut
Thanks
Francesco
PS: Please don't forget to rate and select as validated answer if this answered your question
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
10-28-2018 08:52 PM

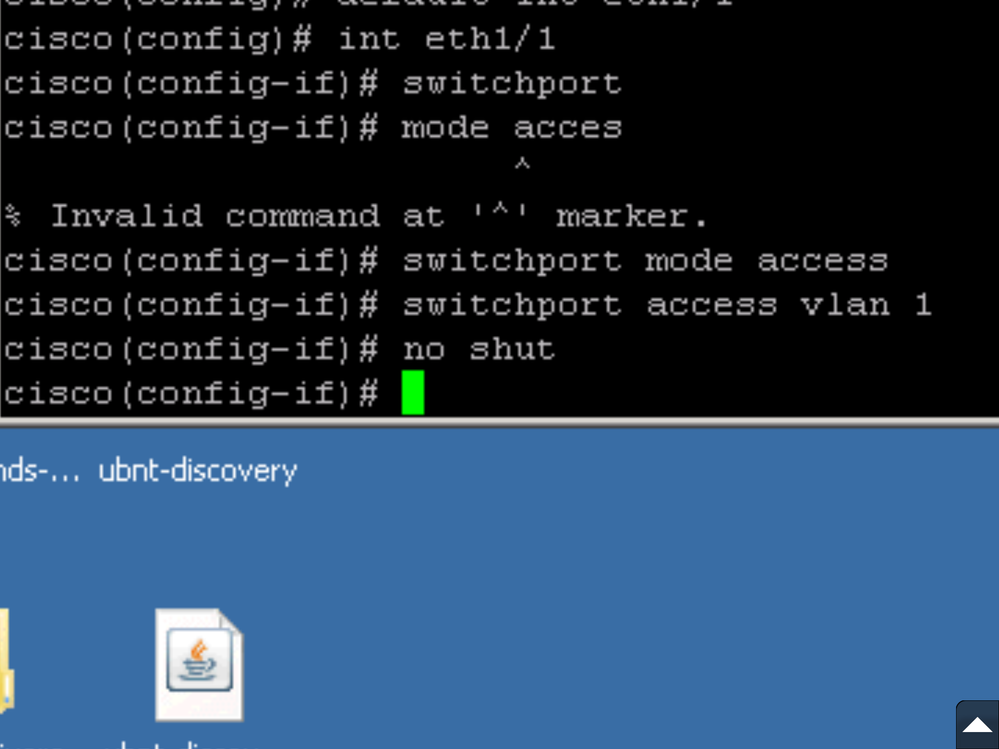

Sorry photos are out of order, but performed the command, getting the error in the sh int br now. Which I thought was where I needed to change the speed
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
10-28-2018 09:05 PM
Sorry you lost me.
What the actual output of sh int status? Do you still see sfp validation error?
And you said fiber is ok but when you connect both, you have the status not connected??
What's the relationship between fiber and this rj45 connection? Are they connected to the same remote device?
Thanks
Francesco
PS: Please don't forget to rate and select as validated answer if this answered your question
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
10-28-2018 09:10 PM
Francesco,
after I performed the commands you wanted, I got the spf validation error. The only way I have made that god away is setting the speed to 1000. But then even with the RJ 45 connection connected, I till get the Link not connected.
The fiber connections have no bearing on this, I was just simply stating that the 10Gb fiber is working correctly. An additional note. I tried a 1gb fiber this morning and the 1gb fiber worked. This seems to be solely an issue with the RJ45 / cat 5 transceivers
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
10-28-2018 09:14 PM
Have you tried another sft-t or did you try this one on another switch?
You validated the cable was ok?
Thanks
Francesco
PS: Please don't forget to rate and select as validated answer if this answered your question
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
10-28-2018 09:16 PM
I have 3 of the RJ45 transceivers. All 3 display the same symptoms. Cable was tested and works
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
10-28-2018 09:19 PM
Weird.
This cable connects to a host? Is it the only cable connecting to this remote device or do you have multiple links?
On this remote host, you should also see the link down right?
Thanks
Francesco
PS: Please don't forget to rate and select as validated answer if this answered your question
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
10-28-2018 09:26 PM
The cable coming off this transciever will not connect to anything. I've tried a managed switch, unmanaged switch, as well to my pfsense router, ESXi machine. It will not go green. both link lights on the remote computers will blink green almost at the same tiime. but will not go green
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
11-01-2018 06:52 PM
Have you tried enable the following command for the interface (just in case):
service unsupported-transceiver
Not sure it will help because the SFP is recognized. Maybe you would like to open a TAC case.
Thanks
Francesco
PS: Please don't forget to rate and select as validated answer if this answered your question
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
11-05-2018 06:05 PM
Ordered and finally got a different transceiver from a different supplier. The 3 that I had originally are not working. Soon as I plug the other one in, link went right up
