I refer to This post as ACI HArdware Lab Connectivity 01
Following the instructions in the last post kindly supplied by rsua I was expecting to find encapsulation vlan 20 (as per the Lab diagram) but I did not.
I have spent the day trying to reverse engineer the way the lab was intended to be setup but have not got very far.
Q1: Was it intended or is it possible to generate traffic between any hosts in the lab that would pass through the ACI fabric?
I want to create a configuration if possible so that if I run an extended ping say between 2 hosts that ping goes over the ACI fabric.
This would seem hard to do with the device ABC3-vl20 seemingly configured as a L2 switch with vlan20 on all ports.
Any answers/comments greatly appreciated.

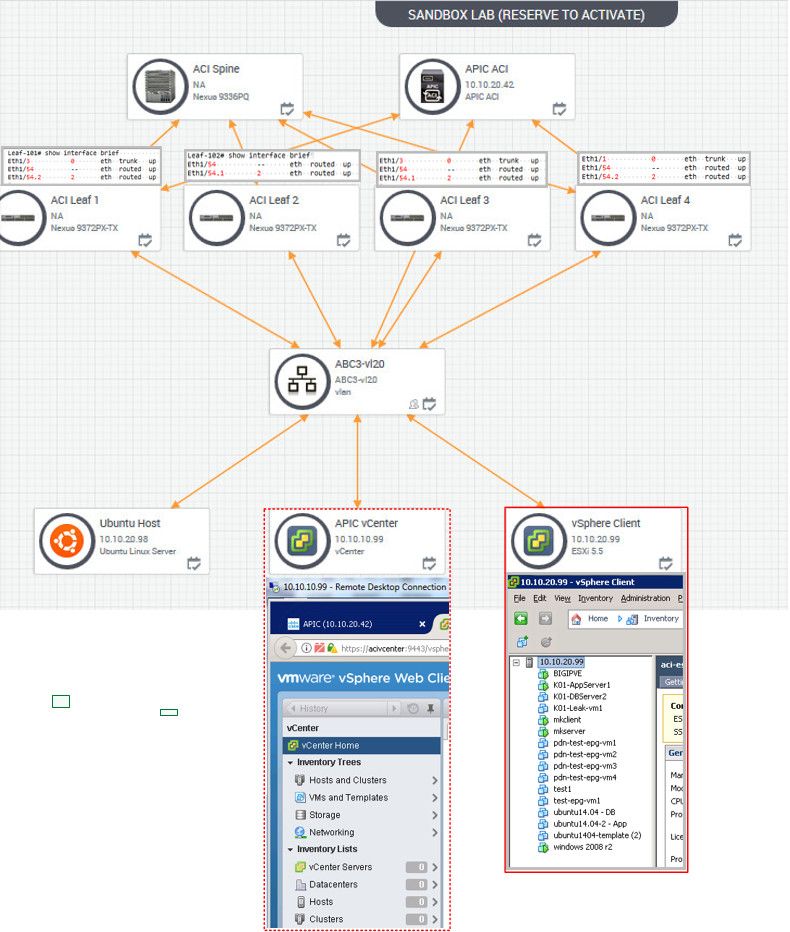

Below is how far I have got working out what connections are up (still need to work out which connections are which)
