Visualize Application Experience from Catalyst 9800 WLC in Cisco DNA Center

3173
Views
5
Helpful
0
Comments
prchandr
Cisco Employee

Use Case for Application Visibility and Experience

Customers can use the application health dashboard in Cisco DNAC for the following:

  • What apps are running in your network
  • What is the application experience for the users.
  • What the throughput of the applications.
  • Helps with figuring out if the issue is in the network or the application server side.
  • What clients are using what applications and the usage statistics.
  • Network admins can easily check a client and see what applications they are using and then figure out if any of the apps are having any network issues like packet loss jitter or latency.
  • What are the business relevant and irrelevant applications?



Configuring the 9800 WLC for Application Experience

There are 2 scenarios here:

  1. Customer is configuring the SSID using the Wireless automation features in Cisco DNAC.
  2. Customer has brownfield 9800 WLC where the SSIDs are already configured.

Scenario 1: Configuring Application Visibility when SSID is provisioned from Cisco DNA Center

Prerequisites:

  • •Cisco DNA Center 2.1.2.4•
  • •IOS-XE 16.12.1  or higher
  • •9800 Wireless Lan Controller
  • •Provision the 9800 WLC and AP’s from Cisco DNA Center

Tagging the WLAN profile with the keyword "LAN" (case insensitive)  is no longer required. All SSID's provisioned from Cisco DNAC will be automatically enabled for Application Visibility and Experience.

In case a customer wants to enable it only on certain SSIDs provisioned from Cisco DNAC and not on all the provisioned SSID's then they can tag the WLAN profile with the keyword "LAN" when provisioning it and only those tagged SSID's will be enabled for App visibility and experience.

WLAN's selection algorithm for Application TelemetryWLAN selection Algo for App Vis.png Provisioning WLAN/SSID from Cisco DNA Center

  Step 1: Set Cisco DNAC as NetFlow server

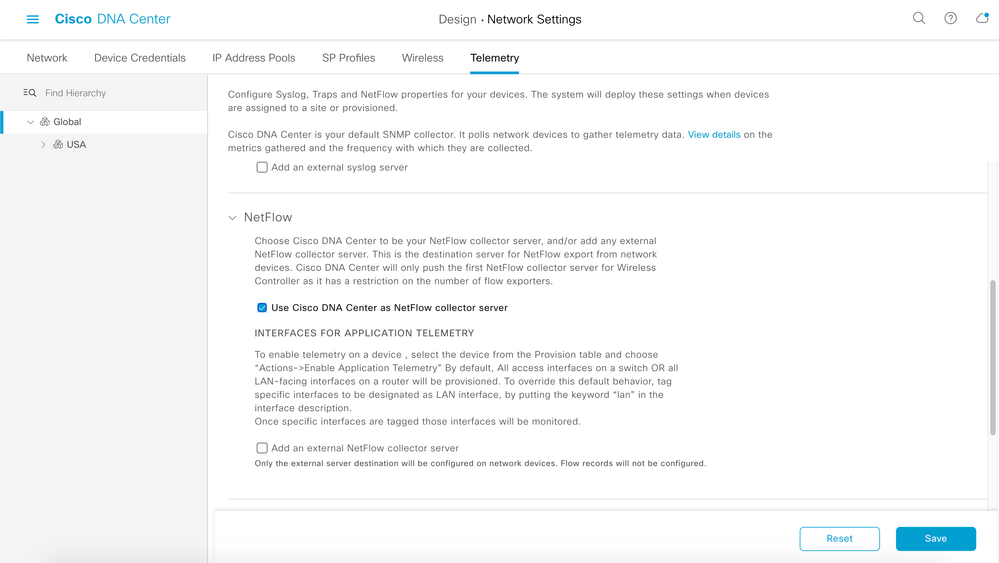

  Under Design--> Network Settings-->Telemetry set Cisco DNAC as NetFlow Collector. Click the Save button.

Set DNAC as Netflow server.png

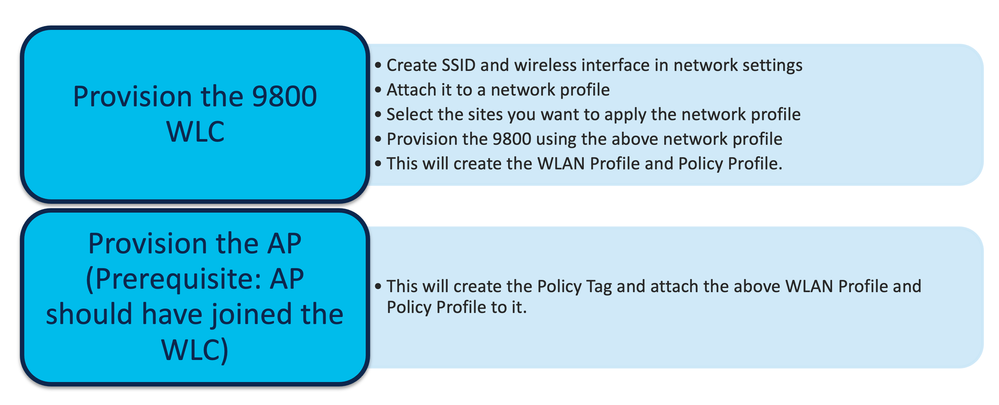

Step 2: Provision the 9800 WLC from Cisco DNA Center

Provison 9800 Steps.png

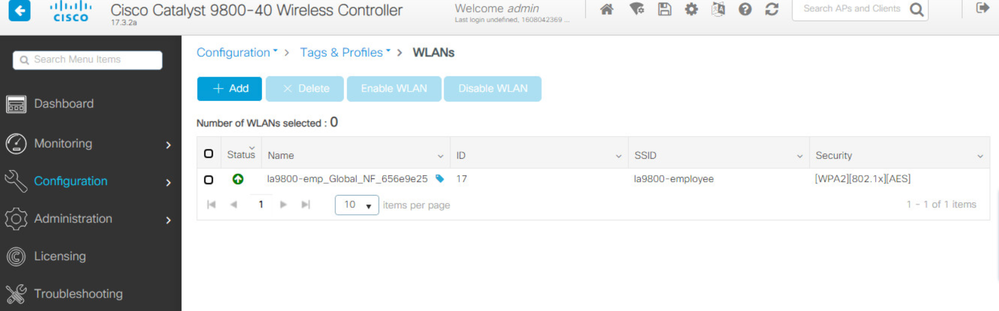

  WLAN Profile created in 9800 WLC after Provisioning 9800
   WLAN Profile by DNAC with SSID.png

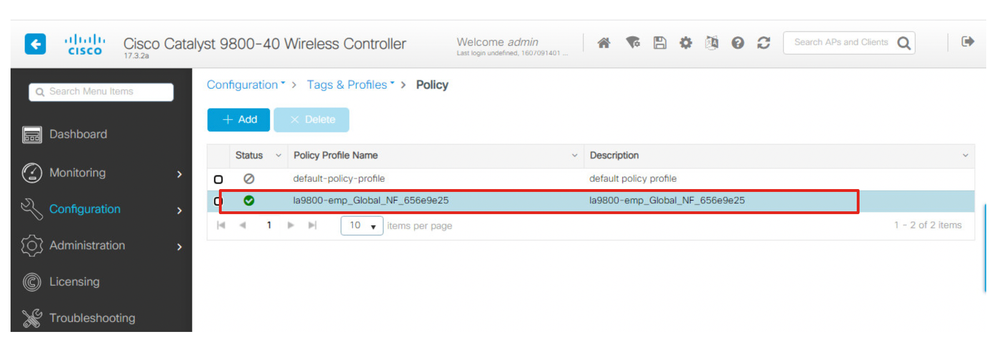

Policy Profile created in 9800 WLC after Provisioning 9800

POLICY PROFILE created After Provisioning.png

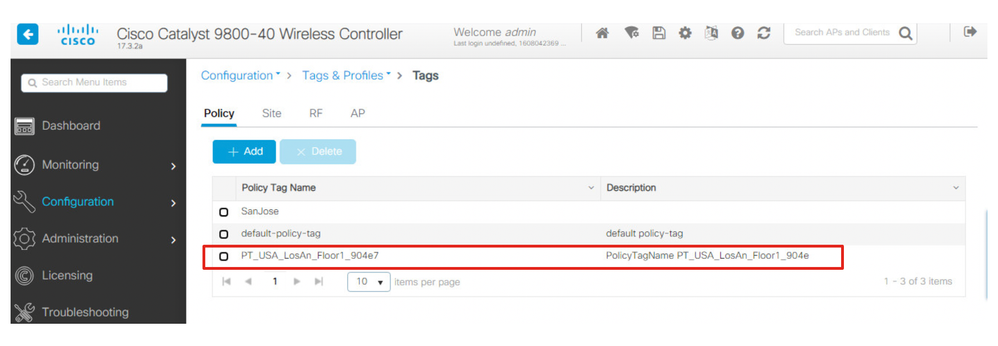

 Policy Tag created in 9800 WLC when Provisioning the AP(s).
POLICY TAG after PROV APs.png

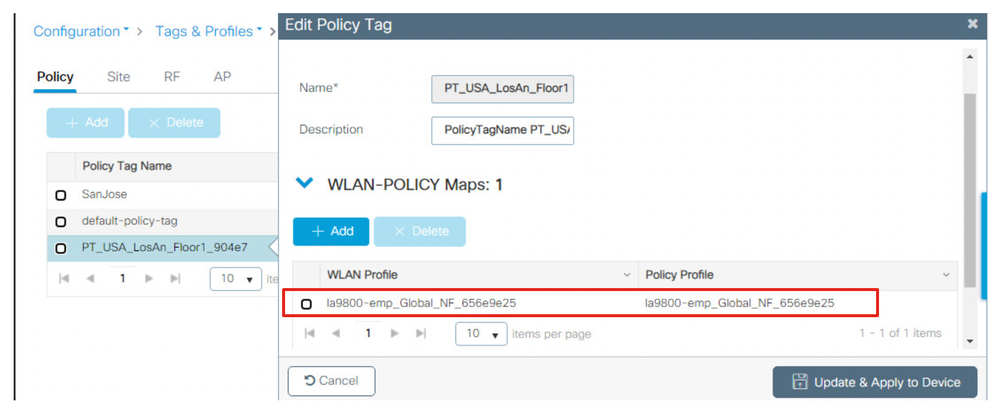

WLAN Profile and Policy Profile attached to the Policy TAG when Provisioning AP(s).

WLAN and Policy Profile attached to Policy TAG.png

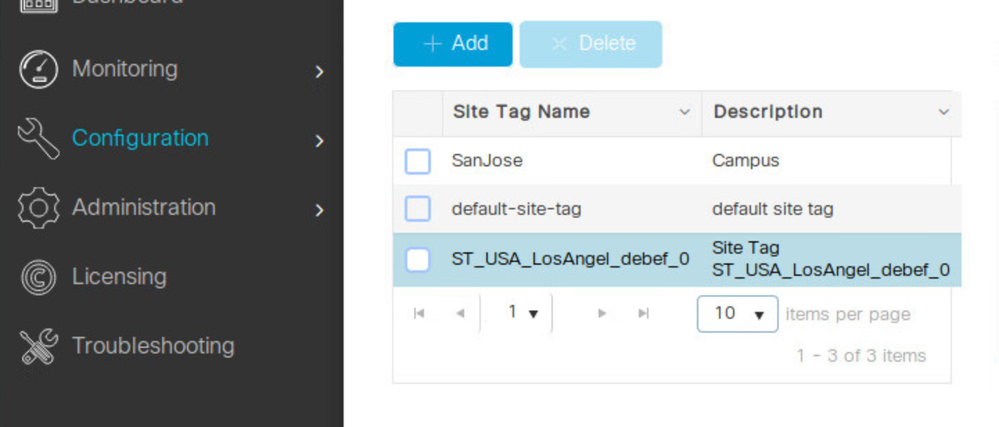

  The Site Tag is also created by the AP Provisioning.
SITE TAG by AP Prov.png

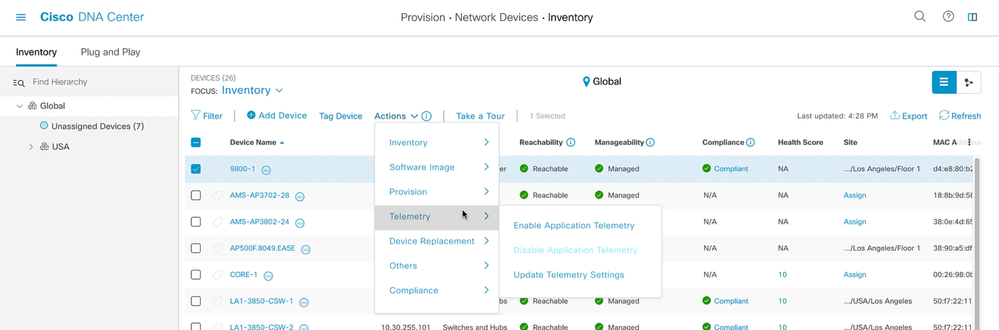

 Apply Application Telemetry to the 9800 from the Cisco DNA Center Inventory page.
ENABLE APP TELEMTRY ON 9800 after Prov.png

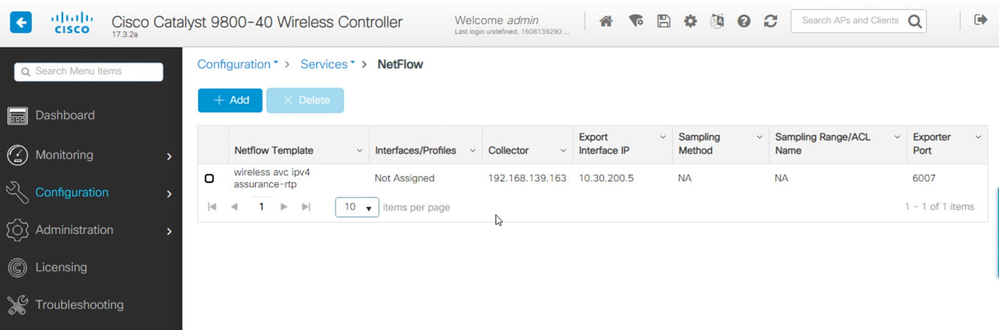

Verify that the NetFlow Server is now configured on the 9800 WLC and pointing to the Cisco DNA Center.

NetFlow Config on 9800 after Telemetry push.png

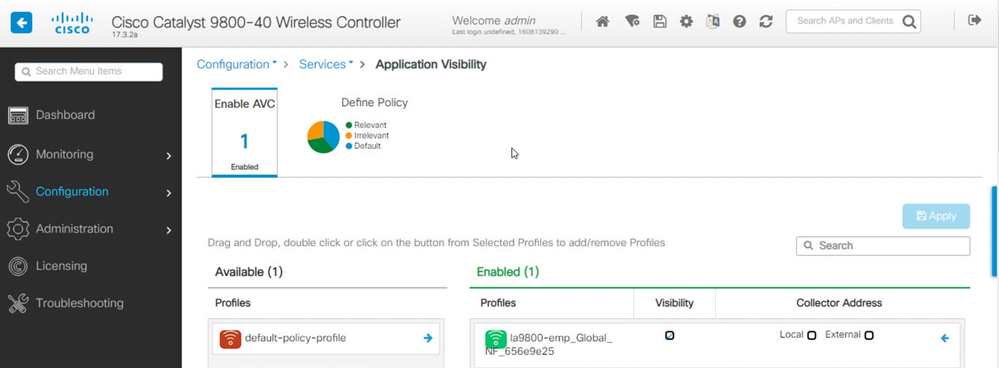

Verify that the Application Visibility is configured for the WLAN Profile.

App VIs configured for WLAN Profile in 9800.png

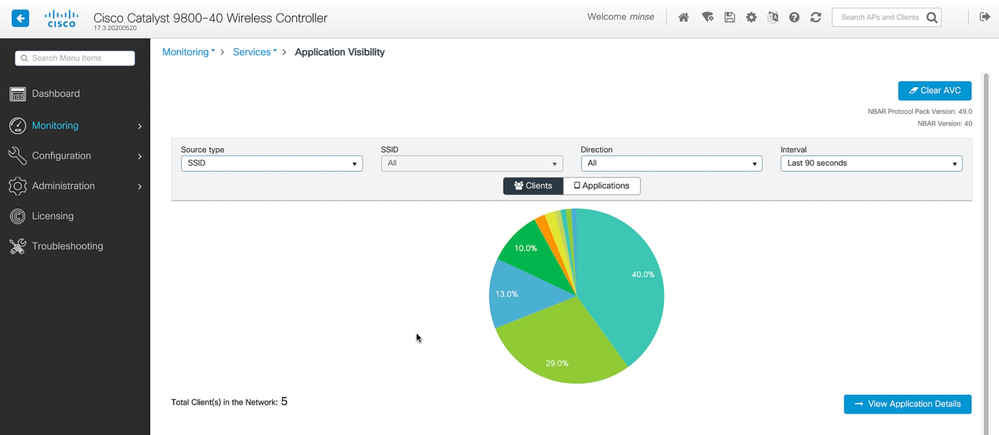

Verify that the Application Visibility monitoring is working on the 9800 WLC for the SSID.
Verify App VIs Data in 9800 WLC.png

Now let us verify that the Cisco DNAC is showing the Application Data from the 9800 WLC.

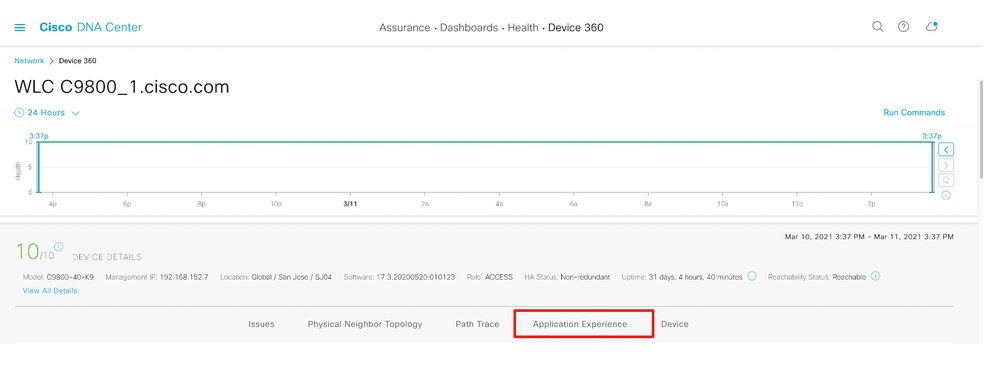

Navigate to the 9800 WLC 360 View in Cisco DNAC. Select the Application Experience tab as shown to go to that section in the 360 view.

9800 360 with Appex Highlighed.png

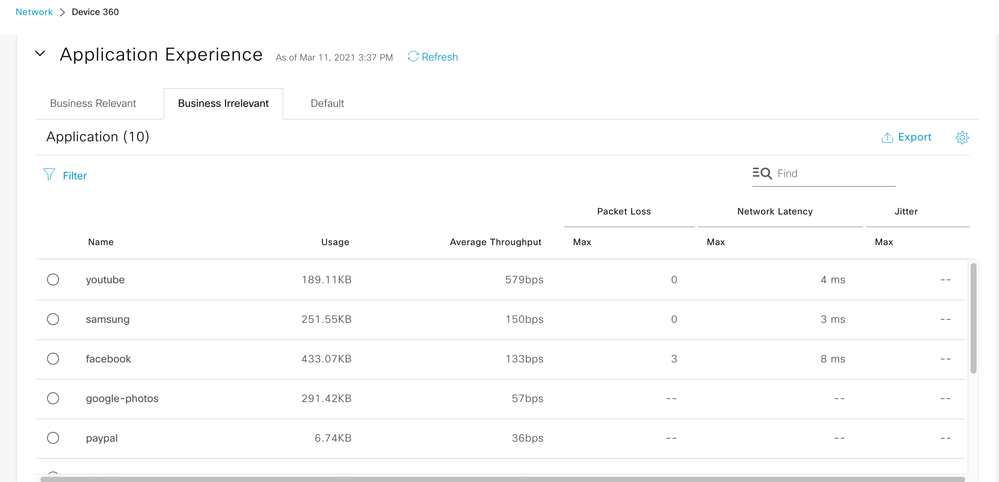

Here you can see that the application data from the 9800 WLC is being shown in Cisco DNA Center.

Notice that you can see the packet loss, jitter and latency for the applications as well in addition to the throughput of the  application where applicable.

Appex from 9800 with pkt loss eetc in DNAC.png

Scenario 2: Configuring Application Visibility on 9800 WLC to view in Cisco DNA Center in brownfield environment. (SSID/WLAN is already configured using 9800 UI).

This needs to configured using the CLI of the 9800 WLC.  The commands are below.

flow exporter avc_exporter
    destination <DNAC IP ADDRESS>
    source GigabitEthernet1
    transport udp 6007
    export-protocol ipfix
    option vrf-table timeout 300
    option ssid-table timeout 300
    option application-table timeout 300
    option application-attributes timeout 300

flow exporter avc_local_exporter
    destination local wlc

flow monitor avc_ipv4_assurance
    exporter avc_exporter
    exporter avc_local_exporter
    cache timeout active 60
    default cache entries
    record wireless avc ipv4 assurance

flow monitor avc_ipv4_assurance_rtp
    exporter avc_exporter
    cache timeout active 60
    default cache entries
    record wireless avc ipv4 assurance-rtp

wireless profile policy <wlan policy profile name>
    shutdown
    ipv4 flow monitor avc_ipv4_assurance input
    ipv4 flow monitor avc_ipv4_assurance output
    ipv4 flow monitor avc_ipv4_assurance_rtp input
    ipv4 flow monitor avc_ipv4_assurance_rtp output
    no shutdown

Once you configure the above commands in the CLI of the 9800 WLC you should be able to see the application visibility data in the DNA Center.
