GRE/IPSEC: NAT configuration ´route-map´ not available PT

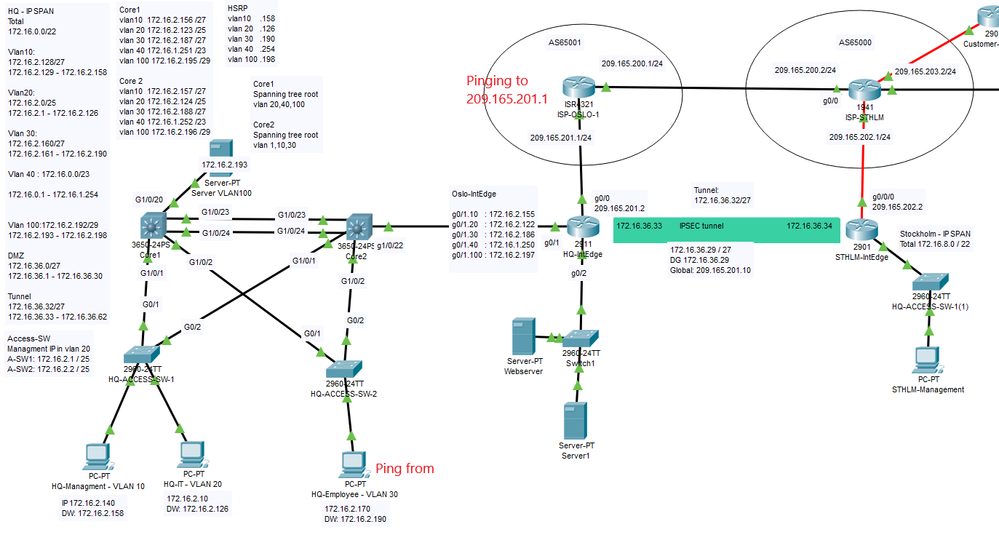

Hi, Could someone help me to understand where it goes wrong with my ping from Local Net to Public? The IPs are beeing transformed via NAT but it won't come back in so I guess there's an issue with my ACLs. I recently set up IPSec so did a few changes to my ACLs. From what I read it could be that I should use a ```route-map nonat``` but that command doesn't seem to exist in PT


!HQ-IntEdge
!
crypto isakmp policy 1
 encr aes
 authentication pre-share
 group 5
!
crypto isakmp key petter address 209.165.202.2
!
!
!
crypto ipsec transform-set HQ-STHLM esp-aes esp-sha-hmac
!
crypto map HQ-STHLM_MAP 10 ipsec-isakmp
 set peer 209.165.202.2
 set pfs group5
 set security-association lifetime seconds 900
 set transform-set HQ-STHLM
 match address 101
!
!
interface Tunnel0
 ip address 172.16.36.33 255.255.255.224
 mtu 1476
 tunnel source GigabitEthernet0/0
 tunnel destination 209.165.202.2
!
interface GigabitEthernet0/0
 ip address 209.165.201.2 255.255.255.0
 ip access-group INBOUND in
 ip nat outside
 duplex auto
 speed auto
 crypto map HQ-STHLM_MAP
!
ip nat inside source list NAT_ACL interface GigabitEthernet0/0 overload
ip nat inside source static 172.16.36.29 209.165.201.3
ip nat inside source static tcp 172.16.36.28 80 209.209.201.2 80
!
ip access-list extended INBOUND
 permit ip 172.16.8.0 0.0.3.255 172.16.0.0 0.0.3.255
 permit icmp host 209.165.202.2 host 209.165.201.2
 permit udp host 209.165.202.2 host 209.165.201.2 eq isakmp
 permit esp host 209.165.202.2 host 209.165.201.2
 permit ahp host 209.165.202.2 host 209.165.201.2
 deny ip any any
access-list 101 permit ip 172.16.0.0 0.0.3.255 172.16.8.0 0.0.3.255
access-list 101 permit ip any any
access-list 101 permit gre 172.16.0.0 0.0.3.255 172.16.8.0 0.0.3.255
ip access-list extended NAT_ACL
 deny ip 172.16.0.0 0.0.3.255 172.16.8.0 0.0.3.255
 permit ip 172.16.0.0 0.0.3.255 any
!



!STHLM-IntEdge
!
crypto isakmp policy 1
 encr aes
 authentication pre-share
 group 5
!
crypto isakmp key petter address 209.165.201.1
crypto isakmp key petter address 209.165.201.2
!
crypto ipsec transform-set HQ-STHLM esp-aes esp-sha-hmac
!
crypto map HQ-STHLM_MAP 10 ipsec-isakmp
 set peer 209.165.201.2
 set pfs group5
 set security-association lifetime seconds 900
 set transform-set HQ-STHLM
 match address 102
!
interface Tunnel0
 ip address 172.16.36.34 255.255.255.224
 mtu 1476
 tunnel source GigabitEthernet0/0/0
 tunnel destination 209.165.201.2
!
interface GigabitEthernet0/0/0
 ip address 209.165.202.2 255.255.255.0
 ip access-group INBOUND in
 crypto map HQ-STHLM_MAP
!
ip nat inside source list NAT_ACL interface GigabitEthernet0/0/0 overload
!
ip access-list extended INBOUND
 permit ip 172.16.0.0 0.0.3.255 172.16.8.0 0.0.3.255
 permit icmp host 209.165.201.2 host 209.165.202.2
 permit udp host 209.165.201.2 host 209.165.202.2 eq isakmp
 permit esp host 209.165.201.2 host 209.165.202.2
 permit ahp host 209.165.201.2 host 209.165.202.2
 deny ip any any
access-list 102 permit ip 172.16.8.0 0.0.3.255 172.16.0.0 0.0.3.255
access-list 102 permit ip any any
access-list 102 permit gre 172.16.8.0 0.0.3.255 172.16.0.0 0.0.3.255
ip access-list extended NAT_ACL
 remark ****** NAT ACL ******
 deny ip 172.16.8.0 0.0.3.255 172.16.0.0 0.0.3.255
 permit ip 172.16.8.0 0.0.3.255 any
!


Everyone's tags (3)
2 REPLIES 2
VIP Mentor

Re: GRE/IPSEC: NAT configuration ´route-map´ not available PT

Hello,



the access lists you use are slightly wrong. Take out the lines marked with an '-->' and leave the lines marked in bold:



HQ-IntEdge



access-list 101 permit ip 172.16.0.0 0.0.3.255 172.16.8.0 0.0.3.255
--> no access-list 101 permit ip any any
--> no access-list 101 permit gre 172.16.0.0 0.0.3.255 172.16.8.0 0.0.3.255

!
ip access-list extended NAT_ACL
deny ip 172.16.0.0 0.0.3.255 172.16.8.0 0.0.3.255
permit ip 172.16.0.0 0.0.3.255 any



STHLM-IntEdge



access-list 102 permit ip 172.16.8.0 0.0.3.255 172.16.0.0 0.0.3.255
--> no access-list 102 permit ip any any
--> no access-list 102 permit gre 172.16.8.0 0.0.3.255 172.16.0.0 0.0.3.255

!
ip access-list extended NAT_ACL
remark ****** NAT ACL ******
deny ip 172.16.8.0 0.0.3.255 172.16.0.0 0.0.3.255
permit ip 172.16.8.0 0.0.3.255 any

Beginner

Re: GRE/IPSEC: NAT configuration ´route-map´ not available PT

Hi,
By removing these lines I seem to also lose my EIGRP exchange over the two sites? How am I supposed to exchange the EIGRP information over the tunnel without these lines?
