hi all,

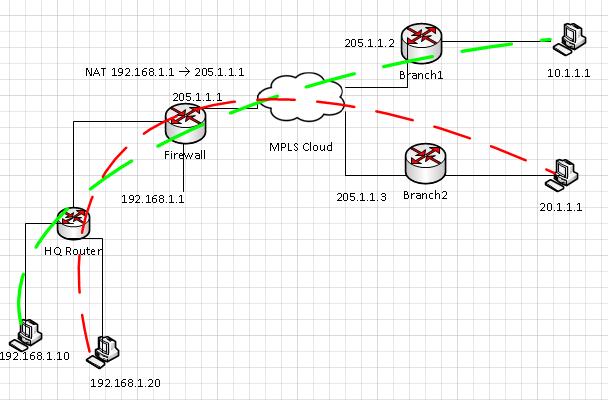

I need to create two diffrent site to site vpns between two Branch Routers(attached).
I already implemented this with my branch 1. Now I need to implement this with Branch2.
First S2S VPN : HQ Router to Branch 1
Second S2S VPN : HQ Router to Branch2
Is it possible to terminate two branches in HQ Router in following manner?
HQ Router
***********
crypto isakmp policy 2
encr 3des
authentication pre-share
group 2
crypto isakmp key test address 205.1.1.2
crypto isakmp key test address 205.1.1.3
crypto ipsec transform-set test-s2s esp-3des esp-sha-hmac
crypto map test-s2s 5 ipsec-isakmp
set peer 205.1.1.2
set transform-set test-s2s
match address testacl1
crypto map test-s2s 10 ipsec-isakmp
set peer 205.1.1.3
set transform-set test-s2s
match address testacl2
Branch1
*******
crypto isakmp policy 2
encr 3des
authentication pre-share
group 2
crypto isakmp key test address 205.1.1.1
crypto ipsec transform-set test-s2s esp-3des esp-sha-hmac
crypto map test-s2s 5 ipsec-isakmp
set peer 205.1.1.1
set transform-set test-s2s
match address testacl1
Branch2
********
crypto isakmp policy 2
encr 3des
authentication pre-share
group 2
crypto isakmp key test address 205.1.1.1
crypto ipsec transform-set test-s2s esp-3des esp-sha-hmac
crypto map test-s2s 5 ipsec-isakmp
set peer 205.1.1.1
set transform-set test-s2s
match address testacl2
