inside traffic not routing to backup wan interface when primary down

[ctimm]

This is on an ASA 5516, ASA Version 9.16(3)19

I've configured a backup interface for our backup ISP following this documentation:

Configure the ASA for Redundant or Backup ISP Links - Cisco

The problem is that when the primary is down, traffic from the inside isn't routing through the backup interface.

I have this network object:

object network obj_any
subnet 0.0.0.0 0.0.0.0
object network obj_any
nat (any,outside) dynamic interface

If I add:

object network obj_any_backup
subnet 0.0.0.0 0.0.0.0
object network obj_any_backup
nat (any,outside-backup) dynamic interface

it isn't routing. The same, if I change the 1st to:

object network obj_any
subnet 0.0.0.0 0.0.0.0
object network obj_any
nat (any,outside-backup) dynamic interface

this doesn't work either.

Is there something incorrectly configured or am I missing any configuration?

[ctimm]

Not adding twice

First line is what I enter in conf t

Second is the result of trying to add route-lookup where it errs

[Georg Pauwen]

Hello,

I have not followed the entire thread, but make sure your config looks like below:

object network obj_any
subnet in.in.in.in 255.255.255.0
!
object network obj_any_backup
subnet in.in.in.in 255.255.255.0
!
object network obj_any
nat (inside,outside) dynamic interface
!
object network obj_any_backup
nat (inside,outside-backup) dynamic interface

interface GigabitEthernet1/1
nameif outside
security-level 0
ip address pri.pri.pri.pri 255.255.255.x
!
interface GigabitEthernet1/2
nameif inside
security-level 100
ip address in.in.in.in 255.255.255.0
!
interface GigabitEthernet1/3
nameif outside-backup
security-level 0
ip address bak.bak.bak.bak 255.255.255.x
!
route outside 0.0.0.0 0.0.0.0 pri.pri.pri.gw 1 track 1
route outside-backup 0.0.0.0 0.0.0.0 bak.bak.bak.bakgw 254
!
timeout xlate 3:00:00
timeout pat-xlate 0:00:30
timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 sctp 0:02:00 icmp 0:00:02
timeout sunrpc 0:10:00 h323 0:05:00 h225 1:00:00 mgcp 0:05:00 mgcp-pat 0:05:00
timeout sip 0:30:00 sip_media 0:02:00 sip-invite 0:03:00 sip-disconnect 0:02:00
timeout sip-provisional-media 0:02:00 uauth 0:05:00 absolute
timeout tcp-proxy-reassembly 0:01:00
timeout floating-conn 0:00:30
timeout conn-holddown 0:00:15
timeout igp stale-route 0:01:10
!
sla monitor 123
type echo protocol ipIcmpEcho 1.1.1.1 interface outside
num-packets 3
frequency 10
!
sla monitor schedule 123 life forever start-time now
!
track 1 rtr 123 reachability

[paul driver]

Hello

---

@ctimm wrote:

object network obj_any
nat (any,outside) dynamic interface route-lookup

nat (any,outside) dynamic interface route-lookup
^

---

Change your nat statement to specify the inside interface and not any interface, apart from that you CFG looks okay

object network obj_any
nat (inside,outside) dynamic interface route-lookup

nat (inside,backup) dynamic interface route-lookup

[MHM Cisco World]

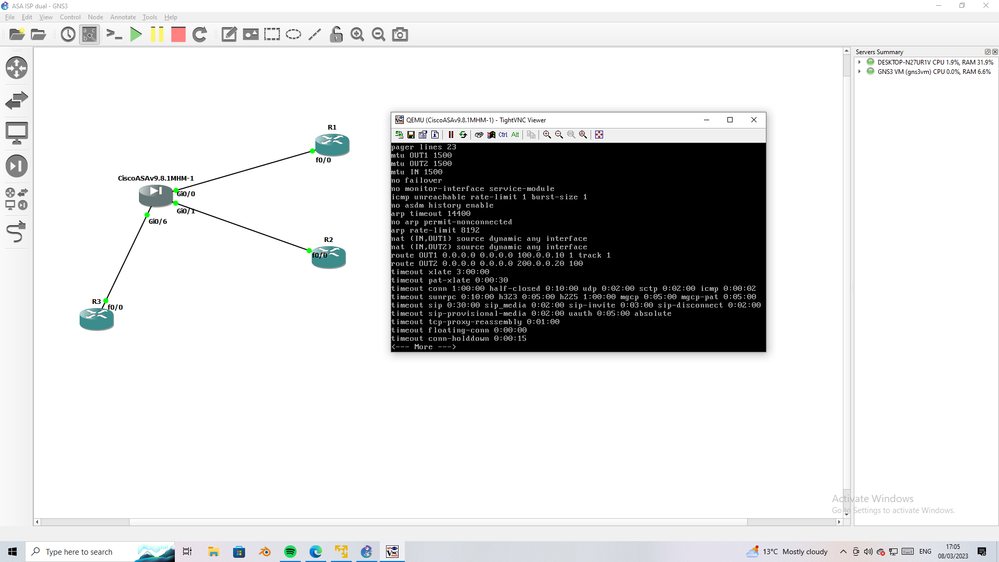

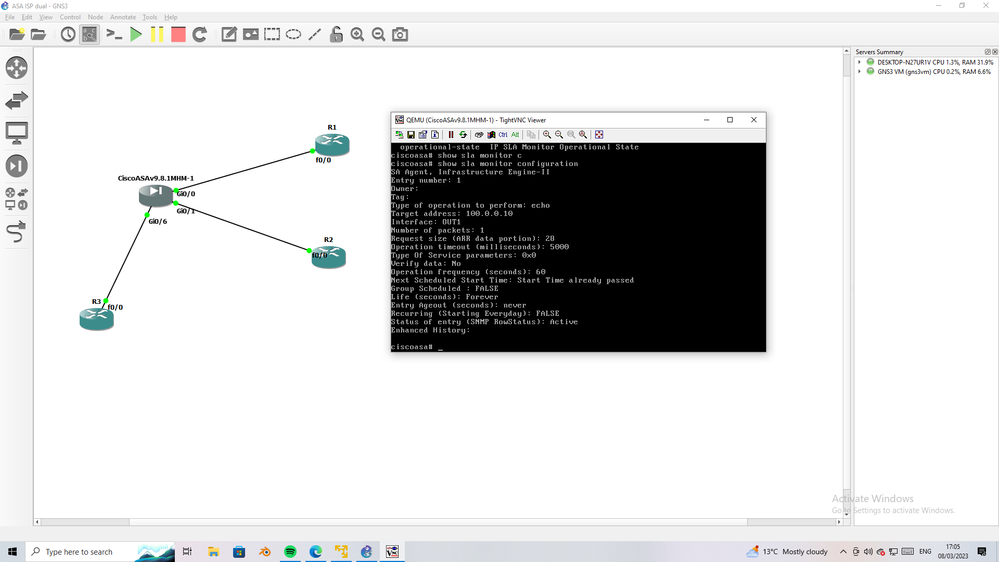

Lab I run and full success

[ctimm]

Unfortunately, no dice on all of the above.

Added note, if I go to an IP address detection site after forcefully failing over, it briefly will load and show the backup interface IP address but then stops.

I'm going to dig into this deeper on the LAN side and see if there may be some wfw rule, something on the switches, or something else on the internal that might be blocking this route.

Just doesn't make sense.

[MHM Cisco World]

can I see the ASA config ??

[ctimm]

Just sent you a DM with the code - It's long and didn't want to post openly on this thread

[MHM Cisco World]

I receive it, I will check

[MHM Cisco World]

sla monitor 123
type echo protocol ipIcmpEcho 1.1.1.1 interface outside <<-10.10.10.1 change the IP you ping to this one.
sla monitor schedule 123 life forever start-time now

also please do
nat (inside,outside-backup) after-auto source dynamic any interface
nat (inside,outside) after-auto source dynamic any interface

remove below NAT
object network obj_any
nat (any,outside) dynamic interface

[ctimm]

Sorry, still not routing outside with these changes.

I understand the type echo portion and that isn't part of the issue.

I've configured exactly as described, but to force outside-backup, I've used an IP that I know won't respond to requests and mark it as down.

This still doesn't route inside to 0.0.0.0 0.0.0.0

[MHM Cisco World]

I have one point I need to check, I will update soon
