RV325 DMZ working only on LAN

[mathew1332]

Hello,

I hope you can help me solve this issue.

I set up the DMZ ip in the rv325 router configuration but it only works if I access it from the LAN. If I try access it from outside the house it won't work.

I have only one subnet 192.168.0.0 and the local ip of the DMZ device is 192.168.0.10.

What can I do to make it work?

Thank you!

[balaji.bandi]

Do you have static IP from provider or Dynamic ?

what IP address you trying what port ? Can you share your screenshot to understand how you configured.

here is quick view and related setup config for reference :

https://www.cisco.com/c/en/us/support/docs/smb/routers/cisco-rv-series-small-business-routers/smb4166-configure-dmz-host-on-rv320-and-rv325-vpn-router-series.html

[mathew1332]

Thank you for taking the time in helping me!!

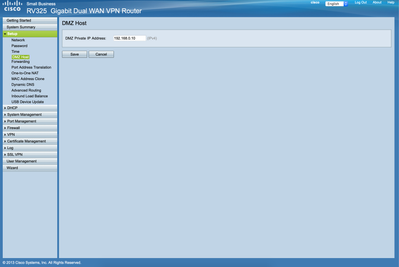

You have a screen shot of the configuration page where I set up the DMZ setting.

I have a dynamic ip from the ISP but I also configured the ISP dynamic dns so it takes me every time to my router from the outside like xxx.go.ro

When I am connected to my wifi and I try to go to xxx.go.ro it opens up the NVR page (my cctv page). When I am on 4G and I try to go to xxx.go.ro it doesn't open the page (The site can't be reached error on safari).

I hope you can give me an advice.

Thank you!

[mathew1332]

I fogot to include the screen capture
