Upgrade IOS on Aironet 1200

Christian12345
Level 1
Level 1

Hi,

at one of my Aironet 1200 the update through web interface of the IOS seems failing.

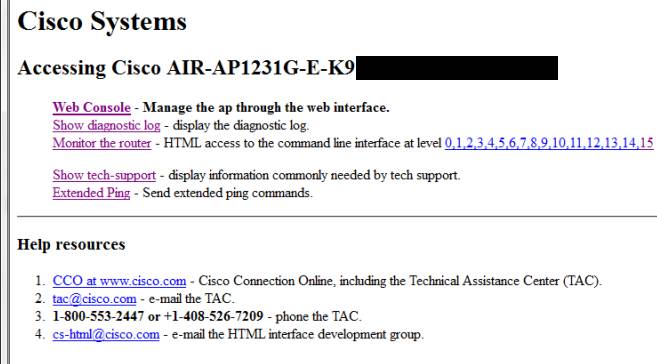

THe webpage now looks damaged and not all points are availible.

I now want to update the IOS through telenet. BUt I have no idea what to do.

A TFTP server is running and it is sharing the actual TAR-file.

How can I update the system now?

I am noob in cisco...

greetings,

Christian.

1 Accepted Solution

Accepted Solutions

Latchum Naidu
VIP Alumni
VIP Alumni

Hi Christian,

See the below process of upgrading Aironet 1200.

Upgrade Aironet 1200 IOS Via TFTP

Outline

This guide will outline the process for upgrading a Cisco Aironet 1200 series AP to the latest IOS. I will only be covering upgrading from one IOS release to another, if you’re running VxWorks, I suggest checking out Cisco’s official documentation which covers using their conversion tool before flashing the IOS

I will also run through the process of setting up WPA-PSK key-management authentication via the CLI.

I will also assume you have a basic understanding of using the CLI on Cisco IOS.

Obtain The Latest IOS

Firstly you will need to obtain the latest IOS release for your AP from Cisco.com (You’ll need a CCO account to do this)  The latest release as of writing is 12.3(8)JED.  Simply download the .tar archive and save it anywhere on your machine.

Setup A Simple TFTP Server

There are lots of TFTP servers that will probably suit your needs, however I will be using 3Coms’s 3CDaemon, which runs on Windows, which is straight forward enough to configure.  The software can be obtained from here.

Once downloaded, run through the setup and then create a directory called ‘tftp’ at the root of your drive.  Open the application and then choose ‘Configure TFTP Server’ and set your Upload/Download directory to the one we created earlier.  Now copy across our .tar package to the ‘tftp’ directory.

You will also need to ensure TCP port 69 is open for communications to take place between the TFTP service and the AP.

Upgrade The IOS Through The CLI

Telnet to your Aironet 1200 AP via whichever Telnet client you prefer, using the statically assigned IP address, as below

telnet 192.168.0.2

We will now download and flash the IOS, as below

archive download-sw /overwrite /force-reload tftp://192.168.0.3/filename.tar

Ensure you substitute with the correct IP address of your TFTP server and the full filename of the .tar IOS release you downloaded previously.

At this point the IOS upgrade process will begin, which should take about 10 minutes.

Configure WPA-PSK Key-Management Authentication

Assuming the AP is configured to use the rather less secure WEP based encryption, we will re-configure via the CLI to use WPA-PSK.

After the reboot, telnet back into the AP and run the following to select our interface first

interface dot11Radio 0

Now we’ll set the encryption mode

encryption mode ciphers tkip

We will now configure the SSID, ensure you substitute the SSID name with the correct one for your environment as below

ssid test_ssid

Now to set the authentication method to open over shared.

authentication open

Now to set WPA key-mangement based authentication for our selected SSID

authentication key-management wpa

And now we’ll setup the pre-shared key

wpa-psk ascii pre-shared_key

That’s it, there are other options you may want to configure from either the CLI or the web interface, but this should be a good start point to get clients authenticating successfully by WPA-PSK.

Also see the below beautiful doc which helps you in upgrade.

http://www.cisco.com/en/US/products/hw/wireless/ps430/products_tech_note09186a008019fea0.shtml

Please rate the helpfull posts.

Regards,

Naidu.

View solution in original post

7 Replies 7

Jon Marshall
Hall of Fame
Hall of Fame

Christian

Start with this doc which covers how to upgrade the software on an AP1200 -

http://www.cisco.com/en/US/docs/wireless/access_point/12.3_7_JA/configuration/guide/s37mfw.html#wp1035507

if you still have questions/problems then i would suggest moving this question into one of the Wireless forums where you should be able to get help with your query.

Jon

Latchum Naidu
VIP Alumni
VIP Alumni

Hi Christian,

See the below process of upgrading Aironet 1200.

Upgrade Aironet 1200 IOS Via TFTP

Outline

This guide will outline the process for upgrading a Cisco Aironet 1200 series AP to the latest IOS. I will only be covering upgrading from one IOS release to another, if you’re running VxWorks, I suggest checking out Cisco’s official documentation which covers using their conversion tool before flashing the IOS

I will also run through the process of setting up WPA-PSK key-management authentication via the CLI.

I will also assume you have a basic understanding of using the CLI on Cisco IOS.

Obtain The Latest IOS

Firstly you will need to obtain the latest IOS release for your AP from Cisco.com (You’ll need a CCO account to do this)  The latest release as of writing is 12.3(8)JED.  Simply download the .tar archive and save it anywhere on your machine.

Setup A Simple TFTP Server

There are lots of TFTP servers that will probably suit your needs, however I will be using 3Coms’s 3CDaemon, which runs on Windows, which is straight forward enough to configure.  The software can be obtained from here.

Once downloaded, run through the setup and then create a directory called ‘tftp’ at the root of your drive.  Open the application and then choose ‘Configure TFTP Server’ and set your Upload/Download directory to the one we created earlier.  Now copy across our .tar package to the ‘tftp’ directory.

You will also need to ensure TCP port 69 is open for communications to take place between the TFTP service and the AP.

Upgrade The IOS Through The CLI

Telnet to your Aironet 1200 AP via whichever Telnet client you prefer, using the statically assigned IP address, as below

telnet 192.168.0.2

We will now download and flash the IOS, as below

archive download-sw /overwrite /force-reload tftp://192.168.0.3/filename.tar

Ensure you substitute with the correct IP address of your TFTP server and the full filename of the .tar IOS release you downloaded previously.

At this point the IOS upgrade process will begin, which should take about 10 minutes.

Configure WPA-PSK Key-Management Authentication

Assuming the AP is configured to use the rather less secure WEP based encryption, we will re-configure via the CLI to use WPA-PSK.

After the reboot, telnet back into the AP and run the following to select our interface first

interface dot11Radio 0

Now we’ll set the encryption mode

encryption mode ciphers tkip

We will now configure the SSID, ensure you substitute the SSID name with the correct one for your environment as below

ssid test_ssid

Now to set the authentication method to open over shared.

authentication open

Now to set WPA key-mangement based authentication for our selected SSID

authentication key-management wpa

And now we’ll setup the pre-shared key

wpa-psk ascii pre-shared_key

That’s it, there are other options you may want to configure from either the CLI or the web interface, but this should be a good start point to get clients authenticating successfully by WPA-PSK.

Also see the below beautiful doc which helps you in upgrade.

http://www.cisco.com/en/US/products/hw/wireless/ps430/products_tech_note09186a008019fea0.shtml

Please rate the helpfull posts.

Regards,

Naidu.

Hi Latchum Naidu,

exact the same I found too

this is the result:

examining image...
%Error opening  (Timed out)archive download: takes 32 seconds

not funny ... at all others it was working through web interface, only this not.

greetings,

christian.

Hi Christian,


Disable any software firewall products, such as Windows firewall

Rename the access point image file in the TFTP server folder to
> c1240-k9w7-tar.default for a 1240 series access point.

Also observe the tftp services may go up and down some times.


Please rate the helpfull posts.
Regards,
Naidu.

Hi again,

about the firewall I thought too - so I disabled it, but it has no success...

now this is my command:

archive download-sw /overwrite /force-reload tftp://xxxxxxx/c1240-k9w7-tar.default

examining image...

%Error opening  (Timed out)archive download: takes 33 seconds

and the result is still the same...

What TFTP - server are you using? mine is SolarWinds.

You see here:

Download tftp:\\255.255.255.255\c1240-k9w7-tar.default

Make sure you rename the file to c1240-k9w7-tar.default

Or try using 3CDaemon for TFTP

Please rate the helpfull posts.

Regards,

Naidu.

hi,

it was not the tftp server it was the OS

under win 7 the server is not working. under xp everything seems fine. it is flashing at the moment.

thanks a lot!

PS i cant rate... donu why.
