ZBF issue with remote VPN via virtuel interface on a 2911

Hi again and thanks in advance

I just vent from static firewall to Zone Based Firewall as sugested in another discussion and so far so god and my setup nearly works perfect !! and here is the schematic

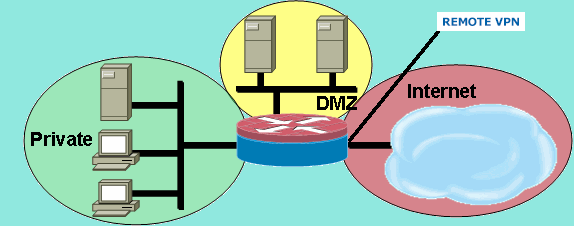

My issue is that when I connect remotely via VPN

  • I have access to Internet (Outside)
  • But can't connect to my servers ( DMZ)

My Server (DMZ) and VPN are on the same IP range, not that I think matters.

I'll try to give the VPN connections another IP range later.



Key elements in my config

ip dhcp excluded-address 192.168.100.1 192.168.100.49
ip dhcp excluded-address 192.168.50.1 192.168.50.49

ip dhcp pool VLAN200
 network xx.xx.xx.96 255.255.255.240
 default-router xx.xx.xx.97
 dns-server 8.8.8.8 4.4.4.4

ip dhcp pool VLAN100
 network 192.168.100.0 255.255.255.0
 default-router 192.168.100.1
 dns-server 192.168.100.1

ip dhcp pool VLAN50
 network 192.168.50.0 255.255.255.0
 default-router 192.168.50.1
 dns-server 192.168.50.1

—————————————————————————————————————————————————————————————

I know the are the same !! / BUT easier to create an overview with fuld naming

class-map type inspect match-any CLASS-L4-IPSEC
 match access-group name IPSEC_TRAFFIC

class-map type inspect match-all CLASS_CRYPTO_IPSEC_TRAFFIC_OUT_TO_SELF_PASS

match access-group name IPSEC_TRAFFIC

class-map type inspect match-any CLASS_CRYPTO_IPSEC_TRAFFIC_SELF_TO_OUT_PASS
 match access-group name IPSEC_TRAFFIC
I know the are the same !! / BUT easier to create an overview with fuld naming

class-map type inspect match-any CLASS-L4-IP
 match protocol icmp
 match protocol tcp
 match protocol udp

class-map type inspect match-any CLASS_SELF_TO_OUT_INSPECT
 match protocol icmp
 match protocol tcp
 match protocol udp

class-map type inspect match-any CLASS_OUT_TO_SELF_INSPECT
 match protocol icmp
 match protocol tcp
 match protocol udp
class-map type inspect match-any CLASS-APPLE-REMOTE-DESKTOP
 match access-group name APPLE-REMOTE-DESKTOP
class-map type inspect match-any CLASS-APPLE-AFP
 match access-group name APPLE-FILE-SHARING
class-map type inspect match-any CLASS-INTERNET-TRAFFIC
 match protocol http
 match protocol https
 match protocol dns
 match protocol icmp
class-map type inspect match-any CLASS-FTP
 match protocol ftp
 match protocol ftps
class-map type inspect match-any CLASS-SSH
 match protocol ssh
class-map type inspect match-any CLASS-IMAP-SMTP
 match protocol imap
 match protocol smtp

class-map type inspect match-any CLASS-ALLOW_ALL_TRAFFIC_THROUGH
 match access-group name ALLOW_ALL_TRAFFIC_THROUGH

—————————————————————————————————————————————————————————————

policy-map type inspect POLICY-(PRIVATE-->DMZ)
 class type inspect CLASS-FTP
  inspect
 class type inspect CLASS-SSH
  inspect
 class type inspect CLASS-APPLE-REMOTE-DESKTOP
  inspect
 class type inspect CLASS-APPLE-AFP
  inspect
 class type inspect CLASS-INTERNET-TRAFFIC
  inspect
 class type inspect CLASS-IMAP-SMTP
  inspect
 class type inspect CLASS-L4-IP
  inspect
 class class-default
  drop log

policy-map type inspect POLICY-(SELF-->INTERNET)
 class type inspect CLASS_CRYPTO_IPSEC_TRAFFIC
  pass
 class type inspect CLASS_SELF_TO_OUT_INSPECT
  inspect
 class class-default
  drop log

policy-map type inspect POLICY-(INTERNET-->SELF)
 class type inspect CLASS_CRYPTO_IPSEC_TRAFFIC
  pass
 class type inspect CLASS_OUT_to_SELF_INSPECT
  inspect
 class class-default
  drop log

policy-map type inspect POLICY-(PRIVATE-->INTERNET)
 class type inspect CLASS-INTERNET-TRAFFIC
  inspect
 class type inspect CLASS-FTP
  inspect
 class type inspect CLASS-L4-IP
  inspect
 class class-default
  drop log

policy-map type inspect POLICY-(INTERNET-->DMZ)
 class type inspect CLASS-IMAP-SMTP
  inspect
 class type inspect CLASS-INTERNET-TRAFFIC
  inspect
 class type inspect CLASS-L4-IP
  inspect
 class class-default
  drop log

policy-map type inspect POLICY-(DMZ-->INTERNET)
 class type inspect CLASS-ALLOW_ALL_TRAFFIC_THROUGH
  inspect
 class class-default
  drop log

—————————————————————————————————————————————————————————————

zone security PRIVATE-ZONE
zone security INTERNET-ZONE
zone security DMZ-ZONE

—————————————————————————————————————————————————————————————

zone-pair security PRIVATE-TO-DMZ source PRIVATE-ZONE destination DMZ-ZONE
 service-policy type inspect POLICY-(PRIVATE-->DMZ)

zone-pair security PRIVATE-TO-INTERNET source PRIVATE-ZONE destination INTERNET-ZONE
 service-policy type inspect POLICY-(PRIVATE-->INTERNET)

zone-pair security INTERNET-TO-DMZ source INTERNET-ZONE destination DMZ-ZONE
 service-policy type inspect POLICY-(INTERNET-->DMZ)

zone-pair security DMZ-TO-INTERNET source DMZ-ZONE destination INTERNET-ZONE
 service-policy type inspect POLICY-(DMZ-->INTERNET)

zone-pair security SELF-TO-VPN-INTERNET source self destination INTERNET-ZONE
 service-policy type inspect POLICY-(SELF-->INTERNET)

zone-pair security VPN-INTERNET-TO-SELF source INTERNET-ZONE destination self
 service-policy type inspect POLICY-(INTERNET-->SELF)

—————————————————————————————————————————————————————————————



crypto isakmp policy 150
 encr aes 256
 authentication pre-share
 group 2

crypto isakmp client configuration group SAS-VPN
 key XXXXXX
 dns 208.67.222.222 208.67.220.220
 pool REMOTE-VPN-CLIENTS
 acl 101

crypto isakmp profile SAS-VPN-PROFILE
   match identity group SAS-VPN
   client authentication list userauthen
   isakmp authorization list userauthen
   client configuration address initiate
   client configuration address respond
   virtual-template 1

crypto ipsec transform-set SAS-VPN-1 esp-aes 256 esp-sha-hmac

crypto ipsec profile SAS-VPN-VTUNNEL-PROFILE
 set security-association lifetime kilobytes disable
 set security-association lifetime seconds 86400
 set transform-set SAS-VPN-1
 set isakmp-profile SAS-VPN-PROFILE



interface GigabitEthernet0/0
 description ISP WAN (Wide Area Network)
 ip address XXX.XXX.XXX.190 255.255.255.252
 ip nat outside
 ip virtual-reassembly in
 zone-member security INTERNET-ZONE
 duplex auto
 speed auto

interface GigabitEthernet0/1
 description LAN (Local Area Network)
 ip address pool VLAN100
 ip nat inside
 ip virtual-reassembly in
 zone-member security PRIVATE-ZONE
 duplex auto
 speed auto

interface GigabitEthernet0/2
 description LAN (Local Area Network)
 ip address pool VLAN50
 ip nat inside
 ip virtual-reassembly in
 zone-member security PRIVATE-ZONE
 duplex auto
 speed auto

 interface Vlan200
 description HWIC-4ESW_LAN - SERVER PARK
 ip address XXX.XXX.XXX.97 255.255.255.224
 ip nat inside
 ip virtual-reassembly in
 zone-member security DMZ-ZONE

interface Virtual-Template1 type tunnel
 description Virtuel VPN Forbindelse
 ip unnumbered GigabitEthernet0/0
 ip nat inside
 ip virtual-reassembly in
 zone-member security INTERNET-ZONE
 tunnel source GigabitEthernet0/0
 tunnel mode ipsec ipv4
 tunnel protection ipsec profile SAS-VPN-VTUNNEL-PROFILE

—————————————————————————————————————————————————————————————

router eigrp 100
 network 80.0.0.0
 network 87.0.0.0
 network 192.168.0.0

router ospf 123
 network 80.0.0.0 0.255.255.255 area 0
 network 87.0.0.0 0.255.255.255 area 0
 network 192.0.0.0 0.255.255.255 area 0

ip local pool REMOTE-VPN-CLIENTS 80.xx.xx.123 80.xx.xx.126
ip forward-protocol nd

ip nat inside source list 1 interface GigabitEthernet0/0 overload
ip route 0.0.0.0 0.0.0.0 87.63.227.189
ip access-list extended ALLOW_ALL_TRAFFIC_TROUGH
permit ip any any
ip access-list extended APPLE-FILE-SHARING

 permit tcp any any eq 427
 permit tcp any any eq 548

ip access-list extended APPLE-REMOTE-DESKTOP
 permit tcp any any eq 22
 permit udp any any eq 3283
 permit tcp any any eq 5900
 permit udp any any eq 5900
 permit tcp any any eq 3283

ip access-list extended EIMS-MAILSERVER
 permit tcp any any eq 587
permit tcp any any eq smtp
permit tcp any any eq 143

ip access-list extended EIMS-MAILSERVER-ADMIN
permit tcp any any eq 4199

ip access-list extended IPSEC_TRAFFIC
 permit udp any eq isakmp any
permit udp any eq non500-isakmp any

 permit ahp any any
 permit esp any any
 permit udp any any eq non500-isakmp
 permit udp any any eq isakmp

—————————————————————————————————————————————————————————————

access-list 1 permit 192.168.100.0 0.0.0.225
access-list 1 permit 192.168.50.0 0.0.0.255

access-list 123 permit esp any any
access-list 123 permit udp any any eq non500-isakmp
access-list 123 permit ahp any any
access-list 123 permit udp any any eq isakmp




1 ACCEPTED SOLUTION

Accepted Solutions
Highlighted

Hello,



based on your configuration, I have come up with the below. Since I haven't been able to match all the classes and policies to what is already in your configuration, I have created new ones. Basically, you need two zone pairs. In the out to self policy, I am not sure if you have to inspect or pass the IPSEC traffic, so toggle these values.



ip access-list extended IPSEC_TRAFFIC
permit udp any eq isakmp any
permit ahp any any
permit esp any any
permit udp any eq non500-isakmp any
!
class-map type inspect match-any CLASS_OUT_TO_SELF
match access-group name IPSEC_TRAFFIC
!
policy-map type inspect POLICY_OUT_TO_SELF
class type inspect CLASS_OUT_TO_SELF
inspect or pass <-- toggle these values
class class-default
drop log
!
zone-pair security OUT_TO_SELF source INTERNET-ZONE destination self
service-policy type inspect POLICY_OUT_TO_SELF





class-map type inspect match-any CLASS_SELF_TO_OUT_PASS
match access-group name IPSEC_TRAFFIC
class-map type inspect match-any CLASS_SELF_TO_OUT_INSPECT
match protocol icmp
match protocol tcp
match protocol udp
!
policy-map type inspect POLICY_SELF_TO_OUT
class type inspect CLASS_SELF_TO_OUT_PASS
pass
class type inspect CLASS_SELF_TO_OUT_INSPECT
inspect
class class-default
drop log
!
zone-pair security SELF_TO_OUT source self destination INTERNET-ZONE
service-policy type inspect POLICY_SELF_TO_OUT



View solution in original post

7 REPLIES 7
Highlighted
VIP Expert

Hello,



post the full running configuration. I cannot see how your client pool is configured. Make sure that it contains an ACL that allows traffic from the DMZ to any. It should look like this (the lines in bold must match):



crypto isakmp client configuration group cisco
key cisco
dns 8.8.8.8
domain cisco.com
pool client_pool
acl 101

!

interface Vlan200
description HWIC-4ESW_LAN - SERVER PARK
ip address XXX.XXX.XXX.97 255.255.255.224
ip nat inside
ip virtual-reassembly in
zone-member security DMZ-ZONE

!

access-list 101 permit ip XXX.XXX.XXX.97 0.0.0.31 any



Highlighted



hostname R2911

!

boot-start-marker

boot system flash c2900-universalk9-mz.SPA.154-3.M.bin

boot-end-marker

!

!

! card type command needed for slot/vwic-slot 0/2

no logging console

enable secret 5 $1$8LqH$9JXseHd62tFJvW3cp9gxp.

!

aaa new-model

!

!

aaa authentication login userauthen local

aaa authorization network userauthen local

!

!

!

!

!

aaa session-id common

!

memory-size iomem 25

!

no ipv6 cef

no ip source-route

!

!

!

ip dhcp excluded-address 192.168.100.1 192.168.100.49

ip dhcp excluded-address 192.168.50.1 192.168.50.49

!

ip dhcp pool VLAN200

 network XXX.XXX.XXX.96 255.255.255.240

 default-router XXX.XXX.XXX.97

 dns-server 8.8.8.8 4.4.4.4

!

ip dhcp pool VLAN100

 network 192.168.100.0 255.255.255.0

 default-router 192.168.100.1

 dns-server 192.168.100.1

!

ip dhcp pool VLAN50

 network 192.168.50.0 255.255.255.0

 default-router 192.168.50.1

 dns-server 192.168.50.1

!

!

ip domain name mediadesign.dk

ip name-server 208.67.222.222

ip name-server 208.67.220.220

ip name-server 62.243.0.166

ip name-server 194.192.207.166

ip cef

ip cef accounting non-recursive

!

multilink bundle-name authenticated

!

!

!

!

!

crypto pki token default removal timeout 0

!

crypto pki trustpoint TP-self-signed-2506629599

 enrollment selfsigned

 subject-name cn=IOS-Self-Signed-Certificate-2506629599

 revocation-check none

 rsakeypair TP-self-signed-2506629599

!

!

crypto pki certificate chain TP-self-signed-2506629599

 certificate self-signed 01

  3082022B 30820194 A0030201 02020101 300D0609 2A864886 F70D0101 05050030

  31312F30 2D060355 04031326 494F532D 53656C66 2D536967 6E65642D 43657274

  69666963 6174652D 32353036 36323935 3939301E 170D3137 31313231 31383331

  34355A17 0D323030 31303130 30303030 305A3031 312F302D 06035504 03132649

  4F532D53 656C662D 5369676E 65642D43 65727469 66696361 74652D32 35303636

  32393539 3930819F 300D0609 2A864886 F70D0101 01050003 818D0030 81890281

  8100B864 001074AA 3ACB326E 0746CC7D 5A1A7E4B 92667702 844CEF49 166B0D95

  DAF80B11 3A0C8AF0 A4A4C5D4 491FB34D 28F83027 8E882C56 16890795 80538DF4

  754EA389 DBCD4C5F 24ED9E61 D4A5FD94 B2A6DBAA D2A624EB 23D4E3DB CD2B27EC

  73277F09 5908425D 70D1212B 946D3A92 9C628C55 96FB2A75 376BF8A4 B2632D47

  B3030203 010001A3 53305130 0F060355 1D130101 FF040530 030101FF 301F0603

  551D2304 18301680 1421FD81 D44399EA FFD554A4 97C6A7DC C3C72BD8 FD301D06

  03551D0E 04160414 21FD81D4 4399EAFF D554A497 C6A7DCC3 C72BD8FD 300D0609

  2A864886 F70D0101 05050003 8181008E 5E8AFBFC 86243F4E AD1785BC 72C1FC2C

  F2CB747E E70E5983 F1A1F60B 539C67F7 028712AD 1A9A3154 7459C967 A51AE7CD

  1C8DB2A5 0BF089EB B9B1A24C 951C677B CBD18212 CC59A5A3 8F3AB203 9B839185

  93798F89 141FCCBD F67CCDE2 1428963A 982720ED 59D95C02 DCC9CD7D B842BE47

  C37855E0 7901AFD3 B71FA3A4 B48ADD

  quit

voice-card 0

!

!

!

!

!

!

!

!

license feature snasw

license udi pid CISCO2911/K9 sn FTX1814ALDX

license accept end user agreement

license boot module c2900 technology-package securityk9

license boot module c2900 technology-package uck9

license boot module c2900 technology-package datak9

hw-module pvdm 0/0

!

hw-module pvdm 0/1

!

!

!

object-group network DMZ-FILEMAKER

 description FILEMAKER server in DMZ

 host XXX.XXX.XXX.99

!

object-group network DMZ-MAIL

 description EMAIL servers in DMZ

 host XXX.XXX.XXX.100

 host XXX.XXX.XXX.115

!

object-group network DMZ-MEDIADESIGN

 description MEDIADESIGN file-www-ftp server in DMZ

 host XXX.XXX.XXX.101

 host XXX.XXX.XXX.102

 host XXX.XXX.XXX.103

 host XXX.XXX.XXX.104

 host XXX.XXX.XXX.105

 host XXX.XXX.XXX.106

 host XXX.XXX.XXX.107

 host XXX.XXX.XXX.108

 host XXX.XXX.XXX.109

 host XXX.XXX.XXX.110



username XXX

username xxx

!

redundancy

!

!

!

!

!

ip ssh time-out 60

ip ssh version 2

!

class-map type inspect match-any L4-ip-class

 match protocol icmp

 match protocol tcp

 match protocol udp

class-map type inspect match-any INTERNET-TRAFFIC-CLASS

 match protocol http

 match protocol https

 match protocol dns

 match protocol icmp

class-map type inspect match-all FILEMAKER-SERVER-CLASS

 match access-group name INTERNET-->DMZ-FILEMAKER

 match access-group 105

class-map type inspect match-any NTP-CLASS

 match protocol ntp

class-map type inspect match-all MEDIADESIGN-SERVER-CLASS

 match access-group name INTERNET-->DMZ-MEDIADESIGN

 match class-map NTP-CLASS

class-map type inspect match-any APPLE-REMOTE-DESKTOP

 match access-group name APPLE-REMOTE-DESKTOP

class-map type inspect match-any FTP-CLASS

 match protocol ftp

 match protocol ftps

class-map type inspect match-any SSH-CLASS

 match protocol ssh

class-map type inspect match-any APPLE-AFP

 match access-group name APPLE-FILE-SHARING

class-map type inspect match-any IMAP-SMTP-CLASS

 match protocol imap

 match protocol imap3

 match protocol imaps

 match protocol smtp

 match protocol pop3

 match protocol pop3s

class-map type inspect match-all MAIL-SERVER-CLASS

 match access-group name INTERNET-->DMZ-EMAIL

 match class-map IMAP-SMTP-CLASS

 match access-group name EIMS-MAILSERVER

class-map type inspect match-any L4-ipsec-class

 match access-group name IPSECtraffic

!

!

policy-map type inspect PRIVATE-->DMZ-POLICY

 class type inspect FILEMAKER-SERVER-CLASS

  inspect

 class type inspect FTP-CLASS

  inspect

 class type inspect SSH-CLASS

  inspect

 class type inspect APPLE-REMOTE-DESKTOP

  inspect

 class type inspect APPLE-AFP

  inspect

 class type inspect L4-ip-class

  inspect

 class type inspect MAIL-SERVER-CLASS

  inspect

 class class-default

  drop log

policy-map type inspect ALLOW-ALL-ISAKMP

 class type inspect L4-ipsec-class

  pass

 class class-default

  drop

policy-map type inspect PRIVATE-->INTERNET-POLICY

 class type inspect INTERNET-TRAFFIC-CLASS

  inspect

 class type inspect FTP-CLASS

  inspect

 class type inspect L4-ip-class

  inspect

 class class-default

  drop log

policy-map type inspect INTERNET-->DMZ-POLICY

 class type inspect INTERNET-TRAFFIC-CLASS

  inspect

 class type inspect MEDIADESIGN-SERVER-CLASS

  inspect

 class type inspect FILEMAKER-SERVER-CLASS

  inspect

 class type inspect MAIL-SERVER-CLASS

  inspect

 class type inspect L4-ip-class

  inspect

 class class-default

  drop log

policy-map type inspect DMZ-->INTERNET

 class type inspect MAIL-SERVER-CLASS

  inspect

 class type inspect L4-ip-class

  inspect

 class class-default

  drop log

!

zone security PRIVATE-ZONE

zone security INTERNET-ZONE

zone security DMZ-ZONE

zone security VPN-ZONE

zone-pair security PRIVATE-TO-DMZ source PRIVATE-ZONE destination DMZ-ZONE

 service-policy type inspect PRIVATE-->DMZ-POLICY

zone-pair security PRIVATE-TO-INTERNET source PRIVATE-ZONE destination INTERNET-ZONE

 service-policy type inspect PRIVATE-->INTERNET-POLICY

zone-pair security INTERNET-TO-DMZ source INTERNET-ZONE destination DMZ-ZONE

 service-policy type inspect INTERNET-->DMZ-POLICY

zone-pair security DMZ-TO-INTERNET source DMZ-ZONE destination INTERNET-ZONE

 service-policy type inspect DMZ-->INTERNET

zone-pair security VPN-TO-SELFXX source INTERNET-ZONE destination self

 service-policy type inspect ALLOW-ALL-ISAKMP

!

!

crypto isakmp policy 150

 encr aes 256

 authentication pre-share

 group 2

!

crypto isakmp client configuration group SAS-VPN

 key XXXXXX

 dns 208.67.222.222 208.67.220.220

 pool REMOTE-VPN-CLIENTS

crypto isakmp profile SAS-VPN-PROFILE

   match identity group SAS-VPN

   client authentication list userauthen

   isakmp authorization list userauthen

   client configuration address initiate

   client configuration address respond

   virtual-template 1

!

!

crypto ipsec transform-set SAS-VPN-1 esp-aes 256 esp-sha-hmac

!

crypto ipsec profile SAS-VPN-VTUNNEL-PROFILE

 set security-association lifetime kilobytes disable

 set security-association lifetime seconds 86400

 set transform-set SAS-VPN-1

 set isakmp-profile SAS-VPN-PROFILE

!

!

!

!

!

!

!

interface Loopback0

 ip address 10.108.1.1 255.255.255.0

!

interface Embedded-Service-Engine0/0

 no ip address

!

interface GigabitEthernet0/0

 description ISP WAN (Wide Area Network)

 ip address XXX.XXX.XXX.190 255.255.255.252

 ip nat outside

 ip virtual-reassembly in

 zone-member security INTERNET-ZONE

 duplex auto

 speed auto

!

interface GigabitEthernet0/1

 description LAN (Local Area Network)

 ip address pool VLAN100

 ip nat inside

 ip virtual-reassembly in

 zone-member security PRIVATE-ZONE

 duplex auto

 speed auto

!

interface GigabitEthernet0/2

 description LAN (Local Area Network)

 ip address pool VLAN50

 ip nat inside

 ip virtual-reassembly in

 zone-member security PRIVATE-ZONE

 duplex auto

 speed auto

!

interface Serial0/0/0

 no ip address

!

interface FastEthernet0/1/0

 switchport access vlan 200

 no ip address

!

interface FastEthernet0/1/1

 switchport access vlan 200

 no ip address

!

interface FastEthernet0/1/2

 switchport access vlan 200

 no ip address

!

interface FastEthernet0/1/3

 switchport access vlan 200

 no ip address

!

interface Virtual-Template1 type tunnel

 description Virtuel VPN Forbindelse

 ip unnumbered GigabitEthernet0/0

 ip nat inside

 ip virtual-reassembly in

 zone-member security INTERNET-ZONE

 tunnel source GigabitEthernet0/0

 tunnel mode ipsec ipv4

 tunnel protection ipsec profile SAS-VPN-VTUNNEL-PROFILE

!

interface Vlan1

 no ip address

!

interface Vlan50

 description GUEST NETWORK DHCP POOL

 no ip address

 ip nat inside

 ip virtual-reassembly in

!

interface Vlan100

 description INTERNAL NETWORK DHCP POOL

 ip address dhcp

 ip nat inside

 ip virtual-reassembly in

!

interface Vlan200

 description HWIC-4ESW_LAN - SERVER PARK

 ip address XXX.XXX.XXX.97 255.255.255.224

 ip nat inside

 ip virtual-reassembly in

 zone-member security DMZ-ZONE

!

!

!

router eigrp 100

 network 80.0.0.0

 network 87.0.0.0

 network 192.168.0.0

!

router ospf 123

 network 80.0.0.0 0.255.255.255 area 0

 network 87.0.0.0 0.255.255.255 area 0

 network 192.0.0.0 0.255.255.255 area 0

!

ip local pool REMOTE-VPN-CLIENTS XXX.XXX.XXX.123 XXX.XXX.XXX.126

ip forward-protocol nd

!

no ip http server

ip http authentication local

ip http secure-server

!

ip nat inside source list 1 interface GigabitEthernet0/0 overload

ip route 0.0.0.0 0.0.0.0 XXX.XXX.XXX.189

!

ip access-list extended APPLE-FILE-SHARING

 permit tcp any any eq 427

 permit tcp any any eq 548

ip access-list extended APPLE-REMOTE-DESKTOP

 permit tcp any any eq 22

 permit udp any any eq 3283

 permit tcp any any eq 5900

 permit udp any any eq 5900

 permit tcp any any eq 3283

ip access-list extended EIMS-MAILSERVER

 permit tcp any any eq 587

ip access-list extended INTERNET-->DMZ-EMAIL

 permit ip any object-group DMZ-MAIL

ip access-list extended INTERNET-->DMZ-FILEMAKER

 permit ip any object-group DMZ-FILEMAKER

ip access-list extended INTERNET-->DMZ-MEDIADESIGN

 permit ip any object-group DMZ-MEDIADESIGN

ip access-list extended IPSECtraffic

 permit esp any any

 permit udp any any eq isakmp

 permit ahp any any

 permit udp any any eq non500-isakmp

!

access-list 1 permit 192.168.100.0 0.0.0.225

access-list 1 permit 192.168.50.0 0.0.0.255

access-list 1 permit XXX.XXX.XXX.96 0.0.0.31

access-list 105 remark ## FILEMAKER SERVER ##



!

no cdp run

!

!

!

!

!

!

!

control-plane

!

!

!

!

mgcp profile default

!

!

!

!

!

gatekeeper

 shutdown

!

!

telephony-service

 max-ephones 10

 max-conferences 8 gain -6

 transfer-system full-consult

!

!

!

line con 0

line aux 0

line 2

 no activation-character

 no exec

 transport preferred none

 transport input all

 transport output pad telnet rlogin lapb-ta mop udptn v120 ssh

 stopbits 1

line vty 0 4

 session-timeout 30

 transport input ssh

line vty 5 15

 session-timeout 30

 transport input ssh

!

scheduler allocate 20000 1000

end

Highlighted

Hello,



based on your configuration, I have come up with the below. Since I haven't been able to match all the classes and policies to what is already in your configuration, I have created new ones. Basically, you need two zone pairs. In the out to self policy, I am not sure if you have to inspect or pass the IPSEC traffic, so toggle these values.



ip access-list extended IPSEC_TRAFFIC
permit udp any eq isakmp any
permit ahp any any
permit esp any any
permit udp any eq non500-isakmp any
!
class-map type inspect match-any CLASS_OUT_TO_SELF
match access-group name IPSEC_TRAFFIC
!
policy-map type inspect POLICY_OUT_TO_SELF
class type inspect CLASS_OUT_TO_SELF
inspect or pass <-- toggle these values
class class-default
drop log
!
zone-pair security OUT_TO_SELF source INTERNET-ZONE destination self
service-policy type inspect POLICY_OUT_TO_SELF





class-map type inspect match-any CLASS_SELF_TO_OUT_PASS
match access-group name IPSEC_TRAFFIC
class-map type inspect match-any CLASS_SELF_TO_OUT_INSPECT
match protocol icmp
match protocol tcp
match protocol udp
!
policy-map type inspect POLICY_SELF_TO_OUT
class type inspect CLASS_SELF_TO_OUT_PASS
pass
class type inspect CLASS_SELF_TO_OUT_INSPECT
inspect
class class-default
drop log
!
zone-pair security SELF_TO_OUT source self destination INTERNET-ZONE
service-policy type inspect POLICY_SELF_TO_OUT



View solution in original post

Highlighted

Thanks for your time Georg

Your solution didn’t solve the issue -
But it boosted the general response time and flov speed tremendously
So could have been and still was some of the problem.

So nice spottet

I think I have to analyse my Classes and Policies and Zone-pairs a little deeper
Before implementing ZBF again

Somebody on the list pointet at that I needed 2 ZONE-PAIR’s one for both ways

INTERNET to SELF
SELF TO INTERNET

That fixed my problem

But then I found out that ZONE-PAIR "INTERNET to DMZ" wasn’t running smooth
I could ping through but UDP keeps dropping in the log and I have no connection in or out for Application services.

I have to dig a little deeper into the manuals to see what’s wrong ;-)


Thanks again

Highlighted

Hello,



can you, for future reference, post your final, working (if it is working) configuration ?

Highlighted
VIP Mentor

Hello


@lars.arler wrote:

My issue is that when I connect remotely via VPN

  • I have access to Internet (Outside)
  • But can't connect to my servers ( DMZ)

My Server (DMZ) and VPN are on the same IP range, not that I think matters.

I'll try to give the VPN connections another IP range later.

I'm puzzled by the zone-pair to SELF set up !!

zone-pair security VPN-TO-SELFXX source INTERNET-ZONE destination SELF
 service-policy type inspect ALLOW-ALL-ISAKMP

Shouldn't the SELF not have free access to all networks by default ??

How should I approach this problem solving ??


No

My understanding the self zone is for control plane traffic , to/from router only (non transit traffic) By default traffic from the other zones are allowed to access the router so amending this self zone allows you control the access to the router from the other zones.


I see you have a pass action applied to the vpn-self zone pair now when using this action you need to make allowances for the return traffic  meaning you need an additional zone-pair in the other direction with the pass action.

Can you confirm what exactly isnt working, connection from the internet to you router or connection to/from internet and dmz zones?



kind regards
Paul

Please rate and mark posts accordingly if you have found any of the information provided useful.
It will hopefully assist others with similar issues in the future
Highlighted

Hi Paul and thanks for taking your time.



PRIVAT --> INTERNET = Works

PRIVAT --> DMZ = Works

DMZ --> INTERNET = Works

INTERNET --> DMZ = WORKS



It is when I try to connect via REMOTE VPN

That I can browse the Internet - but I can't browse my own web-server and mail-server

So it seems as that I can't connect to the DMZ-ZONE when on REMOTE VPN
