Cisco ISE Secure Wired Access Prescriptive Deployment Guide

Figure intro.png



Authors: Hariprasad Holla (until June 2018), Mahesh Nagireddy (until Dec 2018)



image.png For an offline or printed copy of this document, simply choose ⋮ Options > Printer Friendly Page. You may then Print, Print to PDF or copy and paste to any other document format you like.



Table of Contents



Introduction

About Cisco Identity Services Engine (ISE)

 Figure1: Cisco Identity Services EngineFigure1: Cisco Identity Services Engine



Cisco ISE is a leading, identity-based network access control and policy enforcement system. It is a common policy engine for controlling end-point access and network device administration for enterprises. ISE allows an administrator to centrally control access policies for wired, wireless, and VPN end points in a network.

ISE builds contexts about endpoints, including users and groups (Who), device type (What), access time (When), access location (Where), access type (Wired/Wireless/VPN) (How), threats, and vulnerabilities. By sharing vital contextual data with technology partner integrations and the implementation of the Cisco TrustSec® policy for software-defined segmentation, ISE transforms a network from a conduit for data into a security enforcer that accelerates the time-to-detection and time-to-resolution of network threats.



What is Covered in This Document?

This document aims to provide guidance to Cisco ISE customers who want to protect their wired network access, which is being designed with the Cisco Catalyst switch platforms. For implementation with Cisco Meraki network devices, see How To: Integrate Meraki Networks with ISE.

The configuration examples listed in this document are working configurations that have been validated on a Cisco Catalyst 9300 Series switch running Cisco IOS XE Version 16.9.1 with Network Essential License and Cisco ISE Version 2.4.



Figure2: Endpoint onboarding Physical network topologyFigure2: Endpoint onboarding Physical network topology

The following are the IOS XE features and deployment variations described in this document:

  • Cisco Identity-Based Networking Services (IBNS) 1.0 and 2.0
  • Monitor, Low-Impact, and Closed Deployment Modes
  • Critical Access Control List
  • Role-Based Critical Authorization
  • Identity-Based Wired Access in IPv6 Networks
  • 1X on Cisco IP Phone



What is Not Covered in This Document?

Although this deployment guide is about securing wired network access, Cisco Meraki access switches or third-party access switches are not covered in this document. For more information about these, see the ISE Design and Integration Guides page.This guide does not cover other wired access features, such as Wired Guest Access, Network Edge Authentication Topology (NEAT) and EasyConnect.



About This Guide

This guide is intended to provide technical guidance to design, deploy, and operate Cisco ISE for wired network access control. It focuses on the Cisco Catalyst access switch configurations to handle various endpoint onboarding scenarios. The document also provides best-practice configurations for a typical enterprise environment.



Figure3: ISE for Wired Implementation FlowFigure3: ISE for Wired Implementation Flow



This document contains four major sections:

  • The Define section defines problem areas and provides information about how to plan for deployment, and other considerations.
  • The Design section shows how to design a secure, wired access network.
  • The Deploy section provides information about various configuration and best practices.
  • The Operate section shows how to manage a wired access network controlled by Cisco ISE.



Define

 This section provides an high level overview of Wired access control solution, different authentication methods available during the endpoint onboarding process, problem areas to focus on and various authorization options.

ISE Deployment Components

A typical ISE-based network access control solution comprises four components, endpoints, network devices, Cisco ISE, and external services.



Figure4: ISE solution componentsFigure4: ISE solution components

Endpoints need network access and the network devices provide network access to endpoints, based on instructions from ISE. ISE can optionally leverage external services to understand more about the corresponding endpoints for policy decisions. When it comes to rolling out an identity-based network, because these four parts of the network are involved, various teams and individuals need to be engaged. Various ISE use cases, such as Guest access, BYOD, Posture, and so on require endpoints communicating to ISE via network devices.



Authentication, Authorization, and Accounting (AAA)

The core of IBNS is the idea of users and devices authenticating to ISE, and ISE applying the appropriate network access authorization, using protocols such as EAP and RADIUS. Network devices covey an endpoint’s session status to ISE via RADIUS accounting messages. ISE gains visibility into the details of all the assets connecting to the network and their location. An ISE administrator can permit or deny access to a specific user or device or a specific group of assets either on the fly or based on ISE policy configurations.



Authentication Methodologies
IEEE 802.1XFigure5: 802.1x Authentication WorkflowFigure5: 802.1x Authentication Workflow

The 802.1x standard defines a client/server-based access control and authentication protocol that prevents unauthorized clients from connecting to a LAN through publicly accessible ports unless they are properly authenticated. The authentication server authenticates each client connected to a switch port before making available the services offered by the switch or the LAN.  The supplicants on the endpoints use Extensible Authentication Protocol (EAP) to pass credentials, such as passwords or certificates, to ISE. EAP payloads are typically transported over 802.1X in Ethernet networks (EAP over LAN or simply EAPoL) and over RADIUS in IP networks. ISE evaluates an endpoint’s identity and instructs the corresponding network device about whether to open the port or not, the VLAN or ACL or both VLAN and ACL that are to be applied for that endpoint’s access session.



MAC Authentication Bypass (MAB)



Figure6: MAB Authentication WorkflowFigure6: MAB Authentication Workflow



MAB enables port-based access control using the MAC address of an endpoint. A MAB-enabled port on the switch can be dynamically enabled or disabled based on the MAC address of the device that connects to it. The MAC addresses of endpoints must be whitelisted in a database that is present in ISE or in an external location in order to grant network access to known endpoints. MAB is not truly an authentication method; it functions more as an authentication bypass when an endpoint is unable to perform 802.1X authentication. While MAB can protect networks from unauthorized access, it is not a secure alternative to 802.1X because MAC addresses can be spoofed easily.



Web Authentication



Figure7: Web Authentication WorkflowFigure7: Web Authentication Workflow

Web authentications are typically used to onboard guest users for internet access. Cisco platforms provide a couple of options, Local Web Authentication (LWA) and Central Web Authentication (CWA). In the former, web pages are hosted in network devices such as a switch or a wireless LAN controller, and in the latter, all web portals are hosted centrally on ISE. CWA, which is the preferred method, is typically a MAB session with URL-redirect authorization on the switch port. Until the corresponding endpoint is authenticated successfully, web traffic from the endpoint is redirected to ISE via a login portal for end users to enter their credentials.  Upon successful authentication, ISE initiates a Change-of-Authorization (CoA) to permit additional access.



EasyConnect



Figure8: EasyConnect Authentication WorkflowFigure8: EasyConnect Authentication Workflow

The Cisco ISE EasyConnect feature enables enterprises to implement identity-based network access without the need for 802.1X. No supplicants or supplicant configurations are needed on endpoints. An EasyConnect session, which is similar to the CWA flow, starts with a MAC authentication bypass. ISE learns about an endpoint’s location, MAC address, and IP addresses via an initial MAB session. This initial MAB session is authorized with limited access from ISE to enable a Windows Active Directory-managed endpoint to perform a Windows domain login. Upon successful domain login, the user ID to IP address mapping from the Active Directory (AD) domain controller is retrieved  to ISE and merged with the initial MAB session. After the user ID and its AD group membership is resolved, ISE changes the authorization to permit additional access.



A Comparison of the Different Authentication Methods



Figure9: Complexity analysis of Authentication methodsFigure9: Complexity analysis of Authentication methods

Of the various authentication options discussed until now, IEEE 802.1X is the most secure and flexible authentication method. There are several EAP methods that allow a variety of credential types to be handled, depending on the endpoint and the environment type. Although the Web Authentication and EasyConnect options provide the necessary user ID context for visibility and access control, they are constrained to specific types of endpoints, for example, Web Authentication requires user interaction and a device with a compatible web browser and EasyConnect works only for Windows Active Directory-managed endpoints. Finally, MAB is less secure authentication method and fall back mechanism for IEEE 802.1X, but is the easiest option to configure basic level of controlled access.



Authorization Options

An ISE authorization policy is composed of authorization rules defined for a specific users and group of users to permit, deny or provide limited access to network resources. Authorization profiles let you choose the attributes to be returned when a RADIUS request is accepted or rejected with RADIUS ACCESS-ACCEPT and ACCESS-REJECT access type commands. Limited access authorization may vary from environment to environment. The question to be asked is, what should be limited, and how?



Figure10: ISE Enforcement authorization attributesFigure10: ISE Enforcement authorization attributes

Dynamic VLAN Assignment

One of the traditional means of limiting network access is by placing endpoints in different VLANs based on their role. Endpoints in specific VLANs can be access controlled by policies that are defined at Layer 3 boundaries, such as on  routers or firewalls. ISE can authorize endpoints to specific VLANs using a VLAN name or a VLAN number. Also, in platforms such as Cisco Catalyst 2960X, 3650 Series, 3850 Series, and 9300 Series, VLANs can be applied on a per-MAC address basis.





Best Practice: When doing dynamic VLAN assignment, we recommend using VLAN names rather than numbers. This will make your ISE authorization easier to read, understand and maintain. When you have a large switch, it is better to let the switch locally determine the actual VLAN number assigned with a name.




IP Access Control Lists (ACLs)

ACLs can be used to control network access at the port level. They can either be downloaded to the network from ISE, or be configured locally on a switch and be referenced by ISE during authorization. Named ACL authorization can be carried out with a RADIUS-standard attribute called Filter-ID, using the ACL name. For ACL downloads, either a Per-User ACL or a Downloadable ACL (dACL) can be used. Both these ACL download options use Cisco custom RADIUS Attribute Value Pairs (AVPs). While Per-User ACLs have a 4000-character limit, dACLs do not. However, the practical recommendation for dACLs are 64 Access Control Entries (ACEs).



Security Group Tags (SGTs)

SGTs offer an efficient alternative to VLAN-based segmentation. Just like VLAN authorization, assigning an SGT alone to an endpoint does not control access. Instead, after SGT assignments, endpoints must be subject to egress enforcement policies based on SGTs. Note that although in most cases, identity-based access is necessary for SGT-based segmentation, this document does not cover tag-based segmentation in any detail.



URL Redirection

An access switch can redirect endpoints to specific URLs that are authorized by ISE for redirection. Typically, URL redirection is towards the ISE nodes so that the endpoints can carry out web authentication with ISE. However, endpoints can be subject to custom URLs as part of RADIUS authorization from ISE. Custom AVPs are used for URL redirection in an identity-based network.



Session-Aware Networking

ISE along with Cisco Catalyst switches implement session-aware networking which offers consistent way to configure features across technologies, easy deployment and features customization along with robust policy control engine . Under this, a session identifier is attached to an endpoint’s network access session (wired or wireless), and session ID is used for all reporting purposes such as show commands, MIBs, and RADIUS messages and allows users to distinguish messages for one session to  other sessions. This common session ID is used consistently across all authentication methods and features applied to a session.



Figure11: ISE Session-Aware NetworkingFigure11: ISE Session-Aware Networking



When an endpoint connects to network, the network device generates a unique session identifier that is a combination of the network device IP address, the session count on the network device, and the timestamp of the corresponding endpoint’s initial connection.Figure11a.png



ISE can invoke the network device to enforce specific policies for the endpoint using the Session ID. After the initial authorization, ISE issues a CoA by referencing the same Session ID. Distinct access policies for the endpoints on the same port are applied because of the separation maintained by the Session ID.



Design



Design Considerations

This section focuses on overall design considerations for a secure wired access solution.



 End-Point Considerations

There are a few important things to consider with regard to endpoints in an identity-based network. Firstly, how will these endpoints authenticate to the network, and are these using 802.1X, Web Authentication, or some other means? Secondly, do you require custom agents to perform specific functions that the native supplicants in the operating system cannot? And, finally, how should endpoints be configured for appropriate access, for example, manual, using centralized management tools, and so on?

Agents

For most of the secure wired access environment, an agent on an endpoint is unnecessary. However, there are a few scenarios that can be handled only by a Cisco AnyConnect end-point agent:



EAP Chaining–Many organizations want to grant network access to trusted users on trusted devices. While the Cisco ISE feature such as Machine Access Restriction (MAR) can handle such cases with native supplicants, it can do so only in various terms. With the presence of Cisco AnyConnect Network Access Manager (NAM) module on the endpoint and Cisco ISE, user and machine authentications can be combined in a common EAP session, making EAP Chaining a secure alternative to MAR.



MACsec–In addition to authenticated network access using IEEE 802.1X, IEEE 802.1AE(MACsec) encryption can be layered on top of IEEE 802.1X to encrypt packets on the link between the endpoint and the switch (point-to-point encryption) ... Cisco AnyConnect is the only supplicant that supports MACsec on endpoints.



Note: The Cisco AnyConnect NAM module is compatible only on Microsoft Windows operating systems. Therefore, both EAP Chaining and MACSec features can be enabled only on Windows-based endpoints currently.



Automation

It is a known fact that implementing port access control with 802.1X means considerable changes to endpoints. Some of the changes pertain to supplicant configurations, certificate installation (optional), and agent installation and setup (optional). Rolling out these changes to thousands of endpoints requires a certain degree of automation. Some of the options to automate supplicant configuration are:

Endpoint Type Supplicant Configuration By
Microsoft Windows systems (Managed) Active Directory – Group Policy Objects (GPO)
Cisco IP phones Cisco Unified Call Manager
Apple devices MacOS server
BYOD (Android/Apple iDevices/Microsoft devices/ Google Chrome devices) Cisco ISE Client Provisioning / Mobile Device Managers

 Table1: Endpoint Automation

Note: Always use a systems manager or device manager to configure endpoints at scale.



Network Device Considerations

In the context of this document, “network device” or “Network Access Device (NAD)” indicates a Cisco Catalyst switch that runs on Cisco IOS software. There are three major configurations to perform on Catalyst switch for it to work with ISE.

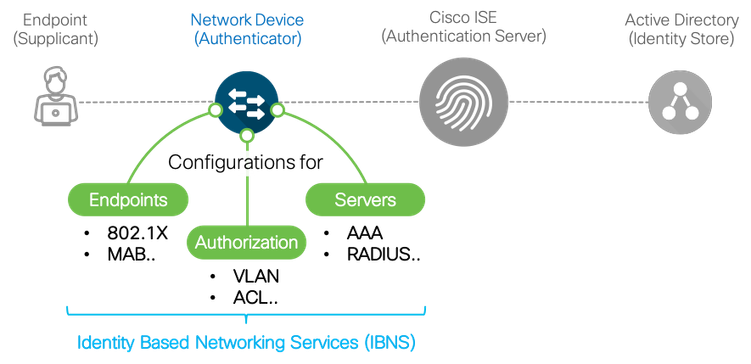

 Figure12: Network Device Configurations for ISEFigure12: Network Device Configurations for ISE

  • The global AAA and RADIUS server configurations govern how a switch talks to ISE, how RADIUS transactions are load balanced, how frequently accounting updates are sent, how the switch handles failure scenarios when ISE is not reachable.
  • The endpoint side configuration includes interface level commands to handle specific authentication methods such as 802.1X or MAC authentication bypass in a particular order.
  • The port configurations can be done using IBNS 1.0 or 2.0 methods, which is described next.

ISE might authorize an endpoint with a VLAN, ACL, SGT configuration or URL redirection. Note that some authorization-related configurations have to be done locally on the switch.



Cisco Meraki Switching

Please see How To: Integrate Meraki Networks with ISE  for Cisco Meraki Switching implementation.



Catalyst Identity-Based Networking Services (IBNS) 1.0 vs. 2.0

When it comes to the switch configurations required for ISE deployment, one of the most important considerations is whether to go with IBNS 1.0 or IBNS 2.0 MQC-style commands. IBNS are the identity-based session management services on Cisco IOS, which are meant to handle access services for endpoints connecting to a network. The policy functions on a switch determine how to facilitate an endpoint’s network authentication with a centralized AAA server, how to treat the endpoint when there are authentication failures or how to handle AAA server unreachability. IBNS can be implemented in two ways, depending on the platform support and policy needs.



Figure13: Cisco IBNS 1.0 vs. IBNS 2.0Figure13: Cisco IBNS 1.0 vs. IBNS 2.0



Apart from significant changes in the Cisco IOS components that handle identity-based services, from an administration and operations perspective, there are considerable differences between IBNS 1.0 and IBNS 2.0. As the figure above depicts, in case of IBNS 1.0, which is sometimes referred to as legacy mode in CLI, a switch’s local policy for handling an endpoint’s identity-based network access is all contained within interface configurations (a list of interface commands applied to a switch port). On the other hand, in case of IBNS 2.0, the configurations take the structure of a Cisco Modular Quality of Service CLI (MQC). One or more subscriber policies are used; these policies are defined by the policy-map command, which classifies various endpoint events into classes that are defined by the <class-map> command arguments. The various endpoint event classifications are subject to specific actions, some of which are local and some of which are enforced on instructions from ISE. The use of templates provides modularity, flexibility, and reusability of certain policy objects within the switch platform.



There are several benefits to using IBNS 2.0 over IBNS 1.0. The following table compares the two:



    IBNS 1.0 IBNS 2.0 Description
Policy Configuration   Interface commands MQC Style IBNS 2.0 is configured the same way as a router QoS policy, while IBNS 1.0 is configured with a list of interface subcommands.

Templates

Interface templates No Yes IBNS 2.0 configurations can be contained within an interface template, while IBNS 1.0 all configuration are interface specific commands.
Service templates No Yes IBNS 1.0 cannot use service templates.

Critical Authorization

Critical VLAN Yes Yes Both support assigning a fail-open VLAN for endpoints that cannot reach ISE during authentication.
Critical ACL No Yes Only IBNS 2.0 can apply a custom ACL to an endpoint session when ISE service is unavailable.
Critical SGT No Yes Only IBNS 2.0 can assign a critical SGT when the AAA server is down.
Critical MAB No Yes With IBNS 2.0, endpoints can be MAB authenticated against a local list of MAC addresses on the switch.
Differentiated Authentication   No Yes IBNS 2.0 facilitates the task of separating authentication and authorization transactions between two or more AAA servers, while IBNS 1.0 cannot do this.
Intelligent Aging   No Yes IBNS 2.0 has a better way of detecting the disconnects from indirectly connected hosts.

Table2: Cisco IBNS 1.0 vs. IBNS 2.0

Phased Deployments

Enabling 802.1X on switch ports can be disruptive. The need for endpoints to prove their identity with some sort of authentication and then get network access, may not work well for all device types. With wireless, this is a norm because the endpoints do not plug to the network; rather, they have to be configured (for SSIDs) to connect to the network. The notion of configure and connect is built ground up in the wireless world, while the same is not the case with the wired side of networks. For decades, the expectation is that the endpoint must get IP address the moment they plug in to the wired Ethernet port.



We recommend a phased deployment model that has limited impact on network access while gradually introducing authentication and authorization on the wired network. The three deployment modes are:

 Figure14: IBNS Deployment ModesFigure14: IBNS Deployment Modes





  1. Monitor Mode (Open Mode)– This Mode enables authentication across Wired infrastructure, while authorization is kept open. This means that irrespective of the endpoint’s authentication status (success or failure), the port is always open. When a user plugs in a device after monitor mode is enabled in the network, there is no impact to the end user irrespective of the authentication status. Such a setting provides adequate visibility centrally to the security operator to know how many endpoints authenticate successfully, how many fail, why they fail, where they are located, and so on. After most of the failures are fixed, one of the below two enforcement modes can be enabled. Note,Monitor Mode is not for validating enforcement of more advanced authorization results such as Scalable Group Tags(SGT’s), Scalable Group ACL’s(SGACL’s), downloadable ACL’s(dACL’s) or even dynamic Vlan Assignment. We simply want the authentication server to send back a basic RADIUS access accept or access reject to the authenticator (access switch).
  2. Low-Impact Mode–This mode builds on the monitor mode. With open access in place, IP ACLs are used to control pre-authentication and post-authentication network access. A Pre-Auth ACL on the switch port controls network access before an endpoint can successfully authenticate. A named or downloadable ACL that is received from ISE grants specific level of access upon successful authentication. The Low-Impact mode is ideal for a Preboot Execution Environment (PXE) boot environments where thin clients have to download the operating system from the network before attempting network authentication. Since devices get IP address immediately after they connect to the network, and authentication may take place in parallel or later, we recommend that you do not make VLAN changes in the Low-Impact mode.
  3. Restricted Mode (Closed Mode)–In this mode, the port is closed by default. Only EAPoL payloads are allowed for 802.1X authentication. Upon successful authentication, the endpoints can have access to network services. Since endpoints do not acquire dynamic IP addresses without authentication, this mode is ideal for VLAN authorizations.



ISE Deployment Considerations

When it comes to wired network access, a carefully set up ISE service is critical. The following are some of the important considerations:



ISE Deployment Scale and PerformanceFigure15: ISE DeploymentsFigure15: ISE Deployments

ISE can be deployed as a standalone service or a cluster of multiple ISE nodes. While the former is a good option for small-sized networks, the latter is the choice for medium and large environments. Both standalone and multi-node ISE deployments can be done on bare metal servers (Cisco Secure Network Server [SNS]) or on supported Hypervisors.

Choose the deployment type and install option depending on your requirements. See the ISE Performance & Scale page for more details about scale limitations and performance numbers for each ISE deployment method.

Access switches need to talk to ISE servers for AAA. Typically, two or more RADIUS servers are defined on the switches for AAA and CoA. For large networks involving multiple PSNs per site, we recommend that use of Load Balancers. When Load Balancers are used, the virtual IP addresses of these Load Balancers must be configured as RADIUS server IP addresses on the switches.

The following table summarizes the configuration practice that should be followed, depending upon the type of deployment and whether Load Balancers are used or not.



Switch-Side Configuration 2-Node Standalone ISE Multi-Node ISE Multi-Node ISE
with Load Balancers
RADIUS Server configuration for AAA IP address of the either ISE nodes IP address of the PSNs IP address of the Virtual IP address of the Load Balancers
RADIUS Server configuration for CoA IP addresses of the
either ISE nodes
IP addresses of the PSNs
and PANs
IP addresses of the Load Balancer VIP, PSNs, and PANs

 Table3:  Deployment Configuration best practices

ISE Licensing

Cisco ISE licensing provides the ability to manage the application features and access, such as the number of concurrent endpoints that can use Cisco ISE network resources. ISE requires one or more of the following three license packages to service wired endpoints:

  • Base
  • Plus
  • Apex

However, for most of the AAA and access control services, the Base licenses will suffice. For ISE to automatically detect the endpoint type using profiling service, and to control access to them, both Base and Plus licenses are required. For deeper visibility into applications and processes on endpoints and to control them, Apex licenses are also needed. Note that all these licenses are applied to the endpoint’s session that is active at a given point of time. Therefore, budgeting for adequate licenses must not be on the total number of endpoints, but for an estimated number of active endpoints at a probable peak duration. For more information about licenses, see the Cisco ISE Ordering Guide.

Certificates

Certificates are used to identify ISE to an endpoint and also to secure the communication between that endpoint and the ISE node. Certificates are used for all HTTPS communication and Extensible Authentication Protocol (EAP) communication. The following is a summary of the certificates and their use in the context of endpoint authentication and access control:



Communication   Uses   Purpose
HTTPS ·  Administration Portal
·  Centralized Web Authentication Portal
·  Sponsor Portal
·  Client Provisioning Portal
·  My Devices Portal
·  Web authentication
·  ISE Portal access for administration and operations
EAP ·  EAP-TLS
·  PEAP
·  EAP-FAST
·  IEEE 802.1X authentication

 Table 4:  Certificate Use Cases in context of  Endpoint authentication



We recommend that you do not use ISE self-signed certificates for production. Instead, use a Certificate Authority-signed certificate on the ISE nodes for all purposes. When dealing with internal endpoints that are managed by an organization, an internal enterprise Public Key Infrastructure (PKI) can be used. For use cases such as guest internet access and BYOD registration, ISE node certificates signed by a public CA is recommended to avoid poor user experience due to certificate warnings on the endpoints. ISE has a built-in CA service, but this is largely limited to BYOD identity and authentication. For more information about certificates, see How To: Implement ISE Server-Side Certificates.



Deploy

This section focuses on deployment guidelines with various best practices to greatly simplify secured wired implementations.

Preparing for Identity-Based Network Access

This section shows how to configure ISE and a switch for basic RADIUS connectivity. Cisco ISE supports the default device definition for RADIUS and TACACS authentications. You can define a default network device that Cisco ISE can use if it does not find a device definition for a particular IP address. For advanced flows (such as SNMP,CDP,LLDP) you must add separate device definition for each network device.



Figure16: Switch to ISE Communication ProtocolFigure16: Switch to ISE Communication ProtocolPreparing ISE for Identity-Based Network Access

This section covers the minimum required configuration on ISE for it to accept AAA requests from a Cisco Catalyst switch.

  1. Log in to ISE in admin node.
  1. Navigate to Administration > Network Device














  1. In the left navigation pane, click Default Device
  2. From the Default Network Device Status drop-down list, choose Enable.
  3. Define a Shared Secret (in this examplFigure16b.pnge, ISEisC00L) and Click Save















 Preparing a Switch for Identity-Based Network Access

Perform the following steps to configure a Cisco Catalyst Switch for basic RADIUS connectivity.

  1. Configure the management interface for the switch:
    c9300-Sw(config)#interface Vlan254
    c9300-Sw(config-if)#description ** Switch management interface **
    c9300-Sw(config-if)#ip address 172.20.254.101 255.255.255.0
    c9300-Sw(config-if)#end

Note: In the example above, the switch is a VTP client and has the necessary VLANs configured. Also, the uplink port connected to the data center is configured as a trunk port. The management IP address for the switch can be an SVI or a Loopback interface. Ensure that proper routing is set up between the access switch and the ISE nodes

  1. Log in to the switch and enable AAA:
    c9300-Sw(config)#aaa new-model
  1. Configure one or more ISE Policy Service nodes as RADIUS servers. Ensure that the RADIUS key is identical to the shared secret configured on ISE:
    c9300-Sw(config)#radius server ISE01
    c9300-Sw(config-radius-server)#address ipv4 172.20.254.21 auth-port 1812 acct-port 1813
    c9300-Sw(config-radius-server)#key ISEisC00L
    c9300-Sw(config-radius-server)#exit
    c9300-Sw(config)#
    c9300-Sw(config)#radius server ISE02
    c9300-Sw(config-radius-server)#address ipv4 172.20.254.22 auth-port 1812 acct-port 1813
    c9300-Sw(config-radius-server)#key ISEisC00L
    c9300-Sw(config-radius-server)#exit

Note: For networks with multi-vendor devices, Its recommended to use Ports 1812 for authentication and 1813 for accounting, however ISE can receive RADIUS authentication and accounting requests on either of the two port number combinations.

  1. Define a method list for the ISE RADIUS servers and use the switch management interface as the RADIUS source interface:
    c9300-Sw(config)#aaa group server radius ISE
    c9300-Sw(config-sg-radius)#server name ISE01
    c9300-Sw(config-sg-radius)#server name ISE02
    c9300-Sw(config-sg-radius)#ip radius source-interface VLAN 254

  1. Configure network authentication to use the RADIUS method list (in this example, ISE):
    c9300-Sw(config)#aaa authentication dot1x default group ISE
  1. Configure the switch for network (access) authorization via ISE RADIUS servers. This is for network access authorization from ISE, such as dynamic VLAN assignment, downloadable ACLs, URL redirection, and so on:
    c9300-Sw(config)#aaa authorization network default group ISE
  1. Configure the switch to send accounting information to ISE at endpoint session start and end events:
    c9300-Sw(config)#aaa accounting identity default start-stop group ISE
  1. Configure the switch to send periodic accounting updates for active sessions once every two days:
    c9300-Sw(config)#aaa accounting update newinfo periodic 2880

Note: After a network access session of an endpoint is logged to ISE, it stays there for 5-days without any additional accounting updates. In order to keep the session active on ISE, a periodic accounting update once every two days is a best practice.



Validating Basic Settings

Perform the following tasks to validate if the basic AAA and RADIUS configurations are working as expected:

  1. Check the AAA server status on the switch
    c9300-Sw#show aaa servers

    RADIUS: id 1, priority 1, host 172.20.254.21, auth-port 1812, acct-port 1813
         State: current UP, duration 38301s, previous duration 0s
         Dead: total time 0s, count 0
         Platform State from SMD: current UP, duration 38301s, previous duration 0s
         SMD Platform Dead: total time 0s, count 0
         Platform State from WNCD: current UP, duration 0s, previous duration 0s
         Platform Dead: total time 0s, count 0
         Quarantined: No
    !<Output truncated>

    RADIUS: id 2, priority 2, host 172.20.254.22, auth-port 1812, acct-port 1813
         State: current UP, duration 38295s, previous duration 0s
         Dead: total time 0s, count 0
         Platform State from SMD: current UP, duration 38295s, previous duration 0s
         SMD Platform Dead: total time 0s, count 0
         Platform State from WNCD: current UP, duration 0s, previous duration 0s
         Platform Dead: total time 0s, count 0
         Quarantined: No
    !<Output truncated>
  1. Execute the following test command on the switch to validate if the switch and ISE can communicate over RADIUS or if the credentials result in a passed or failed authentication. test-user and test-password are not a real user name and password; these are variables used to test RADIUS communication between Switch and ISE
    c9300-Sw#test aaa group radius test-user test-password new-code
    AAA/SG/TEST Platform: Testing Status
    AAA/SG/TEST:      Authen Requests to Send    : 1
    AAA/SG/TEST:      Authen Requests Processed  : 1
    AAA/SG/TEST:      Authen Requests Sent       : 1
    AAA/SG/TEST:      Authen Requests Replied    : 1
    AAA/SG/TEST:      Authen Requests Successful : 0
    AAA/SG/TEST:      Authen Requests Failed     : 1
    AAA/SG/TEST:      Authen Requests Error      : 0
    AAA/SG/TEST:      Authen Response Received   : 1
    AAA/SG/TEST:      Authen No Response Recevied: 0

    AAA/SG/TEST Platform: Testing Status
    AAA/SG/TEST:      Account Requests to Send    : 0
    AAA/SG/TEST:      Account Requests Processed  : 0
    AAA/SG/TEST:      Account Requests Sent       : 0
    AAA/SG/TEST:      Account Requests Replied    : 0
    AAA/SG/TEST:      Account Requests Successful : 0
    AAA/SG/TEST:      Account Requests Failed     : 0
    AAA/SG/TEST:      Account Requests Error      : 0
    AAA/SG/TEST:      Account Response Received   : 0
    AAA/SG/TEST:      Account No Response Recevied: 0
    User rejected


Note:  The Authen Requests Replied: 1 message in the output indicates that a RADIUS server is responding to the switch’s requests. Such detailed output for test aaa command is available only from Cisco IOS Version 16.x



  1. Log in to ISE web User Interface (UI) and navigate to Operations > RADIUS > Live Logs

You must see one or two failed entries for test-user identity, which indicates that the switch and ISE are talking over RADIUS successfully.

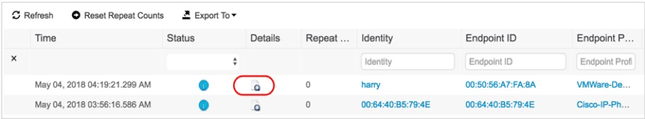

 When you click the Details icon corresponding to a test user, you will see the reason for failure: 22056 Subject not found in the applicable identity store(s), which means that the test user account cannot be found, which is obvious at this stage of the deployment.



Another important thing to note is that the switch is using its management IP address to communicate with ISE.




Best Practice Global Settings for Switch

The following section covers the best practice global configuration for Cisco Catalyst switch.

RADIUS Server Failure Detection

  1. Define how a switch must detect a RADIUS server reachability failure:
    c9300-Sw(config)#radius-server dead-criteria time 10 tries 3
  • time-The time during which no properly formed response received from the ISE server.
  • tries-The number of consecutive timeouts that must occur on the switch before the RADIUS server is marked dead.
  1. When multiple RADIUS servers are defined and the primary server is unavailable, it is a good practice to mark that server’s Dead to improve the RADIUS response time . This prevents the RADIUS requests from being sent to a server that could be flapping its status.

The following example shows that the Dead time is set to 15 minutes:

c9300-Sw(config)#radius-server deadtime 15
  1. With the configuration defined in previous steps, switch will mark the server as dead for the amount of time specified in in Step 2. With expiry of dead time, the switch will mark the server as alive again and begin sending RADIUS traffic to the server. If the RADIUS deadtime is not specified, it will default to a value of 0, which will bring the server back to the UP state right away. Because of this behavior, the RADIUS server state could flap, causing additional authentication issues. To revert the server state back to the UP state before the specified deadtime expires, a RADIUS probe can be configured. This will periodically test the RADIUS server to see if it is responding to RADIUS requests. Upon receiving a response to a probe, the switch will mark the RADIUS server as alive.
    c9300-Sw(config)#radius server ISE01
    c9300-Sw(config-radius-server)#address ipv4 172.20.254.21 auth-port 1812 acct-port 1813
    c9300-Sw(config-radius-server)#automate-tester username test-user ignore-acct-port probe-on
    c9300-Sw(config-radius-server)#key ISEisC00L
    c9300-Sw(config-radius-server)#exit
    c9300-Sw(config)#
    c9300-Sw(config)#radius server ISE02
    c9300-Sw(config-radius-server)#address ipv4 172.20.254.22 auth-port 1812 acct-port 1813
    c9300-Sw(config-radius-server)#automate-tester username test-user ignore-acct-port probe-on
    c9300-Sw(config-radius-server)#key ISEisC00L
    c9300-Sw(config-radius-server)#exit


Note: As mentioned earlier, test-user is a test user ID Username. The ignore-acct-port keyword indicates that the switch must not validate the accounting port number that the server will use. The probe-on keyword indicates that the switch must send test probes only when the server is marked as Dead.

  1. In the case of an actual probe user account on the ISE’s internal or external database, a password is required. In the example below, “test-user” is the username and “test-password” is the password stored in the identity store that the RADIUS server refers to authenticate. A “User rejected” message too (unless a timeout occurs) indicates that the RADIUS server is alive.
    c9300-Sw(config)#username test-user password 0 test-password
  1. To make the switch send an EAPoL success message to the corresponding client when the port fail-opens or fail-closes in the event that none of the ISE servers are reachable,
    c9300-Sw(config)#dot1x critical eapol

Additional RADIUS Best Practice Attributes for ISE
  1. Send the Service-Type attribute in the authentication packets, which is important for ISE to distinguish between the different authentication methods:
    c9300-Sw(config)#radius-server attribute 6 on-for-login-auth
  1. Send the IP address of an endpoint to the RADIUS server in the access request:
    c9300-Sw(config)#radius-server attribute 8 include-in-access-req
  1. Include the class attribute in an access request for network access authorization:
    c9300-Sw(config)#radius-server attribute 25 access-request include
  1. Set the MAC address of the endpoint in IETF format and in upper case:
    c9300-Sw(config)#radius-server attribute 31 mac format ietf upper-case

     radius-server attribute 31 mac format {default | ietf | unformatted}

default-Example: 0000.4096.3e4a

ietf-Example: 00-00-40-96-3E-4A

unformatted-Example: 000040963e4a



  1. To include NAS port & MAC address details in Calling-Station-ID (attribute 31) for Access and Accounting requests:
    c9300-Sw(config)#radius-server attribute 31 send nas-port-detail mac-only

Change of Authorization (CoA)
  1. Use the following commands to configure ISE nodes as CoA servers
    c9300-Sw(config)#aaa server radius dynamic-author
    c9300-Sw(config-locsvr-da-radius)#client 172.20.254.21 server-key ISEisC00L
    c9300-Sw(config-locsvr-da-radius)#client 172.20.254.22 server-key ISEisC00L




Device Tracking

Starting Cisco IOS XE Denali 16.1.1 version, the new Switch Integrated Security Features-based “IP Device Tracking” feature acts as a container policy that enables snooping and device-tracking features available with First Hop Security (FHS) in both IPv4 and IPv6, using IP agnostic CLI commands.

The device-tracking configuration is very critical to learn an endpoint’s IP address and map that to its network access session. The device-tracking configuration is also essential for many features, such as downloadable ACLs, device profiling, URL redirection, and more.Refer to the URL for More Information on the Switch Integrated Security Features based (SISF-based) Device Tracking.

Note: If upgraded a Cisco Catalyst 3850/3650 switch from Cisco IOS XE 3.x.x release to a Cisco IOS XE 16.x.x release and if the switch has IPDT configurations prior to the upgrade, the SISF commands might not be available and we should run the device-tracking upgrade-cli command to convert and use the new SISF commands.

  1. Configure the device-tracking policy with a custom name:
    c9300-Sw(config)#device-tracking policy IPDT_POLICY
  1. Under the policy (IPDT_POLICY), enable device tracking.
    c9300-Sw(config-device-tracking)#tracking enable
    Note: It is a best practice to disable the Device tracking for obtaining information about UDP protocols.
    c9300-Sw(config-device-tracking)#no protocol udp

Note: The device-tracking policy is effective only when applying the policy to switchport using the following command:

interface GigabitEthernet x/y/z

  device-tracking attach-policy POLICY_NAME



Device Sensor

Device Sensor is a Cisco IOS and Cisco AireOS feature that simplifies device profiling on ISE. The switch gathers raw endpoint data from protocols such as CDP, LLDP & DHCP and it made available to ISE through RADIUS accounting messages. ISE collects these device attributes and profiles the endpoints into specific device groups.

  1. Enable device sensor globally on the switch:
    c9300-Sw(config)#device-sensor accounting

Note: In newer IOS-XE releases, such as 16.3.x and above, replace device-sensor accounting with the following:

access-session attributes filter-list list Def_Acct_List
 cdp
 lldp
 dhcp
 http

access-session accounting attributes filter-spec include list Def_Acct_List
  1. Configure below command for the switch to trigger updates to ISE as and when the device attributes change:
    c9300-Sw(config)#device-sensor notify all-changes
  1. Configure and apply filters for CDP, LLDP, and DHCP protocols so that only the critical attributes required for identifying the endpoint type reaches ISE.

The following is an example of a CDP device sensor filter and apply the protocol filter to the sensor output.

c9300-Sw(config)#cdp run
c9300-Sw(config)#device-sensor filter-list cdp list CDP-LIST c9300-Sw(config-sensor-cdplist)#tlv name device-name c9300-Sw(config-sensor-cdplist)#tlv name capabilities-type c9300-Sw(config-sensor-cdplist)#tlv name version-type c9300-Sw(config-sensor-cdplist)#tlv name platform-type c9300-Sw(config-sensor-cdplist)#tlv name address-type
c9300-Sw(config)#device-sensor filter-spec cdp include list CDP-LIST

The following is an example of an LLDP device sensor filter and apply the protocol filter to sensor output:

c9300-Sw(config)#lldp run

c9300-Sw(config)#device-sensor filter-list lldp list LLDP-LIST
c9300-Sw(config-sensor-lldplist)#tlv name system-name
c9300-Sw(config-sensor-lldplist)#tlv name system-description
c9300-Sw(config-sensor-lldplist)#tlv name system-capabilities

c9300-Sw(config)#device-sensor filter-spec lldp include list LLDP-LIST

The following is an example of a DHCP device sensor filter and apply the protocol filter to sensor output:

c9300-Sw(config)#device-sensor filter-list dhcp list DHCP-LIST
c9300-Sw(config-sensor-dhcplist)#option name host-name
c9300-Sw(config-sensor-dhcplist)#option name parameter-request-list
c9300-Sw(config-sensor-dhcplist)#option name class-identifier
c9300-Sw(config-sensor-dhcplist)#option name client-identifier
c9300-Sw(config-sensor-dhcplist)#option name requested-address
c9300-Sw(config-sensor-dhcplist)#device-sensor filter-spec dhcp include list DHCP-LIST

Note: Device sensor configuration without a filter list will overload ISE with unnecessary attributes that does not help in the context of device profiling. The best practice attribute list provided in the example above works well for most environments. For more details on profiling, see the ISE Profiling Design Guide.



Web Authentication/URL Redirection and ACLs

Web authentications are necessary for guest internet access. Even if wired guest access is not a requirement for your environment, it is a good idea to have the infrastructure set up for URL redirection because it facilitates notifications to end users in certain scenarios. For instance, when users are not able to authenticate successfully, they can be redirected to an internal portal such as the following, which will guide them about how to resolve the issue themselves.

Figure17: Web Authentication Internal portal support pageFigure17: Web Authentication Internal portal support page

  1. Configure the HTTP service on the switch for URL redirection:
    c9300-Sw(config)#ip http server
  1. Switch’s internal HTTP/HTTPS server is used for redirection process and its highly encouraged to decouple this service from  Switch Management if HTTP/HTTPS isn’t used for Switch Management. You can accomplish this using below CLI’s:
    c9300-Sw(config)#ip http active-session-modules none
    c9300-Sw(config)#ip http secure-active-session-modules none
Note: HTTPS redirection is not recommended for production environments because of the following reasons:
  •  Security concern-HTTPS redirection is intended to hijack a secure web connection initiated by an endpoint, which is not a good idea.
  • Failure to work-Most web browsers block intercepted HTTPS connections.
  • Certificate warnings-Even if web browsers allow access, there can be certificate warnings because the switch presents its own certificate for TLS handshake.
  • Scalability issues-Multiple HTTPS redirections can overload the switch CPU there by degrading the Switch performance



  1. (Optional) Provide a domain name when enabling HTTPS redirect:
    c9300-Sw(config)#ip domain-name isedemo.lab
  1. (Optional) Generate the crypto keys to be used for HTTPS redirection:
    c9300-Sw(config)#crypto key generate rsa general-keys mod 2048

Note: Do not run the ip http secure-server command prior to generating the keys. If you run the commands out of order, the switch automatically generates a certificate with a smaller key size. This certificate can cause undesirable behavior when redirecting HTTPS traffic.



  1. (Optional) Enable the HTTPS service.
    c9300-Sw(config)#ip http secure-server
  1. Limit the number of HTTP connections. (The default on a Catalyst 9300 switch is 25, and the maximum is 50.)
    c9300-Sw(config)#ip http max-connections 48



URL Redirection ACL

This ACL defines which traffic is redirected to ISE during the CWA, BYOD, and Posture scenarios. Any traffic that is permitted per ACL is redirected (192.168.1.10 in the example below). Implicit deny prevents other traffic types from being redirected. We recommend that you specify that only HTTP and HTTPS should be permitted since this traffic gets pushed to the switch CPU. If additional access control is needed in conjunction with the redirect ACL, we recommend that you use dACL in conjunction with the redirect ACL.



Note: ACL_WEBAUTH_REDIRECT or Pre-Auth-ACL are port-based ACL which are configured on the interface. However, the dACL or Per_User_ACL pushed from ISE takes precedence over the Port ACL that is applied to the Interface.Figure18: URL Redirection workflowFigure18: URL Redirection workflow



  1. Configure a URL redirect ACL on the switch:
    c9300-Sw(config)#ip access-list extended ACL_WEBAUTH_REDIRECT
    c9300-Sw(config-ext-nacl)#permit tcp any any eq www
    c9300-Sw(config-ext-nacl)#permit tcp any any eq 443

Note: The ACL name referenced above is identical to the default redirect ACL name used in fresh ISE 2.0 installation. If you want a different name, make sure that you update both the switch and the ISE Authorization Profile with a new redirect ACL name.

 It is also a good idea to have a separate URL redirect ACL for blacklisted devices on ISE. The default rules can redirect all the web traffic. However, depending on your environment and policies, bypass redirection to specific services.

c9300-Sw(config)#ip access-list extended BLOCKHOLE
c9300-Sw(config-ext-nacl)#permit tcp any any eq www
c9300-Sw(config-ext-nacl)#permit tcp any any eq 443



  1. Configure a Pre-Authentication ACL (Pre-Auth-ACL). This is required if the deployment transitions to low-impact mode.
    c9300-Sw(config)#ip access-list extended IPV4_PRE_AUTH_ACL
    c9300-Sw(config-ext-nacl)#permit udp any eq bootpc any eq bootps
    c9300-Sw(config-ext-nacl)#permit udp any any eq domain
    c9300-Sw(config-ext-nacl)#deny ip any any

Note: Pre-Auth-ACL is meant to provide basic network access before successful port authentication in low-impact mode. Therefore, the rules in the ACL must permit only specific service access that is deemed necessary in a given environment. Typically, DHCP and DNS services are permitted so that time-sensitive assets can acquire dynamic IP address while their authentication request is processed by ISE.



Basic Global Configuration for End-Point Authentication

The subsequent sections describe details of the configurations required for performing 802.1X and MAB authentications. However, the following global configurations are essential for most of the deployment scenarios:



  1. Enable 802.1X globally on the switch,use the dot1x system-auth-controlcommand in global configuration mode.
    c9300-Sw(config)#dot1x system-auth-control

(Optional) Allow sessions without dACL to connect to ACL-enabled interfaces with full access, by running below access-session acl  command.

c9300-Sw(config)#access-session acl default passthrough



Note: In older Cisco IOS versions, the epm access-control open command was used for hosts without an authorization policy to access ports configured with a static ACL.This feature is useful in an environment where there is a mixture of authorization profiles that use dACL and ones that do not. For example, user devices are enforced with dACL to limit access to the network, but no dACL is used on IP phones. When an IP phone is connected, the IP phone is authorized to voice resources by MAB/802.1X (without dACL). When a user's device is connected to the back of the IP phone, the switch enforces user-device dACL, which applies the ACL at the interface level. This denies IP access to the IP phone because the IP phone lacks dACL for authorization. However, when the above command is entered globally, the switch dynamically inserts the permit ip any any ACL for sessions without dACL, including the IP phone.

This is also true for multiple devices connected through an unmanaged hub. If multiple devices are already connected without dACL, when a new device with dACL AuthZ is authenticated to the same interface that the unmanaged hub is connected to, then above feature applies the ip permit any anyACL to the previously connected devices sessions.



  1. Permit endpoints to move from one 802.1X-enabled port to another by running below command:
    c9300-Sw(config)#authentication mac-move permit

Switch Global Configuration Dump for AAA, RADIUS
ip domain name isedemo.lab
!
interface Vlan254
 description ** Switch management interface **
 ip address 172.20.254.101 255.255.255.0
!
aaa new-model
aaa session-id common
!
radius server ISE01
 address ipv4 172.20.254.21 auth-port 1812 acct-port 1813
 automate-tester username test-user ignore-acct-port probe-on
 key ISEisC00L
!
radius server ISE02
 address ipv4 172.20.254.22 auth-port 1812 acct-port 1813
 automate-tester username test-user ignore-acct-port probe-on
 key ISEisC00L
!
username test-user password 0 test-password
!
radius-server attribute 6 on-for-login-auth
radius-server attribute 8 include-in-access-req
radius-server attribute 25 access-request include
radius-server attribute 31 mac format ietf upper-case
radius-server attribute 31 send nas-port-detail mac-only
radius-server dead-criteria time 10 tries 3
radius-server deadtime 15
!
aaa group server radius ISE
 server name ISE01
 server name ISE02
 ip radius source-interface Vlan254
!
aaa authentication dot1x default group ISE
aaa authorization network default group ISE
aaa accounting update newinfo periodic 2880
aaa accounting dot1x default start-stop group ISE
!
aaa server radius dynamic-author
 client 172.20.254.21 server-key ISEisC00L
 client 172.20.254.22 server-key ISEisC00L
!
lldp run
!
device-sensor filter-list dhcp list DHCP-LIST
 option name host-name
 option name requested-address
 option name parameter-request-list
 option name class-identifier
 option name client-identifier
!
device-sensor filter-list lldp list LLDP-LIST
 tlv name system-name
 tlv name system-description
 tlv name system-capabilities
!
device-sensor filter-list cdp list CDP-LIST
 tlv name device-name
 tlv name address-type
 tlv name capabilities-type
 tlv name version-type
 tlv name platform-type
!
device-sensor filter-spec dhcp include list DHCP-LIST
device-sensor filter-spec lldp include list LLDP-LIST
device-sensor filter-spec cdp include list CDP-LIST
!
device-sensor accounting
device-sensor notify all-changes
!
access-session acl default passthrough
!
Authentication mac-move permit
!
device-tracking policy IPDT_POLICY
 no protocol udp
 tracking enable
!
crypto key generate rsa general-keys mod 2048
!
ip http server
ip http authentication local
ip http secure-server
ip http secure-active-session-modules none
ip http max-connections 48
ip http active-session-modules none
!
ip access-list extended ACL_WEBAUTH_REDIRECT
 permit tcp any any eq www
 permit tcp any any eq 443
!
ip access-list extended BLOCKHOLE
 permit tcp any any eq www
 permit tcp any any eq 443
!
ip access-list extended IPV4_PRE_AUTH_ACL
 permit udp any eq bootpc any eq bootps
 permit udp any any eq domain
 deny   ip any any



Monitoring Authentications with Open Access

This section provides information about how to enable identity-based wired network access without causing any disruption to regular network connectivity.Figure19: Open Authentication WorkflowFigure19: Open Authentication Workflow

Integrating ISE with Active Directory

Assuming that most environments have a directory server, which is typically Microsoft Windows Active Directory (AD), the following section focuses on the integration between ISE and Microsoft Windows AD. If your environment uses a directory service other than Microsoft Windows AD, see the appropriate guide in the ISE Design & Integration Guides page.



Prerequisites for Integrating Active Directory and Cisco ISE
  • The ISE servers and the Active Directory Domain Controllers must be time synced over Network Time Protocol (NTP).
  • Ensure that trust relationships exist between the domain to which ISE is connected and the other domains that have user and machine information to which you need access.
  • At least one global catalog server that is operational and accessible by ISE in the domain to which you are joining ISE.
  • Domain user account with rights to search, add, and delete machine accounts for ISE, in the Active Directory domain.
  • TCP/UDP ports open for communication between ISE and Domain Controllers (DNS, NTP, MSRPC, Kerberos, LDAP, LDAP-GC and IPC).

For more details, see Active Directory Integration with Cisco ISE 2.x.



Configuring ISE for Active Directory Integration

  1. Log in to ISE(admin node)

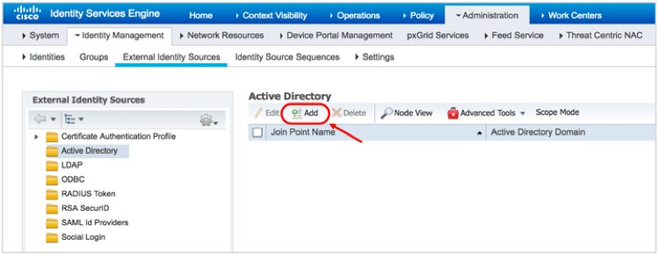

  1. Navigate to Administration > Identity Management > External Identity Sources > Active Directory.
















  1. Click ADD
  1. Enter a custom name in the Joint Point Name field, and the domain name in the Active Directory domain fieldFigure19b.png















  1. Click Submit to save the configuration.
  1. ClickYes for subsequent notification.






  1. Enter the Active Directory username and password.








 Note:The credentials used for the join or leave operation are not stored in Cisco ISE. Only the newly created Cisco ISE machine account credentials are stored.

  1. In the Join Operation Status window, verify if the status is Completed
  2. Click Close to finish the join procedure.















Whitelist specific Active Directory Groups
  1. Click on the Groups taband select Add > Select Groups from Directory option:












  1. UnderRetrieve Groups, select the Active Directory groups that you want to use for the authorization policies and click OK.Figure19g.png

















  1. Click Save.












 Note: The assumption is that Active Directory domain users who are members of these whitelisted groups exist.



Let us now see how to validate ISE and Active Directory integration.



  1. Click the Connection tab within Active Directory configuration, check the configured ISE node in the Join Point Name field, and click Test User.


















  1. In the Test User Authentication window that is displayed, enter a valid domain username and password and check if the authentication succeeds.






















  1. Click Close and exit the Active Directory authentication test.
  1. Log in to the Catalyst switch and execute the testuser command to validate whether end-to-end authentication is working well.
    c9300-Sw#test aaa group radius harry ISEisC00L new-code
    User successfully authenticated

    USER ATTRIBUTES

    username             0   "harry"
    c9300-Sw#
    AAA/SG/TEST Platform: Testing Status
    AAA/SG/TEST:      Authen Requests to Send    : 1
    AAA/SG/TEST:      Authen Requests Processed  : 1

    <Output truncaked>


Let us now see how to whitelist the network device on ISE.

  1. In ISE, navigate to Administration > Network Devices.
















  1. In the left pane, click Default Device.
  1. From the Default Network Device Statusdrop-down list, choose Disabled.


















  1. Click Save.
  1. In the left pane, click Network Devices.
  1. In Network Devices area, click Add.












  1. In the dialog box displayed, enter the corresponding values in the Name,Description and IP address
  1. Check the RADIUS Authentication Settings checkbox and enter the Shared Secret key in the Shared Secret field.






















 Note: Optionally, you can configure the other parameters in the Network Device configuration, such as Model Name, Software Version, Location, Device Type, and so on. The value defined for these attributes can be used in the ISE authentication and authorization polices to match specific criteria.

  1. Click Submit.
Note: ISE allows for bulk configuration of network devices.

One of the options is to upload a CSV file that contains network device details.




The other option is to use REST API calls to the ISE admin node to configure network devices.

For more information, see the Cisco ISE API Reference Guide.



Configure the Switch for Monitor Mode

  1. Log in to the Catalyst switch and to configure a physical interface (port), use the interface global configuration command to enter interface configuration mode.
    c9300-Sw(config)#interface GigabitEthernet x/y/z
    c9300-Sw(config-if)#description ** Endpoints and Users **
  1. Configure the switch port mode as access.

 Note: None of the authentication-related commands are accepted on the interface without this basic configuration.

c9300-Sw(config-if)#switchport mode access
c9300-Sw(config-if)#switchport access vlan 100
c9300-Sw(config-if)#switchport voice vlan 101
  1. Enable the Spanning Tree PortFast feature.
    c9300-Sw(config-if)#spanning-tree portfast
  1. Attach the device-tracking policy to the port. (This configuration is essential in Cisco IOS Version 16.xfor downloadable ACL, URL redirection, SGT, and other authorization options to work.
    c9300-Sw(config-if)#device-tracking attach-policy IPDT_POLICY
  1. To enable open access on the port, use the authentication open command in interface configuration mode. This command enables monitor mode for the endpoints. New MAC addresses that are detected on the port are allowed unrestricted Layer 2 access to the network even before any authentication has succeeded.
    c9300-Sw(config-if)#authentication open
  1. By default, an 802.1X-enabled switch port accepts only one MAC address. Since the idea of open mode is to ensure that there is no disruption, enabling multi-auth host mode is recommended, which allows for one IP Phone an unlimited number of workstations/data_endpoints to authenticate on the interface.
    c9300-Sw(config-if)#authentication host-mode multi-auth
  1. For switch to initiate authentication when the link state changes from down to up state, use the below command to enable authentication on the switch port
    c9300-Sw(config-if)#authentication port-control auto
  1. Configure the switch port as an 802.1X authenticator.
    c9300-Sw(config-if)#dot1x pae authenticator
  1. Enable MAC Authentication Bypass on the same switch port.
    c9300-Sw(config-if)#mab



Authentication Timer Settings
  1. By default, the 802.1X to MAB timeout period is 90 seconds; a 30-second timeout for each EAP request sent to the endpoint, with 2 retries. 90 seconds can cause a significant delay for certain endpoints in obtaining an IP address and gain network access. In open mode, this is not a concern because the port is always open. However, when the network transitions to closed mode, this could be a concern. The best practice configuration for the 802.1X timeout period that works for most environments is about 30 seconds. Configure dot1x timeout and dot1x max-reauth-req interface configuration commands to achieve it.
    c9300-Sw(config-if)#dot1x timeout tx-period 7
    c9300-Sw(config-if)#dot1x max-reauth-req 3
  1. (Optional) Enable the reauthentication and inactivity timer for the port. Use the authentication periodic command to enable automatic reauthentication on a port whether the values are statically assigned on the port or are derived from the RADIUS server.
    c9300-Sw(config-if)#authentication periodic
  1. (Optional) To specify the period of time to reauthenticate the authorized port and to allow the reauthentication timer interval (session timer) to be downloaded to the switch from the RADIUS server:
    c9300-Sw(config-if)#authentication timer reauthenticate server
  1. (Optional) Allow the inactivity timer interval to be downloaded to the switch from the RADIUS server. The dynamic keyword instructs the switch to send out an ARP probe before removing the session to make sure the device is indeed disconnected.
    c9300-Sw(config-if)#authentication timer inactivity server dynamic



IBNS 1.0 interface Configuration for Monitor Mode
interface GigabitEthernet1/0/1
 description ** Endpoints and Users **
 switchport access vlan 100
 switchport mode access
 switchport voice vlan 101
 device-tracking attach-policy IPDT_POLICY
 authentication host-mode multi-auth
 authentication open
 authentication port-control auto
 authentication periodic
 authentication timer reauthenticate server
 authentication timer inactivity server dynamic
 mab
 dot1x pae authenticator
 dot1x timeout tx-period 7
 dot1x max-reauth-req 3
 spanning-tree portfast



Configuring Microsoft Windows and Apple OS X Devices for 802.1X



Configuring Microsoft Windows 10 for Wired 802.1X
  1. Log in to a Windows workstation.
  1. Go to the Services
























  1. Start the Wired AutoConfig
  1. From the Startup type drop-down list, choose Automatic.
  1. Navigate to the Wired Ethernet port’s adapter settings by choosing Start > Settings > Ethernet > Change Adapter Settings.






















  1. Click Properties.
  1. Click the Authentication
  1. From the Settings drop-down list, choose the Microsoft: Protected EAP (PEAP)authentication method.
























  1. Have the Verify the server’s identity by validating the certificateoption unchecked. Recommended to have correct CA certificate imported on the endpoints, unchecking this option should only be for testing purpose prior to importing the CA Certificate.
  1. Uncheck the Automatically user my Windows logon name…
  1. Click Configure under Select Authentication Method.
  1. In the EAP MSCHAPv2 Propertiesdialog box that is displayed, if the endpoint is an Active Directory-managed endpoint, and if the Windows domain login name is preferred for 802.1X authentication, check the “Automatically use my Windows logon name and password” check box.


















 Note: We strongly recommend that you do not disable the server certificate validation option on the supplicant. This can subject endpoints to Man-in-the-middle and various other attacks. While disabling the server certificate validation in the supplicant can help in quickly testing an endpoint for 802.1X authentication, we strongly recommended that you do the exact opposite in a production environment.

  1. Click OK in the EAP MSCHAPv2 Properties dialog box.
  1. Click OK in the Protected EAP Properties
  1. If you unchecked the Automatically user my Windows logon name check box, under the EAP MSCHAPv2 Properties, click Additional Settings.
  1. From Specify authentication mode drop-down list, choose the authentication mode (user/computer/user/guest). For quick validation, choose User Authentication
  1. Enter the username and password and click OK.






















The Windows endpoint is now ready for wired 802.1X authentication.

Note: Although the configuration explained in this section enables 802.1X on a Microsoft Windows endpoint and can be used to validate the end-to-end configuration in an ISE deployment, it is not a recommended configuration method for a large-scale production network.  When it comes to a production setup, the following guidelines must be considered:
  •  Install the ISE server certificate or have the root CA certificate (a signed ISE certificate) installed on the endpoint’s trusted certificate store.
  • Enable server certificate validation in the supplicant settings for PEAP.
  • If it is an Active Directory-managed Windows endpoint, enable the user or computer authentication option.
  • If it is an Active Directory-managed Windows endpoint, set the Windows domain login credentials to be used for 802.1X authentication by checking the Automatically use my Windows logon name and password check box.
  • For Active Directory-managed Windows endpoints, enable 802.1x settings via Group Policy Management…. For more information, see Configure 802.1X Wired Access Clients by using Group Policy   Management.
  • For BYOD Windows endpoints, use ISE’s native supplicant provisioning flow to install the server certificate and configure the adapter settings.



Configuring an Apple MacBook for Wired 802.1X

  1. Connect the USB to Ethernet or the Apple Thunderbolt Ethernet adapter to the MacBook.
  1. Navigate to System Preferences > Network.






















In a few seconds, an authentication window is displayed, asking you enter 802.1X username and password.

  1. In the Account name and Password fields, enter the corresponding values and click OK.






















  1. You will be asked to accept the server certificate. Click Continue.
























  1. In the dialog box that is displayed, provide the local system administrator username and password to add the ISE certificate to the local trusted certificate store.
















You should see the change in IP address and the domain name. Also, note that the 802.1X session timer starts after successful authentication.




Note: As with Microsoft Windows Active Directory and third-party systems managers for Windows endpoints, systems managers are available for Apple OS X devices. These managers can manage inventory, build and deploy applications, and enforce polices on all the managed OS X endpoints in a given environment. For an example of how a systems manager can be used to remotely manage 802.1X configurations on Apple Mac endpoints, see 802.1X Network Authentication for Mac.



Monitoring Authentication Sessions

  1. Log in to ISE.

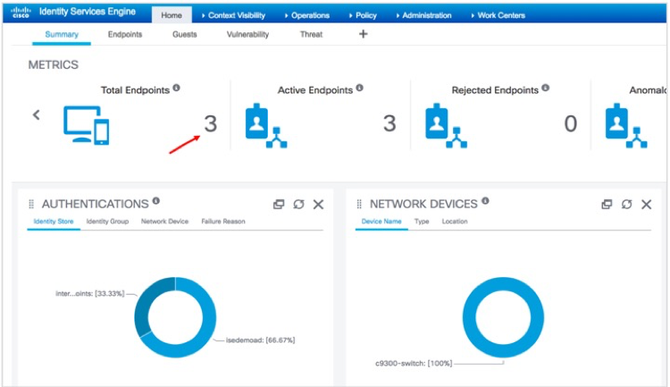

The dashboard displays the total number of endpoints that are connected to the network.
























  1. Click on a number to see the details:












  1. Navigate to Operations > RADIUS: Live Logs.You will see that all the endpoints connected to the network so far have received a permit access.








  1. Log in to the Catalyst switch and check the authentication sessions
    c9300-Sw#show authentication sessions
    Interface                MAC Address    Method  Domain  Status Fg  Session ID
    --------------------------------------------------------------------------------------------
    Gi1/0/1                  0050.56a7.fa8a dot1x   DATA    Auth        65FE14AC0000001F1D04947E
    Gi1/0/1                  0064.40b5.794e mab     DATA    Auth        65FE14AC000000201D049D86
    Gi1/0/5                  406C.8F39.17AE dot1x   DATA    Auth        65FE14AC0000000E1845E2D2

    <Output trunckated>

  1. Check the authentication session details on a specific port
    c9300-Sw#show authentication session interface Gi 1/0/1 details
                Interface:  GigabitEthernet1/0/1
                   IIF-ID:  0x119631A2
              MAC Address:  0050.56a7.fa8a
             IPv6 Address:  fe80::e55d:20e1:8f:d008
             IPv4 Address:  172.20.100.10
                User-Name:  harry
                   Status:  Authorized
                   Domain:  DATA
           Oper host mode:  multi-auth
         Oper control dir:  both
          Session timeout:  N/A
        Common Session ID:  65FE14AC0000001F1D04947E
          Acct Session ID:  0x00000015
                   Handle:  0x3f000015
           Current Policy:  POLICY_Gi1/0/1

    Server Policies:
          Security Policy:  None
          Security Status:  Link Unsecured

    Method status list:
           Method           State
            dot1x           Authc Success

    ----------------------------------------
                Interface:  GigabitEthernet1/0/1
                   IIF-ID:  0x14A4B799
              MAC Address:  0064.40b5.794e
             IPv6 Address:  Unknown
             IPv4 Address:  172.20.101.3
                User-Name:  00-64-40-B5-79-4E
                   Status:  Authorized
                   Domain:  DATA
           Oper host mode:  multi-auth
         Oper control dir:  both
          Session timeout:  N/A
        Common Session ID:  65FE14AC000000201D049D86
          Acct Session ID:  0x00000016
                   Handle:  0xb5000016
           Current Policy:  POLICY_Gi1/0/1

    Server Policies:

    Method status list:
           Method           State
            dot1x           Stopped
              mab           Authc Success




Configuring and Understanding the IBNS 2.0 Policy

One of the simplest ways to configure IBNS 2.0 is to convert an existing IBNS 1.0 configuration on the switch. However,using a composite configuration in IBNS 1.0 style is recommended for the system to generate the best possible policy configuration in the new style. Note that when you convert the configurations, a policy map, a set of class maps, and service templates that will be configured for every single port that has the identity-related configuration. Therefore, the recommendation is to covert a single-port IBNS 1.0 configuration to IBNS 2.0 in a lab, and once a level of comfort is reached in this setting, deploy it in production.



  1. Log in to the switch.
  2. Pre-configure the switch for best practice global configurationsand Open mode interface configurationon one interface.
  3. Execute the IBNS 1.0 to 2.0 conversation command “authentication display new-style”
    c9300-Sw#authentication display new-style

    Please note that while you can revert to legacy style
    configuration at any time unless you have explicitly
    entered new-style configuration, the following caveats
    should be carefully read and understood.

    (1) If you save the config in this mode, it will be written
        to NVRAM in NEW-style config, and if you subsequently
        reload the router without reverting to legacy config and
        saving that, you will no longer be able to revert.

    (2) In this and legacy mode, Webauth is not IPv6-capable. It
        will only become IPv6-capable once you have entered new-
        style config manually, or have reloaded with config saved
        in 'authentication display new' mode.

    (3) 'Default' and 'rollback' commands should not be used in this
        display mode. Either remain in legacy display mode or switch
        to new-style configuration mode before use.


You will notice that the identity configurations have changed on the interface and new control policy added

c9300-Sw#show running-config interface Gi 1/0/1
Building configuration...

Current configuration : 523 bytes
!
interface GigabitEthernet1/0/1
 description ** Endpoints and Users **
 switchport access vlan 100
 switchport mode access
 switchport voice vlan 101
 device-tracking attach-policy IPDT_POLICY
 authentication periodic
 authentication timer reauthenticate server
 access-session port-control auto
 mab
 dot1x pae authenticator
 dot1x timeout tx-period 7
 dot1x max-reauth-req 3
 spanning-tree portfast
 service-policy type control subscriber POLICY_Gi1/0/1
end



Note: The authentication display new-style command converts an existing IBNS 1.0 configuration to IBNS 2.0. The new style configurations can be reverted to the old style with the authentication display legacy privileged EXEC mode command. However, note that in the new style, if any changes are made to the policy map or any IBNS 2.0-specific commands, or if the system is reloaded with new style configurations written to the startup configuration, you will not be able to revert back to the IBNS 1.0 style configurations from IBNS 2.0.



  1. Convert the system authentication configuration mode to the new style, that is, the IBNS 2.0 style
    c9300-Sw#configure terminal
    Enter configuration commands, one per line.  End with CNTL/Z.
    c9300-Sw(config)#
    c9300-Sw(config)#authentication convert-to new-style
    This operation will permanently convert all relevant authentication commands to their CPL
    control-policy equivalents. As this conversion is irreversible and will disable the conversion
    CLI 'authentication display [legacy|new-style]', you are strongly advised to back up your current
    configuration before proceeding.
    Do you wish to continue? [yes]: yes

  1. Review the class-maps and policy-map configuration:

Table5:  IBNS 2.0 Class-Map ConfigurationsTable5: IBNS 2.0 Class-Map Configurations

  Table6:  IBNS 2.0 Policy-Map ConfigurationsTable6: IBNS 2.0 Policy-Map Configurations

  1. Switch now running new style configuration mode, show authentication commands are now replaced with show access-session



Additional Best-Practice Configurations for IBNS 2.0

  1. Copy the interface configuration from the switch port and configure an interface template
    c9300-Sw(config)#template PORT-AUTH-TEMPLATE
    c9300-Sw(config-template)#description ** Endpoints and Users **
    c9300-Sw(config-template)#switchport access vlan 100
    c9300-Sw(config-template)#switchport mode access
    c9300-Sw(config-template)#switchport voice vlan 101
    c9300-Sw(config-template)#authentication periodic
    c9300-Sw(config-template)#authentication timer reauthenticate server
    c9300-Sw(config-template)#access-session port-control auto
    c9300-Sw(config-template)#mab
    c9300-Sw(config-template)#dot1x pae authenticator
    c9300-Sw(config-template)#spanning-tree portfast
    c9300-Sw(config-template)#service-policy type control subscriber POLICY_Gi1/0/1
    c9300-Sw(config-template)#end


Note: Certain interface commands are not supported within interface templates currently. They need to be explicitly configured on the port. The following are the caveats:
Defect ID Unsupported command(s)
CSCvd77095 ‘no lldp transmit’
CSCvd77088 ‘device-tracking’
CSCvd78152 ‘ip verify source’
CSCvd78154 ‘ip access-group’



Note: Notice that the access-session closed command (as on Step 3) is part of the conversion and is being omitted in the interface template configuration. This is because the section focuses on low-impact mode, which is a minor variation of the open mode; in IBNS 2.0, the default port mode is open mode. To move the port to closed mode, configure the access-session closed interface command explicitly either within the interface template or on the physical port

  1. Reset the configuration on the interface back to default using “default interface” command and apply the interface template along with other supporting commands for IBNS
    c9300-Sw(config)#default interface GigabitEthernet1/0/1
    Interface GigabitEthernet1/0/1 set to default configuration
    c9300-Sw(config)#
    c9300-Sw(config)#interface GigabitEthernet1/0/1
    c9300-Sw(config-if)#source template PORT-AUTH-TEMPLATE
    c9300-Sw(config-if)#spanning-tree portfast
    c9300-Sw(config-if)#device-tracking attach-policy IPDT_POLICY
    c9300-Sw(config-if)#end
    c9300-Sw#

  1. Verify the interface configuration
    c9300-Sw#show running-config interface GigabitEthernet 1/0/1
    Building configuration...

    Current configuration : 192 bytes
    !
    interface GigabitEthernet1/0/1
     device-tracking attach-policy IPDT_POLICY
     source template PORT-AUTH-TEMPLATE
     spanning-tree portfast
    end

  1. Check the cumulative configuration applied on the port at runtime
    c9300-Sw#show derived-config interface GigabitEthernet 1/0/1
    Building configuration...

    Derived configuration : 525 bytes
    !
    interface GigabitEthernet1/0/1
     description ** Endpoints and Users **
     switchport access vlan 100
     switchport mode access
     switchport voice vlan 101
     device-tracking attach-policy IPDT_POLICY
     authentication periodic
     authentication timer reauthenticate server
     access-session port-control auto
     mab
     dot1x pae authenticator
     dot1x timeout tx-period 7
     dot1x max-reauth-req 3
     spanning-tree portfast
     service-policy type control subscriber POLICY_Gi1/0/1
    end


You will also notice some minor changes to the global configuration:

c9300-Sw#show running-config aaa | include accounting
aaa accounting Identity default start-stop group ISE
aaa accounting update newinfo periodic 2880
Note:

Global AAA and RADIUS server configurations for IBNS 1.0 and IBNS 2.0 are very alike, barring a few minor differences:

    •  The aaa accounting dot1x command is converted to aaa accounting identity in IBNS 2.0 style.
    • The authentication mac-move permit command is the default in IBNS 2.0, and therefore, the configuration does not show up in the running configuration. If you want to disable mac-move, configure access-session mac-move deny explicitly in the global configuration mode.
    • The device-sensor accounting command is replaced with the access-session attributes filter-list command set in IBNS 2.0. For example,
      access-session attributes filter-list list Def_Acct_List
       cdp
       lldp
       dhcp
       http

      access-session accounting attributes filter-spec include list Def_Acct_List​



Switch Global Configuration for AAA, RADIUS in IBNS 2.0

Below is Switch Global AAA,Radius & device sensor configurations

ip domain name isedemo.lab
!
interface Vlan254
 description ** Switch management interface **
 ip address 172.20.254.101 255.255.255.0
!
aaa new-model
aaa session-id common
!
radius server ISE01
 address ipv4 172.20.254.21 auth-port 1812 acct-port 1813
 automate-tester username test-user ignore-acct-port probe-on
 key ISEisC00L
!
radius server ISE02
 address ipv4 172.20.254.22 auth-port 1812 acct-port 1813
 automate-tester username test-user ignore-acct-port probe-on
 key ISEisC00L
!
dot1x system-auth-control
dot1x critical eapol
!
username test-user password 0 test-password
!
radius-server attribute 6 on-for-login-auth
radius-server attribute 8 include-in-access-req
radius-server attribute 25 access-request include
radius-server attribute 31 mac format ietf upper-case
radius-server attribute 31 send nas-port-detail mac-only
radius-server dead-criteria time 10 tries 3
radius-server deadtime 15
!
aaa group server radius ISE
 server name ISE01
 server name ISE02
 ip radius source-interface Vlan254
!
aaa authentication dot1x default group ISE
aaa authorization network default group ISE
aaa accounting Identity default start-stop group ISE
aaa accounting update newinfo periodic 2880
!
aaa server radius dynamic-author
 client 172.20.254.21 server-key ISEisC00L
 client 172.20.254.22 server-key ISEisC00L
!
lldp run
!
device-sensor filter-list dhcp list DHCP-LIST
 option name host-name
 option name requested-address
 option name parameter-request-list
 option name class-identifier
 option name client-identifier
!
device-sensor filter-list lldp list LLDP-LIST
 tlv name system-name
 tlv name system-description
 tlv name system-capabilities
!
device-sensor filter-list cdp list CDP-LIST
 tlv name device-name
 tlv name address-type
 tlv name capabilities-type
 tlv name version-type
 tlv name platform-type
!
device-sensor filter-spec dhcp include list DHCP-LIST
device-sensor filter-spec lldp include list LLDP-LIST
device-sensor filter-spec cdp include list CDP-LIST
!
device-sensor notify all-changes
!
access-session attributes filter-list list Def_Acct_List
 cdp
 lldp
 dhcp
 http
access-session accounting attributes filter-spec include list Def_Acct_List
!
access-session acl default passthrough
!
device-tracking policy IPDT_POLICY
 no protocol udp
 tracking enable
!
crypto key generate rsa general-keys mod 2048
!
ip http server
ip http authentication local
ip http secure-server
ip http secure-active-session-modules none
ip http max-connections 48
ip http active-session-modules none
!
ip access-list extended ACL_WEBAUTH_REDIRECT
 permit tcp any any eq www
 permit tcp any any eq 443
!
ip access-list extended BLOCKHOLE
 permit tcp any any eq www
 permit tcp any any eq 443
!
ip access-list extended IPV4_CRITICAL_ACL
 permit ip any any
!
ip access-list extended IPV4_PRE_AUTH_ACL
 permit udp any eq bootpc any eq bootps
 permit udp any any eq domain
 deny   ip any any
!



  1. Create a backup of your current configuration file on Flash using copy running-config flash: so that you can restore a Monitor-mode configuration when migrating to Closed Mode.



Migrating from Monitor Mode

In Monitor Mode, authentication occurs but network access is not restricted based on the authentication result. A combination of Cisco Identity Services Engine (ISE) policies and switchport commands is used to give all devices full access to the network. In Monitor Mode, network administrators can determine which users or devices would have failed authentication and why.

Cisco Recommends deploying 802.1x in a staged approach. The stages begin with Monitor Mode as the initial stage and end state will be either Low-Impact Mode or Closed Mode. The deployment modes beyond Monitor-Mode gradually builds access controls into the design through Port-based ACLs, dACLS and /or VLAN authorizations.



Pre-Authentication and Post-Authentication Access Control with Low Impact

After gaining enough visibility in the monitor mode, the next step is to enforce restricted access. Low-Impact mode incrementally increases the security level of the network by configuring an ingress port ACL on top of Monitor-Mode interface configurations. This provides basic connectivity for hosts while selectively limiting access and introducing a higher level of security. Pre-authentication access control is be done via port access control lists which are locally defined on the switchport, post-authentication access control can be done via downloadable or named access control lists. Such level of access is required for PXE boot environments where network access must be granted prior to authentication.



Note: Dynamic VLAN assignment is not a recommended authorization option for low-impact mode. Since endpoints acquire IP address before network authentication in the default VLAN, a change in the VLAN assignment forces the endpoints to renew their IP addresses, which might not happen automatically, thereby locking them out of the network in spite of an authorized access as per ISE policy.



Some endpoint types have the intelligence to detect network changes. The Windows workstation for instance, attempts to ping the default gateway (thrice within seconds) with TTL=1, upon receiving an EAP-Success message from the switch, endpoint assumes that there is no change in the VLAN and retains  its IP address.  If the switch doesn’t respondendpoint releases the IP address . This feature was introduced in Windows XP SP2 with the following KB:



KB822596: DHCP does not obtain a new address when EAP reauthenticates across access points with IP subnets that differ.



The behavior with Apple macOS X is similar. However, when the system receives an EAP success message, the endpoint tries to reach the DHCP server to renew its IP address, thrice with a minute wait time between the attempts.



Switch Configuration for Low Impact Mode

  1. Log in to the switch.
  2. Verify the Pre-Authentication AC(Pre-Auth-ACL) configured in “URL Redirection ACL” Section
    c9300-Sw#show ip access-list IPV4_PRE_AUTH_ACL
    Extended IP access list IPV4_PRE_AUTH_ACL
    	10 permit udp any eq bootpc any eq bootps
    	20 permit udp any any eq domain
    	30 deny ip any any

  1. On a per-port basis, Apply the Pre-Auth-ACL in the ingress direction to convert the port from Monitor mode to Low Impact Mode.
    c9300-Sw(config)#interface gigabitEthernet 1/0/1
    c9300-Sw(config-if)#ip access-group IPV4_PRE_AUTH_ACL in
  1. Check the cumulative configuration applied on the port at runtime
    c9300-Sw#show derived-config interface GigabitEthernet 1/0/1
    Building configuration...

    Derived configuration : 525 bytes
    !
    interface GigabitEthernet1/0/1
     description ** Endpoints and Users **
     switchport access vlan 100
     switchport mode access
     switchport voice vlan 101
     device-tracking attach-policy IPDT_POLICY
     ip access-group IPV4_PRE_AUTH_ACL in
     authentication periodic
     authentication timer reauthenticate server
     access-session control-direction in
     access-session port-control auto
     mab
     dot1x pae authenticator
     dot1x timeout tx-period 7
     dot1x max-reauth-req 3
     spanning-tree portfast
     service-policy type control subscriber POLICY_Gi1/0/1
    end




Downloadable ACL Authorization

  1. Log in to ISE and navigate to Policy > Results
  2. In the left pane, click Authorization > Downloadable ACLs.
  3. Click Add.


















  1. Create a dACL each for Employees and IP phones.
  2. After the dACL rules are written, validate them by clicking the Check DACL Syntax
  3. Click Submit.
Note: In this example, Employees are denied access to a specific subnet PCI network and are given access to everything else. IP phones have access to the subnet where the Call Manager, DHCP, DNS servers and other peers in the default and voice VLANs reside,

and the rest of the network access is denied.



In terms of the Access Control Entries (ACEs) for the downloadable ACLs, the recommendation is to keep it small so that it is easy to download the policy to the network device. In addition, small ACLs can optimize the Ternary Content Addressable Memory (TCAM) memory consumption on the access switch. The best practice limit for dACLs is 64 ACEs (64 lines).



  1. In the left pane, click Authorization Profiles and then click Add.














  1. Create a new Authorization Profile and reference the Employee ACL.
  2. Click Submit.






























  1. Repeat the same procedure for the Voice ACL. However, for IP phones, you should check the Voice Domain Permission authorization check box.
  2. Click Submit.




  1. Navigate to the Policy > Policy Sets>Authorization Policypage for Employees and IP phones policy. (Below two policies can be configured using custom policy set or modified default policy set )

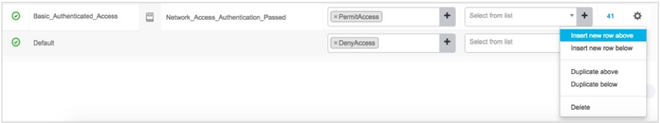

  2. Update or create the Employee and IP phone authorization rule as show below and save the configuration.








Validating ACL Authorization/Low-Impact Mode

  1. Log in to ISE.
  2. Navigate to Operations > RADIUS: Live Logs.

You will see that both the Employee PC and the IP phones have dACL authorization.








  1. Click the Details icon pertaining to an ACL entry.






In the Result dialog box, you will see individual dACL rules that are downloaded to the switch.
















  1. Log in to the switch, and check the authentication sessions.

Note: In IBNS 2.0, most of the authentication commands are converted to access-session commands. So, show authentication sessions is show access-session in IBNS 2.0.

c9300-Sw#show access-session interface Gi 1/0/1 details
            Interface:  GigabitEthernet1/0/1
               IIF-ID:  0x1639E95C
          MAC Address:  0064.40b5.794e
         IPv6 Address:  Unknown
         IPv4 Address:  172.20.101.3
            User-Name:  00-64-40-B5-79-4E
               Status:  Authorized
               Domain:  VOICE
       Oper host mode:  multi-auth
     Oper control dir:  in
      Session timeout:  N/A
    Common Session ID:  65FE14AC0000003532D7D09C
      Acct Session ID:  0x0000002b
               Handle:  0x6800002b
       Current Policy:  POLICY_Gi1/0/1

Local Policies:
         Idle timeout:  65536 sec

Server Policies:
              ACS ACL: xACSACLx-IP-VoiceACL-5aee9aa7

Method status list:
       Method           State
        dot1x           Stopped
          mab           Authc Success

----------------------------------------
            Interface:  GigabitEthernet1/0/1
               IIF-ID:  0x1645C323
          MAC Address:  0050.56a7.fa8a
         IPv6 Address:  fe80::e55d:20e1:8f:d008
         IPv4 Address:  172.20.100.10
            User-Name:  harry
               Status:  Authorized
               Domain:  DATA
       Oper host mode:  multi-auth
     Oper control dir:  in
      Session timeout:  N/A
    Common Session ID:  65FE14AC0000003432D7C631
      Acct Session ID:  0x0000002a
               Handle:  0x7d00002a
       Current Policy:  POLICY_Gi1/0/1

Local Policies:
         Idle timeout:  65536 sec

Server Policies:
      Security Policy:  None
      Security Status:  Link Unsecured
            SGT Value:  4
              ACS ACL: xACSACLx-IP-EmployeeAccessACL-5aee9a60

Method status list:
       Method           State
        dot1x           Authc Success

Note: The dACL names are appended with session timestamps when downloaded from ISE.



  1. Verify the downloaded ACL on the switch using “show ip access-list” command
    c9300-Sw#show ip access-lists | section xACSACLx-IP-
    Extended IP access list xACSACLx-IP-EmployeeAccessACL-5aee9a60
        1 deny ip any 172.20.199.0 0.0.0.255
        2 permit ip any any
    Extended IP access list xACSACLx-IP-VoiceACL-5aee9aa7
        1 permit ip any 172.20.254.0 0.0.0.255
        2 permit ip any 172.20.100.0 0.0.0.255
        3 permit ip any 172.20.101.0 0.0.0.255
        4 deny ip any any


  1. Further you can run platform-specific command to understand which ACLs are applicable for specific endpoints. In the example below, which is for a Catalyst 9300 switch, you can see that on GigabitEthernet 1/0/1 interface, any MAC address (0000.0000.0000) is subject to IPV4_PRE_AUTH_ACL, the IP phone MAC address is subject to IP-Voice-ACL + IPV4_PRE_AUTH_ACL, and the Employee’s PC is access controlled by EmployeeAccessACL + IPV4_PRE_AUTH_ACLs
    c9300-Sw#show platform software fed switch 1 acl interface | begin 1/0/1
    INTERFACE: GigabitEthernet1/0/1
    MAC 0000.0000.0000
    ########################################################
        intfinfo: 0x7fa8fc02cba8
        Interface handle: 0xaa000027
        Interface Type: Port
        IIF ID: 0x8
        Input IPv6: Policy Handle: 0x990000b6
            Policy Name: sisf v6acl 0001DF9F
                 CG ID: 16
           CGM Feature: [0] acl
            Bind Order: 0

        Input IPv4: Policy Handle: 0xef00007a
            Policy Name: IPV4_PRE_AUTH_ACL
                 CG ID: 19
           CGM Feature: [0] acl
            Bind Order: 0

    INTERFACE: Client MAC 0064.40b5.794e
    MAC 0064.40b5.794e
    ########################################################
        intfinfo: 0x7fa8fc036638
        Interface handle: 0xc2000085
        Interface Type: Group
        IIF ID: 0x1c314c66
        Input IPv4: Policy Handle: 0x6a0000ba
            Policy Name: IPV4_PRE_AUTH_ACL:xACSACLx-IP-VoiceACL-5aee9aa7:
                 CG ID: 4880
           CGM Feature: [35] acl-grp
            Bind Order: 0

    INTERFACE: Client MAC 0050.56a7.fa8a
    MAC 0050.56a7.fa8a
    ########################################################
        intfinfo: 0x7fa8fc058078
        Interface handle: 0xf9000084
        Interface Type: Group
        IIF ID: 0x1debb70b
        Input IPv4: Policy Handle: 0x640000b7
            Policy Name: IPV4_PRE_AUTH_ACL:xACSACLx-IP-EmployeeAccessACL-5aee9a60:
                 CG ID: 4624
           CGM Feature: [35] acl-grp
            Bind Order: 0

Note: Similar ACL programming information can be obtained on the Catalyst 3650 and 3850 switch platforms by running the show platform acl le privileged EXEC mode command.



In the other platforms, running the show ip access-list interface <interface-id> command will provide the cumulative list of ACEs that are applied on a specific port.



Role-Based Critical Authorization

One of the many advantages of using IBNS 2.0 is that it can handle failure scenarios efficiently. With a few additional tweaks to the previously configured IBNS 2.0 configuration, endpoints that have been authorized previously by ISE can be given the same level of network access even when the server is not reachable the next time. The idea is to grant role-based access during critical conditions, instead of applying a common critical authorization.



Figure20:  Critical Authorization in Low-Impact ModeFigure20:  Critical Authorization in Low-Impact Mode

Cisco IOS Changes for Role-Based Critical Authorization

In the following procedure, a user role ‘Employees’ is created which is the same name as Security Group Tag on ISE.  When Employee users authenticate the first time, the user role is downloaded from ISE. Later, when the same users re-connect to the network when ISE is unreachable, the same network access authorization is applied locally by the switch.



  1. Log in to the switch and configure IP ACL for Employee users.

Note that the ACL rules are the same as the downloadable ACLs configured on ISE for the Employee user group.

c9300-Sw(config)#ip access-list extended IPV4_EMPLOYEE_CRITICAL_ACL
c9300-Sw(config-ext-nacl)#deny ip any 172.20.199.0 0.0.0.255
c9300-Sw(config-ext-nacl)#permit ip any any
  1. Configure a service template that matches the ISE authorization policy results in ISE for the Employee user group exactly.
    c9300-Sw(config)#service-template EMPLOYEE_CRITICAL_AUTH_ACCESS
    c9300-Sw(config-service-template)#description ** Policy For Employees during IAB **
    c9300-Sw(config-service-template)#access-group  IPV4_EMPLOYEE_CRITICAL_ACL
    c9300-Sw(config-service-template)#sgt 4


Current ISE policy for the Employee user group








  1. Create a class map to match the Employee user role and the AAA down condition.
    c9300-Sw(config)#class-map type control subscriber match-all AAA_DOWN_UNAUTHD_EMPLOYEE
    c9300-Sw(config-filter-control-classmap)#match result-type aaa-timeout
    c9300-Sw(config-filter-control-classmap)#match authorization-status unauthorized
    c9300-Sw(config-filter-control-classmap)#match user-role Employees
  1. Create two class maps that evaluate the critical authorization conditions.
    c9300-Sw(config)# class-map type control subscriber match-any IN_CRITICAL_AUTH
    c9300-Sw(config-filter-control-classmap)#match activated-service-temp CRITICAL_AUTH_ACCESS
    c9300-Sw(config-filter-control-classmap)#match activated-service-temp DEFAULT_CRITICAL_VOICE_TEMPLATE
    c9300-Sw(config-filter-control-classmap)#match activated-service-temp EMPLOYEE_CRITICAL_AUTH_ACCESS
    c9300-Sw(config-filter-control-classmap)#exit

    c9300-Sw(config)#class-map type control subscriber match-none NOT_IN_CRITICAL_AUTH
    c9300-Sw(config-filter-control-classmap)#match activated-service-temp CRITICAL_AUTH_ACCESS
    c9300-Sw(config-filter-control-classmap)#match activated-service-temp DEFAULT_CRITICAL_VOICE_TEMPLATE
    c9300-Sw(config-filter-control-classmap)#match activated-service-templ EMPLOYEE_CRITICAL_AUTH_ACCESS
    c9300-Sw(config-filter-control-classmap)#exit

  1. Either modify the existing policy or create a new policy map to match the differentiated critical authorization state and apply the new service template when the ISE service is unavailable for the Employee devices. In this sample procedure, a new policy map is created in global configuration mode with changes that are minor when compared to the previous ones. Note the highlighted sections in the following example.
    policy-map type control subscriber PORT-AUTH-POLICY
     event session-started match-all
      10 class always do-until-failure
       10 authenticate using dot1x priority 10
     event authentication-failure match-first
      5 class DOT1X_FAILED do-until-failure
       10 terminate dot1x
       20 authenticate using mab priority 20
      15 class AAA_SVR_DOWN_UNAUTHD_HOST do-until-failure
       10 clear-authenticated-data-hosts-on-port
       20 activate service-template EMPLOYEE_CRITICAL_AUTH_ACCESS
       30 activate service-template DEFAULT_CRITICAL_VOICE_TEMPLATE
       40 authorize
       50 pause reauthentication
      20 class AAA_SVR_DOWN_AUTHD_HOST do-until-failure
       10 pause reauthentication
       20 authorize
      30 class DOT1X_NO_RESP do-until-failure
       10 terminate dot1x
       20 authenticate using mab priority 20
      40 class MAB_FAILED do-until-failure
       10 terminate mab
       20 authentication-restart 60
      60 class always do-until-failure
       10 terminate dot1x
       20 terminate mab
       30 authentication-restart 60
     event agent-found match-all
      10 class always do-until-failure
       10 terminate mab
       20 authenticate using dot1x priority 10
     event aaa-available match-all
      10 class IN_CRITICAL_AUTH do-until-failure
       10 clear-session
      20 class NOT_IN_CRITICAL_AUTH do-until-failure
       10 resume reauthentication
     event inactivity-timeout match-all
      10 class always do-until-failure
       10 clear-session
     event authentication-success match-all
     event violation match-all
      10 class always do-until-failure
      10 activate service-template DEFAULT_LINKSEC_POLICY_SHOULD_SECURE
  1. Apply the new policy to the interface.
    c9300-Sw(config)#template PORT-AUTH-TEMPLATE
    c9300-Sw(config-template)#description ** Endpoints and Users **
    c9300-Sw(config-template)#switchport access vlan 100
    c9300-Sw(config-template)#switchport mode access
    c9300-Sw(config-template)#switchport voice vlan 101
    c9300-Sw(config-template)#authentication periodic
    c9300-Sw(config-template)#authentication timer reauthenticate server
    c9300-Sw(config-template)#access-session control-direction in
    c9300-Sw(config-template)#access-session port-control auto
    c9300-Sw(config-template)#mab
    c9300-Sw(config-template)#dot1x pae authenticator
    c9300-Sw(config-template)#spanning-tree portfast
    c9300-Sw(config-template)#no service-policy type control subscriber PORT-AUTH-POLICY
    c9300-Sw(config-template)#service-policy type control subscriber PORT-AUTH-POLICY
    c9300-Sw(config-template)#end




ISE Authorization with User Role

  1. Log in to ISE.
  2. Navigate to Policy > Policy Elements > Results.

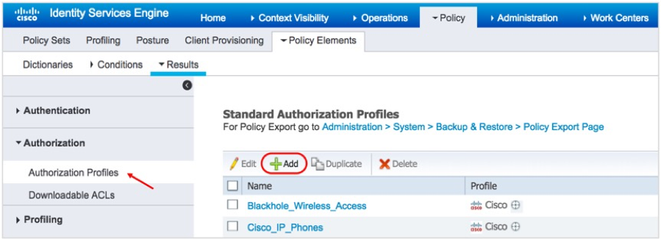

  3. In the left pane, click Authorization > Authorization Profiles.
  4. ClickAdd.
  5. Create a new authorization profile with Cisco AV Pair: role=<user-role>.






























  1. Modify the Employee Authorization rule.








  1. Authenticate or re-authenticate the Employee user.
    c9300-Sw#show access-session interface gigabitEthernet 1/0/1 details
                Interface:  GigabitEthernet1/0/1
                   IIF-ID:  0x1E27B669
              MAC Address:  0050.56a7.fa8a
             IPv6 Address:  Unknown
             IPv4 Address:  172.20.100.10
                User-Name:  harry
                User-Role:  Employees
                   Status:  Authorized
                   Domain:  DATA
           Oper host mode:  multi-auth
         Oper control dir:  in
          Session timeout:  N/A
        Common Session ID:  65FE14AC0000005A3912107F
          Acct Session ID:  0x00000050
                   Handle:  0xbb000050
           Current Policy:  PORT-AUTH-POLICY


    Local Policies:
             Idle timeout:  65536 sec

    Server Policies:
          Security Policy:  None
          Security Status:  Link Unsecured
                SGT Value:  4
                  ACS ACL: xACSACLx-IP-EmployeeAccessACL-5aee9a60

    Method status list:
           Method           State
            dot1x           Authc Succes

The user role is cached on the switch.

Note: In case of empty cache, make sure “device classifier” is enabled.

c9300-Sw#show access-session cache
Access session cache details
----------------------------------------
          MAC Address:  0050.56a7.fa8a
          Device-type:
            User-role:  Employees
         Protocol-map:  00000000
----------------------------------------
<Output truncated>

The IP ACL is applied to the Employee’s session.

c9300-Sw#show ip access-lists xACSACLx-IP-EmployeeAccessACL-5aee9a60
Extended IP access list xACSACLx-IP-EmployeeAccessACL-5aee9a60
    1 deny ip any 172.20.199.0 0.0.0.255
    2 permit ip any any



Validating Role-Based Critical Authorization

  1. Make sure the ISE servers are unreachable from ISE.
    c9300-Sw#show aaa servers | include id|State
    RADIUS: id 1, priority 1, host 172.20.254.21, auth-port 1812, acct-port 1813
         State: current DEAD, duration 107s, previous duration 555708s
         Platform State from SMD: current DEAD, duration 106s, previous duration 556543s
         Platform State from WNCD: current UP, duration 0s, previous duration 0s
    RADIUS: id 2, priority 2, host 172.20.254.22, auth-port 1812, acct-port 1813
         State: current DEAD, duration 92s, previous duration 555723s
         Platform State from SMD: current DEAD, duration 91s, previous duration 556558s
         Platform State from WNCD: current UP, duration 0s, previous duration 0s

  1. Connect the Employee PC again when the server is unreachable.

You will notice that the switch has applied the same policies that ISE would apply, but locally, based on the cached user role

c9300-Sw#show access-session interface gigabitEthernet 1/0/1 details
            Interface:  GigabitEthernet1/0/1
               IIF-ID:  0x1413C541
          MAC Address:  0050.56a7.fa8a
         IPv6 Address:  fe80::e55d:20e1:8f:d008
         IPv4 Address:  172.20.100.10
            User-Role:  Employees
               Status:  Authorized
               Domain:  UNKNOWN
       Oper host mode:  multi-auth
     Oper control dir:  in
      Session timeout:  N/A
    Common Session ID:  65FE14AC0000005C392B1226
      Acct Session ID:  0x00000052
               Handle:  0x43000052
       Current Policy:  PORT-AUTH-POLICY

Local Policies:
         Idle timeout:  65536 sec
	Service Template: EMPLOYEE_CRITICAL_AUTH_ACCESS (priority 150)
       Filter-ID: IPV4_EMPLOYEE_CRITICAL_ACL
            SGT Value:  4

Method status list:
       Method           State
        dot1x           Authc Failed
Note: Similar local policies can be configured for other users or device types.



The access-session cache is cleared either when the switch reloads or the endpoint logoff (EAPOL-Logoff), which typically occurs in most of the operating systems.



Differentiated Authentication with IBNS 2.0

There are scenarios where AAA transactions must be carried out from the same network device, with distinct groups of RADIUS servers. This is typical in wireless networks, where configurations can be done on a per SSID basis. However, on the switch side, such differentiated authentication was not possible until the introduction of IBNS 2.0. The following are a couple of use cases for differentiated authentication:

  • Separate MAB and 802.1X transactions–Not a common or recommended practice. Can be performed if there is a need to separate MAB and 802.1X transactions from the same switch interface.
  • Separate RADIUS servers based on switch port–Specific switch ports can be configured for the IBNS 2.0 policy to talk to separate ISE servers.



Figure21:  Differentiated Authentication with IBNS 2.0Figure21: Differentiated Authentication with IBNS 2.0



Example below briefs you how to modify the switch configuration to perform differentiated authentication so that specific sets of interfaces on the switch talk to specific ISE servers.

Switch Configuration for Differentiated Authentication

Global AAA and RADIUS Server Definition



  1. Before authoring a policy-map and applying it on the interface, configure the global AAA and RADIUS parameters to distinguish the two AAA server groups. Define two or more distinct RADIUS servers in global configuration mode.
    radius server ISE01
     address ipv4 172.20.254.21 auth-port 1812 acct-port 1813
     automate-tester username test-user ignore-acct-port probe-on
     key ISEisC00L
    !
    radius server ISE02
     address ipv4 172.20.254.22 auth-port 1812 acct-port 1813
     automate-tester username test-user ignore-acct-port probe-on
     key ISEisC00L
    !



  1. Define two server groups and method lists for AAA in global configuration mode.
    aaa group server radius ISE-CUBE-1
     server name ISE01
     ip radius source-interface Vlan254
    !
    aaa group server radius ISE-CUBE-2
     server name ISE02
     ip radius source-interface Vlan254
    !
    aaa authentication dot1x default group radius
    aaa authentication dot1x AAA_LIST1 group ISE-CUBE-1
    aaa authentication dot1x AAA_LIST2 group ISE-CUBE-2
    !
    aaa authorization network default group radius
    aaa authorization network AAA_LIST1 group ISE-CUBE-1
    aaa authorization network AAA_LIST2 group ISE-CUBE-2
    !
    aaa accounting Identity AAA_LIST2 start-stop group ISE-CUBE-2
    aaa accounting Identity AAA_LIST1 start-stop group ISE-CUBE-1
    !
    aaa accounting network AAA_LIST1 start-stop group ISE-CUBE-1
    aaa accounting network AAA_LIST2 start-stop group ISE-CUBE-2
    !
  1. (Optional) Run the below AAA accounting commands to make the switch simultaneously send accounting records to the first server in each group.
    aaa accounting Identity default start-stop broadcast group ISE-CUBE-1 group ISE-CUBE-2
    aaa accounting network default start-stop broadcast group ISE-CUBE-1 group ISE-CUBE-2
    aaa accounting system default start-stop broadcast group ISE-CUBE-1 group ISE-CUBE-2

  1. Define all the individual RADIUS servers as CoA servers.
    aaa server radius dynamic-author
     client 172.20.254.21 server-key ISEisC00L
     client 172.20.254.22 server-key ISEisC00L
     auth-type any



IBNS 2.0 Policy and Interface Configuration
  1. Configure two IBNS 2.0 policies similar to the PORT-AUTH-POLICY(Section: Configuring and Understanding the IBNS 2.0 Policy – step10) and make the following changes.
    policy-map type control subscriber PORT-AUTH-POLICY-CUBE1
     event session-started match-all
      10 class always do-until-failure
       10 authenticate using dot1x aaa authc-list ISE-CUBE-1 authz-list ISE-CUBE-1 priority 10
    ...
     event authentication-failure match-first
    ...
      30 class DOT1X_NO_RESP do-until-failure
       10 terminate dot1x
       20 authenticate using mab aaa authc-list ISE-CUBE-1 authz-list ISE-CUBE-1 priority 20
    ...
    policy-map type control subscriber PORT-AUTH-POLICY-CUBE2
     event session-started match-all
      10 class always do-until-failure
       10 authenticate using dot1x aaa authc-list ISE-CUBE-2 authz-list ISE-CUBE-2 priority 10
    ...
     event authentication-failure match-first
    ...
      30 class DOT1X_NO_RESP do-until-failure
       10 terminate dot1x
       20 authenticate using mab aaa authc-list ISE-CUBE-2 authz-list ISE-CUBE-2 priority 20
    ...
  1. Configure the interface templates to reference above two policies maps.
    template PORT-AUTH-TEMPLATE-CUBE1
     description ** Endpoints and Users on Cube-1 ISE **
     spanning-tree portfast
     dot1x pae authenticator
     switchport access vlan 100
     switchport mode access
     switchport voice vlan 101
     mab
     access-session control-direction in
     access-session closed
     access-session port-control auto
     authentication periodic
     authentication timer reauthenticate server
     service-policy type control subscriber PORT-AUTH-POLICY-CUBE1
    !
    template PORT-AUTH-TEMPLATE-CUBE2
     description ** Endpoints and Users on Cube-2 ISE **
     spanning-tree portfast
     dot1x pae authenticator
     switchport access vlan 100
     switchport mode access
     switchport voice vlan 101
     mab
     access-session control-direction in
     access-session closed
     access-session port-control auto
     authentication periodic
     authentication timer reauthenticate server
     service-policy type control subscriber PORT-AUTH-POLICY-CUBE2
  1. Source the interface template along with the other interface-specific commands for the desired ports.
    c9300-Sw(config)#interface range GigabitEthernet 1/0/1 - 11
    c9300-Sw(config-if-range)#source template PORT-AUTH-POLICY-CUBE1
    c9300-Sw(config-if-range)#exit
    c9300-Sw(config)#
    c9300-Sw(config)#interface range GigabitEthernet 1/0/12 - 22
    c9300-Sw(config-if-range)#source template PORT-AUTH-POLICY-CUBE2
    c9300-Sw(config-if-range)#exit

Differentiated Authentication for Authentication Methods

  1. Here is an example of how to configure an IBNS 2.0 policy for differentiated authentication for 802.1X and MAB on the same switchport.
    policy-map type control subscriber PORT-AUTH-POLICY-DIFF-AUTH
     event session-started match-all
      10 class always do-until-failure
       10 authenticate using dot1x aaa authc-list ISE-CUBE-1 authz-list ISE-CUBE-1 priority 10
    ...
     event authentication-failure match-first
    ...
      30 class DOT1X_NO_RESP do-until-failure
       10 terminate dot1x
       20 authenticate using mab aaa authc-list ISE-CUBE-2 authz-list ISE-CUBE-2 priority 20
    ...



ISE Authorization Profile for Differentiated dACL

When two or more ISE deployments are managed in an environment and differentiated authentication is used, certain authorizations from ISE may not work well because they require communication with specific ISE servers for additional attributes. For example, when an endpoint is authorized for a downloadable ACL from ISE-Cube-2, the switch only gets the ACL name in the initial flow. In the second flow, it needs to download the ACL rules, but because it is not a standard session-start, the switch will query ISE-Cube-1 for ACEs. If the dACL configurations are not consistent across the ISE deployments, the authorization fails. The fix is to use an additional Cisco AV pair in the authorization to inform the switch about which server group to reach out for additional attributes. The following ISE authorization profile shows the downloadable ACL and the special AVP.


Note: The Method-List AVP (AAA_LIST1 in the example above) on ISE must match the AAA method list on the switch and not the AAA server group:

!

aaa authorization network AAA_LIST1 group ISE-CUBE-1

aaa authorization network AAA_LIST2 group ISE-CUBE-2

!



Identity-Based Network Access in IPv6 Wired Networks

IPv6 is an inevitable future and most of the ISE deployments that are on IPv4 should be migrated to IPv6 in the future. When it comes to dealing with an ISE-based solution for a Cisco Catalyst switch in IPv6 networks, the following table compares the possibilities in contrast to IPv4 networks:



Feature IPV4 Network IPV6 Network
ISE and Switch Addressing Yes Yes
IPV4/IPV6 device tracking on switch Yes Yes
Network device configuration on ISE Yes Yes
(Starting ISE 2.4)
Open Mode(No Authorization) Yes Yes
Closed Mode(With VLAN assignments) Yes Yes
Low-Impact Mode(With ACL authorizations) Yes Partial(Limited platform support, no dACL*)
Downloadable ACLs Yes No
URL Redirection Yes No
Security Group Tags Yes Yes

Table7:  IBNS 2.0 v4/v6 Feature parity



* Only Filter ID and Per-User ACLs are supported on Catalyst 3650, 3850, and 9300 platforms.



IPv6 Network Readiness

  1. Log in to the ISE console (via SSH if it is enabled) and configure the IPv6 address to the interface.
    ise01/admin# configure terminal
    Enter configuration commands, one per line.  End with CNTL/Z.
    ise01/admin(config)# interface GigabitEthernet 0
    ise01/admin(config-GigabitEthernet)# ipv6 enable
    ise01/admin(config-GigabitEthernet)# ipv6 address 2001:20:254::21/64

    Changing the IPV6 address may result in undesired side effects on
    any installed application(s).
    Are you sure you want to proceed? Y/N [N]: Y
    Stopping ISE Monitoring & Troubleshooting Log Collector...
    Stopping ISE Monitoring & Troubleshooting Log Processor...
    PassiveID WMI Service is disabled

    <Output truncaked>
Note: In a distributed ISE deployment, each Policy Administration Node (PAN) and Policy Services Node (PSN) must be configured with an IPv6 address.



All the ISE services on a node restart after a new IPv6 address is configured.



  1. Log in to the access switch and enable IPv6 unicast routing.
    c9300-Sw(config)#ipv6 unicast-routing
  1. Verify if there is an IPv6 address for the RADIUS source interface.
    c9300-Sw#show running-config interface vlan 254
    Building configuration...
    Current configuration : 160 bytes
    !
    interface Vlan254
     description ** Switch management interface **
     ip address 172.20.254.101 255.255.255.0
     ipv6 address 2001:20:254::101/64
     ipv6 enable
    end

Note: Ensure that end-to-end IPv6 routing is configured so that the access switch can talk to ISE nodes over IPv6.



  1. Ensure that the access switch can ping ISE nodes over IPv6.
    c9300-Sw#ping ipv6 2001:20:254::21
    Type escape sequence to abort.
    Sending 5, 100-byte ICMP Echos to 2001:20:254::21, timeout is 2 seconds:
    !!!!!
    Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/4 ms
  1. In Cisco IOS 16.X, device tracking is common for both IPv4 and IPv6. Ensure that the device-tracking policy is configured and is applied for the access ports.
    c9300-Sw#show running-config | begin device-tracking
    device-tracking policy IPDT_POLICY
     no protocol udp
     tracking enable
    !
    interface GigabitEthernet1/0/1
     device-tracking attach-policy IPDT_POLICY



Note: On C3650 and C3850 switch platforms running Cisco IOS version earlier than 16.1, configure the following commands for IPv6 device tracking:



ipv6 neighbor tracking

ipv6 neighbor binding

!

vlan configuration 100-101

ipv6 nd suppress

ipv6 snooping

!

ipv6 snooping policy SNOOP-V6

trusted-port

!

interface GigabitEthernet1/0/24

description ** Uplink Port to Distribution Switch **

ipv6 snooping attach-policy SNOOP-v6

ip dhcp snooping trust

!



Cisco IOS Identity Configurations for IPv6

This section provides information about how the global configuration described in the Switch Global Configuration Dump for AAA, RADIUS and More in IBNS 2.0 section is modified for IPv6.



  1. Change the RADIUS server configurations from IPv4 to IPv6.
    c9300-Sw(config)#radius server ISE01
    c9300-Sw(config-radius-server)#address ipv6 2001:20:254::21 auth-port 1812 acct-port 1813
    c9300-Sw(config-radius-server)#no address ipv4 172.20.254.21 auth-port 1812 acct-port 1813
    c9300-Sw(config-radius-server)#automate-tester username test-user ignore-acct-port probe-on
    c9300-Sw(config-radius-server)#key ISEisC00L
    c9300-Sw(config-radius-server)#exit
    c9300-Sw(config)#
    c9300-Sw(config)#radius server ISE02
    c9300-Sw(config-radius-server)#address ipv6 2001:20:254::22 auth-port 1812 acct-port 1813
    c9300-Sw(config-radius-server)#no address ipv4 172.20.254.22 auth-port 1812 acct-port 1813
    c9300-Sw(config-radius-server)#automate-tester username test-user ignore-acct-port probe-on
    c9300-Sw(config-radius-server)#key ISEisC00L
    c9300-Sw(config-radius-server)#exit

  1. Perform similar configuration changes for RADIUS CoA servers.
    c9300-Sw(config)#aaa server radius dynamic-author
    c9300-Sw(config-locsvr-da-radius)#client 2001:20:254::21 server-key ISEisC00L
    c9300-Sw(config-locsvr-da-radius)#client 2001:20:254::22 server-key ISEisC00L
    c9300-Sw(config-locsvr-da-radius)#no client 172.20.254.21 server-key ISEisC00L
    c9300-Sw(config-locsvr-da-radius)#no client 172.20.254.22 server-key ISEisC00L
    c9300-Sw(config-locsvr-da-radius)#end

  1. Ensure that the servers are reachable and are marked as Up.
    c9300-Sw#show aaa servers | include RADIUS|State
    RADIUS: id 1, priority 1, host 2001:20:254::21, auth-port 1812, acct-port 1813
         State: current UP, duration 19s, previous duration 199s
         Platform State from SMD: current UP, duration 19s, previous duration 2885s
         Platform State from WNCD: current UP, duration 0s, previous duration 0s
    RADIUS: id 2, priority 2, host 2001:20:254::22, auth-port 1812, acct-port 1813
         State: current UP, duration 17s, previous duration 0s
         Platform State from SMD: current UP, duration 17s, previous duration 0s
         Platform State from WNCD: current UP, duration 0s, previous duration 0s




Low-Impact Mode with IPv6 Per-User ACL

  1. Configure a pre-authentication IPv6 ACL.
    c9300-Sw(config)#ipv6 access-list IPV6_PRE_AUTH_ACL
    c9300-Sw(config-ipv6-acl)#permit udp any any eq bootpc
    c9300-Sw(config-ipv6-acl)#permit udp any any eq domain
    c9300-Sw(config-ipv6-acl)#deny ipv6 any any

IPv6 Pre-authentication ACL is very similar to the IPv4 Pre-Authentication ACL configuration

c9300-Sw#show ip access-lists IPV4_PRE_AUTH_ACL
Extended IP access list IPV4_PRE_AUTH_ACL
    10 permit udp any eq bootpc any eq bootps
    20 permit udp any any eq domain
    30 deny ip any any

c9300-Sw#show ipv6 access-list IPV6_PRE_AUTH_ACL
IPv6 access list IPV6_PRE_AUTH_ACL
    permit udp any eq bootpc any eq bootps sequence 10
    permit udp any any eq domain sequence 20
    deny ipv6 any any sequence 30
  1. Configure a critical ACL.
    c9300-Sw(config)#ipv6 access-list IPV6_CRITICAL_ACL
    c9300-Sw(config-ipv6-acl)#permit ipv6 any any


IPv6 Critical ACL is very similar to IPv4 Critical ACL configured earlier

c9300-Sw#show ip access-lists IPV4_CRITICAL_ACL
Extended IP access list IPV4_CRITICAL_ACL
    10 permit ip any any
  1. Add the IPv6 critical ACL in the CRITICAL_AUTH_ACCESS service template
    c9300-Sw(config)#service-template CRITICAL_AUTH_ACCESS
    c9300-Sw(config-service-template)#access-group IPV6_CRITICAL_ACL
    c9300-Sw(config-service-template)#end
    c9300-Sw#show running-config | begin service-template
    ...
    service-template CRITICAL_AUTH_ACCESS
     description ** Access Policy For IAB **
     access-group IPV4_CRITICAL_ACL
     access-group IPV6_CRITICAL_ACL
    !
  1. Apply the pre-authentication ACL on the interface.
    c9300-Sw(config)#interface gigabitEthernet 1/0/1
    c9300-Sw(config-if)#ipv6 traffic-filter IPV6_PRE_AUTH_ACL in
    c9300-Sw(config-if)#end

    c9300-Sw#show running-config interface GigabitEthernet 1/0/1
    Building configuration...
    Current configuration : 272 bytes
    !
    interface GigabitEthernet1/0/1
     device-tracking attach-policy IPDT_POLICY
     ip access-group IPV4_PRE_AUTH_ACL in
     ipv6 traffic-filter IPV6_PRE_AUTH_ACL in
    source template PORT-AUTH-TEMPLATE
     spanning-tree portfast
    end
  1. Log in to ISE, and modify the Network Devices configuration for the Catalyst switch to whitelist on IPv6 address. Navigate to Administration > Network Resources > Network Devices. Click the specific switch name, and then configure the IPv6 address and save the configuration.Figure21b.png















  1. Navigate to Policy > Policy Elements > Results > Authorization > Authorization Profiles and configure an authorization profile for a Per-User ACL.

Note: Current Cisco IOS & ISE software implementation doesn’t support native IPv6 dACL’s over RADIUS. Its currently implementation of IPv6 on RADIUS uses Cisco Vendor Specific Attributes(VSA).

The two rules configured in this sample procedure are:

  • ipv6:inacl#1=deny ipv6 any 2001:20:199::/64
  • ipv6:inacl#2=permit ipv6 any any






































Note: Apart from Per-User ACL, the other two ACL authorization options for IPv6 currently are Filter ID and Service Template.



  Filter ID

(Per Session)

Service Template

(Per Interface)

Per-User ACL

(Per Session)

  ACL local to Switch ACL local to Switch ACL download from ISE
IPv4 Yes Yes Yes
RADIUS Attribute/AVP Filter-ID=ACL_Name.in Cisco AVP: “subscriber:service-name= TEMPLATE_NAME” Cisco AVP: “ip:inacl#1=permit ipany any”
IPv6 Yes Yes Yes
RADIUS Attribute/AVP Filter-ID = ACL_NAME.in.ipv6 Cisco AVP: “subscriber:service-name= TEMPLATE_NAME” Cisco AVP: “ipv6:inacl#1=permit ipv6 any any”



  1. Reference this Authorization profile as one of the authorization results for the Employee user group










  1. Re-authenticate the Employee workstation and verify IPv6 ACL download and authorization for the network access session.
    c9300-Sw#show access-session interface gigabitEthernet 1/0/1 details
                Interface:  GigabitEthernet1/0/1
                   IIF-ID:  0x1DD98B5E
              MAC Address:  0050.56a7.fa8a
             IPv6 Address:  2001:20:100:0:4d0d:2a03:cd86:7241
                            2001:20:100:0:e55d:20e1:8f:d008
                            fe80::e55d:20e1:8f:d008
             IPv4 Address:  172.20.100.13
                User-Name:  harry
                User-Role:  Employees
                   Status:  Authorized
                   Domain:  DATA
           Oper host mode:  multi-auth
         Oper control dir:  in
          Session timeout:  N/A
        Common Session ID:  000000000000001142C99F70
          Acct Session ID:  0x00000007
                   Handle:  0x03000007
           Current Policy:  PORT-AUTH-POLICY

    Server Policies:
          Security Policy:  None
          Security Status:  Link Unsecured
                SGT Value:  4
                  ACS ACL: xACSACLx-IP-EmployeeAccessACL-5af1634e
             Per-User ACL: Gi1/0/1#v6#1dd98b5e
                         : deny ipv6 any 2001:20:199::/64
                         : permit ipv6 any any

    Method status list:
           Method           State
            dot1x           Authc Success




Deploying 802.1X for High Security (Closed Mode)

Closed Mode is a more traditional deployment model of 802.1X. In a properly prepared network, Closed Mode provides total control over switch-level (Layer 2) network access. This type of deployment is recommended only for environments that are experienced with 802.1X deployments and have considered all the nuances that go along with it. Think of this mode as a “deploy with caution” mode.

In Closed Mode, the switchport does not allow traffic except EAP over LAN(EAPoL) until a successful authentication takes place. No pre-authentication access to DHCP, DNS, HTTP and PXE boot servers are allowed while authentication is in progress. Closed Mode is ideal for Vlan-based enforcement since the client does not get an IP address until successfully authenticated.

Deploying Closed Mode with Vlan Assignment can have a significant impact on network architecture. Understanding these potential impacts is essentials for successful deployment of this mode.



Vlan Considerations: Dynamic VLAN assignment requires that every dynamic VLAN be supported on every access switch to which a user might connect and authenticate. Hence a good campus design dictate a fewer VLANs which helps in more manageable and scalable solution.



Granting Limited Access if primary authentication fails:  If some level of access is needed for devices that fail 802.1X authentication, it is possible to configure switch port to open the port into a special VLAN (the Auth-fail VLAN) or be fall back to MAB and download a dACL to permit some basic access.

Before transitioning to Closed Mode, you should ensure that all endpoints can authenticate. All identity store database should be up to date and online.

Building on top of the configurations done in Monitor Mode, a few changes can be made in the network for restricted network access. The idea is that after you have understood how endpoints behave in the monitor mode and how to fix failures, you are ready to move on to understanding controlled network access.





Figure22: Closed Authentication WorkflowFigure22: Closed Authentication Workflow

Switch Configuration for Closed Mode

  1. Log in to the switch.
  2. Write Erase and restore the Monitor-Mode configuration from the backed-up information, using “configure replace flash:filename”
  3. On a per-port basis, disable the open mode configuration, which was explained in the Configure the Switch for Monitor Mode.
    c9300-Sw(config)#template PORT-AUTH-TEMPLATE
    c9300-Sw(config-if)#access-session closed


Critical Authentication

In closed mode, the endpoints do not have network access unless they authenticate successfully or are given fail open access because of ISE authorization policy. What if the ISE server itself is unreachable? The best practice recommendation is therefore, to configure the fail open access locally on the switch.



Use the Inaccessible Authentication Bypass (IAB) feature, also referred to as critical authentication or the AAA fail policy, when the switch cannot reach the configured RADIUS servers and new hosts cannot be authenticated. When a new host tries to connect to the critical port, that host is moved to a user-specified access VLAN, the critical VLAN. The critical VLAN can be the same as the default VLAN on the port. The administrator gives limited authentication to the hosts.



Enable the critical voice VLAN feature to allow access to IP phones when the ISE server is unreachable for its authentication. When traffic coming from the host is tagged with the voice VLAN, the connected device (the phone) is put in the configured voice VLAN for the port. The IP phones learn the voice VLAN identification through CDP (Cisco devices) or through LLDP or DHCP.



  1. Create a service template referencing the Critical Vlan & Voice Vlan
    c9300-Sw(config)#service-template CRITICAL_AUTH_ACCESS
    c9300-Sw(config-service-template)#vlan 100

    c9300-Sw(config)#service-template DEFAULT_CRITICAL_VOICE_TEMPLATE
    c9300-Sw(config-service-template)#voice vlan
Note: To support inaccessible bypass on multiple-authentication (multi-auth) ports, use the authentication event server dead action reinitialize vlan VLAN ID. When a new host tries to connect to the critical port, that port is reinitialized and all the connected hosts are moved to the user-specified access VLAN. The authentication event server dead action reinitialize vlan <vlan-id> interface configuration command is supported on all host modes

To reinitialize a session when a previously unreachable ISE server becomes available, use the below configuration



  1. Create two new class maps or edit the existing class map to match the new service template created in Step 3:
    c9300-Sw(config)#class-map type control subscriber match-any IN_CRITICAL_AUTH
    c9300-Sw(config-filter-control-classmap)#match activated-service-template CRITICAL_AUTH_ACCESS
    c9300-Sw(config-filter-control-classmap)#match activated-service-temp DEFAULT_CRITICAL_VOICE_TEMPLATE
    c9300-Sw(config-filter-control-classmap)#exit
    c9300-Sw(config)#
    c9300-Sw(config)#class-map type control subscriber match-none NOT_IN_CRITICAL_AUTH
    c9300-Sw(config-filter-control-classmap)#match activated-service-template CRITICAL_AUTH_ACCESS
    c9300-Sw(config-filter-control-classmap)#match activated-service-temp DEFAULT_CRITICAL_VOICE_TEMPLATE
    c9300-Sw(config-filter-control-classmap)#exit
  1. Ensure that the following class maps exist in the system before configuring a new policy map for Closed mode:
    class-map type control subscriber match-all AAA_SVR_DOWN_AUTHD_HOST
     match result-type aaa-timeout
     match authorization-status authorized
    !
    class-map type control subscriber match-all AAA_SVR_DOWN_UNAUTHD_HOST
     match result-type aaa-timeout
     match authorization-status unauthorized
    !
    class-map type control subscriber match-all DOT1X
     match method dot1x
    !
    class-map type control subscriber match-all DOT1X_FAILED
     match method dot1x
     match result-type method dot1x authoritative
    !
    class-map type control subscriber match-all DOT1X_MEDIUM_PRIO
     match authorizing-method-priority gt 20
    !
    class-map type control subscriber match-all DOT1X_NO_RESP
     match method dot1x
     match result-type method dot1x agent-not-found
    !
    class-map type control subscriber match-all DOT1X_TIMEOUT
     match method dot1x
     match result-type method dot1x method-timeout
    !
    class-map type control subscriber match-any IN_CRITICAL_AUTH
     match activated-service-template CRITICAL_AUTH_ACCESS
     match activated-service-template DEFAULT_CRITICAL_VOICE_TEMPLATE
    !
    class-map type control subscriber match-all MAB
     match method mab
    !
    class-map type control subscriber match-all MAB_FAILED
     match method mab
     match result-type method mab authoritative
    !
    class-map type control subscriber match-none NOT_IN_CRITICAL_AUTH
     match activated-service-template CRITICAL_AUTH_ACCESS
     match activated-service-template DEFAULT_CRITICAL_VOICE_TEMPLATE
    !
  1. Configure a new policy map in global configuration mode. The highlighted parts in the example below indicates the additional classes added to the system-generated policy as in Monitor-mode:
    policy-map type control subscriber PORT-AUTH-POLICY-I
     event session-started match-all
      10 class always do-until-failure
       10 authenticate using dot1x priority 10
     event authentication-failure match-first
      5 class DOT1X_FAILED do-until-failure
       10 terminate dot1x
       20 authenticate using mab priority 20
      10 class AAA_SVR_DOWN_UNAUTHD_HOST do-until-failure
       10 clear-authenticated-data-hosts-on-port
       20 activate service-template CRITICAL_AUTH_ACCESS
       30 activate service-template DEFAULT_CRITICAL_VOICE_TEMPLATE
       40 authorize
       50 pause reauthentication
      20 class AAA_SVR_DOWN_AUTHD_HOST do-until-failure
       10 pause reauthentication
       20 authorize
      30 class DOT1X_NO_RESP do-until-failure
       10 terminate dot1x
       20 authenticate using mab priority 20
      40 class MAB_FAILED do-until-failure
       10 terminate mab
       20 authentication-restart 60
      60 class always do-until-failure
       10 terminate dot1x
       20 terminate mab
       30 authentication-restart 60
     event agent-found match-all
      10 class always do-until-failure
       10 terminate mab
       20 authenticate using dot1x priority 10
     event aaa-available match-all
      10 class IN_CRITICAL_AUTH do-until-failure
       10 clear-session
      20 class NOT_IN_CRITICAL_AUTH do-until-failure
       10 resume reauthentication
     event inactivity-timeout match-all
      10 class always do-until-failure
       10 clear-session
     event authentication-success match-all
       10 class always do-until-failure
         10 activate service-template DEFAULT_LINKSEC_POLICY_SHOULD_SECURE



Wake-On-LAN

The IEEE 802.1x standard is implemented to block traffic between the unauthenticated clients and network resources. This means that unauthenticated clients cannot communicate with any device on the network except the authenticator. The reverse is true, except for one circumstance, when the port is configured as a unidirectional controlled port.



Unidirectional State

The IEEE 802.1x standard states that a unidirectional controlled port enables a device on the network to wake up a client so that the client continues to be reauthenticated. When you use the authentication control-direction in command to configure the port as unidirectional, the port changes to the spanning-tree forwarding state, thus allowing a device on the network to wake the client and force it to reauthenticate.



Bidirectional State

When you use the authentication control-direction both command to configure a port as bidirectional, access to the port is controlled in both directions. In this state, the port does not receive or send packets.

(Optional) Allows broadcast traffic from the network to the unauthenticated port. This assists with the Wake-on-LAN (WoL)) process so that the network management server can wake up clients on demand. It also assists in the MAB process for certain types of devices that do not generate much traffic on their own without network request from another host.

c9300-Sw(config)#template PORT-AUTH-TEMPLATE
c9300-Sw(config-if)#access-session control-direction in



MAC Limits

Limiting the number of MAC addresses on an 802.1X-enabled port is not a straightforward process. However, there are a couple of options to achieve MAC limits to a certain extent:



  • Host modes–Four host modes can be configured on a port.
Host Mode Number of Endpoints Interface Command
Single Host
(default in IBNS 1.0)
1 Voice/Data device access-session host-mode single-host
Multi-Domain Authentication (MDA) 1 Voice and 1 Data device access-session host-mode multi-domain
Multi-Host Mode 1 Voice and Unlimited Data

(At least one MAC address must authenticate successfully)

access-session host-mode multi-host
Multi-Auth Mode 1 Voice and Unlimited Data

(Each MAC address must authenticate)

access-session host-mode multi-auth

Table8:  Multiple Endpoints per Port



When you opt for restrictive host modes such as single-host mode or multi-domain authentication host mode, and an authentication violation occurs, for example, more MAC addresses appearing on the same port, the port will be error disabled. This might require the immediate attention of the administrator to remediate the shutdown port state. We, therefore, recommended that you have a restrictive, yet non-disruptive option to handle authentication violations using below IBNS 2.0 CLI.



  1. Edit the current policy-map to include the authentication violations. The highlighted parts in the example below indicate the additional configs.
    policy-map type control subscriber PORT-AUTH-POLICY-I
     event session-started match-all
      10 class always do-until-failure
       10 authenticate using dot1x priority 10
     event authentication-failure match-first
      5 class DOT1X_FAILED do-until-failure
       10 terminate dot1x
       20 authenticate using mab priority 20
      10 class AAA_SVR_DOWN_UNAUTHD_HOST do-until-failure
       10 clear-authenticated-data-hosts-on-port
       20 activate service-template CRITICAL_AUTH_ACCESS
       30 activate service-template DEFAULT_CRITICAL_VOICE_TEMPLATE
       40 authorize
       50 pause reauthentication
      20 class AAA_SVR_DOWN_AUTHD_HOST do-until-failure
       10 pause reauthentication
       20 authorize
      30 class DOT1X_NO_RESP do-until-failure
       10 terminate dot1x
       20 authenticate using mab priority 20
      40 class MAB_FAILED do-until-failure
       10 terminate mab
       20 authentication-restart 60
      60 class always do-until-failure
       10 terminate dot1x
       20 terminate mab
       30 authentication-restart 60
     event agent-found match-all
      10 class always do-until-failure
       10 terminate mab
       20 authenticate using dot1x priority 10
     event aaa-available match-all
      10 class IN_CRITICAL_AUTH do-until-failure
       10 clear-session
      20 class NOT_IN_CRITICAL_AUTH do-until-failure
       10 resume reauthentication
     event inactivity-timeout match-all
      10 class always do-until-failure
       10 clear-session
     event authentication-success match-all
       10 class always do-until-failure
         10 activate service-template DEFAULT_LINKSEC_POLICY_SHOULD_SECURE
     event violation match-all
      10 class always do-until-failure
       10 restrict



  • Device-tracking policy-The other option to limit the number of endpoints getting identity-based services in the device-tracking policy. This policy can be configured to limit the number of endpoints (IP addresses) being tracked for IP-based services such as dACL/URL-redirect/SGTs, and so on. This does not limit the number of endpoints from connecting or authenticating on the port. Use “Limit address-count maximum“CLI under the device-tracking policy to limit the number of endpoints allowed to use identity-based services.
    c9300-Sw(config)#device-tracking policy IPDT_POLICY
    c9300-Sw(config-device-tracking)#no protocol udp
    c9300-Sw(config-device-tracking)#tracking enable
    c9300-Sw(config-device-tracking)#limit address-count 10
    c9300-Sw(config-device-tracking)#exit
    !
    c9300-Sw(config)#interface gigabitEthernet 1/0/1
    c9300-Sw(config-if)#device-tracking attach-policy IPDT_POLICY
Note: Even though the port-security interface command enforces MAC address limit, it is not compatible with the authentication/dot1x configurations on the switch port. In general, we recommend that you do not enable port security when IEEE 802.1x is enabled.
  1. Apply the new policy-map to the interface
    c9300-Sw(config)#template PORT-AUTH-TEMPLATE
    c9300-Sw(config-template)#no service-policy type control subscriber PORT-AUTH-POLICY
    c9300-Sw(config-template)#service-policy type control subscriber PORT-AUTH-POLICY-I




Interface Configuration for Closed Mode
c9300-Sw#show derived-config interface GigabitEthernet 1/0/1
Building configuration...

Derived configuration : 525 bytes
!
interface GigabitEthernet1/0/1
 description ** Endpoints and Users **
 switchport access vlan 100
 switchport mode access
 switchport voice vlan 101
 device-tracking attach-policy IPDT_POLICY
 authentication periodic
 authentication timer reauthenticate server
 access-session control-direction in
 access-session closed
 access-session port-control auto
 mab
 dot1x pae authenticator
 dot1x timeout tx-period 7
 dot1x max-reauth-req 3
 spanning-tree portfast
 service-policy type control subscriber PORT-AUTH-POLICY-I
end



Authoring Access Policies on ISE

It is always important to have policy goals in mind before configuring ISE access policies. Figure21 highlights 802.1X authentication workflow, resulting in either basic access or access to an employee segment depending on a user’s Active Directory group membership. IP phones are authorized for voice VLAN and the unknown endpoints are subject to the guest portal. When the ISE servers are unreachable, the switch authorizes newly connecting endpoints to the critical VLAN, which can be the same as the default VLAN. The following is a flow chart of the 802.1x authentication policy, most part of the decision tree and critical authorization is already configured on the switch, the right-hand side part in terms of 802.1X and MAB authorization policies must be configured on ISE:



Figure23: 802.1x Authentication flowchartFigure23: 802.1x Authentication flowchart



  1. Login to ISE and navigate to Policy > Policy Elements: Results










  1. In the left pane, click Authorization > Authorization Profiles.
  1. In the Standard Authorization Profiles area, click Add.










  1. Create a new Authorization Profile for Employee VLAN result by providing the corresponding information:


















Note: The VLAN name or number that you specify in the Authorization Profile must match the VLAN name or number configured on the access switch exactly. In this example, a VLAN exists on the switch name Employees:



c9300-Sw#show vlan brief | inc Employee

150  Employees  active



  1. Navigate to Policy > Policy Sets












  1. You can either create a new policy set or edit the default policy set that comes with the ISE installation. In this example, the default policy set is taken into consideration. Click the > icon to expand the default policy set.Figure23e.png











  1. Expand the default Authorization Policy.Figure23f.png













  1. Scroll down and create a new rule above the Basic_Authenticated_Access








  1. Provide a descriptive name for the policy rule and click the +Figure23h.png





  1. If you are configuring the policy in ISE for the first time after its installation, a screen tip is displayed, explaining how to use the Conditions Studio. Click the x
  2. In the Editor area, click the field that reads ‘Click to add an attribute’Figure23i.png















  1. After the Editor options load, click the user group icon and select the ExternalGroups Active Directory.


























  1. Configure a condition to match on Active Directory group. In this example, the Employees Active Directory Group is configured.












  1. Click Use.
Note: If you click Save (Conditions Studio > Editor) after you configure a condition, you can save this condition with an arbitrary name and reuse the condition with that name later for other authorization policies.





  1. To select a Result for the policy created, choose the corresponding “profile” option(in this case EmployeeVLAN created in step 2)Figure23n.png













  1. Optionally, you can also add an SGT as an additional authorization result.
  2. To adhere to our policy goals as per flowchart on Figure21 , edit the “Default” authorization policy to fallback to Web Authentication as Tertiary option or as a last resort .
  3. Click Save.








Note that for IP phones, a policy rule exists by default. This rule authorizes profiled IP phones with voice VLAN authorization. Pre-requisites being the IP Phone MAC address are manually added to the endpoint identity group.










Note: Both Cisco_IP_Phones and Non_Cisco_IP_Phones authorization profiles contain a PERMIT_ALL_TRAFFIC (permit ip any any) downloadable ACL and cisco-av-pair=device-traffic-class=voice authorization. The latter Attribute Value Pair (AVP) is necessary to tag the IP phone into voice VLAN on the switch. Figure23q.png







Closed Mode in Action

1. Log in to a Catalyst switch and test AAA authentication using “Test aaa group radius” CLI .

2. Ensure that the corresponding Active Directory user (a member of the Employee group) is returned with VLAN authorization.

c9300-Sw#test aaa group radius harry ISEisC00L new-code
User successfully authenticated

USER ATTRIBUTES

username             0   "harry"
tunnel-type          1   13 [vlan]
tunnel-medium-type   1   6 [ALL_802]
tunnel-private-group 1   "Employees"
security-group-tag   0   "0004-0"

3. If you bounce the access port in which the corresponding IP phone and employee are connected, the new authorization results should be displayed as below.

c9300-Sw#show access-sesison  sessions interface Gi 1/0/1 details
            Interface:  GigabitEthernet1/0/1
               IIF-ID:  0x19E63EED
          MAC Address:  0050.56a7.fa8a
         IPv6 Address:  Unknown
         IPv4 Address:  172.20.150.2
            User-Name:  harry
               Status:  Authorized
               Domain:  DATA
       Oper host mode:  multi-auth
     Oper control dir:  in
      Session timeout:  N/A
    Common Session ID:  65FE14AC0000002D27DEB90F
      Acct Session ID:  0x00000023
               Handle:  0xd0000023
       Current Policy:  PORT-AUTH-POLICY-I

Local Policies:
         Idle timeout:  65536 sec

Server Policies:
           Vlan Group:  Vlan: 150
      Security Policy:  None
      Security Status:  Link Unsecured
            SGT Value:  4

Method status list:
       Method           State
        dot1x           Authc Success

----------------------------------------
            Interface:  GigabitEthernet1/0/1
               IIF-ID:  0x1AABEBEF
          MAC Address:  0064.40b5.794e
         IPv6 Address:  Unknown
         IPv4 Address:  172.20.101.3
            User-Name:  00-64-40-B5-79-4E
               Status:  Authorized
               Domain:  VOICE
       Oper host mode:  multi-auth
     Oper control dir:  in
      Session timeout:  N/A
    Common Session ID:  65FE14AC0000002E27DEBD9D
      Acct Session ID:  0x00000024
               Handle:  0xf7000024
       Current Policy:  PORT-AUTH-POLICY-I

Local Policies:
         Idle timeout:  65536 sec

Server Policies:
              ACS ACL: xACSACLx-IP-PERMIT_ALL_TRAFFIC-57f6b0d3

Method status list:
       Method           State
        dot1x           Stopped
          mab           Authc Success

4. Log in to ISE and navigate to Operations > RADIUS: Live Logs.

You will notice two endpoints being authenticated and authorized.

5. Click the Details icon to view details about the entry.














The Overview dialog box shown below highlights the authorization policy rule matched and what the end result .


6. If you scroll down to the end of the page, you will see the Result details with License consumed.






























802.1X for Cisco IP Phones

With Multi-Domain Authentication enabled, both the phone and device behind the phone can authenticate using dot1x. Phones use similar protocols and authenticate using the same type of credentials as other users and devices that perform 802.1X. However, there are some specific requirements for preparing the voice network for authentication of IP phones. These phones must present a password or X.509 digital certificate to authenticate successfully. IP phones use EAP-MD5 for password authentication. This is considered weak when compared to other password- based EAP methods such as Protected EAP (PEAP) or EAP Flexible Authentication via Secure Tunneling (EAP-FAST). Most Cisco IP phones support authentication via X.509 certificates using the EAP-Transport Layer Security (EAP-TLS) or EAP-FAST methods.



Manufacturing Installed Certificates (MIC) versus Locally Significant Certificates (LSC)














Cisco IP phones support two types of X.509 certificates: the Manufacturing Installed Certificates (MICs) and the Locally Significant Certificates (LSCs).



As the name indicates, MICs are the certificates that are preinstalled on IP phones and cannot be deleted or modified by administrators. The certification pre-installed on the phones are signed by one of the Cisco Manufacturing Certificate Authorities. When an IP phone authenticates using MIC, it proves that it is a valid Cisco IP phone; however, it does not validate if the phone is a company-owned asset. Anyone can connect a personal device that has a Cisco Manufacturing CA-signed certificate on it and gain network access.



LSCs on the other hand are administrator installed certificates that are signed by the Cisco Unified Call Manager. These certificates serve the same purpose as MICs in terms of authentication, but provide greater security because of their local significance to a given environment.



Basic Call Manager and Network Settings

The following section covers Cisco IP phone authentication using digital certificates



Call Manager Basic Settings
  1. Log in to the Cisco Unified Communications Manager (CUCM).














  1. Navigate to System > Cisco Unified CM.














Click Find,the CUCM server loads.



  1. Click the corresponding CUCM server listing.
















  1. Ensure that device and line templates are present, phone numbers are configured, and auto registration is enabled.












IP Phone CUCM Discovery Configuration
  1. Cisco IP phones download the configurations from CUCM over TFTP. They discover the TFTP server (CUCM) address via DHCP Option 150. Configure your DHCP server to send Option 150 with the CUCM server IP address. The following is an example of the configuration done in a Windows DHCP server.












For information about the procedure, see the Configuring Windows 2000 DHCP Server for Cisco CallManager document.

  1. By default, the CUCM does not serve the TFTP requests; the services have to be enabled explicitly. On the top right-hand corner of the CUCM admin window, from the Navigation drop-down list, choose Cisco Unified Serviceability and click Go.










  1. Log in with the CUCM admin credentials and Navigate to Tools > Service Activation.














  1. Check the Cisco CallManager and Cisco Tftp check boxes and click Save.















  1. Ensure that the phone has open access to the network services or is authorized by ISE for access to DHCP, DNS, and TFTP services. In the previous example described in Configuring and Understanding IBNS 2.0 Policy section, the IP phones were MAB-authenticated and a dACL was applied for the session. Bounce the switch port where the IP phone is connected.
  1. Switch to the CUCM admin window by choosing Cisco Unified CM Administration from the Navigation drop-down list at the top-right corner of the Serviceability window, and click Go.


  1. Navigate to Device > Phone and search for the phone on the Find and List Phones Page.


  1. Click Find button with default settings. When the phone communicates to the CUCM, it shows up on Find and List Phones page.


Note: The phone’s status must show Registered with CUCM for the administrator to manage the phone from the Call Manager. If the status is something else, try Hard Reset the phone to Registered back to CUCM.



IP Phone Authentication with MIC

After the IP phone is registered with the Call Manager, necessary changes can be performed in the system to enable 802.1X authentication. For MIC based 802.1X authentication, the relevant manufacturer CA certificates must be trusted in ISE and the IP phones must be configured via CUCM to perform 802.1X authentication using MICs.

This section provides information about how to configure the voice network for MIC authentication and the changes that are required in ISE to support it.



Certificate Import/Export between CUCM and ISE

1. Log in to the Cisco Unified OS Administration window using with admin credentials.


 2. Navigate to Security > Certificate Management.


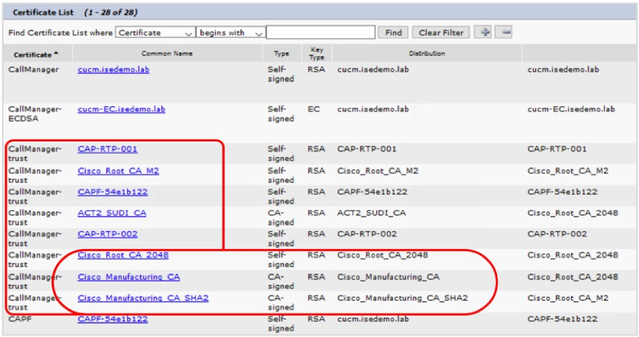

 3. Click each of the CA certificates listed as CallManager-trust and export them to your local disk in PEM format. Note that the last three certificates need not be exported because they are installed by default in Cisco ISE’s trusted CA store. However, make sure that those certificates exist on ISE.


 4. Log in to ISE and Navigate to Administration > System > Certificates.


 5. In the left pane, click Trusted Certificates. You will see a list of Root CA public certificates that are installed on ISE. Notice the three Cisco Manufacturer certificates you could see in CUCM as in Step 3.


6. Select the disabled ones and click Edit to change the Status to Enabled and Click Save


7. Enable the other Disabled CA certificates .

8. To import the other root CA certificates that are exported from CUCM, click Import in the Trusted Certificates area.


9. Upload the CA certificate, give it a name and description, and save it with default settings.




10. If the certificate has weaker key strength or an outdated algorithm, a warning message is shown. If it is permissible in the given environment to use such certificates, click Yes and proceed.


11. Repeat the certificate import procedure for all the exported certificates.



ISE Authorization Policy for MIC Authentication

12. Navigate to the corresponding ISE authorization policy and create a new authorization rule for IP phones with certificates.




13. Click the + button for conditions and in the condition Editor window, click the field that states Click to add an attribute and Click the user icon and Select CERTIFICATE Subject – Common Name.


14. Define a condition to match such that CERTIFICATE Subject – Common Name contains SEP.


15. Click the New button to add another condition to match CERTIFICATE Issuer – Organization


16. Define the second condition to match such that CERTIFICATE Issuer – Organization contains Cisco

17. Click Use When the conditions matches the snapshot provide below.


18. Add the voice permission that has Voice Domain Permission(Select the Results Profiles with dACL_Voice in this procedure) and save the configurations.





Enabling 802.1X on IP Phones

19. Log in to CUCM and navigate to Device > Phone


20. Use the Find field to locate a specific registered phone and click a name from the list that is displayed under Device Name (Line)


21. Use the Find field to locate a specific registered phone and click a name from the list that is displayed under Device Name (Line)

22. Scroll down the Product Specific Configuration Layout until you see 802.1x Authentication. Enable it,

click Save, and then click Apply Config at the top of the window


23. The IP phone in the network should now authenticate 802.1x. If you log in to the switch, you can see the session information.

c9300-Sw#show access-session
Interface                MAC Address    Method  Domain  Status Fg  Session ID
--------------------------------------------------------------------------------------------
Gi1/0/1                  0064.40b5.794e dot1x   VOICE   Auth        000000000000005A4656E5C5
Gi1/0/1                  0050.56a7.fa8a dot1x   DATA    Auth        00000000000000594656E2C5

<Output trunckated>

24. The session details display additional information about the phone’s network access session:

c9300-Sw#show access-session mac 0064.40b5.794e details
            Interface:  GigabitEthernet1/0/1
               IIF-ID:  0x15656B9D
          MAC Address:  0064.40b5.794e
         IPv6 Address:  Unknown
         IPv4 Address:  172.20.101.3
            User-Name:  CP-9971-SEP006440b5794e
               Status:  Authorized
               Domain:  VOICE
       Oper host mode:  multi-auth
     Oper control dir:  in
      Session timeout:  N/A
    Common Session ID:  000000000000005A4656E5C5
      Acct Session ID:  0x00000050
               Handle:  0x41000050
       Current Policy:  PORT-AUTH-POLICY-I

Server Policies:
              ACS ACL: xACSACLx-IP-VoiceACL-5af16326
      Security Policy:  None
      Security Status:  Link Unsecured

Method status list:
       Method           State
        dot1x           Authc Success
          mab           Stopped

25. To view the new session status on ISE, Navigate to Operations > RADIUS > Live Logs


26. Click on the Details Icon to see that the IP phone is 802.1X authenticated and is authorized with a dACL




27. Scroll further down the page to view the certificate details.


Note: To enable 802.1X across all the IP phones, specific models or locations, use the Bulk Administration option in CUCM.






IP Phone Authentication with LSC

You do not require MIC to be configured in the voice network, IP Phones can be authenticated with LSC. However, since MIC is quick and is an easy option to enable authenticated network access to phones, most enterprises tend to start with MIC and move to LSC. This section explains how to build on the previous configurations to install LSC on IP phones and authenticate them.

Certificate Authority Proxy Function (CAPF) Service Enablement



28. Log in to the Cisco Unified Serviceability tool with admin credentials.Figure23z30.png



29. Navigate to Tools > Service Activation.




30. Activate the Cisco Certificate Authority Proxy Function service.




31. After the CAPF service is enabled, restart the TFTP service so that the IP phones can download the LSCs. To restart, navigate to Tools > Control Center Feature Services.




32. Click the Cisco Tftp service radio button.




33. Click Restart to reinitialize the TFTP service.




CAPF Certificate Import to ISE

34. Log in to the Cisco Unified OS Administration tool with admin credentials


35. After log in, navigate to Security > Certificate Management.




36. Export the CAPF Root CA certificate to your local system. (The certificate title has only CAPF in it.)




37. Log in to ISE and Navigate to Administration > System > Certificates > Trusted Certificates.

38. In the left pane, navigate to Certificate Management > Trusted Certificates, and click Import.


39. Import the CAPF Root CA certificate with default settings.




40. After the certificate is installed, select it by checking the corresponding check box, and click View.




41. The certificate is locally signed by the CUCM and the organization name with your specific company name. Make a note of the organization name and close the certificate view window.




42. Modify the ISE authorization policy to authenticate IP phones on an LSC instead of an MIC.




Installing an LSC on IP Phones

43. Log in to the CUCM Administration window with admin credentials


44. Navigate to Device > Phone.




45. Use the Find field to locate a specific phone or click the corresponding phone name under Device Name (Line)




46. In the CAPF Information section, from the Certificate Operation drop-down list, choose Install/Upgrade.

From the Authentication Mode drop-down list, choose one of the following options depending on the settings in your environment. In this procedure, the By Null String option is used.

Option

Description

By Authentication String

Installs LSC with a passcode that needs to be keyed in locally in the IP phone.

By Null String

Installs LSC without authentication.

By Existing Certificate (precedence to LSC)

Useful when a new LSC needs to be installed on an IP phone that already has preinstalled LSCs.

By Existing Certificate (precedence to MIC)

Authenticates the IP phone with MIC to install an LSC.



47. Click Save and then Apply Config for the changes to take effect.


48. Navigate to Device > Phone, locate the IP phones, and then click the + button.




49. Define a new condition to list phone on LSC issued By option from the newly created search filter and then click Find. If the LSC installation is in progress, you will see that the LSC Status is Operation Pending.




50. Upon upgrade completion, LSC Status changes from Operation Pending to Upgrade Success .




Note: To deploy LSC at scale, use the Bulk Administration option in CUCM.



NEAT with Interface Templates



Overview

Most of the enterprise customers are using 802.1x based admission control for securing the network. Majority of these deployments were focused on implementing user-based admission control to authenticate the users before they gain network access where a PC or IP-phone acts as a supplicant and the switch acts an authenticator. However, there is also a need to implement device-based admission control for tighter security because there are deployment scenarios where a switch acting as 802.1X authenticator is placed in an unsecured location. For example, compact switch placed outside wiring closet can potentially be swapped with hacker devices to gain access to the network, compromising network security. This creates a requirement whereby an edge switch (Supplicant) is required to authenticate itself against upstream switch (Authenticator).

Network Edge Authentication Topology (NEAT) offers secure extension of the Layer 2 network beyond the wiring closet. It ensures that a supplicant switch (compact switch outside the wiring closet) is allowed access to the network only if it authenticates successfully. For more information on the NEAT click here. This document covers the NEAT configurations with IOS Interface-templates.

Figure24: NEAT Network TopologyFigure24: NEAT Network Topology

NEAT feature enables extended secure access in areas outside the wiring closet (such as conference rooms). 802.1x supplicant switch acts as a supplicant to another switch by using the 802.1X supplicant feature for secure connectivity. Once the supplicant switch authenticates successfully, RADIUS servers sends down Cisco AV Pair attributes along with ACCESS-ACCEPT to the Authenticator switch.

The following scenario with the Topology above depicts an overview of typical solution: -

  1. The Supplicant switch located in unsecured location first authenticates with wiring closet or distribution Authenticator Switch. The Authenticator contacts RADIUS server and receives an authentication success message with Cisco AV-Pair Value specifying “device-traffic-OR “interface-template-name= …” depending on the type of authorization profile selected on RADIUS Server.
  2. On successful authentication the downlink port on Authenticator Switch is opened in the single-host mode (by default) or multi-host, multi-auth/MDA (if explicitly specified) and Authenticator Switch will initially allow only a single MAC (Supplicant Switch MAC that got authenticated), thus extends a trust model.
  3. The switch auto-config/Interface template is applied on the Authenticator port to change the port mode to TRUNK up receiving the Cisco AV-Pair attributed from the RADIUS Server.
  4. Authenticator switch now trusts the Supplicant switch and network access is granted for switch and all the clients behind the Supplicant Switch.
  5. Supplicant switch triggers a CISP update to the Authenticator switch when a user’s/host connect/disconnect network to add/remove MAC Address from the database.



NEAT with Macros/Interface-Template

As explained before, when a Supplicant Switch successfully authenticates, the RADIUS Server sends down Cisco AV Pair “device-traffic-along with ACCESSACCEPT to the Authenticator switch. The authenticator switch then changes the port configuration from access to “trunk-mode” with the help of a built-in macro.

The current macro based NEAT solution has two limitations:

  1. The macros modify the interface running configuration. When a Supplicant Switch is authenticated, if a script or administrator saves the running-config on the Authenticator Switch, then on a power cycle the default port configuration would be lost.
  2. If the admin prefers to make modifications to the default macro, it can’t be done. For this purpose, an ASP macro must be configured on the ASw and ISE must be configured to authorize the supplicant with the “ASP macro name” along with the custom Cisco AVP for NEAT.

The solution to this problem is to use the interface-templates instead of macros for port configuration related changes.



Interface template is a port configuration container that can be applied to a specific interface or a user’s network access session. Almost all the interface specific commands can be configured under the “template” and then either manually applied on the port (with “source template” interface command) or can be applied dynamically on the port, based on either device discovery (AutoConf, similar to AutoSmartPorts) or via RADIUS authorization. One of the major advantages of interface templates is that the running-configuration will have a fixed configuration, where the interface specific (active) configuration will be placed under a separate runtime memory. The configuration that is currently applied on a physical interface can be seen with the “show derived-config interface <interface>” exec command. Interface templates are supported from Cisco IOS 15.2(2)E / XE 03.06.00E.

Particulars NEAT with Macros NEAT with Interface Template
Supplicant EAP Methods All methods (MD5, PEAP, EAP-TLS) All methods (MD5, PEAP, EAP-TLS)
CISP for MAC notification Yes Yes
Cisco AVP device-traffic-class=switch interface-template-name=<name>
Supplicant switch authorization modifies running-config on ASw Yes No
Modifying post-authc interface configuration With additional ASP Macro Modify the original authorization template referenced by ISE

Table9: Macro Neat and Neat with Interface Template Comparison



Configuring NEAT with Interface templates

Configuring AAA & Radius on Authenticator and Supplicant switch

1. Log in to Authenticator and Supplicant switch and execute/verify the below basic authentication, authorization and accounting (AAA) configurations.

aaa new-model
aaa session-id common
!
radius server ISE01
 address ipv4 172.20.254.21 auth-port 1812 acct-port 1813
 automate-tester username test-user ignore-acct-port probe-on
 key ISEisC00L
!
radius server ISE02
 address ipv4 172.20.254.22 auth-port 1812 acct-port 1813
 automate-tester username test-user ignore-acct-port probe-on
 key ISEisC00L
!
dot1x system-auth-control
dot1x critical eapol
!
radius-server attribute 6 on-for-login-auth
radius-server attribute 8 include-in-access-req
radius-server attribute 25 access-request include
radius-server attribute 31 mac format ietf upper-case
radius-server attribute 31 send nas-port-detail mac-only
radius-server dead-criteria time 10 tries 3
radius-server deadtime 15
!
aaa group server radius ISE
 server name ISE01
 server name ISE02
 ip radius source-interface Vlan254
!
aaa authentication dot1x default group ISE
aaa authorization network default group ISE
aaa accounting Identity default start-stop group ISE
aaa accounting update newinfo periodic 2880
!
aaa server radius dynamic-author
 client 172.20.254.21 server-key ISEisC00L
 client 172.20.254.22 server-key ISEisC00L!
!
crypto key generate rsa general-keys mod 2048





Authenticator Switch Configurations

2. Enable CISP Framework.

c9300-Sw(config)#cisp enable



The Client Information Signaling Protocol (CISP) is a layer 2 control plane protocol used to transport the MAC addresses of the hosts (both authenticated MAC and MAC learnt by normal learning) from a Supplicant Switch to an Authenticator Switch. CISP uses CDP address (Cisco Reserved Multicast Address) as a destination MAC Address and frames are generated only by Supplicant Switch to which Authenticator switches acts as a responder to the received frames.



3. Configure downlink port as access port with dot1x authentication

interface GigabitEthernet1/0/1
 description ** Downlink to supplicant switch **
 switchport mode access
 switchport access vlan 254
 device-tracking attach-policy IPDT_POLICY
 access-session port-control auto
 dot1x pae authenticator
 spanning-tree portfast trunk
 spanning-tree bpduguard disable
 service-policy type control subscriber PORT-AUTH-POLICY-I



4. Configure interface-template which can be referenced later by ISE as part of the authorization policy.

template neat-authz
 switchport trunk native vlan 254
 switchport mode trunk





Supplicant Switch Configurations

The subsequent sections describe details of the configurations required for performing NEAT on Supplicant Switch.

5. Enable 802.1X globally on the switch to authenticate device connected, use the dot1x system-auth-control command in global configuration mode.

c9300-Sw(config)#dot1x system-auth-control



6. Configure switch to force sending only multicast EAPOL packets when it receives either unicast or multicast packets, which allows NEAT to work on the supplicant switch in all host modes & enable CISP framework globally.

c9300-Sw(config)#dot1x supplicant force-multicast

c9300-Sw(config)#cisp enable



7. Configure EAP mode & credentials used by supplicant switch to authenticate itself to authenticator switch.

Note: In this configuration example EAP-MD5 is used as the EAP method between the supplicant switch and ISE. However NEAT supplicants support many other EAP methods. “show eap registrations” EXEC command tells the EAP support on the supplicant switch

c3560CX-Sw(config)#eap profile eap-md5
c3560CX-Sw(config-eap-profile)# description PEAP-MD5 Supplicant
c3560CX-Sw(config-eap-profile)# method md5

c3560CX-Sw(config)#dot1x credentials eap-md5-cred
c3560CX-Sw(config-dot1x-creden)# username ssw01
c3560CX-Sw(config-dot1x-creden)# password 0 cisco@123
c3560CX-Sw(config-dot1x-creden)# anonymous-id ssw01



8. The connection of the supplicant to the authenticator is already configured to be a trunk port (in contrast to access port configuration on the authenticator). At this stage, this is expected; configuration on the authenticator will dynamically change when the ISE returns the correct attribute

c3560CX-Sw(config)#interface TenGigabitEthernet1/0/8
c3560CX-Sw(config-if) description ** Upstream Authenticator switch **
c3560CX-Sw(config-if) switchport trunk native vlan 254
c3560CX-Sw(config-if) switchport mode trunk
c3560CX-Sw(config-if) dot1x pae supplicant
c3560CX-Sw(config-if) dot1x credentials eap-md5-cred
c3560CX-Sw(config-if) dot1x supplicant eap profile eap-md5
c3560CX-Sw(config-if) spanning-tree portfast edge

| configure the downlink port that connects to the endpoints..
c3560CX-Sw(config)#interface GigabitEthernet1/0/1
c3560CX-Sw(config-if) switchport access vlan 100
c3560CX-Sw(config-if) switchport mode access
c3560CX-Sw(config-if) switchport voice vlan 101
c3560CX-Sw(config-if) authentication periodic
c3560CX-Sw(config-if) authentication timer reauthenticate server
c3560CX-Sw(config-if) access-session host-mode single-host
c3560CX-Sw(config-if) access-session port-control auto
c3560CX-Sw(config-if) mab
c3560CX-Sw(config-if) dot1x pae authenticator
c3560CX-Sw(config-if) dot1x timeout tx-period 7
c3560CX-Sw(config-if) dot1x max-reauth-req 3
c3560CX-Sw(config-if) spanning-tree portfast edge
c3560CX-Sw(config-if) service-policy type control subscriber POLICY_Gi1/0/1



ISE configuration for NEAT with Interface-template

ISE needs to be configured with the user identity and policies to authenticate and authorize the NEAT supplicant. Follow these steps:

9. Add Supplicant Switch to the appropriate group. Navigate to Administration > Network Resources > Network Devices, and click Add.












10. Create NEAT Switch User Account and add the user to NeatSupplicants group. Navigate to Administration > Identity Management > identities, and click Add.


11. Enable the required authentication protocols. Navigate to Policy > Results > Authentication > Allowed protocols, select the protocol service list used by wired dot1x, and ensure the protocols in this step are enabled.




12. Create a new Authorization Profile and reference the interface-template. Navigate to Policy > Policy Elements > Results > Authorization Profiles and click Add

Note: On ISE, one major difference between traditional NEAT and “NEAT with Interface-template” configuration, is that the authorization profile for the former is Cisco AVP “device-traffic-whereas for the later it is “interface-template-name=<name>”.


13. Navigate to the Policy > Policy Sets >Authorization Policy page and add new policies as showing below and save the configuration.






Validating NEAT

Use this section to confirm that your configuration works properly. This section describes two behaviors:

  • Authentication between switches
  • Authentication between the Windows PC and the supplicant

Once authentication and authorization succeed, the CISP exchange occurs. Each exchange has a REQUEST, which is sent by the supplicant, and a RESPONSE, which serves as a reply and acknowledgment from the authenticator.



Two distinct exchanges are performed: REGISTRATION and ADD_CLIENT. During the REGISTRATION exchange, the supplicant informs the authenticator that it is CISP-capable, and the authenticator then acknowledges this message. The ADD_CLIENT exchange is used to inform the authenticator about devices connected to the supplicant's local port. As with REGISTRATION, ADD-CLIENT is initiated on the supplicant and acknowledged by the authenticator.



Supplicant Switch Authentication to Authenticator Switch

In this example, the supplicant authenticates to the authenticator. The steps in the process are

  • The supplicant is configured and plugged into port Te1/0/1. The dot1x exchange causes the supplicant to use EAP in order to send a pre-configured username and password to the authenticator.
  • The authenticator performs a RADIUS exchange and provides credentials for ISE validation.
  • If the credentials are correct, the ISE returns attributes required by NEAT (“interface-template-name=), and the authenticator changes its switchport mode from access to trunk.
    Communication from the supplicant

    2018/12/01 01:09:26.873 {smd_R0-0}{1}: [epm-tunnel] [22503]: UUID: 0, ra: 0, TID: 0 (ERR): Linksec failure but policy is not must-secure. So return SUCCESS
    2018/12/01 01:09:26.872 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (debug):
    RADIUS/DECODE: parse unknown cisco vsa "profile-name=Unknown" - IGNORE
    2018/12/01 01:09:26.872 {smd_R0-0}{1}: [radius-authen] [22503]: UUID: 0, ra: 0, TID: 0 (debug): RADIUS(00000000): Received from id 1812/184
    2018/12/01 01:09:26.872 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (debug): RADIUS:rad_code 2, suppress reject flag 0
    2018/12/01 01:09:26.872 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (info): RADIUS:   Cisco AVpair       [1]     22  "profile-name=Unknown"
    2018/12/01 01:09:26.872 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (debug): RADIUS:  Vendor, Cisco       [26]    28
    2018/12/01 01:09:26.872 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (info): RADIUS:   Cisco AVpair       [1]     36  "interface-template-name=neat-authz"
    2018/12/01 01:09:26.872 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (debug): RADIUS:  Vendor, Cisco       [26]    42
    2018/12/01 01:09:26.872 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (debug): RADIUS:  Message-Authenticator[80]    18
    RADIUS:   00 46 b6 01 a1 60 74 8a 1f 9c 12 f7 35 65 ed 09             [ F`t5e]
    2018/12/01 01:09:26.872 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (info): RADIUS:  Message-Authenticator[80]    18  ...
    2018/12/01 01:09:26.872 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (debug): RADIUS:  EAP-Message         [79]     6
    RADIUS:   03 52 00 04                 [ R]
    2018/12/01 01:09:26.872 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (info): RADIUS:  EAP-Message         [79]     6  ...
    2018/12/01 01:09:26.872 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (debug): RADIUS:   37 33 39               [ 739]
    2018/12/01 01:09:26.872 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (debug): RADIUS:   65 2d 31 2f 33 32 39 32 34 30 31 38 32 2f 38 34  [e-1/329240182/84]
    2018/12/01 01:09:26.872 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (debug): RADIUS:   30 30 31 33 31 36 37 34 46 42 37 36 38 3a 69 73  [00131674FB768:is]
    2018/12/01 01:09:26.872 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (debug): RADIUS:  Class               [25]    53
    RADIUS:   43 41 43 53 3a 30 35 30 32 41 38 43 30 30 30 30  [CACS:0502A8C0000]
    2018/12/01 01:09:26.872 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (info): RADIUS:  Class               [25]    53  ...
    2018/12/01 01:09:26.872 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (debug): RADIUS:   34 46 42 37 36 38            [ 4FB768]
    2018/12/01 01:09:26.872 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (debug): RADIUS:   30 32 41 38 43 30 30 30 30 30 30 31 33 31 36 37  [02A8C00000013167]
    2018/12/01 01:09:26.872 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (debug): RADIUS:  State               [24]    40
    RADIUS:   52 65 61 75 74 68 53 65 73 73 69 6f 6e 3a 30 35  [ReauthSession:05]
    2018/12/01 01:09:26.872 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (info): RADIUS:  State               [24]    40  ...
    2018/12/01 01:09:26.872 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (info): RADIUS:  User-Name           [1]      7  "ssw01"
    2018/12/01 01:09:26.872 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (info): RADIUS:  authenticator b7 67 04 03 56 f9 d9 fa - 0b 03 b5 cf 1b ff 97 43
    2018/12/01 01:09:26.872 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (info): RADIUS: Received from id 1812/184 10.1.100.21:0, Access-Accept, len 214
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (info): RADIUS: Started a sec timeout
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (debug): RADIUS(00000000): Sending a IPv4 Radius Packet
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (info): RADIUS:  Calling-Station-Id  [31]    19  "2C-AB-EB-A8-4F-88"
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (debug): RADIUS:   31 38 32 2f 38 34 37 33 39 3b        [ 182/84739;]
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (debug): RADIUS:   6e 49 44 3d 69 73 65 2d 31 2f 33 32 39 32 34 30  [nID=ise-1/329240^@]
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (debug): RADIUS:   37 34 46 42 37 36 38 3b 33 31 53 65 73 73 69 6f  [74FB768;31Sessio^@]
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (debug): RADIUS:   35 30 32 41 38 43 30 30 30 30 30 30 31 33 31 36  [502A8C0000001316^@]
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (debug): RADIUS:  State               [24]    76
    RADIUS:   33 37 43 50 4d 53 65 73 73 69 6f 6e 49 44 3d 30  [37CPMSessionID=0^@]
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (info): RADIUS:  State               [24]    76  ...
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (info): RADIUS:  NAS-Port            [5]      6  50101
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (info): RADIUS:  NAS-Port-Type       [61]     6  Ethernet                  [15]
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (info): RADIUS:  NAS-Port-Id         [87]    25  "TenGigabitEthernet1/0/1"
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (info): RADIUS:  NAS-IP-Address      [4]      6  172.16.1.2
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (info): RADIUS:   Cisco AVpair       [1]     25  "client-iif-id=355993491"
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (debug): RADIUS:  Vendor, Cisco       [26]    31
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (info): RADIUS:   Cisco AVpair       [1]     14  "method=dot1x"
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (debug): RADIUS:  Vendor, Cisco       [26]    20
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (info): RADIUS:   Cisco AVpair       [1]     43  "audit-session-id=0502A8C000000131674FB768"
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (debug): RADIUS:  Vendor, Cisco       [26]    49
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (debug): RADIUS:  EAP-Key-Name        [102]    2  *
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (info): RADIUS:  EAP-Key-Name        [102]    2  *
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (debug): RADIUS:  Message-Authenticator[80]    18
    RADIUS:   99 57 5f 79 e9 0a 25 a6 89 fc 5a ad 9b d9 7c 1d            [ W_y?Z|]
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (info): RADIUS:  Message-Authenticator[80]    18  ...
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (debug): RADIUS:  EAP-Message         [79]    24
    RADIUS:   02 52 00 16 04 10 d1 fa e0 c1 cc b9 67 4b ba 88 bd a1 08 72 a4 db              [ RgKr]
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (info): RADIUS:  EAP-Message         [79]    24  ...
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (info): RADIUS:  Framed-MTU          [12]     6  1472
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (info): RADIUS:   Cisco AVpair       [1]     21  "service-type=Framed"
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (debug): RADIUS:  Vendor, Cisco       [26]    27
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (debug): RADIUS:  Service-Type        [6]      6  Framed                    [2]
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (info): RADIUS:  User-Name           [1]      7  "ssw01"
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (info): RADIUS:  authenticator 9e f3 b4 12 9c 7b a9 b1 - d3 6f b0 4e da 45 bf 43
    2018/12/01 01:09:26.830 {smd_R0-0}{1}: [radius] [22503]: UUID: 0, ra: 0, TID: 0 (info): RADIUS: Send Access-Request to 10.1.100.21:1812 id 1812/184, len 348




In order to verify behavior on the authenticator, enter the below show cisp command:

c9300-Sw#show cisp summary
CISP is running on the following interface(s):
----------------------------------------------
   Te1/0/1 (Authenticator)


c9300-Sw#show cisp interface  te1/0/1
CISP Status for interface Te1/0/1
-------------------------------------
Version:  1
Mode:  Authenticator
Peer Mode:  Supplicant
Auth State:   Idle

c9300-Sw#show cisp clients
Authenticator Client Table:
------------------------
   MAC Address     VLAN    Interface
   ---------------------------------
   2cab.eba8.4fc2   200         Te1/0/1

In the example above, the role of authenticator is correctly assigned to the correct interface (Te1/0/1) and Vlan 200 MAC address is registered.



Verification of dot1x authentication session indicate Te1/0/1 port already authenticated. This is the dot1x exchange that is triggered where supplicant switch is plugged in.

c9300-Sw#show dot1x interface tenGigabitEthernet 1/0/1 det
Dot1x Info for TenGigabitEthernet1/0/1
--------------------------------------------
PAE                       = AUTHENTICATOR
QuietPeriod               = 60
ServerTimeout             = 0
SuppTimeout               = 30
ReAuthMax                 = 2
MaxReq                    = 2
TxPeriod                  = 30

Dot1x Authenticator Client List
-------------------------------
EAP Method                = MD5
Supplicant                = 2cab.eba8.4f88
Session ID                = 0502A8C000000133675DCDD3
    Auth SM State         = AUTHENTICATED
    Auth BEND SM State    = IDLE


c9300-Sw#show authentication sessions int te1/0/1 det
            Interface:  TenGigabitEthernet1/0/1
               IIF-ID:  0x1AE7F215
          MAC Address:  2cab.eba8.4f88
         IPv6 Address:  Unknown
         IPv4 Address:  Unknown
            User-Name:  ssw01
          Device-type:  Cisco-Switch
               Status:  Authorized
               Domain:  DATA
       Oper host mode:  multi-auth
     Oper control dir:  both
      Session timeout:  N/A
    Common Session ID:  0502A8C000000133675DCDD3
      Acct Session ID:  0x00000011
               Handle:  0xc40000dd
       Current Policy:  PORT-AUTH-POLICY-I

Local Policies:
	Service Template: DEFAULT_LINKSEC_POLICY_SHOULD_SECURE (priority 150)
      Security Policy:  Should Secure
         Idle timeout: 65536 sec

Server Policies:
   Interface Template:  neat-authz

c3560CX-Sw#sh int te1/0/8
TenGigabitEthernet1/0/8 is up, line protocol is up (connected)
  Hardware is Ten Gigabit Ethernet, address is 2cab.eba8.4f88 (bia 2cab.eba8.4f88)

The interface on the authenticator is configured as access port prior to authentication and derived interface configs after supplicant authentication.

c9300-Sw#sh running-config int te1/0/1
Building configuration...

Current configuration : 311 bytes
!
interface TenGigabitEthernet1/0/1
 switchport access vlan 200
 switchport mode access
 device-tracking attach-policy IPDT_POLICY
 access-session port-control auto
 dot1x pae authenticator
 spanning-tree portfast
 spanning-tree bpduguard disable
 service-policy type control subscriber PORT-AUTH-POLICY-I
end

c9300-Sw#sh derived-config int tenGigabitEthernet 1/0/1
Building configuration...

Derived configuration : 344 bytes
!
interface TenGigabitEthernet1/0/1
 switchport access vlan 200
 switchport trunk native vlan 200
 switchport mode trunk
 device-tracking attach-policy IPDT_POLICY
 access-session port-control auto
 dot1x pae authenticator
 spanning-tree portfast
 spanning-tree bpduguard disable
 service-policy type control subscriber PORT-AUTH-POLICY-I
end



Windows PC Authentication to Supplicant Switch

In this example, the Windows PC authenticates to the supplicant. The steps in the process are:

  • The Windows PC is plugged into Gi1/0/1interface on c3560CX-Sw (the supplicant).
  • The supplicant performs authentication and authorization with the ISE.
  • The supplicant informs the authenticator that a new client is connected on the port.
Dec  3 21:32:28.187: %ILPOWER-5-POWER_GRANTED: Interface Gi1/0/1: Power granted
Dec  3 21:32:32.273: %LINK-3-UPDOWN: Interface GigabitEthernet1/0/1, changed state to up
Dec  3 21:32:33.276: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet1/0/1, changed state to up
Dec  3 21:32:33.276: CISP-EVENT (Gi1/0/1): Received action Link UpDown
Dec  3 21:32:33.276: CISP-EVENT (Gi1/0/1): Authenticator received event Link UP in state Not Running (no-op)
Dec  3 21:32:35.754: CISP-EVENT (Gi1/0/1): Received action Add Client
Dec  3 21:32:35.754: CISP-EVENT (Gi1/0/1): Adding client 0050.56a3.9670 (vlan: 100) to supplicant list
Dec  3 21:32:35.754: CISP-EVENT (Te1/0/8): Supplicant received event Add Client in state Idle
Dec  3 21:32:35.754: CISP-EVENT (Te1/0/8): Adding client 0050.56a3.9670 (vlan: 100) to the ADD list
Dec  3 21:32:35.754: CISP-EVENT (Te1/0/8): Adding client 0050.56a3.9670 (vlan: 100) to ADD CLIENT req
Dec  3 21:32:35.754: CISP-EVENT (Te1/0/8): ADD CLIENT req full
Dec  3 21:32:35.754: CISP-EVENT (Te1/0/8): Transmitting a CISP Packet
Dec  3 21:32:35.754: CISP-TXPAK (Te1/0/8): Code:REQUEST  ID:0x60  Length:0x0029  Type:ADD_CLIENT
Dec  3 21:32:35.754:     Payload:  010011020009005056A396700300050 ...
Dec  3 21:32:35.758: CISP-EVENT (Te1/0/8): Started 'retransmit' timer (30s)
Dec  3 21:32:35.758: CISP-EVENT: Started CISP tick timer
Dec  3 21:32:35.758: CISP-EVENT (Te1/0/8): Supplicant state changed to Request
Dec  3 21:32:35.988: CISP-RXPAK (Te1/0/8): Code:RESPONSE  ID:0x60  Length:0x0018  Type:ADD_CLIENT
Dec  3 21:32:35.988: CISP-EVENT (Te1/0/8): Supplicant received event Receive Packet in state Request
Dec  3 21:32:35.988: CISP-EVENT (Te1/0/8): Stopped 'retransmit' timer
Dec  3 21:32:35.988: CISP-EVENT (Te1/0/8): All Clients implicitly ACKed
Dec  3 21:32:35.988: CISP-EVENT (Te1/0/8): Supplicant state changed to Idle
Dec  3 21:32:36.436: CISP-EVENT (Gi1/0/1): Received action Add Client
Dec  3 21:32:36.436: CISP-EVENT (Gi1/0/1): Adding client 000e.d72e.460b (vlan: 101) to supplicant list
Dec  3 21:32:36.436: CISP-EVENT (Te1/0/8): Supplicant received event Add Client in state Idle
Dec  3 21:32:36.436: CISP-EVENT (Te1/0/8): Adding client 000e.d72e.460b (vlan: 101) to the ADD list
Dec  3 21:32:36.436: CISP-EVENT (Te1/0/8): Adding client 000e.d72e.460b (vlan: 101) to ADD CLIENT req
Dec  3 21:32:36.436: CISP-EVENT (Te1/0/8): ADD CLIENT req full
Dec  3 21:32:36.439: CISP-EVENT (Te1/0/8): Transmitting a CISP Packet
Dec  3 21:32:36.439: CISP-TXPAK (Te1/0/8): Code:REQUEST  ID:0x61  Length:0x0029  Type:ADD_CLIENT
Dec  3 21:32:36.439:     Payload:  010011020009000ED72E460B0300050 ...
Dec  3 21:32:36.439: CISP-EVENT (Te1/0/8): Started 'retransmit' timer (30s)
Dec  3 21:32:36.439: CISP-EVENT: Started CISP tick timer
Dec  3 21:32:36.439: CISP-EVENT (Te1/0/8): Supplicant state changed to Request
Dec  3 21:32:36.988: CISP-RXPAK (Te1/0/8): Code:RESPONSE  ID:0x61  Length:0x0018  Type:ADD_CLIENT
Dec  3 21:32:36.988: CISP-EVENT (Te1/0/8): Supplicant received event Receive Packet in state Request
Dec  3 21:32:36.988: CISP-EVENT (Te1/0/8): Stopped 'retransmit' timer
Dec  3 21:32:36.988: CISP-EVENT (Te1/0/8): All Clients implicitly ACKed
Dec  3 21:32:36.988: CISP-EVENT (Te1/0/8): Supplicant state changed to Idle

An ADD_CLIENT exchange occurs, but no REGISTRATION exchange is needed. In order to verify behavior on the supplicant, enter the show cisp registrations command:

c3560CX-Sw#show cisp registrations
Interface(s) with CISP registered user(s):
------------------------------------------
  Gi1/0/1
    Auth Mgr (Authenticator)
  Te1/0/8
    802.1x Sup (Supplicant)


c9300-Sw#show cisp clients
Authenticator Client Table:
------------------------
   MAC Address     VLAN    Interface
   ---------------------------------
   2cab.eba8.4fc2   200         Te1/0/1
   000e.d72e.460b   101         Te1/0/1
   0050.56a3.9670   100         Te1/0/1


c3560CX-Sw#show access-session int g1/0/1
Interface    MAC Address    Method  Domain  Status Fg Session ID
----------------------------------------------------------------------
Gi1/0/1      0050.56a3.9670 dot1x   DATA    Auth      AC11010200000072161463FF


c3560CX-Sw#show access-session int g1/0/1 details
            Interface:  GigabitEthernet1/0/1
          MAC Address:  0050.56a3.9670
         IPv6 Address:  Unknown
         IPv4 Address:  10.100.100.8
            User-Name:  Bob
          Device-type:  VMWare-Device
               Status:  Authorized
               Domain:  DATA
       Oper host mode:  single-host
     Oper control dir:  both
      Session timeout:  N/A
      Restart timeout:  N/A
Periodic Acct timeout:  172800s (local), Remaining: 172226s
    Common Session ID:  AC11010200000072161463FF
      Acct Session ID:  0x00000043
               Handle:  0xDB00004A
       Current Policy:  POLICY_Gi1/0/1

Local Policies:
	Service Template: DEFAULT_LINKSEC_POLICY_SHOULD_SECURE (priority 150)
      Security Policy:  Should Secure
      Security Status:  Link Unsecure


Server Policies:
           Vlan Group:  Vlan: 100
            SGT Value:  4

Method status list:
       Method           State

       dot1x            Authc Success
       mab              Stopped

Log in to ISE web User Interface (UI) and navigate to Operations > RADIUS > Live Logs.Figure24p.png



Operate

The Operate section provides a comprehensive identity solution for all Cisco ISE run-time services. The Monitoring component provides a real-time presentation of meaningful data representing the state of access activities on a network. The Troubleshooting component provides contextual guidance for resolving access issues on networks.



Operating ISE

Operating the ISE Session Table

The monitoring component on ISE describes how to use the RADIUS Live Log to view all the RADIUS authentication logs and how to get details about a specific entry in the log table. This section covers some important operations that can be performed under RADIUS live sessions.

1. Log in to ISE.

2. Navigate to Operations > RADIUS > Live Sessions.


All the active sessions on the network which are controlled by ISE are displayed.




3. Click the Target icon next to Show CoA Actions to view a list of CoA actions that can be performed on a specific endpoint. For information about the list of CoA actions ,refer to Change Authorization for Radius Sessions


4. Click Gear icon to understand the license information of a live session.

5. Check the License Type and License Details check boxes, and click Go.




License information about the sessions are displayed when you scroll to the right-hand side of the Live Sessions window.




Note: Live sessions cannot be deleted from the ISE user interface. CoA Session Termination will release the current active session, however, the entry still persists in the session table. In order to clear the entry from the cached session table, perform the below REST API call to ISE:



DELETE: https://<ISE_PAN_IP_Address>/admin/API/mnt/Session/Delete/All

Alternatively, perform a get function to gather the calling station IDs for all the active sessions and selectively delete them one by one using the following session API:



GET: https://<ISE_PAN_IP_Address>/admin/API/mnt/Session/AuthList/null/

DELETE: https://<ISE_PAN_IP_Address>/admin/API/mnt/Session/Delete/MACAddress/<calling_station_id>





ISE AAA Reports

Use the ISE operational reports to track endpoint and ISE deployment-related activities over time.

1. Log in to ISE.

2. Navigate to Operations > Reports.


3. In the left pane, navigate to Reports > Endpoints and Users > Authentication Summary.

4. By default, report for current data is generated and displayed. To change the report period, click the Today drop-down list.


On the same Authentication Summary window, statistics about the ISE deployment’s performance is displayed.




Note: The other AAA-related reports include:
  • Current Active Sessions
  • RADIUS Accounting
  • RADIUS Authentications
  • Rejected Endpoints
  • Top Authorizations by Endpoints
  • Top Authorizations by Users
  • Top N Authentication by Access Service
  • Top N Authentication by Failure Reason
  • Top N Authentication by Network Device
  • Top N Authentication by User



The Top N Authentication by Failure Reason provides information about the top authentication failures in the network.


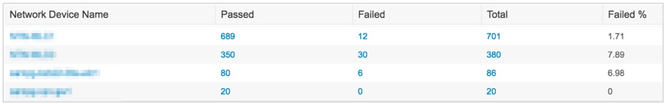

The Top N Authentication by Network Device report provides information about which network devices have what percent of failure rates.




Troubleshooting

The following sections addresses several troubleshooting information that are related to identifying and resolving problems that you may experience when you use Cisco ISE & Cisco Catalyst Switches.

Cisco IOS Troubleshooting

Some of the Cisco IOS show and debug commands that help you understand and troubleshoot ISE operations are:

  • show running-config aaa - Displays AAA configuration in the running configuration.
  • show authentication sessions/show access-session – Displays current authentication manager sessions like interface, mac, method, session-id & status.
  • show dot1x all – Displays 802.1x status for all interfaces
  • show aaa servers – Displays status and number of packets that are sent to and received from all AAA servers.
  • show device-sensor cache all – Displays Protocol, Name/Len/Value of TLVfor the cached entries
  • show device-tracking database – Displays entries in the ip device tracking table.
  • show platform hardware fed switch active fwd-asic resource tcam utilization – Displays device-specific hardware resource usage information
  • show platform software fed switch active acl usage – Displays number of ACL entries used for different ACL feature types



Operation Sequence Overview

The high-level functional sequence in Figure 25 shows how the components and protocols of 802.1x work together.

Figure25: High-level 802.1x SequenceFigure25: High-level 802.1x Sequence



Starting 16.x IOS XE, tracing functionality logs internal events where trace files are automatically created and saved to the trace logs subdirectory.



The Contents of trace files are useful for troubleshooting & Debugging operations. To modify the trace level to increase or decrease the amount of trace messages output (Default set to NOTICE) you can set a new trace level using the set platform software trace command.

  • set platform software trace smd switch active R0 aaa-authen debug
  • set platform software trace smd switch active R0 radius debug
  • set platform software trace smd switch active R0 dot1x debug
  • set platform software trace smd switch active R0 epm debug
  • set platform software trace smd switch active R0 mab debug
  • set platform software trace smd switch active R0 eap debug



To view the trace levels for respective module under a specific process (Session Manager process/smd), use the show platform software trace level command

  • show platform software trace level smd switch active R0



To view the most recent trace information, use the show platform software trace message command

  • show platform software trace message smd switch active R0
  •

Refer to attachment below for the sample trace captures for dot1x success and Failed sessions and major events are highlighted in bold..



ISE Troubleshooting

See the following links for details on ISE troubleshooting:

How To: Troubleshoot ISE Failed Authentications & Authorizations

Troubleshoot and Enable Debugs on ISE

Troubleshooting Cisco's ISE without TAC

Troubleshooting TechNotes





Comments
Parag Mahajan
Cisco Employee
Cisco Employee

Very detailed Guide. Thanks Hari for the effort!!!

vusandlovu
Level 1
Level 1

You rock....just saved me on my new deployment was just easy.....Thank you.

kamlenegi
Level 1
Level 1

Hello,



Can we have specific document for wired guest in 2.3 version.



Thanks

Kamlesh

Jason Kunst
Cisco Employee
Cisco Employee
Madura Malwatte
Level 4
Level 4

Does anyone know where I can find the latest ISE visio icons? I am referring to the same ones used in the deployment guides.

firefox
Cisco Employee
Cisco Employee

Is there a similar document for Wireless deployment?

Hello @hariholla. Thanks a lot for a great doco! Any leads on the awesome stencils you use in it?


walwar
Level 1
Level 1

What a great detailed guide, thanks a million for the effort!

John Palmason
Level 4
Level 4
I have been looking for a guide like this, thank you very much it is very well organized and easy to follow. Cheers, John Palmason
Darren_Cooper
Level 1
Level 1

Hi, This guide is great, however I have an issue that I cannot find any reference to.  When enabling new-style authentication on a switch with only a LAN-Lite license, some of the commands needed are missing so I cannot configure basic 802.1x with RADIUS authentication.



Notibly



policy-map and service-policy



All the documents say this should work, and in legacy mode worked fine, however a converted configuration does not.



Anybody know what I can do?



Johannes Luther
Level 4
Level 4

Just a side note (and question). The document describe, that Windows client perform a default gateway ICMP reachability probe after an EAP SUCCESS message ("Pre-Authentication and Post-Authentication Access Control with Low Impact"). In lab testing with Windows 10 (1903) I dind't see any ICMP probe after the EAP SUCCESS message. Instead, the Windows 10 client just started to send a DHCP request with the currently configured IP as the requested IP address. Can someone confirm this?

r1127hyduk
Level 4
Level 4

Very well written document here for 802.1x and MAB design / deploy options.  The icons and detail are superb.



To lead on for what hardware / software to deploy, does anyone have a general ISE parts / sku listing's for components - appliance and (VM instance options) they can share?  I'm having some challenges with CCW at this time with part validations and its rather frustrating.  Smartnet support included too!



Second question, what challenges are there from migrating from 2.4.x to 2.6 .or 2.7?

Thanks for sharing this doc.

This manual is intended to offer technical steering to design, configure and function the Profiling feature inside the Cisco Identity Services Engine page(ISE). The file provides nice practice configurations for a typical surroundings.

That feature may not be referred to in case you are jogging an older model of the ASA codehere. You will want to upgrade to the minimum version as referenced approximately.

Getting Started

Find answers to your questions by entering keywords or phrases in the Search bar above. New here? Use these resources to familiarize yourself with the community:
