Link Aggregation FLAPs on the Switch SG300

tiagolima02
Level 1
Level 1
Gentlemen ,
The Company Network which work has fluctuated in Po interfaces ( Link Aggregation ) .
Only port Link Aggregation oscillate , the others are working properly.
Can someone help me?
Has anyone ever experienced this?
The interfaces of both the Switch as well as the servers are manually configured for speed 1Gbps Full Duplex
The aggregation links are part of VMWARE (IBM Virtual Machine) Servers.

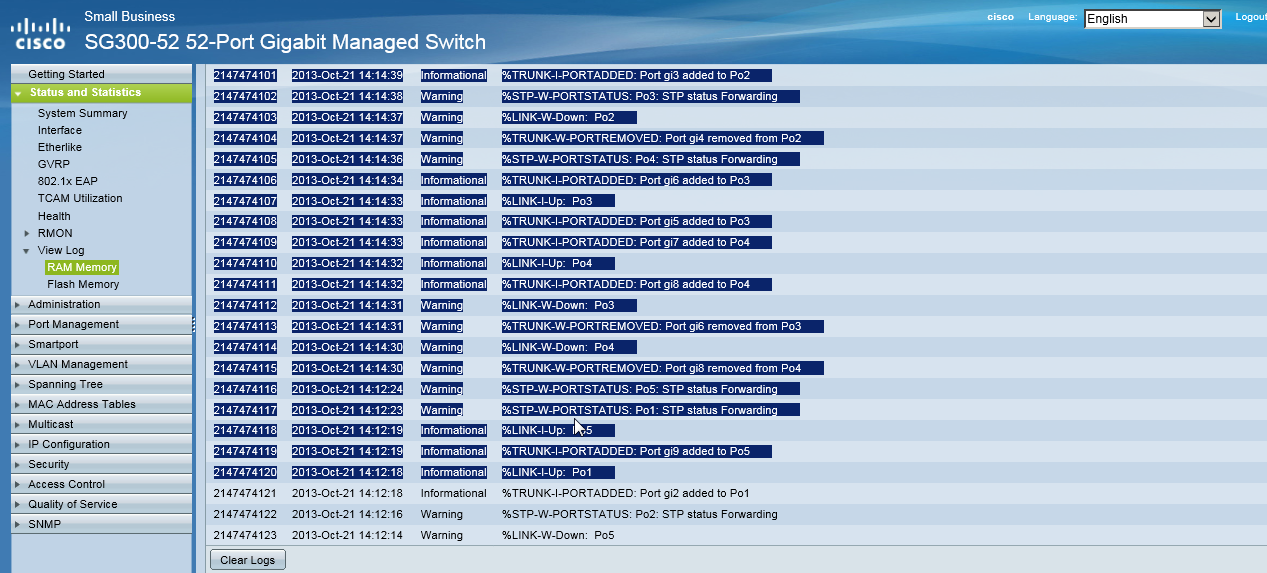

Erros LOG
2147474086 2013-Oct-21 14:14:51 Warning %STP-W-PORTSTATUS: Po5: STP status Forwarding
2147474087 2013-Oct-21 14:14:50 Warning %STP-W-PORTSTATUS: Po1: STP status Forwarding
2147474088 2013-Oct-21 14:14:47 Informational %TRUNK-I-PORTADDED: Port gi9 added to Po5
2147474089 2013-Oct-21 14:14:46 Informational %TRUNK-I-PORTADDED: Port gi1 added to Po1
2147474090 2013-Oct-21 14:14:46 Informational %LINK-I-Up:  Po5
2147474091 2013-Oct-21 14:14:46 Informational %TRUNK-I-PORTADDED: Port gi10 added to Po5
2147474092 2013-Oct-21 14:14:45 Informational %LINK-I-Up:  Po1
2147474093 2013-Oct-21 14:14:45 Informational %TRUNK-I-PORTADDED: Port gi2 added to Po1
2147474094 2013-Oct-21 14:14:44 Warning %LINK-W-Down:  Po5
2147474095 2013-Oct-21 14:14:44 Warning %TRUNK-W-PORTREMOVED: Port gi9 removed from Po5
2147474096 2013-Oct-21 14:14:43 Warning %STP-W-PORTSTATUS: Po2: STP status Forwarding
2147474097 2013-Oct-21 14:14:43 Warning %LINK-W-Down:  Po1
2147474098 2013-Oct-21 14:14:43 Warning %TRUNK-W-PORTREMOVED: Port gi2 removed from Po1
2147474099 2013-Oct-21 14:14:40 Informational %TRUNK-I-PORTADDED: Port gi4 added to Po2
2147474100 2013-Oct-21 14:14:39 Informational %LINK-I-Up:  Po2
2147474101 2013-Oct-21 14:14:39 Informational %TRUNK-I-PORTADDED: Port gi3 added to Po2
2147474102 2013-Oct-21 14:14:38 Warning %STP-W-PORTSTATUS: Po3: STP status Forwarding
2147474103 2013-Oct-21 14:14:37 Warning %LINK-W-Down:  Po2
2147474104 2013-Oct-21 14:14:37 Warning %TRUNK-W-PORTREMOVED: Port gi4 removed from Po2
2147474105 2013-Oct-21 14:14:36 Warning %STP-W-PORTSTATUS: Po4: STP status Forwarding
2147474106 2013-Oct-21 14:14:34 Informational %TRUNK-I-PORTADDED: Port gi6 added to Po3
2147474107 2013-Oct-21 14:14:33 Informational %LINK-I-Up:  Po3
2147474108 2013-Oct-21 14:14:33 Informational %TRUNK-I-PORTADDED: Port gi5 added to Po3
2147474109 2013-Oct-21 14:14:33 Informational %TRUNK-I-PORTADDED: Port gi7 added to Po4
2147474110 2013-Oct-21 14:14:32 Informational %LINK-I-Up:  Po4
2147474111 2013-Oct-21 14:14:32 Informational %TRUNK-I-PORTADDED: Port gi8 added to Po4
2147474112 2013-Oct-21 14:14:31 Warning %LINK-W-Down:  Po3
2147474113 2013-Oct-21 14:14:31 Warning %TRUNK-W-PORTREMOVED: Port gi6 removed from Po3
2147474114 2013-Oct-21 14:14:30 Warning %LINK-W-Down:  Po4
2147474115 2013-Oct-21 14:14:30 Warning %TRUNK-W-PORTREMOVED: Port gi8 removed from Po4
2147474116 2013-Oct-21 14:12:24 Warning %STP-W-PORTSTATUS: Po5: STP status Forwarding
2147474117 2013-Oct-21 14:12:23 Warning %STP-W-PORTSTATUS: Po1: STP status Forwarding
2147474118 2013-Oct-21 14:12:19 Informational %LINK-I-Up:  Po5
2147474119 2013-Oct-21 14:12:19 Informational %TRUNK-I-PORTADDED: Port gi9 added to Po5
2147474120 2013-Oct-21 14:12:18 Informational %LINK-I-Up:  Po1

















































































































































































1 Reply 1

athorn001
Level 1
Level 1

Cables or modules.
