SG500XG-8F8T 16-Port 10-Gigabit Stackable Managed Switches - slow ping times

[jlee000011]

Hi,

I have 2 brand new

SG500XG-8F8T 16-Port 10-Gigabit Stackable Managed Switches.

However, I am having problems with one of them.

Both have has been configured the same. i.e.

New IP’s

Default gateway

DNS

IP routing configured

SNTP configured

When I run a continuous ping to one of them, the ping times are very slow.

When I ping the other switch it’s OK.

I can confirm nothing else is plugged into the switch other than my laptop.

I have done a factory reset on the switch and it is still has a problem.

I have notice when I reboot the switch it is OK for about 1 hour before the ping times slows.

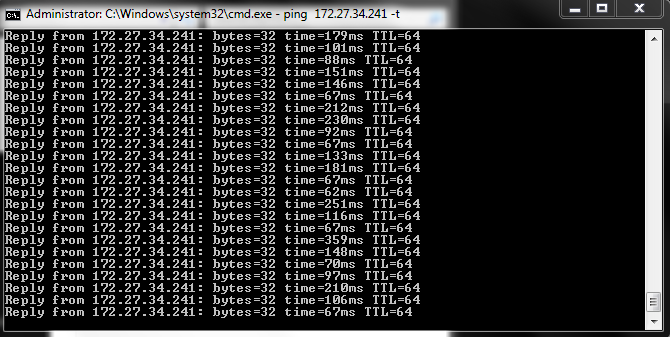

Please see my attached screen shots.

Has anyone see this error before and how can I resolve it?

Thanks

James

[jlee000011]

Following on from my msg above:

I have tried different network cables.

I am patch directly into the switch.

Yes I have enabled IP routing to route across vlans.

Here are the running config of the switches.

------------------------------------------------------------------------------------------------------------------------------------------------------------

**************************************The OK switch running config.*******************************

------------------------------------------------------------------------------------------------------------------------------------------------------------

switch2350#show running-config

config-file-header

switch2350

v1.4.0.88 / R800_NIK_1_4_194_194

CLI v1.0

set system queues-mode 4

file SSD indicator encrypted

@

ssd-control-start

ssd config

ssd file passphrase control unrestricted

no ssd file integrity control

ssd-control-end cb0a3fdb1f3a1af4e4430033719968c0

!

voice vlan oui-table add 0001e3 Siemens_AG_phone________

voice vlan oui-table add 00036b Cisco_phone_____________

voice vlan oui-table add 00096e Avaya___________________

voice vlan oui-table add 000fe2 H3C_Aolynk______________

voice vlan oui-table add 0060b9 Philips_and_NEC_AG_phone

voice vlan oui-table add 00d01e Pingtel_phone___________

voice vlan oui-table add 00e075 Polycom/Veritel_phone___

voice vlan oui-table add 00e0bb 3Com_phone______________

no boot host auto-config

bonjour interface range vlan 1

hostname switch2350

clock timezone " " 0 minutes 0

clock source sntp

sntp unicast client enable

sntp unicast client poll

sntp server 172.27.x.x poll

ip name-server 172.27.x.x 172.27.x.x

!

interface vlan 1

ip address 172.27.x.x 255.255.255.0

no ip address dhcp

!

exit

ip default-gateway 172.27.x.x

switch2350#

------------------------------------------------------------------------------------------------------------------------------------------------------------

------------------------------------------------------------------------------------------------------------------------------------------------------------

**************************************The problem switch running config.*******************************

------------------------------------------------------------------------------------------------------------------------------------------------------------

switch2349#show running-config

config-file-header

switch2349

v1.4.0.88 / R800_NIK_1_4_194_194

CLI v1.0

set system queues-mode 4

file SSD indicator encrypted

@

ssd-control-start

ssd config

ssd file passphrase control unrestricted

no ssd file integrity control

ssd-control-end cb0a3fdb1f3a1af4e4430033719968c0

!

voice vlan oui-table add 0001e3 Siemens_AG_phone________

voice vlan oui-table add 00036b Cisco_phone_____________

voice vlan oui-table add 00096e Avaya___________________

voice vlan oui-table add 000fe2 H3C_Aolynk______________

voice vlan oui-table add 0060b9 Philips_and_NEC_AG_phone

voice vlan oui-table add 00d01e Pingtel_phone___________

voice vlan oui-table add 00e075 Polycom/Veritel_phone___

voice vlan oui-table add 00e0bb 3Com_phone______________

no boot host auto-config

bonjour interface range vlan 1

hostname switch2349

clock timezone " " 0 minutes 0

clock source sntp

sntp unicast client enable

sntp unicast client poll

sntp server 172.27.x.x poll

ip name-server 172.27.x.x 172.27.x.x

ip domain timeout 2

ip domain retry 1

!

interface vlan 1

ip address 172.27.x.x 255.255.255.0

no ip address dhcp

!

exit

ip default-gateway 172.27.3x.x

switch2349#

------------------------------------------------------------------------------------------------------------------------------------------------------------

------------------------------------------------------------------------------------------------------------------------------------------------------------

For the problem switch to show a running config took 40 mins to print. Its only took seconds for the OK switch to print the running config. Could it be a hardware issue with the switch?

Thanks,

James

[Aleksandra Dargiel · Accepted solution]

Hi James,

This is really long time. Please double check if those two switches are running the latest boot code. I could also recommend you to test outside the network and perhaps even with default configuration.

Those switches have also show tech-support which may be useful.

It would be good idea to open ticket with Small Business Support team:

http://www.cisco.com/c/en/us/support/web/tsd-cisco-small-business-support-center-contacts.html

Regards,

Aleksandra

[jlee000011 · Accepted solution]

Hi,

Upgraded the firmware and boot code... still had the same issue,.

Turned out to be a faulty switched.

Got a replacement switch and its working like a dream.

Thanks for you help.

James
