Cannot ping IP on different subnet

uppermost
Level 1
Level 1

Can anyone explain to me, why I cant ping VLAN412 from HostA ?




SwitchA#show run
Building configuration...

interface Ethernet0/0
 switchport trunk encapsulation dot1q
 switchport mode trunk
!
interface Ethernet3/3
 switchport access vlan 400
 switchport mode access
 switchport port-security maximum 2
 macro description cisco-phone
 spanning-tree portfast edge
 spanning-tree bpduguard enable
!
interface Vlan1
 no ip address
!
interface Vlan400
 description LegacyData
 ip address 10.10.1.100 255.255.0.0
 ip pim dense-mode

interface Vlan911
 description MGMT.Network
 ip address 10.12.254.254 255.255.255.0
 ip pim dense-mode
!
!
router eigrp 200
 network 10.10.0.0 0.0.255.255
 network 10.12.0.0 0.0.255.255
 passive-interface default
 no passive-interface Vlan911
!
SwitchA#







SwitchB#show run
Building configuration...
!
interface Ethernet0/0
 switchport trunk encapsulation dot1q
 switchport mode trunk
!
interface Ethernet3/3
 switchport access vlan 400
 switchport mode access
 switchport port-security maximum 2
 macro description cisco-phone
 spanning-tree portfast edge
 spanning-tree bpduguard enable
!
interface Vlan412
 description Data_RRU31
 ip address 10.12.171.1 255.255.255.0
!
interface Vlan911
 description MGMT.Network
 ip address 10.12.254.250 255.255.255.0
 ip pim dense-mode
 ip summary-address eigrp 200 10.12.0.0 255.255.0.0
!
!
router eigrp 200
 network 10.12.0.0 0.0.255.255
 passive-interface default
 no passive-interface Vlan911
 eigrp stub connected summary
!
ip forward-protocol nd
!
!
no ip http server
no ip http secure-server
ip route 0.0.0.0 0.0.0.0 10.12.254.254 50
!

SwitchB#





From HostA







1 Accepted Solution

Accepted Solutions

NSK is nexus

And you are correct gns3 l3sw have some issue in inter-vlan

Your config is correct.

MHM

View solution in original post

18 Replies 18

In SW-b

Show vlan do you see the vlan ?

If not you need to add it by

Vlan x




sorry you already  have EIGRP between two SW no need static route

Still no ping









eigrp stub connected summary

remove this and check

did not help

Do traceroute see where traffic stop in SW a or SW b

Share here

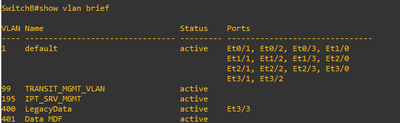

I review the show vlan you share
VLAN911 is not appear in SW-B ??
if it not appear
add vlan via
vlan 911

and check

uppermost
Level 1
Level 1

All the L2 vlans are there, I just did not post whole cfg.






In SW-B trace 10.10.1.174

show ip int brief <<- in both SW



show ip int brief <<- in both SW

If all svi of all vlan up'

Last resort is

Instead of transit vlan911' use router port between two switch.

Router port conifg by

Interface x/x

No switchport

Ip add <  use same subnet of vlan911>

Keep other config as it

And check ping.

Did you check show ip inter brief?

Did you try use router port ?

Hi

 show ip route on Switch A , are you receiving 10.12.171.0 network ?
