cisco 9300 48P poe consumption option

[arshadudddin]

Hii

I have cisco 9300 48P with 470 Poe watt,  connect IeeePD default using 15.4 watt so only 30 device able to  get connected. no enough power available  for another device. when I see on Power inline policy device utilize not more then 9 watt.  When i set it on static 10 watt power deny to PD.

i have same issue earlier with 2960, there was option in power inline consumption , I set power 10 watt it's working.

but in 9300 48P no such option available.

[M02@rt37]

Hello @arshadudddin

Do you have the feature "Power Negotiation" available? This feature allows the switch and the powered device to negotiate the power level, which can help ensure that the PD receives the appropriate amount of power without overloading the switch.

To enable Power Negotiation on your Cisco 9300 switch: power inline negotiation prestandard source

[arshadudddin]

Thanks a lot for quick response, Can you please give command line for this.

[arshadudddin]

Because in power inline only

auto

never

police

port

static

available

[M02@rt37]

Hello @arshadudddin

you use the "power inline static max" command to statically set the maximum power allocated to a port ?

[M02@rt37]

 @arshadudddin

I apologize for the confusion and check the 9300 datasheet too. The "power inline negotiation prestandard source" command is not available on the Cisco Catalyst 9300 switch. This command is only available on certain older Cisco switches that support prestandard PoE.

The Cisco Catalyst 9300 switch only supports IEEE 802.3af and IEEE 802.3at standards for PoE. If your PDs are compliant with these standards and still not receiving power, you may need to check the power consumption of the PDs and the PoE budget of the switch. You can also try to prioritize the most critical PDs or use external power injectors to supply power to the PDs that require more power than the switch can provide.

[arshadudddin]

Thanks,

PD is supported IEEE802.3af, and when I see on switch power inline policy its showing PD use 7.3 watt.

[arshadudddin]

Any one can help for this case

[Leo Laohoo · Accepted solution]

For a 48-port PoE switch, 470 wac PS is just not enough.  Get the 1100wac power supply.

NOTE:

The "official" power supply for the Catalyst 9300 is has a SKU prefix of PWR-C1.  There is no issue if, for example, someone manages to find a power supply with an SKU of C3KX-PWR.  For example, a power supply C3KX-PWR-1100WAC and PWR-C1-1100WAC will work in a Catalyst 9300.  The only difference is the SKU/part number.

[arshadudddin]

Hii Leo,

Thanks for reply, This switch (9300 48P) is giving full 470 watt, My issue is I want to define poe consumption on port static, but when is set 10 watt to port, PD power deny, as my PD is using 7.3 watt,  I have a 2960 poe switch i have test here In command line Power inline these is consumption option i set 10 watt there its working fine, But in 9300 i don't see any option, is there  POE consumption or POE negotiation command line on 9300,   please suggest.

[Leo Laohoo]

What firmware is the 9300 running on?

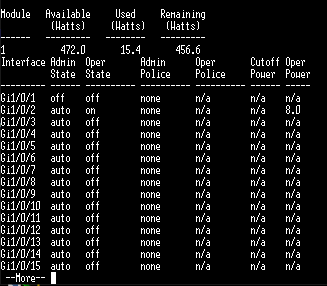

Post the complete output to the command "sh power inline".  I suspect the 48-port switch is powered by a 750wac power supply that is originally meant for a 48-port non-PoE or a 24-port PoE switch.

[arshadudddin]
