Hello,
I have been trying to solve this project and I am confused how to do it correctly to construct the diagram . I have googled but I am lost .
Network Requirement :

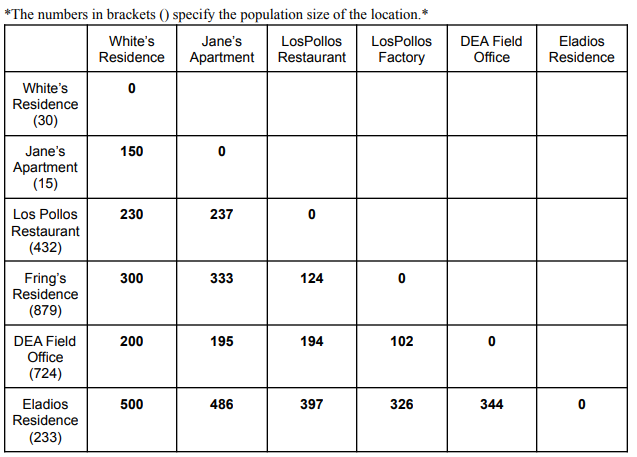

Different location and their population was given .
Consider each location as a separate network connected by routers.
● For that you need to choose an appropriate network address and from that create subnets to
assign to each location. But remember you can use only half the available ip addresses from
the network address i.e 102.1.1.0/24 has 256 possible ip addresses, but you can use only
128 which is half of that.
● Assign ip addresses to all interfaces and devices. You have to show at least two end devices
for a location.
● Jane’s Apartment (15) has a web server where the entire distribution is operated from.
● Establish connections among all the networks with the shortest route possible.
○ Must have at least one floating route.
○ Must have a backup system to handle missing routing entries.
○ Configure half of the network to be routed dynamically.
● After completion, make sure that you can ping from a device in one location to another.
