EEM on IE2000 not working

[haashir-masroor]

I have a LAN Base license on my IE2000 and the EEM isn't working. It was working a while ago when I was testing out some scripts, but now it isn't. I'm using version 15.2(4)AE5. I don't know much about it, and I think it was because I've reset the switch multiple times and that somehow corrupted something. I wanted to ask here before I went out and broke something. If nothing, I might go out and reimage the switch.

[Flavio Miranda]

@haashir-masroor

 Try to clear

event manager scheduler clear all

[haashir-masroor]

I should have been more specific, sorry.
I don't have anything on my starting configuration or running configuration. I did "erase start" before hand trying to fix the problem. I have event manager in the EXEC mode, but not in the global configuration.

And when I export the start config, add the script in a notepad, and import that config, it gives me Invalid Input again.

[Flavio Miranda]

I got. Can you run the command  "show version" and "show license" and share the output?

[haashir-masroor]

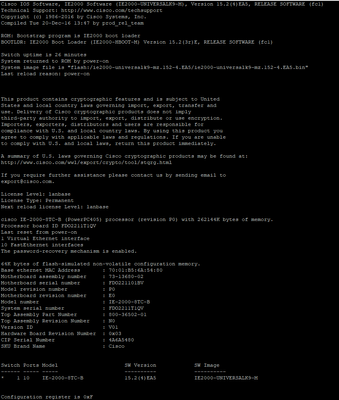

This is the sh ver

This is the sh license

[Flavio Miranda]

As per the show version, the license running on this switch is lanbase and as per the cisco docs, to run EEM you need IP Base or IP services

The document below mention differents devices but I believe this is true for IE2000 as the IOS is the same.

"EEM is supported only on Catalyst switches running IP Base and IP Services licenses."

https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst2960cx_3650cx/software/release/15-2_6_e/configuration_guide/b_1526e_consolidated_3560cx_2960cx_cg/m_1522e_eem_3750x_3560x_cg.html

[haashir-masroor]

But according to the Cisco IE 2000 Datasheet, it says that Lan Base should have access to EEM. This information is near the middle of the Datasheet.
Cisco Industrial Ethernet 2000 Series Switches Data Sheet - Cisco

[Flavio Miranda]

Infact, however, it does not mention the IOS version on the data sheet. Some changes could be made along the way.

As per the behavior you are facing, I would say it does not support with lanbase, otherwise, you should be able to enter the command.

 What you can do is enable IP base in evaluation mode and test

license right-to-use activate{ipbase |ipservices | lanbase} {all | evaluation all }

https://www.cisco.com/en/US/docs/switches/lan/catalyst3850/software/release/3se/consolidated_guide/b_consolidated_3850_3se_cg_chapter_01110010.pdf
