Trouble with EIGRP Routing

[103634981]

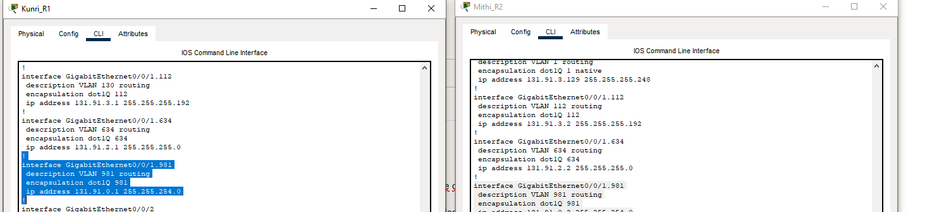

I'm having some trouble with EIGRP routing. i tried to set up eigrp routing between my 3 internal routers and am facing the following issues despite the eigrp adjacency seeming to be correct.

-PC1 in VLAN 981 is able to ping its own default gateway but not the other 2 routers or the internet

-PC2 in VLAN 634 is able to ping router 3 and the internet but not router 1

would greatly appreciate any help with this,

thank you

[Flavio Miranda · Accepted solution]

@103634981

 Double check you configuration

 It seems you are advertizing the same routes on both Routers.  This will create confusion on the routing protocol.

[103634981]

Thank you so much, I'm still a bit new to this and i guess i misread the assignment.

[Flavio Miranda]

Dont worry. You are doing well. This is very complex scenario.

 Just keep in mind that If you advertise the same route in two router, there will be incosistensy on the routing table as both router will claim they own that specific network

[Blue_Bird]

Hello 103634981,

All routers under eigrp configration "no auto-summary" command is missing.

Kunri_R1(config)# router eigrp  65

Kunri_R1(config-router)# no auto-summary

Same way do it all other routers, it will fix the issue...

Best regards
******* If This Helps, Please Rate *******
