I got a question regarding Zone Based Firewall and service module on a 3925 router. In fact, i want to acquire à 3925 router with the Security plus license to implement ZBF and filter inter-vlan traffic and especially inside-->outside traffic. The 3925 will be added a Service Module SM-ES3G-16-P to implement routed port (physical) and SVI (Switched Virtual Circuit).

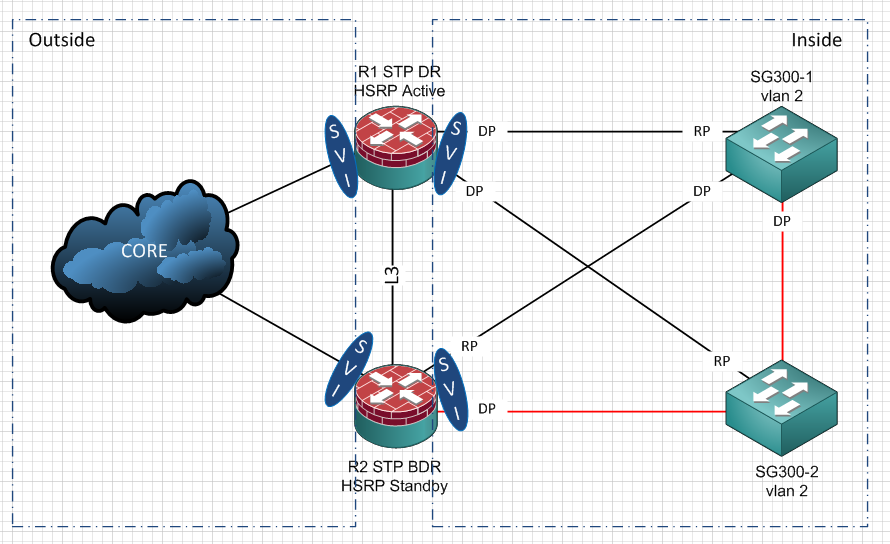

In fact each VLAN will be connected to an SVI according to this figure :
My question are pretty simple :
Is it possible to created ZBF rules and specified the SVIs attached to the service module (ZBF won't apply only on the 3 integrated interfaces of the 3925) ?
I also want to know if it is possible to implement WCCP on SVI located in the inside area ?
A cisco sale representative (cisco.com chat) told me that ZBF and EtherSwitch service module are compatible but I might say i really doubt on that as the service module runs on a different IOS than the hosting router.
Has anyone an done such a design ?
I also saw that EHWIC module are available and compatible with SVI but restricted to a maximum of 15 SVI per module. Can anyone confirm that ?
