Remote Monitoring

Miguel Serrano
Level 1
Level 1

Hello there,

in my Tandberg Structure i got a nice Solution to Monitoring all my Systems (see Image), that was damm helpful

In the Tandberg Software i can download 1 Frame over ftp (see HTML Code)



  <td style="vertical-align: top;">
   <p>
   <a href="http://10.11.0.2" title="Tandberg Codec 6000 MXP Manager" target="_blank">
   <img src="ftp://user:password@10.11.0.2/tmp/snapshots/site0.jpg" alt="2.001 (sample room)" style="width: 235px;height: 156px;">
   </a></p>
   <a href="http://10.11.0.1/tms/default.aspx" title="&#9990; +1(555)2001" target="_blank" color="#BDBDBD">2.001 [sample room]</a>
  </td>

i found a alternate solution for TC7xxx and CE8xxxx Software of Cisco Telepresence Endpoints. That works similar fine, but i got a Problem with the AUTHENTICATION, i can´t introduce my username and Password on the webcode, the Website request each time for every machine (70x times) my Username and Password and the policies of my Personal Desktop can´t store the Authentication in keepass.

Im searching for a solution how can i introduce my username and passw. on the code, has someone an idea to resolve this?



  <td style="vertical-align: top;">
   <p>
   <a href="http://10.11.0.3" title="Tandberg Cisco MX800 Manager" target="_blank">
   <img src="http://10.11.0.3/websnapshot/get" alt="2.002 (sample room)" style="width: 235px;height: 156px;">
   </a></p>
   <a href="http://10.11.0.1/tms/default.aspx" title="&#9990; +1(555)2001" target="_blank" color="#BDBDBD">2.002 (sample room)</a>
  </td>


2 Replies 2

Patrick Sparkman
VIP Alumni
VIP Alumni

Have you tried the method you were using, where you provide the username:password before the IP address?

I just tried it on a TC7 and it works, however CE software appears to not work as it will send you to the login page of the web interface.

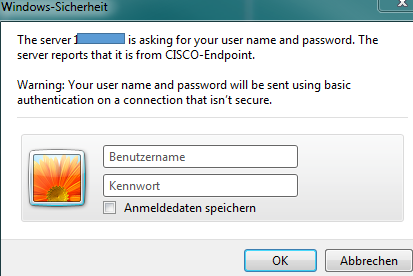

The same, i got a login Screen because my browser have a restriction policies to save some credentials.

on TC.7.3.5 Software


<td style="vertical-align: top;">

<p>

<a href="http://user:password@10.11.0.4" title="Tandberg Cisco Codec C60 Manager" target="_blank">

<img src="http://user:password10.11.0.4/websnapshot/get" alt=" 2.004 (Sample room)" style="width: 235px;height: 156px;">

</a></p>

<a href="http://10.11.0.1/tms/default.aspx" title="&#9990; +1(555)2001" target="_blank" color="#BDBDBD">2.004 (Sample room]</a>

</td>
