Hi
I have a Cisco C200 M3 with Raid 1 and the writing performance is greater than with a Raid 5
Next I copy the capture of a RAID 1 with 2 x SATA 1TB disks to 7.2k

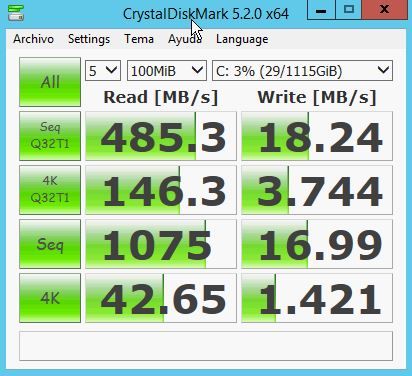

Next I copy the capture of a RAID 5 with 3 SAS 10K disks.
In Raid 5 the reading is higher than Raid 1 but the writing is quite lower than Raid 1, as I have seen this UCSC RAID SAS 2008M-8i does not support BBU, it is something strange because in a RAID 5 is essential for optimal performance, I have the Cache activated.

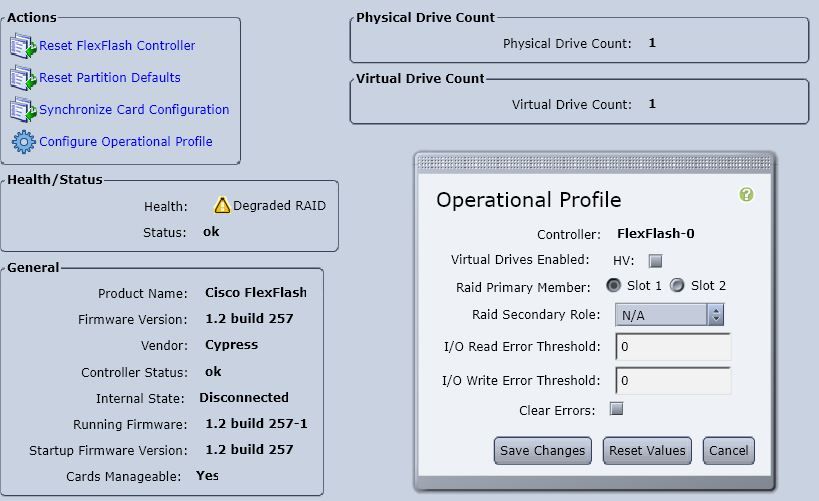

I have also noticed in the CIM that the Cisco FlexFlash appears degraded, I also have the doubt if FlexFlash has to have the Virtual Drives active, then I copy capture with the configuration and error.
I want to know if the performance with RAID 5 is normal or there is a problem with the system or configuration.
Thank you.
- Labels:
-
Other Unified Computing System
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
11-21-2017 12:53 AM
Hello, I need help with my problem ... has added a fourth disk, now I have a Raid 5 with 4 SAS disks of 600GB to 10K, and the writing is 20 / 30mb - sec, it is a very low speed, in the same server a RAID 1 with SATA 7.2K disks is giving me 80 / 90MB of writing. Does anyone know where I can ask Cisco for support to the forum?
Thanks!
