Problem with site2site cisco asa <-> zyxel sbg

[becfip]

Hello,

i have a problem with site 2 site vpn connection behind HQ cisco asa 5545 ip 0.0.02.82 and Zyxel SBG 3300 ip 0.0.0.133.

I dont know how to configure this zyxel router.

Phase 1 is complete. There is log from asa:

 I try everythink on configuration, now my configuration on ASA look like this:S2S connection profile 1

S2S connection profile 2

S2S connection profile 3

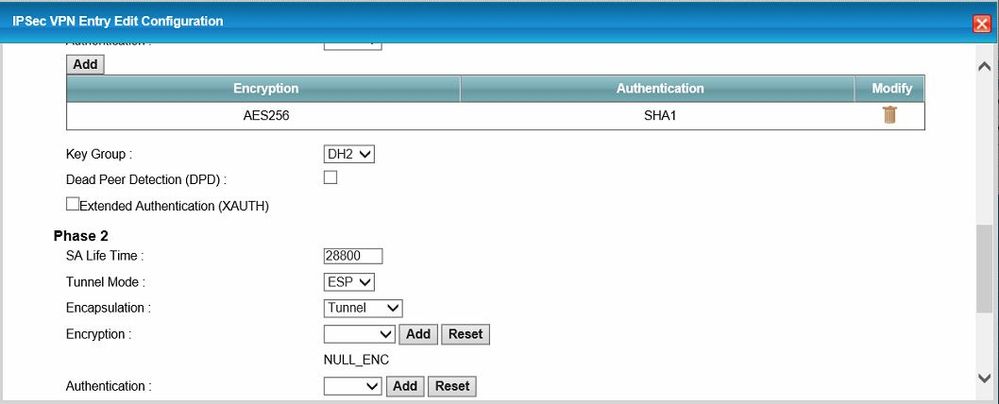

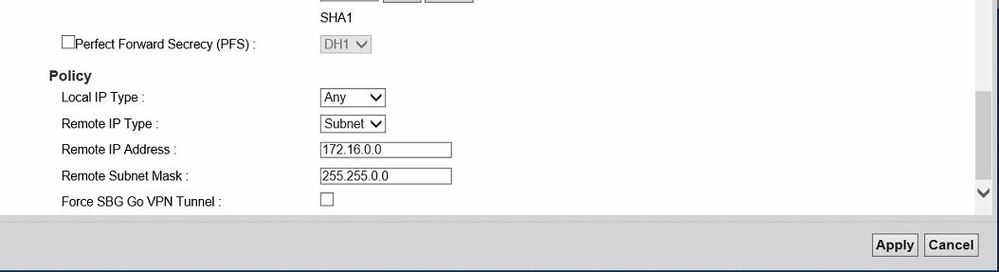

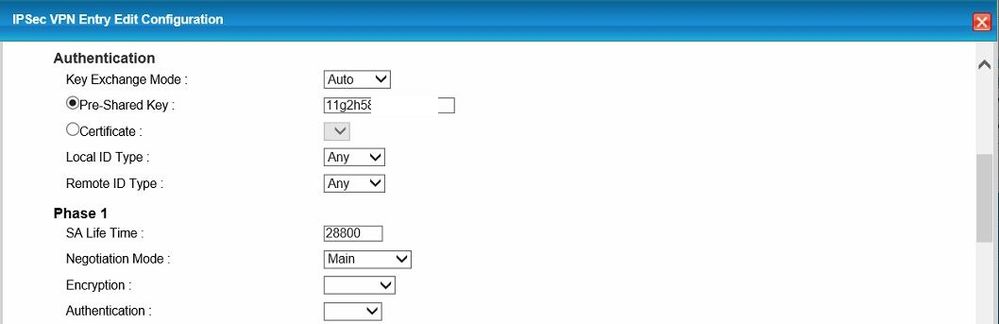

And configuration on Zyxel:

I hope that this printscreen will help you to find some mistake in my configuration.

I will be grateful for any help!

Thank you very much.

Best regards

Filip

[JP Miranda Z]

Hi becfip,

Checking the config of the ASA and also the Zyxel i found the following:

-The interesting traffic need to be mirrored between the 2 devices:

ASA= any to <destination>

Zyxel= <local> to any

If after matching the config you still get any issue you can run the following debugs through the CLI:

debug cry condition peer <zyxelpublicip>

debug cry isa 180

You can share the sanitized logs here.

Hope this info helps!!

Rate if helps you!!

-JP-
