Show IP for host devices

[fbessone]

Hi,

In my 2.9.1.20250120 version Dashboard, some hosts device shows the IP and others no ... and i'm looking for help, since i'd like to search for mac / ip addresses and know the related connected port.

The topology has a switch TO-NewCore with an assigned ip for each vlan: there is also a discovery job for each vlan.

On this switch the ARP table correctly relates the MAC Address to the IP.
Lets take my laptop, which is connected to TO-ArmD, mac and ip:  E0:73:E7:CC:92:C0 - vlan 173

The TO-NewCore switch shows the mac / ip:

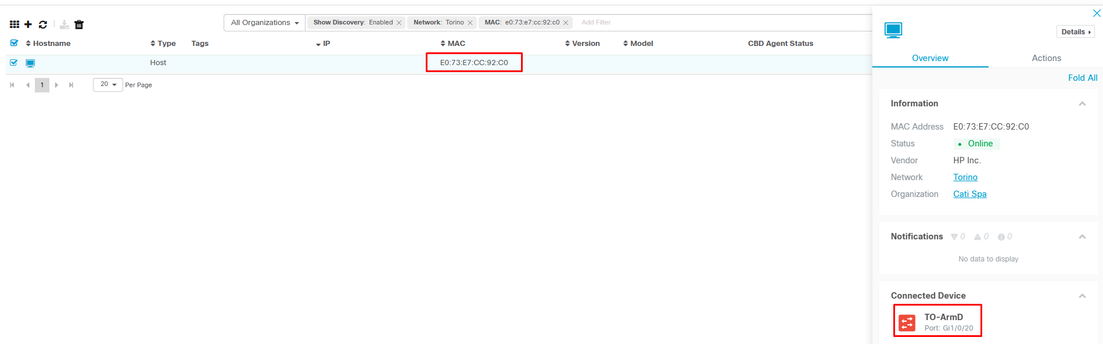

but when i look for that MAC, the dashboard shows only the connected device and no ip information.

How can i make it show the ip information?

Thanks

[Mark Fang]

This is expected. CBD doesn't read the ARP table from switches, which means IP addresses may not always be visible for all hosts. IP information for a host is only available under specific conditions, such as when the host supports LLDP or when it is in a network managed by a Probe and its IP is learned by Probe through an ARP scan.

[fbessone]

Hi Mark,

thanks for the quick answer: I understand.

Its a shame because the information is already there and would be a great feature inside the Dashboard. Will this feature be included in the next releases or it's just a "non expected" one?

thanks

f

[Mark Fang]

Currently, this feature is not in the backlog for CBD. I have forwarded your feedback to the CBD product team for consideration in future updates.

[fbessone]

Thanks Mark,

have a nice we!

f
