Introduction
In CME 10.5, new keywords are added to the existing show CLIs. With the existing Show CLI, it is difficult to determine how many phones are registered or unregistered with extensive data.
Enhancements on CME 10.5 "Show CLIs"
show voice register pool type summary
New CLI on CME 10.5, shows voice register pool type summary with Display count of SIP Phones, Configured, Registered and unregistered for each phone type.
Usage Guidelines:
Use this command to view the count of the phones configured, registered and unregistered in the SIP mode.
Examples:

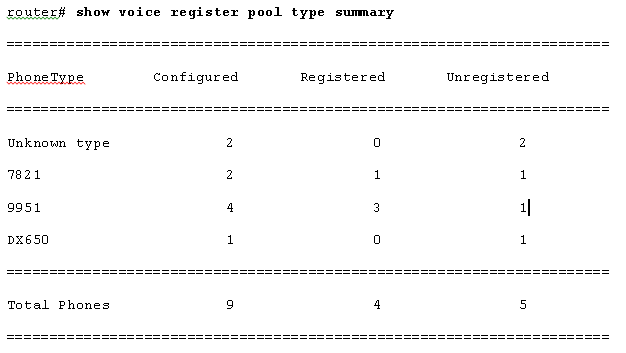

The following is a sample output of the show voice register pool type summary command:
shows ephone summary types
New CLI on CME 10.5 SCCP Side, shows ephone summary types with Display count of SCCP Phones Configured, Registered, Unregistered, Deceased and other state for each SCCP Phone
Usage Guidelines
Use this command to view the count of the phones configured, registered and unregistered in the SCCP mode.
Examples

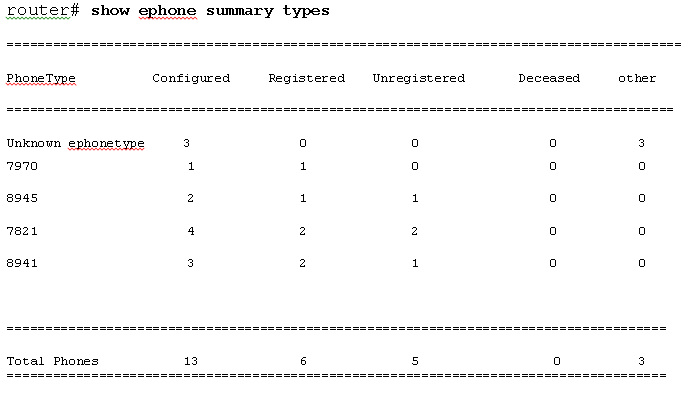

The following is a sample output of the show ephone summary types command:
show ephone summary brief
Display the details of all the SCCP phones sorted by their respective phone type
Usage Guidelines
The command output displays the status, IP address, and MAC address of the SCCP phones.
Examples

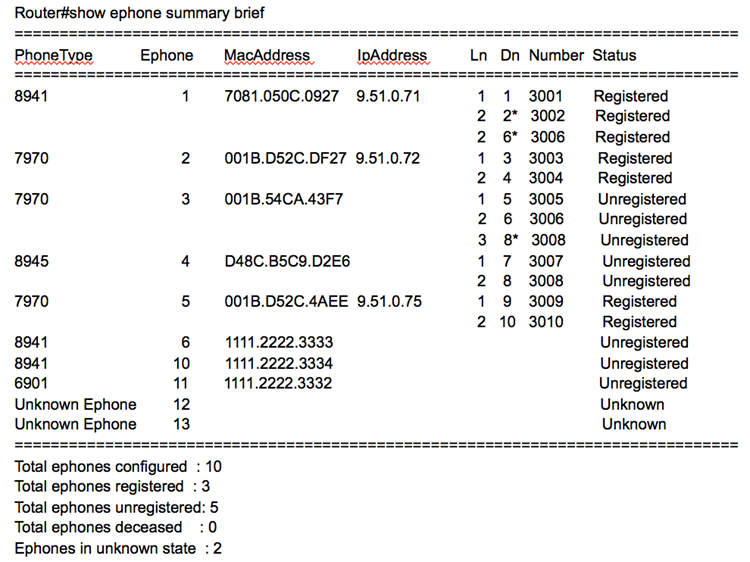

The following is sample output of the show ephone summary brief command.
