REST Element in CVP Call Studio 11.6 - Commas stripped out of the JSON response body

[lisa.ferraro]

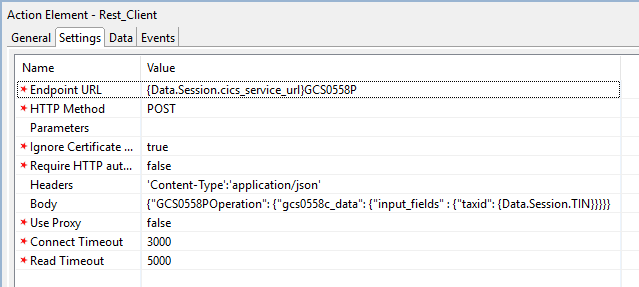

We are using the REST Client element to call a service that returns JSON.  I am trying to parse a JSON response where we have to use POST to call the service.  It appears I am unable to parse the response.  When I write the response to the activity log, there are not any commas between output fields. When I test with Postman, the response contains the commas.  Would the REST Client element be stripping the commas off the response or do I have something incorrect when calling the service (screen shot of element below)?  When I enter the response that is in the Activity log on http://jsonpath.com/, it errors until I add the commas between the output fields.

Activity Log:

{"GCS0558POperationResponse":{"gcs0558c_data":{"output_fields":{"excp_msg":"SUCCESSFUL ""excp_number":0"verified":"Y"}}}}

Postman:

{

    "GCS0558POperationResponse": {

        "gcs0558c_data": {

            "output_fields": {

                "excp_msg": "SUCCESSFUL                                                                                                              ",

                "excp_number": 0,

                "verified": "Y"

            }

        }

    }

}

[david.macias]

I don't have a POST endpoint which returns any long JSON at my disposel, but I do have a GET which returns a massive JSON string and I see the commas. I did this through the same CVP Studio you're running. If you put that element in it's own application and do a debug session, do you see the right data in the debug? I'm wondering if the issue is with the write to log.

david

[lisa.ferraro]

Thanks David!

I forget about the debug functionality in Call Studio.  Great idea to set up a separate debug application that I can move code in and out of.

The response body displays correctly with the commas when I debug the element.  So my Set Value element is not parsing response correctly. Maybe I have the syntax incorrect?  I verified the path displays the value using http://jsonpath.com/.

localProviderExcpMsg:

importPackage(com.audium.server.cvpUtil);
var jsonResponse = {Data.Element.Call_Provider_CICS_Service.response_body}
var path = "GCS0558POperationResponse.gcs0558c_data.output_fields.excp_msg"
var result = JSONPathUtil.eval(jsonResponse, path);

result //return the result of the JSONPathUtil.eval into the local variable.

localProviderExcpNumber:

importPackage(com.audium.server.cvpUtil);
var jsonResponse = {Data.Element.Call_Provider_CICS_Service.response_body}
var path = "GCS0558POperationResponse.gcs0558c_data.output_fields.excp_number"
var result = JSONPathUtil.eval(jsonResponse, path);

result //return the result of the JSONPathUtil.eval into the local variable.

localProviderVerified:

importPackage(com.audium.server.cvpUtil);
var jsonResponse = {Data.Element.Call_Provider_CICS_Service.response_body}
var path = "GCS0558POperationResponse.gcs0558c_data.output_fields.verified"
var result = JSONPathUtil.eval(jsonResponse, path);

result //return the result of the JSONPathUtil.eval into the local variable.

[david.macias]

If you're still having issues with the parsing of the JSON this person seems to have had the exact same question as you. https://community.cisco.com/t5/contact-center/cvp-set-value-element-json-parse-array-child/td-p/3912467

david

[david.macias]

Also maybe try this:

var jsonResponse = {Data.Element.Call_Provider_CICS_Service.response_body}
var path = "$.GCS0558POperationResponse.gcs0558c_data.output_fields.excp_msg"
var result = JSONPathUtil.eval(jsonResponse, path);

String(result);

david

[lisa.ferraro · Accepted solution]

Thanks David!

I forget about the debug functionality in Call Studio.  Great idea to create a separate application to move code into for debugging.

The response body displays correctly with the commas in the debugger.

I finally determined my issue when trying to populate session variables from the Set Value element I was using to parse the response body.  I was referencing Element Data, thinking the variables would be created there, instead of using the Local Variables.

[david.macias]

Very glad you figured it out and yeah the debug functionality is pretty nice in Studio. I rarely use it, but should definitely spend more time with it as it makes testing so much faster.

david
