Cisco call handler

I have configured a system call handler were able to upload greetings. What I am trying to achieve is to transfer a call to an external number once a greeting is played where no caller input is required for this transfer. The caller does not have to press any button for this transfer to happen. A quick response will be greatly appreciated.

3 Replies 3

Edit Greeting>After Greeting.





Screenshot 2021-07-17 at 5.57.33 PM.png





Response Signature


Nithin, In my case I do not have a mailbox. I want to it transfer to an external number and I do not know where to input this 800 number. Under the drop-down menu, it only existing numbers which are programmed in cucm.

Create another call handler, On the main call handler after greeting select the second call handler. (For shared example i use operator call handler to transfer call to extensions)

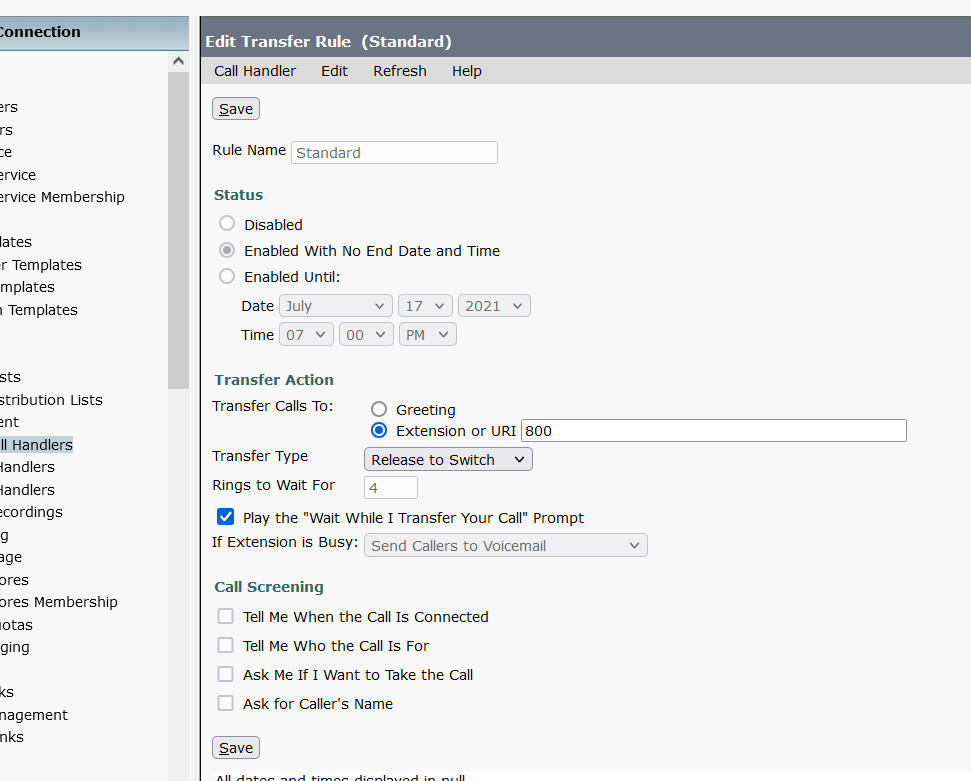

On operator call handler transfer rules i change Transfer Calls To: "Extension or URI where i provide the extension number.






Note:- Transferring calls to CUCM may fail due to unity restriction table. you may  need to modify the restriction tables.



Edit Restriction Table Basics (Default Transfer)
