A few thing, number one it's very bad to have this as it turns off all security in the SBC.
voice service voip ip address trusted list ipv4 0.0.0.0 0.0.0.0
You are advised to change this to list allowed IPs, individual or networks, that is allowed to communicate with the SBC. This list would normally hold all your CM CPE nodes and the IPs from where you expect to see traffic coming from your service provider.
Secondly you have not turned on the Cube functionality in your router, you'll do that with this command "mode border-element", save the config and then reboot the router.
Apart from this if all you use is SIP calls you do not need these.
allow-connections h323 to h323 allow-connections h323 to sip allow-connections sip to h323
Or these
dtmf-relay h245-alphanumeric h245-signal
I do agree with @b.winter that you'll need to work some on your dial peers as they are quite badly constructed, for one it's very bad practice to have a destination pattern that matches ".T" as that literary means any call. Also on inbound dial peers you should not have any session target defined as that is use in the outbound direction. Advice you to read this great document on how call routing works in IOS. In Depth Explanation of Cisco IOS and IOS-XE Call Routing - Cisco
When you do rework your dial peers it is advised to have the setup as @b.winter outlined and to use information in the VIA header to match the inbound dial peer. Also please note that you should not have a destination pattern towards your CM that is the same as you would have to your service provider as that will cause all sort of bad things for you. If all you want to do is to pass calls that originate from CM to the ITSP and the reverse, ie calls that comes from your ITSP should be sent to CM, it is adviced to look into using DPG, Dial Peer Group.
@tomou wrote:
Thank you for the prompt feedback.
And you both are correct, this is indeed an ugly and bad config due to the "unique" requirements behind it, LOL.
Anyway, thank you for the advice.
I doubt that there are such unique requirements that merits such a poorly constructed set of dial peers. Can you please outline what is it that is so special that you would need to have it setup in this way? Maybe we can help you with some adjustment on that part.
Based on what you shared earlier I think something along with this could work for you.
voice service voip
ip address trusted list
no ipv4 0.0.0.0 0.0.0.0
ipv4 10.14.3.221
ipv4 10.1.20.2
no allow-connections h323 to h323
no allow-connections h323 to sip
no allow-connections sip to h323
address-hiding
mode border-element
sip
early-offer forced
voice class uri CUCM sip
host ipv4:10.1.20.2
!
voice class uri PSTN sip
host ipv4:10.14.3.221
voice class dpg 10
description From ITSP to CUCM
dial-peer 12
!
voice class dpg 11
description From CUCM to ITSP
dial-peer 9
dial-peer voice 9 voip
description *TO ITSP*
destination-pattern BAD.BAD
session transport tcp tls
voice-class sip bind control source-interface GigabitEthernet0/0/1
voice-class sip bind media source-interface GigabitEthernet0/0/1
srtp
no voice-class sip early-offer forced
!
dial-peer voice 10 voip
description *FROM ITSP*
incoming uri via PSTN
no session target ipv4:10.1.20.2
no destination-pattern 4100
destination dpg 10
voice-class sip bind control source-interface GigabitEthernet0/0/1
voice-class sip bind media source-interface GigabitEthernet0/0/1
dtmf-relay rtp-nte
no vad
no voice-class sip early-offer forced
!
dial-peer voice 11 voip
description *FROM CUCM*
session protocol sipv2
no session target ipv4:10.1.20.2
no incoming called-number .T
destination dpg 11
no session transport tcp tls
no srtp
voice-class sip bind control source-interface GigabitEthernet0/0/0
voice-class sip bind media source-interface GigabitEthernet0/0/0
incoming uri via CUCM
dtmf-relay rtp-nte sip-kpml
no vad
!
dial-peer voice 12 voip
description *TO CUCM*
session protocol sipv2
session target ipv4:10.1.20.2
voice-class codec 1
destination-pattern BAD.BAD
voice-class sip bind control source-interface GigabitEthernet0/0/0
voice-class sip bind media source-interface GigabitEthernet0/0/0
dtmf-relay rtp-nte sip-kpml
no vad

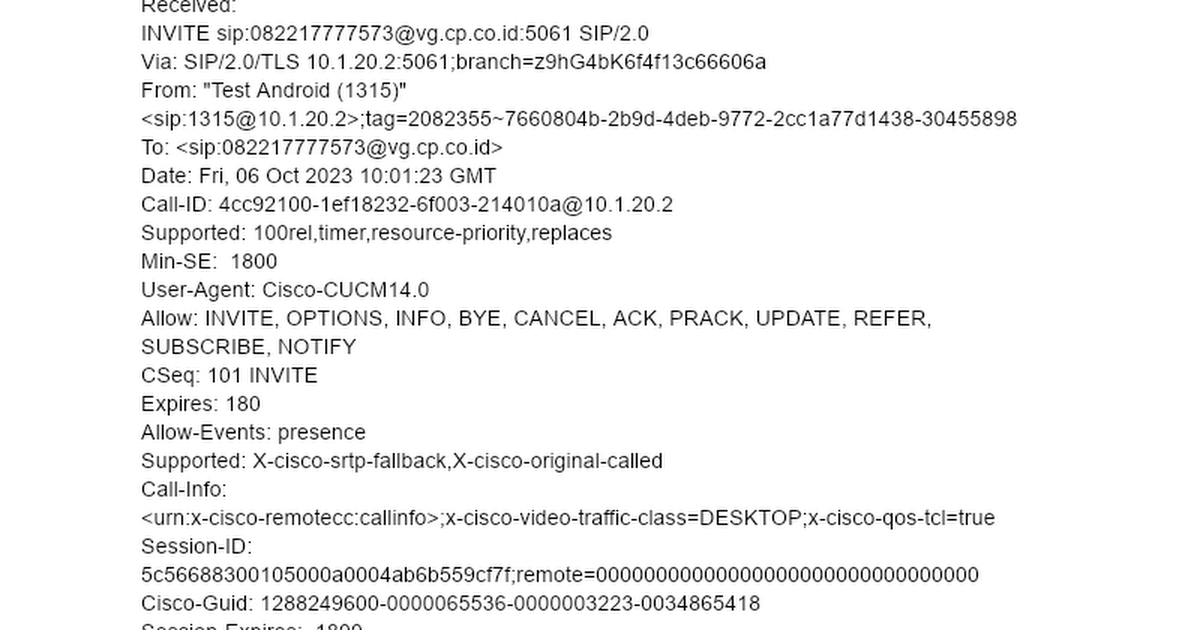

Edit: I missed the part where you use TLS on the inside and not on the outside, so you’ll need to make some adjustments to my suggested configuration.
