How to Effectively route MPLS Data Traffic and Internet on a Router

Dear Community members.,

I am faced with the challenge of  effectively carrying Data traffic  from a remote site to the HQ  using the MPLS VPN Tunnel Such that the  DATA traffic does not flow through the internet link to  HQ.

NB: Both the H Q and Remote sites have mpls VPN  and internet connection from the-same  ISP.

What i want to achieve is that at all time the LAN Segment from the remote Sides should  prefer the MPLS VPN for Data traffic  to the HQ except if the MPLS leg is down then it can you the Internet VPN to push traffic to the HQ.

Please i need solution.

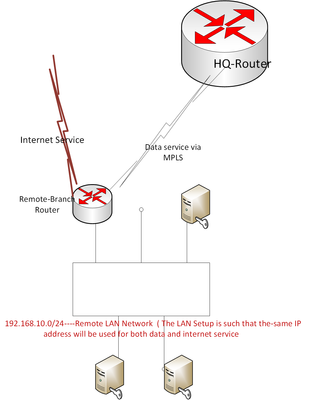

Topology is attached:












3 Replies 3

push default route from your HQ to Branch site,
config default route with high AD for failover.

I don't want the LAN IP add.. to be Natted using the MPLS VPN to the HQ.... However it could be natted for internet Access.





Regards

Only no ip nat outside under mpls interface and router will not NATing any traffic.

Nat will done in HQ.
