FTD 1010 appliance

[Timothy Patrick]

Hello,  I  am new to the Firepower Threat Defense products. I am trying to set up an external NAT that will forward ports to my internal network. I have tested the NAT rules on high ports such inside-x.x.x.x:8000 <-->outside-x.x.x.x:8000 and it seems to work. I  stood up a python webserver listening on port 8000 and was able to connect to it from an external source. If I  change the inside port number to 22,443,80 and do the same NAT inside-x.x.x.x:22 <-->outside-x.x.x.x:8000 and change the access rule to allow those ports it doesn't even see the port opened externally using NMAP. I  have used different internal hosts for testing (Linux box, Switch,Router) both exhibit the same behavior. I  am trying to find a good way to view the logs while I  connect, the syslog data shows allow but I  am wondering if its possibly snort that is blocking the connection somehow. Any help would be appreciated

I  am using the following Model with the listed Code

Model                     : Cisco Firepower 1010 Threat Defense (78) Version 6.6.0 (Build 90)

[Rob Ingram]

Hi,
How is your Acess Control Policy (ACP) configured?
In the ACP you need to use the real port (22) rather than the mapped (8000).

Please provide a screenshot of the relevant ACP and NAT rules.

HTH

[Timothy Patrick]

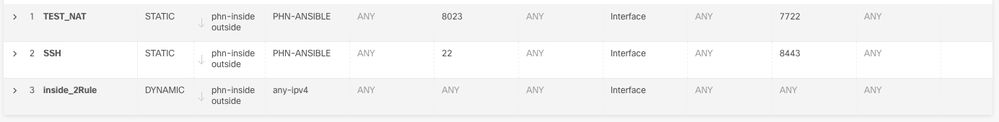

Here are the NAT rules

The external nat for 7722 going to the internal port of 8023 works

Here are the ACLs

Here are the internal ports opened on the test box

PORT     STATE SERVICE

8023/tcp open  unknown

Nmap done: 1 IP address (1 host up) scanned in 0.15 seconds

 nmap x.x.x.x -p 22

Starting Nmap 7.50 ( https://nmap.org ) at 2020-04-18 10:51 MST

Host is up (0.75s latency).

PORT   STATE SERVICE

22/tcp open  ssh

When testing if ports are opened from the outside

[Timothy Patrick]

Where you able to review the ACP?
