BGP route reflector (RR) configuration of two RR servers



We have already learned what route reflector is and why we use route reflector. In this section we will see the configuration of two RR servers and will learn about deep RR behavior.



A route reflector is a BGP router that is allowed to ignore the IBGP loop avoidance rule, such as is allowed to advertise updates received from an IBGP peer to another IBGP peer under specific conditions.

  • If a router receives an IBGP route with the originate-id attribute set to its own router-ID, the route is discarded.
  • If a route reflector (RR) receives a route with a cluster-list attribute containing its cluster-ID, the route is discarded.



In our case we have two RR servers and it will establish neighbor with other servers and clients.

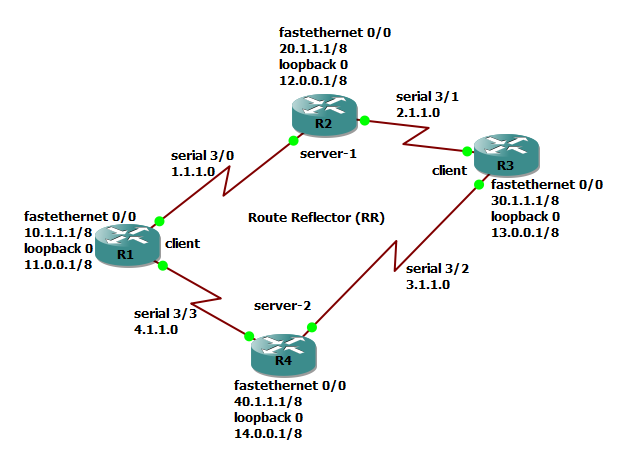

Topology:TWO SERVERS ROUTE REFELTRO.png




CCIE



GOAL:

  • Configure the topology as er the diagram and assign the IP address.
  • Configure EIGRP to provide the reachability between BGP speakers (peer)
  • configure router 2 - 4 RR server and router 1 - 3 client.





R1#show ip interface brief

Interface              IP-Address      OK? Method Status                Protocol

FastEthernet0/0        40.1.1.1        YES manual up                    up

Serial3/0                     1.1.1.1         YES manual up                    up

Serial3/3                     4.1.1.2         YES manual up                    up

Loopback0               11.0.0.1        YES manual up                    up





R2#show ip interface brief

Interface              IP-Address      OK? Method Status                Protocol

FastEthernet0/0        20.1.1.1        YES manual up                    up

Serial3/0                    1.1.1.2         YES manual up                    up

Serial3/1                    2.1.1.1         YES manual up                    up

Loopback0              12.0.0.1        YES manual up                    up





R3#show ip interface brief

Interface              IP-Address      OK? Method Status                Protocol

FastEthernet0/0        30.1.1.1        YES manual up                    up

Serial3/1                    2.1.1.2         YES manual up                    up

Serial3/2                   3.1.1.1         YES manual up                    up

Loopback0              13.0.0.1        YES manual up                    up







R4#show ip interface brief

Interface              IP-Address      OK? Method Status                Protocol

FastEthernet0/0        40.1.1.1        YES manual up                    up

Serial3/2                    3.1.1.2         YES manual up                    up

Serial3/3                   4.1.1.1         YES manual up                    up

Loopback0              14.0.0.1        YES manual up                    up





R1(config)#router eigrp 10

R1(config-router)#network 1.0.0.0

R1(config-router)#network 10.0.0.0

R1(config-router)#network 4.0.0.0

R1(config-router)#network 11.0.0.0

R1(config-router)#auto-summary

R1(config-router)#exit



R2(config)#router eigrp 10

R2(config-router)#network 1.0.0.0

R2(config-router)#network 2.0.0.0

R2(config-router)#network 12.0.0.0

R2(config-router)#network 20.0.0.0

R2(config-router)#auto-summary

R2(config-router)#exit





R3(config)#router eigrp 10

R3(config-router)#network 2.0.0.0

R3(config-router)#network 3.0.0.0

R3(config-router)#network 30.0.0.0

R3(config-router)#network 13.0.0.0

R3(config-router)#no auto-summary

R3(config-router)#exit



R4(config)#router eigrp 10

R4(config-router)#network 3.0.0.0

R4(config-router)#network 4.0.0.0

R4(config-router)#network 40.0.0.0

R4(config-router)#network 14.0.0.0

R4(config-router)#no auto-summary

R4(config-router)#exit



R1#show ip eigrp neighbors

EIGRP-IPv4 Neighbors for AS(10)

H   Address                 Interface              Hold Uptime   SRTT   RTO  Q  Seq

                                                   (sec)         (ms)       Cnt Num

1   4.1.1.1                 Se3/3                    14 00:27:43   54   324  0  12

0   1.1.1.2                 Se3/0                    14 00:30:36   48   288  0  24



R2#show ip eigrp neighbors

EIGRP-IPv4 Neighbors for AS(10)

H   Address                 Interface              Hold Uptime   SRTT   RTO  Q  Seq

                                                   (sec)         (ms)       Cnt Num

1   2.1.1.2                 Se3/1                    14 00:29:24   60   360  0  18

0   1.1.1.1                 Se3/0                    12 00:31:07   56   336  0  19







R3#show ip eigrp neighbors

EIGRP-IPv4 Neighbors for AS(10)

H   Address                 Interface              Hold Uptime   SRTT   RTO  Q  Seq

                                                   (sec)         (ms)       Cnt Num

1   3.1.1.2                 Se3/2                    13 00:28:44   64   384  0  11

0   2.1.1.1                 Se3/1                    10 00:29:46   58   348  0  25

R3#



R4#show ip eigrp neighbors

EIGRP-IPv4 Neighbors for AS(10)

H   Address                 Interface              Hold Uptime   SRTT   RTO  Q  Seq

                                                   (sec)         (ms)       Cnt Num

1   4.1.1.2                 Se3/3                    11 00:28:53   53   318  0  20

0   3.1.1.1                 Se3/2                    10 00:29:01   45   270  0  19



R1(config)#router  bgp 100

R1(config-router)#neighbor 12.0.0.1 remote-as 100

R1(config-router)#neighbor 12.0.0.1 update-source loopback 0



R1(config-router)# neighbor 14.0.0.1 remote-as 100

R1(config-router)# neighbor 14.0.0.1 update-source loopback 0



R1(config-router)#network 10.0.0.0

R1(config-router)#no auto-summary

R1(config-router)#no synchronization

R1(config-router)#exit



R2(config)#router bgp 100



R2(config-router)#neighbor 11.0.0.1 remote-as 100

R2(config-router)#neighbor 11.0.0.1 update-source loopback 0

R2(config-router)#neighbor 11.0.0.1 route-reflector-client



*Jan 23 13:47:51.839: %BGP-5-ADJCHANGE: neighbor 11.0.0.1 Down RR client config change

*Jan 23 13:47:51.843: %BGP_SESSION-5-ADJCHANGE: neighbor 11.0.0.1 IPv4 Unicast topology base removed from session  RR client config change



*Jan 23 13:47:52.999: %BGP-5-ADJCHANGE: neighbor 11.0.0.1 Up



R2(config-router)#neighbor 13.0.0.1 remote-as 100

R2(config-router)#neighbor 13.0.0.1 update-source loopback 0

R2(config-router)#neighbor 11.0.0.1 route-reflector-client



R2(config-router)#neighbor 14.0.0.1 remote-as 100

R2(config-router)#neighbor 14.0.0.1 update-source loopback 0

R2(config-router)#neighbor 14.0.0.1 route-reflector-client



R2(config-router)#network 20.0.0.0

R2(config-router)#no auto-summary

R2(config-router)#no synchronization

R2(config-router)#end





R3(config)#router bgp 100

R3(config-router)#neighbor 12.0.0.1 remote-as 100

R3(config-router)#neighbor 12.0.0.1 update-source loopback 0



*Jan 23 13:50:42.831: %BGP-5-ADJCHANGE: neighbor 12.0.0.1 Up



R3(config-router)#neighbor 14.0.0.1 remote-as 100

R3(config-router)#neighbor 14.0.0.1 update-source loopback 0



R3(config-router)#network 30.0.0.0

R3(config-router)#no auto-summary

R3(config-router)#no synchronization

R3(config-router)#end





R4(config)#router bgp 100



R4(config-router)#neighbor 11.0.0.1 remote-as 100

R4(config-router)#neighbor 11.0.0.1 update-source loopback 0

R4(config-router)#neighbor 11.0.0.1 route-reflector-client



R4(config-router)#neighbor 12.0.0.1 remote-as 100

R4(config-router)#neighbor 12.0.0.1 update-source loopback 0

R4(config-router)#neighbor 12.0.0.1 route-reflector-client



R4(config-router)#neighbor 13.0.0.1 remote-as 100

R4(config-router)#neighbor 13.0.0.1 update-source loopback 0

R4(config-router)#neighbor 13.0.0.1 route-reflector-client



R4(config-router)#network 40.0.0.0

R4(config-router)#no synchronization

R4(config-router)#no auto-summary

R4(config-router)#end





R2#show ip bgp summary | begin net

3 network entries using 432 bytes of memory

4 path entries using 320 bytes of memory

2/2 BGP path/bestpath attribute entries using 272 bytes of memory

1 BGP rrinfo entries using 24 bytes of memory

0 BGP route-map cache entries using 0 bytes of memory

0 BGP filter-list cache entries using 0 bytes of memory

BGP using 1048 total bytes of memory

BGP activity 3/0 prefixes, 5/1 paths, scan interval 60 secs



Neighbor        V           AS MsgRcvd MsgSent   TblVer  InQ OutQ Up/Down  State/PfxRcd

11.0.0.1        4          100      25      26        4    0    0 00:19:31        0

13.0.0.1        4          100      22      23        4    0    0 00:16:41        1

14.0.0.1        4          100      15      12        4    0    0 00:04:00        2





R4#show ip bgp summary | begin network

3 network entries using 432 bytes of memory

4 path entries using 320 bytes of memory

2/2 BGP path/bestpath attribute entries using 272 bytes of memory

1 BGP rrinfo entries using 24 bytes of memory

0 BGP route-map cache entries using 0 bytes of memory

0 BGP filter-list cache entries using 0 bytes of memory

BGP using 1048 total bytes of memory

BGP activity 3/0 prefixes, 7/3 paths, scan interval 60 secs



Neighbor        V           AS MsgRcvd MsgSent   TblVer  InQ OutQ Up/Down  State/PfxRcd

11.0.0.1        4          100      13      19       11    0    0 00:07:48        0

12.0.0.1        4          100      15      18       11    0    0 00:06:46        2

13.0.0.1        4          100      13      16       11    0    0 00:06:16        1



R2#show ip bgp 30.1.1.1

BGP routing table entry for 30.0.0.0/8, version 3

Paths: (2 available, best #2, table default, RIB-failure(17))

  Advertised to update-groups:

     2

  Refresh Epoch 2

  Local, (Received from a RR-client)

    13.0.0.1 (metric 2297856) from 14.0.0.1 (14.0.0.1)

      Origin IGP, metric 0, localpref 100, valid, internal

      Originator: 13.0.0.1, Cluster list: 14.0.0.1

      rx pathid: 0, tx pathid: 0

  Refresh Epoch 1

  Local

    13.0.0.1 (metric 2297856) from 13.0.0.1 (13.0.0.1)

      Origin IGP, metric 0, localpref 100, valid, internal, best

      rx pathid: 0, tx pathid: 0x0





R4#show ip bgp 20.1.1.1

BGP routing table entry for 20.0.0.0/8, version 7

Paths: (1 available, best #1, table default, RIB-failure(17))

  Advertised to update-groups:

     2

  Refresh Epoch 2

  Local, (Received from a RR-client)

    12.0.0.1 (metric 2809856) from 12.0.0.1 (12.0.0.1)

      Origin IGP, metric 0, localpref 100, valid, internal, best

      rx pathid: 0, tx pathid: 0x0



(from the above output reveal the fact that prefixe 20.1.1.1/8 were recieved from a route reflector client)



R1#show ip bgp 30.1.1.1

BGP routing table entry for 30.0.0.0/8, version 3

Paths: (2 available, best #2, table default, RIB-failure(17))

  Not advertised to any peer

  Refresh Epoch 1

  Local

    13.0.0.1 (metric 2809856) from 14.0.0.1 (14.0.0.1)

      Origin IGP, metric 0, localpref 100, valid, internal

      Originator: 13.0.0.1, Cluster list: 14.0.0.1

      rx pathid: 0, tx pathid: 0

  Refresh Epoch 1

  Local

    13.0.0.1 (metric 2809856) from 12.0.0.1 (12.0.0.1)

      Origin IGP, metric 0, localpref 100, valid, internal, best

      Originator: 13.0.0.1, Cluster list: 12.0.0.1

      rx pathid: 0, tx pathid: 0x0



(from the above output reveals the originator-ID  and the cluster- list  of prefix 30.1.1.1/8 )
