Nexus switches access list question

[tinhnho123]

Hi Guys,

I have 2 pairs of Nexus switches, each pair at each location. They connect between 2 locations with 2 x layer 3 links, as shown in the diagram.

I configured EIGRP routing for both sites for these 2 pairs. The EIGRP routing works; my question is, how do I allow VLAN 2 (Site 1) to talk to VLAN 3 (Site 2) only and vice versa, and no other VLANs can talk to them?

I did the below, and it doesn't work. I created an ACL below and applied it to interface vlan 2 on both switches of site 1 and interface vlan 3 of both switches of site 2.

Site 1's switch A and B:

ip access-list 2and3
      5 permit ip 192.168.2.0 0.0.0.255 any
    10 permit ip 192.168.3.0 0.0.0.255 any
    15 deny ip any any log

int vlan 2

   ip access-group 2and3 in

Site 2's switch A and B:

ip access-list 2and3
      5 permit ip 192.168.2.0 0.0.0.255 any
    10 permit ip 192.168.3.0 0.0.0.255 any
    15 deny ip any any log

int vlan 3

   ip access-group 2and3 in

Any suggestions?

Thanks.

[Giuseppe Larosa · Accepted solution]

Hello @tinhnho123 ,

>> how do I allow VLAN 2 (Site 1) to talk to VLAN 3 (Site 2) only and vice versa, and no other VLANs can talk to them?

your extended ACLs have to describe this

access-list 102 remark to be applied inbound on SVI Vlan 2

access-list 102 permit ip 192.168.2.0 0.0.0.255 192.168.3.0 0.0.0.255

access-iist 102 deny ip any ny

int vlan 2

ip access-group 102 in

In the same way on SVI vlan3 on second site using

access-list 103 remark to be applied inbound on SVI Vlan 3

access-list 103 permit ip 192.168.3.0 0.0.0.255 192.168.2.0 0.0.0.255

access-iist 103 deny ip any ny

int vlan 3

ip access-group 103 in

ACL 103 permit statement is reversed .

Hope to help

Giuseppe

[tinhnho123]

Thanks. I tried your concept and I can still ping vlan 2 and vlan 3 from other network.

Site 1: Switch A and B

ip access-list 102
     5 permit ip 192.168.2.0 0.0.0.255 192.168.3.0 0.0.0.255
   10 deny ip any any log

interface Vlan2
   ip access-group 102 in

Site 2: Switch A and B

ip access-list 103
     5 permit ip 192.168.3.0 0.0.0.255 192.168.2.0 0.0.0.255
   10 deny ip any any log

interface Vlan3
   ip access-group 103 in

Any thought?

[Giuseppe Larosa]

Hello @tinhnho123 ,

are the Nexus switches the only devices that are connected to both VLANs or there are L3 capable devices in your network ?

the two subnets should not be pingable from other VLANs with the proposed configuration.

Hope to help

Giuseppe

[paul driver]

Hello
SVI Logic
IN= from withIN vlan
OUT = from OUTside vlan

Option 1
SITE 1 & 2
ip access-list extended vlan2-vlan3
Deny ip any 192.168.4.0 0.0.0.255
Deny ip any 192.168.5.0 0.0.0.255
Deny ip any 192.168.6.0 0.0.0.255
Deny ip any 192.168.7.0 0.0.0.255
permit ip any any

int vlan 2 & 3
ip access-group vlan2-vlan3 IN

Option 2
SITE 1
ip access-list extended vlan2-vlan3
Permit ip any 192.168.3.0 0.0.0.255

int vlan 2
ip access-group  vlan2-vlan3 IN

SITE 2
ip access-list extended vlan3-vlan2
Permit ip any 192.168.2.0 0.0.0.255

int vlan 3
ip access-group  vlan3-vlan2 IN

[tinhnho123]

Thanks. I tried option 2 and it still can ping vlan 2 and vlan 3 from other network. so it doesn't work for me.

I am hesitant to try option 1, because now i have more new SVIs on these 4 switches of 2 both sites.

[Giuseppe Larosa]

Hello @tinhnho123 ,

how are you doing the tests ?

You should test from a PC in VLAN x to ping hosts in subnets 192.168.2.0/24 and 192.168.3.0/24. Testing on the Nexus switch itself may lead to different results.

Hope to help

Giuseppe

[tinhnho123]

Hi Giuseppe, I tested from a PC that is on vlan 6.

[MHM Cisco World]

the ACL my colleague share is OK but
I think you apply it in only one NSK,

if the two NSK form VPC you need to apply ACL to both NSK SVI otherwise the traffic will pass

MHM

[paul driver]

Hello

---

@tinhnho123 wrote:

Thanks. I tried option 2 and it still can ping vlan 2 and vlan 3 from other network.

---

You mean you can ping vlan 2/3 for the other vlans correct

Can you post the acls you have presently applied?

sh run int vlan 2 / 3
sh ip access-list xx

[paul driver]

Thanks. I tried option 2 and it still can ping vlan 2 and vlan 3 from other network.

[tinhnho123]

Please see below:

Site 1: switch A
interface Vlan2
no shutdown
ip access-group vlan2-vlan3 in
no ip redirects
ip address 192.168.2.2/24
hsrp 2
preempt
priority 120
timers 5 15
ip 192.168.2.1

ip access-list vlan2-vlan3
10 permit ip any 192.168.3.0 0.0.0.255

Site 1: switch B
interface Vlan2
no shutdown
ip access-group vlan2-vlan3 in
no ip redirects
ip address 192.168.2.3/24
hsrp 2
preempt
priority 120
timers 5 15
ip 192.168.2.1

ip access-list vlan2-vlan3
10 permit ip any 192.168.3.0 0.0.0.255

Site 2: Switch A
interface Vlan3
no shutdown
ip access-group vlan3-vlan2 in
no ip redirects
ip address 192.168.3.2/24

IP access-list vlan3-vlan2
10 permit ip any 192.168.2.0 0.0.0.255

Site 2 : Switch B
interface Vlan3
no shutdown
ip access-group vlan3-vlan2 in
no ip redirects
ip address 192.168.3.3/24

IP access-list vlan3-vlan2
10 permit ip any 192.168.2.0 0.0.0.255

Site1's A & B use vPC, Site 2's A & B use vPC. These switches are running vPC between them.

[MHM Cisco World]

hardware access-list update atomic

can you run this command and check again the ACL

MHM

[tinhnho123]

What does this command below do? Will it change other existing ACLs? I'm a bit worried that by running this command would affect other existing ACLs. Thanks.

hardware access-list update atomic

[MHM Cisco World]

Hi Friend I wait until I add NSK-9K to my LAB to follow your Q
NOW the atomic is sync the ACL from Software into TCAM hardware,
no need to run it now let do some check first

switch# show consistency-checker racl module x <<- do this the result must pass

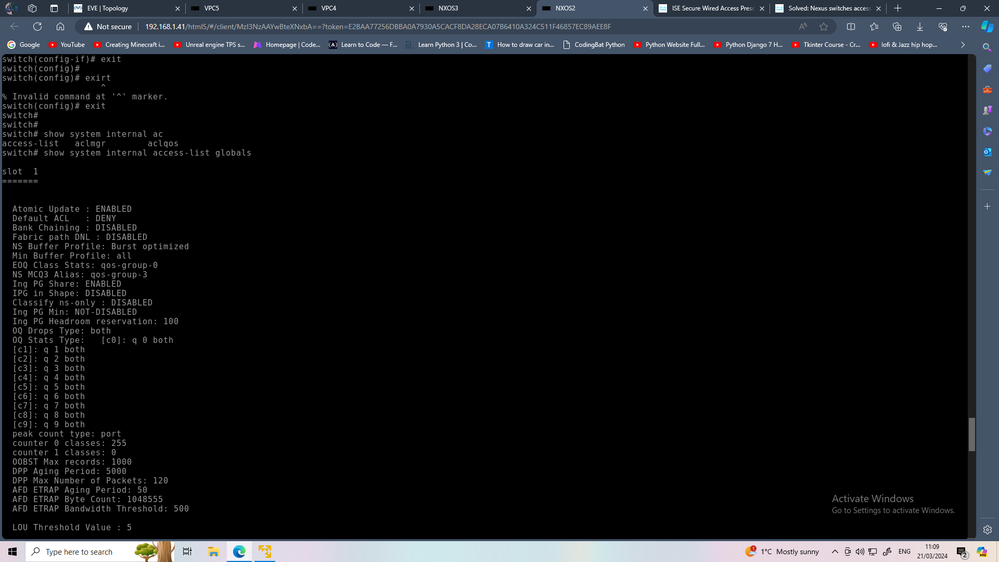

switch# show system internal access-list globals <<- share this

thanks

MHM

[MHM Cisco World]

the atomic is enable by default
