Template Push Error - An element value is not correct : is-vmanaged

[lsoleraa]

Hello Guys,

I'm currently doing a SD-WAN lab and I'm trying to push a device template to my vEdges but I get the following error:

[13-Apr-2023 0:51:04 UTC] Sending configuration to device
[13-Apr-2023 0:51:08 UTC] Device failed to process request. Error Message - application communication failure
Error Path -
/rpc/edit-config/config/viptela-system:system/viptela-system:is-vmanaged

An element value is not correct : is-vmanaged.

Any help on this would be appreciated.

=========================================

NOTES:

- Templates are correctly configured.

- Connection to the device is OK, all ports and protocols are allowed.

- vManage version: 20.6.3.1 (single node)

- vEdge version: 20.6.3

[Kanan Huseynli]

Hi

What does system template contain? What are values you entered manually?

[lsoleraa]

Hi Kanan,

Sorry, I reply until now, I have been really busy for the last few weeks.

On the system template everything is pretty much on its defaults, I attached screenshots.

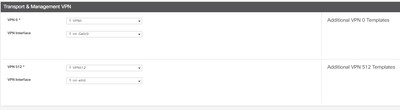

Here are the system template screenshots, but in the Google Drive link you will find all the screenshots of each feature template added to the system template.

https://drive.google.com/drive/folders/1At1gHkHTo_CLckE0jMF6-9mVvXmakJmu?usp=sharing

[Kanan Huseynli]

Sorry, but these folders don't contain system template details. You've attached device template in this topic and in system folder as well.

[lsoleraa]

Oh just noticed that, here are the other screenshots, I hope this time they be the right ones. Everything is on its default.

[Kanan Huseynli]

What variable inputs do you enter for systemIP, sideID, hostname?

In addition, you can try to create custom system template and attach to device template. From these pictures, I don't see an issue, in general.

[lsoleraa · Accepted solution]

Hello Community,

I was able to solve this issue. The root cause is not identified.

But I highly suspect that there was an issue when I generated the Root CA. I think I wrote another organization name by mistake.

I rebuild my SD-WAN lab, started from scratch and now everything is ok. The push template task was successful.

Best regards,

Luis.
