how many span/rspan can we configure in cat6500 running (c6sup2_rp-JSV-M), Experimental Version 12.1

marlon.cabusao.malinao · ‎03-17-2011

i will be creating combination of SPAN and RSPAN on catalyst 6506

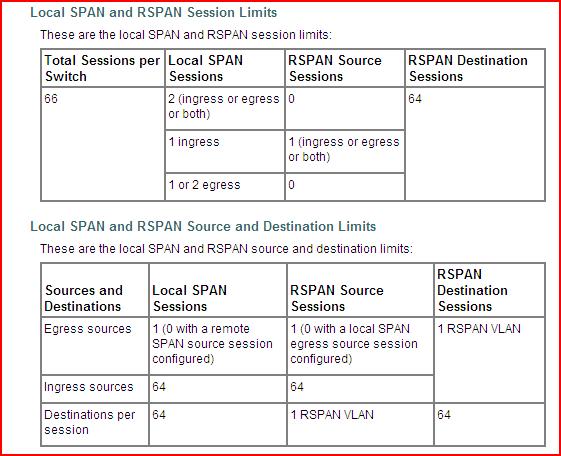

according to the link

http://www.cisco.com/en/US/docs/switches/lan/catalyst6500/ios/12.1E/native/configuration/guide/span.html#wp1036881

can someone help me to explain this. im planning to implement this on two 6506 switches will this work? or do i violate the number of monitor session? sorce span?

sw1

monitor session 1 source interface Fa5/18
monitor session 1 destination interface Fa5/48

monitor session 2 source interface Fa6/34
monitor session 2 destination interface Fa6/16 , Fa6/18

monitor session 3 source interface Fa6/33, Fa0/32
monitor session 3 destination remote vlan 3

monitor session 4 destination interface Fa6/26, Fa4/29
monitor session 4 source remote vlan 4

sw 2

monitor session 1 source vlan 300
monitor session 1 destination interface Fa5/2 , Fa5/48

monitor session 2 source interface Fa6/34
monitor session 2 destination interface Fa6/16 , Fa6/18

monitor session 3 source interface Fa6/33, Fa0/32
monitor session 3 destination remote vlan 4

monitor session 4 destination interface Fa6/26, Fa4/29
monitor session 4 source remote vlan 3

rgds,

marlon

Gaurav Madan · ‎09-07-2012

I think you have created

2 local sessions

1 remote source session

1 remote dest session ..

Please check the o/p of "sho monitor sess all" and check TYPE .
