netflow configration 15.1

[amit bhatnagar]

I was trying to configure netflow on  6509 with image 15.1 but I dont find syntax can someone please advise command sets for netflow config

[Sandeep Choudhary]

HI Amit,

Please check this:

http://www.cisco.com/en/US/products/hw/switches/ps708/products_configuration_example09186a0080721701.shtml

http://www.plixer.com/blog/general/how-do-i-configure-netflow-on-my-cisco-6509-catalyst/

http://www.cisco.com/en/US/docs/ios-xml/ios/fnetflow/configuration/15-mt/fnf-15-mt-book.html

Regards

[amit bhatnagar]

thanks for reply Sandeep but none of the document provides information about confguring netflow on IOS 15.0 versions , I hope I am not missing anything

[Sandeep Choudhary]

HI Amit,

last post also have a link which supports netflow config for 15 ios.

http://www.plixer.com/blog/flexible-netflow/how-to-configure-cisco-6500-sup2t-netflow/

http://www.plixer.com/blog/cisco-netflow/catalyst-6509-netflow-support/

The source documentation for configuring Flexible NetFlow on IOS 15.0SY can be found here:

http://www.cisco.com/en/US/docs/ios-xml/ios/fnetflow/configuration/15-0sy/fnf-15-0sy-book.html

Regards

[amit bhatnagar]

thansk for quick reply sandeep ,

On my 6509 it doesnt give option to configure netflow . Output is below . IOS is 15.1(1)SY1

6509(config)#ip flow?

% Unrecognized command

[Sandeep Choudhary]

use ip flow-export ?

use layer 3 interface to configure ip flow command not layer 2

Regards

[amit bhatnagar]

hello Sandeep thanks for correction  but it still doesnt accept it

6509(config)#ip flow-export ?

% Unrecognized command

But when i do flow it gives few options .

6509(config)#flow ?

  exporter  Define a Flow Exporter

  hardware  Hardware config commands

  monitor   Define a Flow Monitor

  platform  Platform flow commands

  record    Define a Flow Record

[Rolf Fischer]

Amit,

I think traditional NetFlow is not supported in 15.1SY, you have to use Flexible NetFlow:

Flexible Netflow Configuration Guide, Cisco IOS Release 15SY

Unfortunately I don't have any experience with Flexible NetFlow yet but this Cisco Live Session sounds interesting:

https://www.ciscolive.com/online/connect/sessionDetail.ww?SESSION_ID=6010&backBtn=true

"... The new Flexible NetFlow feature is covered in detail. ..."

HTH

Rolf

[Rolf Fischer]

I think traditional NetFlow is not supported in 15.1SY, you have to use Flexible NetFlow:

After comparing the data-sheets I think it actually depends on the supervisor-engine.

I guess you have a 2T?

[amit bhatnagar]

hello Thanks for reply ,

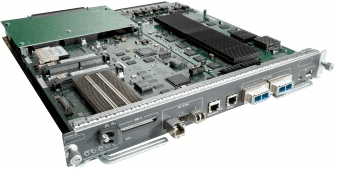

Yes my SUP is VS-SUP2T-10G , so if my understanding is right I cant use Netflow with SUP 2T ?

[Sandeep Choudhary]

HI Amit,

SUP 2T supports Netflow with IOS is 15.1(1)SY1

http://www.cisco.com/en/US/prod/collateral/switches/ps5718/ps708/white_paper_c11-652021.html

check this documents : whcih feature supported on ur IOS.

Regards
