set a IPSec tunel between 2 sites

[nowak-kacper99]

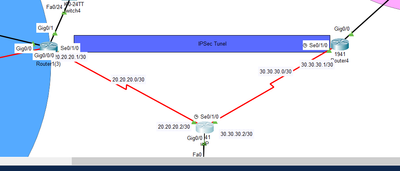

I need help in establishing an IPSec connecting between two sites. i want to set IPSec between r1 and r2

left router is R1 in the outside i've got the network 10.0.0.8/30, 10.66.0.x/24 - x is a diferent serwers in the netowrk,and 192.168.x.0/24 x - its vlans 10,20,30,40,100,220

On the seccond site of ipsec on the R2 ive got network 192.168.120.0/24

[Flavio Miranda]

@nowak-kacper99

Zip the packettracer file and attach here.

[nowak-kacper99]

Sure, here u go

[Flavio Miranda]

@nowak-kacper99

It works. See file attached.

Router#sh crypto isakmp sa

IPv4 Crypto ISAKMP SA

dst src state conn-id slot status

20.20.20.1 30.30.30.1 QM_IDLE 1082 0 ACTIVE

IPv6 Crypto ISAKMP SA

Router#sh crypto ipsec sa

interface: Serial0/1/0

Crypto map tag: mymap, local addr 30.30.30.1

protected vrf: (none)

local ident (addr/mask/prot/port): (192.168.120.0/255.255.255.0/0/0)

remote ident (addr/mask/prot/port): (10.66.0.0/255.255.255.0/0/0)

current_peer 20.20.20.1 port 500

PERMIT, flags={origin_is_acl,}

#pkts encaps: 18, #pkts encrypt: 18, #pkts digest: 18

#pkts decaps: 18, #pkts decrypt: 18, #pkts verify: 18

#pkts compressed: 0, #pkts decompressed: 0

#pkts not compressed: 0, #pkts compr. failed: 0

#pkts not decompressed: 0, #pkts decompress failed: 0

#send errors 1, #recv errors 0

local crypto endpt.: 30.30.30.1, remote crypto endpt.:20.20.20.1

path mtu 1500, ip mtu 1500, ip mtu idb Serial0/1/0

current outbound spi: 0x6391627B(1670472315)

inbound esp sas:

spi: 0xD257BB92(3528965010)

transform: esp-3des ,

in use settings ={Tunnel, }

conn id: 2005, flow_id: FPGA:1, crypto map: mymap

sa timing: remaining key lifetime (k/sec): (4525504/1775)

IV size: 16 bytes

replay detection support: Y

Status: ACTIVE

inbound ah sas:

spi: 0xAA07EDC8(2852646344)

transform: ah-sha-hmac ,

in use settings ={Tunnel, }

conn id: 2005, flow_id: FPGA:1, crypto map: mymap

sa timing: remaining key lifetime (k/sec): (4525504/1775)

IV size: 16 bytes

replay detection support: Y

Status: ACTIVE

inbound pcp sas:

outbound esp sas:

spi: 0x6391627B(1670472315)

transform: esp-3des ,

in use settings ={Tunnel, }

conn id: 2006, flow_id: FPGA:1, crypto map: mymap

sa timing: remaining key lifetime (k/sec): (4525504/1775)

IV size: 16 bytes

replay detection support: Y

Status: ACTIVE

outbound ah sas:

spi: 0x2FE3C1C8(803455432)

transform: ah-sha-hmac ,

in use settings ={Tunnel, }

conn id: 2006, flow_id: FPGA:1, crypto map: mymap

sa timing: remaining key lifetime (k/sec): (4525504/1775)

IV size: 16 bytes

replay detection support: Y

Status: ACTIVE

outbound pcp sas:

[nowak-kacper99]

i dont know what is happened when i try to ping site a to site b or site b to site a the ping is die

and when i try to check
r1 sh crypto ipsec sa i ve got smh like this

Router>en

Router#sh cry

Router#sh crypto ip

Router#sh crypto ipsec sa

interface: Serial0/1/0

Crypto map tag: mymap, local addr 30.30.30.1

protected vrf: (none)

local ident (addr/mask/prot/port): (192.168.120.0/255.255.255.0/0/0)

remote ident (addr/mask/prot/port): (10.66.0.0/255.255.255.0/0/0)

current_peer 20.20.20.1 port 500

PERMIT, flags={origin_is_acl,}

#pkts encaps: 0, #pkts encrypt: 0, #pkts digest: 0

#pkts decaps: 0, #pkts decrypt: 0, #pkts verify: 0

#pkts compressed: 0, #pkts decompressed: 0

#pkts not compressed: 0, #pkts compr. failed: 0

#pkts not decompressed: 0, #pkts decompress failed: 0

#send errors 0, #recv errors 0

local crypto endpt.: 30.30.30.1, remote crypto endpt.:20.20.20.1

path mtu 1500, ip mtu 1500, ip mtu idb Serial0/1/0

current outbound spi: 0x0(0)

inbound esp sas:

inbound ah sas:

inbound pcp sas:

outbound esp sas:

outbound ah sas:

can u tell me why

outbound pcp sas:

[Flavio Miranda]

@nowak-kacper99

You can test this file instead

[nowak-kacper99]

Thanks bro, the ping between the site a and b is working but still the packets is not encrypted if my way to check it is right, and i dont know why

[Flavio Miranda]

this one should be working.

[nowak-kacper99]

yeees bro its working, than u soo much u are great
