which memory output are we suppose to monitor ?

Network_Sarovani · ‎02-08-2022

Hello Experts ,

output of "show platform software status control-processor brief" or output of "show memory processor statistics"

Solarwinds shows used memory is 83% ..So it is taking the value from physical memory ...But actually which memory should we monitor ?

Model : Cisco C9200L
SOFTWARE VERSION : 17.3.3, RELEASE SOFTWARE (fc7)
SOFTWARE IMAGE : CAT9K_LITE_IOSXE

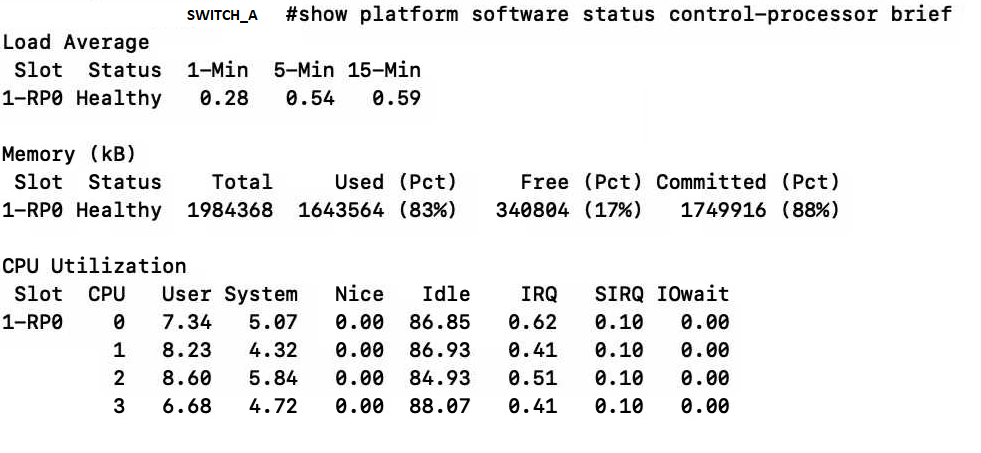

CLI output.PNG

Memory issue.PNG

Leo Laohoo · ‎02-08-2022

Wow. Control Plane is 83% when the "normal" value is around <52%.

Get ready for this is about to crash.

Kindly provide the complete output to the following:

show process memory platform sort location switch active r0

NOTE:

We want to see the output of the "first page" ONLY.
DO NOT POST screenshots.

Network_Sarovani · ‎02-08-2022

but which memory are we suppose to monitor ?

Network_Sarovani · ‎02-08-2022

SWITCH-01#show process memory platform sort location switch active r0
System memory: 1984368K total, 1643368K used, 341000K free,
Lowest: 331720K
Pid Text Data Stack Dynamic RSS Name
----------------------------------------------------------------------
6201 132751 305364 136 116 305364 linux_iosd-imag
4342 1701 127552 144 70500 127552 confd
7841 159 97824 136 104 97824 fed main event
1824 61 67884 136 168 67884 pubd
2295 289 41000 136 40 41000 ndbmand
16722 116 30576 136 104 30576 sessmgrd
17250 5708 28436 136 52 28436 fman_fp_image
20457 166 23200 136 104 23200 dbm
17576 675 23128 136 92 23128 smand
20163 4834 22108 136 44 22108 fman_rp
2820 143 19944 136 92 19944 dmiauthd
28347 7 19452 136 3000 19452 python3
21121 41 15840 136 52 15840 cli_agent
10292 1183 15316 136 104 15316 cmand
6933 263 15020 136 96 15020 sif_mgr
6739 398 9804 136 92 9804 stack_mgr
18469 135 9448 136 32 9448 repm
21421 58 9436 136 32 9436 psd
9740 430 8968 484 48 8968 hman
9527 288 8276 136 92 8276 install_mgr
16072 199 7936 136 32 7936 iomd
8648 91 7496 136 92 7496 keyman
3651 269 7192 136 92 7192 ncsshd
10709 189 7132 136 92 7132 btman
8302 129 6912 136 92 6912 lman
19596 204 6900 136 32 6900 tms
7619 910 6616 308 4808 6616 ncd.sh
10532 57 6592 136 92 6592 bt_logger
1 1059 6532 132 920 6532 systemd
11151 910 6524 308 4748 6524 auto_upgrade_cl
8934 910 6464 308 4612 6464 issu_stack.sh
8323 189 6380 136 92 6380 btman

Leo Laohoo · ‎02-08-2022

Raise a TAC Case and ask them to verify if this is CSCvy12129.

NOTE: When raising a TAC Case, make sure to route the case to Europe or North America desk.
