DF-bit ping test for jumbo frames failing but interface showing jumbo

[support1@lima.co.uk]

Hi all,

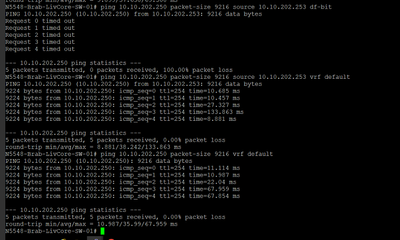

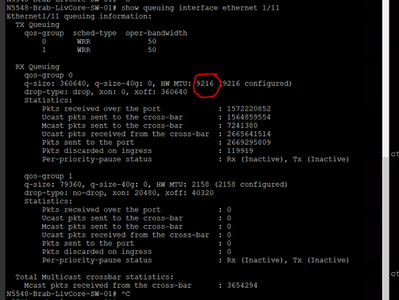

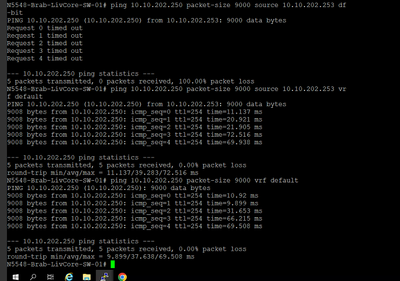

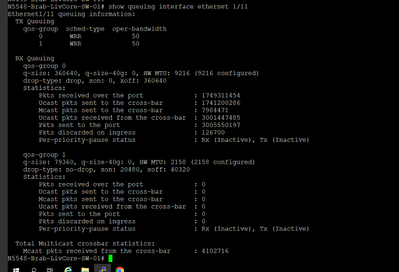

I have configured jumbo frames for Nexus 5Ks and and believe it to be working as I can see jumbo frames increasing on a point to point link. I am unable to test using a df-bit command from the cli as a way to confirm this is working.

Is this command not working as expected a red herring?

[Sergiu.Daniluk]

What you show there is only layer 2 MTU. Did you configured Layer 3 MTU as well (under the SVI or L3 phy interface)?

Take care,

Sergiu
