UCS Guided Workflow Experience

1114
Views
0
Helpful
0
Comments
Buddy Priest
Cisco Employee

Guided workflow allows for automated troubleshooting cases (non-RMA) and RMA creation process for Service Requests (SR) opened for Cisco products.

Customer Benefits:

  • Less troubleshooting - the IRE (Intelligent RMA Experience) Prediction Engine does the thinking and decides if the RMA is needed or not
  • Reduced analysis - details of the RMA analysis are viewed in a convenient RMA Automation widget

Links:

https://mycase.cloudapps.cisco.com/case

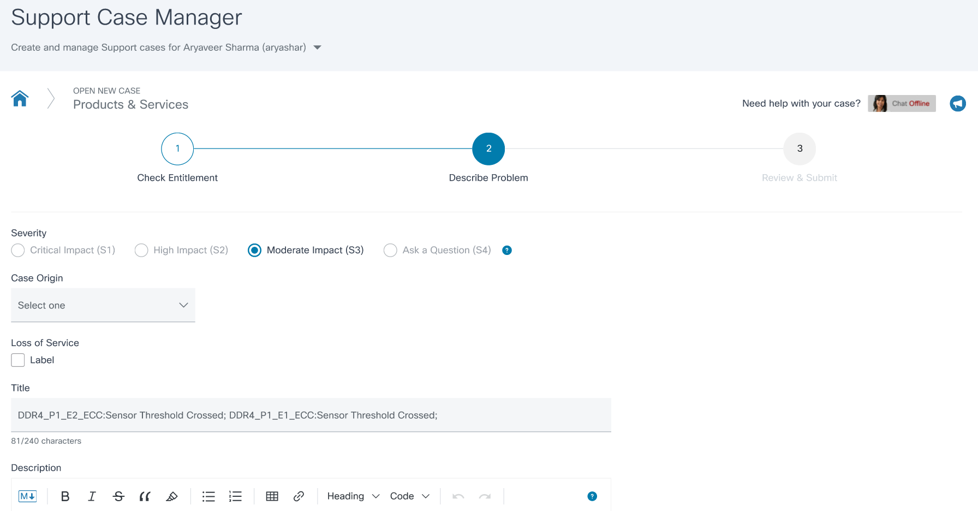

The Guided flow will be initiated following case creation in SCM:




Enter impacted Serial Number:




Select the actual impacted product from the dropdown list provided, if it varies from the product that the entered Serial Number represents:




Enter case "title" to include details describing the issue:

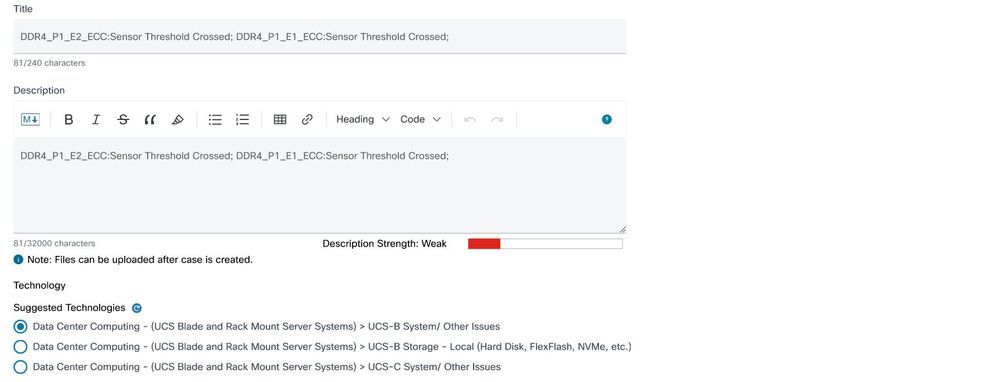

Enter problem description, and choose impacted Technology from suggested list OR manually select technology:

Enter SN for More details.JPG

Select "Virtual Space" as contact preference:

Enter SN for More details 2.JPG

Complete the remaining items on the case, then select "Submit":

Enter SN for More details 3.JPG

The Guided Flow will automatically initiate once the case is submitted:




Select the impacted Module from the provided list, and then select the Type next:

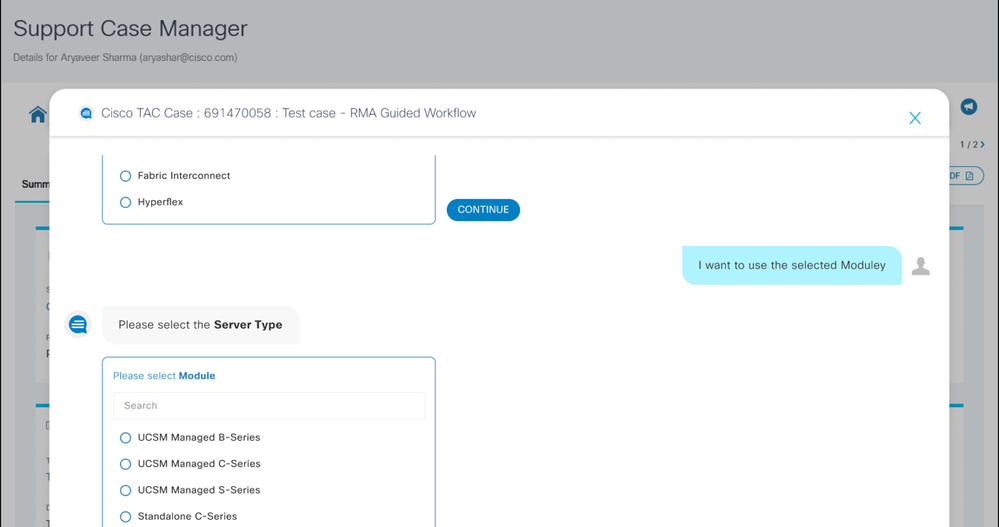

Select the Server Type from the provided list, and then select next:




Select the Failed Component from the provided list, and then select continue:




Upload Server Log files either by dragging and dropping or browsing for files:




Upload UCSM Log files either by dragging and dropping or browsing for files, and submit this as well:




Once files are uploaded, you can choose to proceed with RMA address and detail entry - OR - you can wait for the automation decision before proceeding (recommended):

Wait for Decision.png

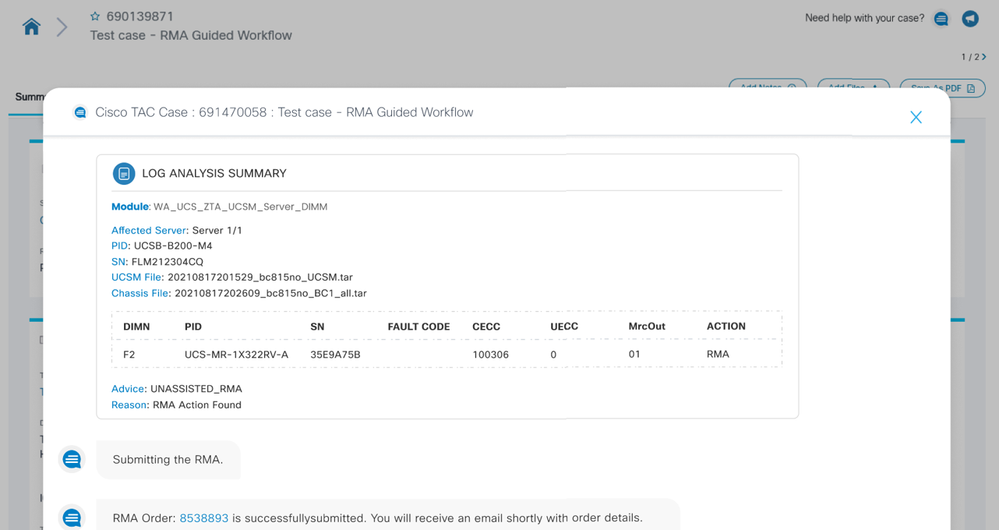

Log file analysis will be provided, and it will include recommended action as proposed by the automation - in this case, the system is recommending Unassisted RMA, which will automatically submit the RMA, and the RMA # will be provided as well through the Guided Flow, which you can open and review by selecting the hyperlink:
