Pushing vEdge list from vManage to vBond/vSmart fails

[bmcgahan]

I have an SD-WAN test lab environment in EVE-NG where I'm hosting the vManage, vSmart, & vBond, along with various vEdge & cEdge routers.

I'm running into some strange issues where the vEdges do form tunnels to each other, I am able to ping site-to-site, but the vManage is complaining that the devices are out of sync. I don't have any templates configured yet or any type of policies, just a very basic config of full mesh for Service VPN 1.

Attached is the specific error message. Any ideas what this means?

The vManage, vBond, and vSmart all have "allow-service all" on their sdwan tunnel interfaces, so netconf should be permitted.

Thanks!

[balaji.bandi]

Make sure the vBond and vSmart configured correctly  - allow-service netconf

check my lab  reference :

https://www.balajibandi.com/?p=2028

[bmcgahan · Accepted solution]

They did have that command. I ended up just restarting the topology and it magically worked

Thanks!

[Kanan Huseynli]

show sdwan control-connections

share from vmanage

[saurabhg]

Hi All,

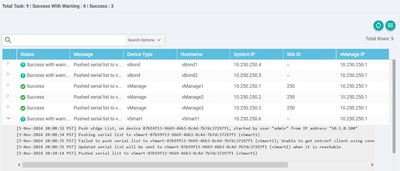

I am facing the same problem in a test lab. When I pushing the serial list to controllers it throws me the same error then after a while it goes to success with warning.

When I am trying to onboard the vEdge with one of the serial it throws me an error that serial is missing in show control connections-history.
Output of show control connections shows nothing and show control connections-history shows the below error towards vBond.

PEER PEER PEER SITE DOMAIN PEER PRIVATE PEER PUBLIC LOCAL REMOTE REPEAT
TYPE PROTOCOL SYSTEM IP ID ID PRIVATE IP PORT PUBLIC IP PORT LOCAL COLOR STATE ERROR ERROR COUNT DOWNTIME
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
vbond dtls 0.0.0.0 0 0 10.1.0.4 12346 10.1.0.4 12346 mpls challenge_resp RXTRDWN SERNTPRES 0 2024-11-05T20:31:20-0800
vbond dtls 0.0.0.0 0 0 10.1.0.4 12346 10.1.0.4 12346 biz-internet challenge_resp RXTRDWN SERNTPRES 1 2024-11-05T20:31:20-0800
vbond dtls 0.0.0.0 0 0 10.1.0.5 12346 10.1.0.5 12346 mpls challenge_resp RXTRDWN SERNTPRES 0 2024-11-05T20:30:40-0800

I have tried rebooting the lab and do not see that memory or CPU is an issue on the Eve VM.

Any Idea how to fix this? Appreciate your help in advance.
