Cant access LAN with OSPF routing

baba_yaga
Level 1
Level 1

I have configured this ospf topology like this below with goals is every node can access each other.

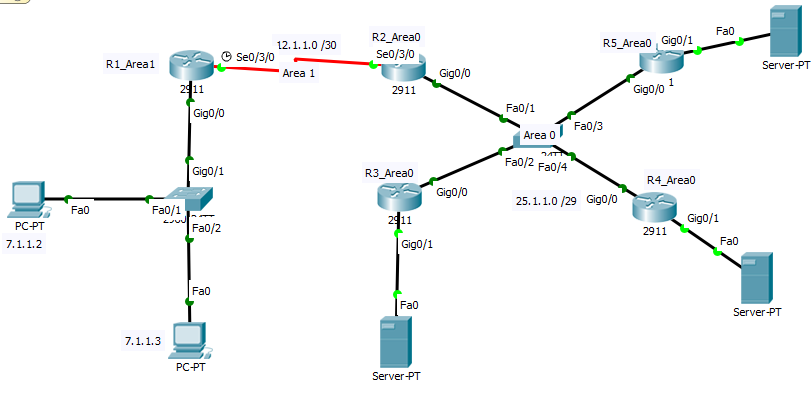

OSPF.PNGPKT file : https://drive.google.com/open?id=1c6g0tgbqI9S2FKl9JREWGPjnKmXWRWmy
Problem : From R1_area1 cant connect to local area network(server) and gateway from each router in OSPF area 0
Do I miss configuration?

Some verification of my configuration this below

Spoiler
R1_Area1#sh ip ospf neighbor


Neighbor ID     Pri   State           Dead Time   Address         Interface
2.2.2.2           0   FULL/  -        00:00:36    12.1.1.2        Serial0/3/0
R1_Area1#sh ip ospf da
R1_Area1#sh ip ospf database
            OSPF Router with ID (1.1.1.1) (Process ID 1)

                Router Link States (Area 1)

Link ID         ADV Router      Age         Seq#       Checksum Link count
1.1.1.1         1.1.1.1         1005        0x80000004 0x00136c 3
2.2.2.2         2.2.2.2         1005        0x80000002 0x004a4b 2

                Summary Net Link States (Area 1)
Link ID         ADV Router      Age         Seq#       Checksum
25.1.1.0        2.2.2.2         1011        0x80000001 0x00cf72
R1_Area1#
Spoiler
R2_Area1_2#sh ip ospf neighbor


Neighbor ID     Pri   State           Dead Time   Address         Interface
3.3.3.3           1   2WAY/DROTHER    00:00:36    25.1.1.3        GigabitEthernet0/0
4.4.4.4           1   FULL/BDR        00:00:36    25.1.1.4        GigabitEthernet0/0
5.5.5.5           1   FULL/DR         00:00:36    25.1.1.2        GigabitEthernet0/0
1.1.1.1           0   FULL/  -        00:00:36    12.1.1.1        Serial0/3/0
R2_Area1_2#sh ip os
R2_Area1_2#sh ip ospf da
R2_Area1_2#sh ip ospf database
            OSPF Router with ID (2.2.2.2) (Process ID 1)

                Router Link States (Area 0)

Link ID         ADV Router      Age         Seq#       Checksum Link count
2.2.2.2         2.2.2.2         1035        0x80000003 0x0062a6 1
5.5.5.5         5.5.5.5         1035        0x80000004 0x004dab 2
4.4.4.4         4.4.4.4         1035        0x80000004 0x00ab70 2
3.3.3.3         3.3.3.3         1026        0x80000006 0x00a450 2

                Net Link States (Area 0)
Link ID         ADV Router      Age         Seq#       Checksum
25.1.1.2        5.5.5.5         1026        0x80000003 0x0032b6

                Summary Net Link States (Area 0)
Link ID         ADV Router      Age         Seq#       Checksum
12.1.1.0        2.2.2.2         1070        0x80000001 0x000a02
7.1.1.0         2.2.2.2         1060        0x80000002 0x0065a6

                Router Link States (Area 1)

Link ID         ADV Router      Age         Seq#       Checksum Link count
2.2.2.2         2.2.2.2         1071        0x80000002 0x004a4b 2
1.1.1.1         1.1.1.1         1071        0x80000004 0x00136c 3

                Summary Net Link States (Area 1)
Link ID         ADV Router      Age         Seq#       Checksum
25.1.1.0        2.2.2.2         1077        0x80000001 0x00cf72
Spoiler
R3_Area0#sh ip ospf neighbor


Neighbor ID     Pri   State           Dead Time   Address         Interface
2.2.2.2           1   2WAY/DROTHER    00:00:39    25.1.1.1        GigabitEthernet0/0
4.4.4.4           1   FULL/BDR        00:00:39    25.1.1.4        GigabitEthernet0/0
5.5.5.5           1   FULL/DR         00:00:39    25.1.1.2        GigabitEthernet0/0
R3_Area0#sh ip os
R3_Area0#sh ip ospf da
R3_Area0#sh ip ospf database
            OSPF Router with ID (3.3.3.3) (Process ID 1)

                Router Link States (Area 0)

Link ID         ADV Router      Age         Seq#       Checksum Link count
2.2.2.2         2.2.2.2         1131        0x80000003 0x0062a6 1
4.4.4.4         4.4.4.4         1131        0x80000004 0x00ab70 2
5.5.5.5         5.5.5.5         1131        0x80000004 0x004dab 2
3.3.3.3         3.3.3.3         1122        0x80000006 0x00a450 2

                Net Link States (Area 0)
Link ID         ADV Router      Age         Seq#       Checksum
25.1.1.2        5.5.5.5         1122        0x80000003 0x0032b6

                Summary Net Link States (Area 0)
Link ID         ADV Router      Age         Seq#       Checksum
12.1.1.0        2.2.2.2         1166        0x80000001 0x000a02
7.1.1.0         2.2.2.2         1156        0x80000002 0x0065a6
Spoiler
R4_area0#sh ip ospf neighbor


Neighbor ID     Pri   State           Dead Time   Address         Interface
2.2.2.2           1   FULL/DROTHER    00:00:37    25.1.1.1        GigabitEthernet0/0
5.5.5.5           1   FULL/DR         00:00:37    25.1.1.2        GigabitEthernet0/0
3.3.3.3           1   FULL/DROTHER    00:00:37    25.1.1.3        GigabitEthernet0/0
R4_area0#sh ip ospf da
R4_area0#sh ip ospf database
            OSPF Router with ID (4.4.4.4) (Process ID 1)

                Router Link States (Area 0)

Link ID         ADV Router      Age         Seq#       Checksum Link count
4.4.4.4         4.4.4.4         1175        0x80000004 0x00ab70 2
2.2.2.2         2.2.2.2         1175        0x80000003 0x0062a6 1
5.5.5.5         5.5.5.5         1175        0x80000004 0x004dab 2
3.3.3.3         3.3.3.3         1166        0x80000006 0x00a450 2

                Net Link States (Area 0)
Link ID         ADV Router      Age         Seq#       Checksum
25.1.1.2        5.5.5.5         1166        0x80000003 0x0032b6

                Summary Net Link States (Area 0)
Link ID         ADV Router      Age         Seq#       Checksum
12.1.1.0        2.2.2.2         1210        0x80000001 0x000a02
7.1.1.0         2.2.2.2         1200        0x80000002 0x0065a6
Spoiler
R5_Area0#sh ip ospf neighbor


Neighbor ID     Pri   State           Dead Time   Address         Interface
2.2.2.2           1   FULL/DROTHER    00:00:33    25.1.1.1        GigabitEthernet0/0
4.4.4.4           1   FULL/BDR        00:00:33    25.1.1.4        GigabitEthernet0/0
3.3.3.3           1   FULL/DROTHER    00:00:33    25.1.1.3        GigabitEthernet0/0
R5_Area0#sh ip ospf da
R5_Area0#sh ip ospf database
            OSPF Router with ID (5.5.5.5) (Process ID 1)

                Router Link States (Area 0)

Link ID         ADV Router      Age         Seq#       Checksum Link count
5.5.5.5         5.5.5.5         1212        0x80000004 0x004dab 2
2.2.2.2         2.2.2.2         1211        0x80000003 0x0062a6 1
4.4.4.4         4.4.4.4         1211        0x80000004 0x00ab70 2
3.3.3.3         3.3.3.3         1202        0x80000006 0x00a450 2

                Net Link States (Area 0)
Link ID         ADV Router      Age         Seq#       Checksum
25.1.1.2        5.5.5.5         1202        0x80000003 0x0032b6

                Summary Net Link States (Area 0)
Link ID         ADV Router      Age         Seq#       Checksum
12.1.1.0        2.2.2.2         1247        0x80000001 0x000a02
7.1.1.0         2.2.2.2         1237        0x80000002 0x0065a6

Thanks in advance



1 Accepted Solution

Accepted Solutions

Deepak Kumar
VIP Alumni
VIP Alumni

Hi,

It is looking a Packet tracer bug. I tested the same configuration in my lab and GNS3. it is working fine. I created another lab in Packet tracer and there is the same issue.



Regards,

Deepak Kumar

Regards,
Deepak Kumar,
Don't forget to vote and accept the solution if this comment will help you!

View solution in original post

4 Replies 4

Predrag Jovic
Level 3
Level 3

Maybe I am missing something, but it should work as it is written. It looks like Packet tracer bug.

When show ip ospf database is issued there should be entry for each route that is advertised into OSPF, however present are only routes between OSPF neighbors (on other hand all routes from the same area are present in routing table).

Solution to go around ping problem (but not to remove root cause itself) would be to configure on ABR:

ip route 0.0.0.0 0.0.0.0 null0

router ospf 1

  default-information originate



Ok thanks for check my pkt file.

Deepak Kumar
VIP Alumni
VIP Alumni

Hi,

It is looking a Packet tracer bug. I tested the same configuration in my lab and GNS3. it is working fine. I created another lab in Packet tracer and there is the same issue.



Regards,

Deepak Kumar

Regards,
Deepak Kumar,
Don't forget to vote and accept the solution if this comment will help you!

Ok thanks, I created again on gns3 and it works.
