Catalyst 2960-Plus 24TC-L Switch - PoE failing

[sthomas123]

Hello,

I have a PoE switch (Catalyst 2960-Plus 24TC-L Switch) and I am trying to power on an AP via PoE to play around with.

However, the switch is refusing to even attempt PoE. On https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst2960x/software/15-0_2_EX/int_hw_components/configuration_guide/b_int_152ex_2960-x_cg/b_int_152ex_2960-x_cg_chapter_0111.html and all other resources it should just be `power inline auto`. However, the command isn't even available:

When I type `show power inline` it says I have 0W avaliable:

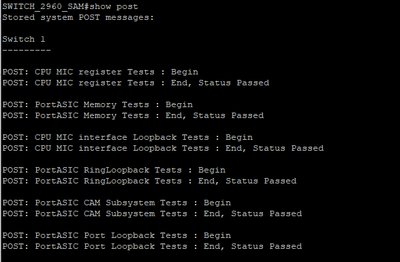

When I type `show post` it doesn't appear to be initialising the PoE "stuff":

Should be supported on my switch according to - https://www.cisco.com/c/en/us/products/collateral/switches/catalyst-2960-plus-series-switches/data_sheet_c78-728003.html

Running latest version on - https://software.cisco.com/download/home/284776534/type/280805680/release/15.2.7E7

c2960-lanbasek9-mz.152-7.E7.bin

Any ideas would be greatly appreciated.

Thanks

[marce1000]

 - FYI : https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst3750/software/troubleshooting/g_power_over_ethernet.html

 M.

[MHM Cisco World · Accepted solution]

Catalyst 2960-Plus 24TC-L

https://www.cisco.com/c/en/us/products/collateral/switches/catalyst-2960-plus-series-switches/data_sheet_c78-728003.html

This model not support PoE check link above

[sthomas123]

Oh god, doing a stupid - was slightly confused on my model when I checked data sheet and thought I  had a Cisco Catalyst 2960-Plus 24LC-S. Double checked model and found actual one but never re-checked data sheet.

Great spot. Will accept "MHM Cisco World" as solution but appreciate your input marce1000
